Yamaha ZG02BL Gaming Mixer
A compact mixer with USB interface designed expressly for multiplayer gamers and for game streamers. Quickly adjust your game sound, chat and voice levels on the fly — plus activate voice effects, 3D surround sound and competitive-gaming focus modes, with full customization through a Windows/Mac app.
- Intuitive controls let you quickly manage sound levels and effects in real-time
- Advanced software mic settings and voice effects (compression, limiter, reverb, pitch, radio voice and more) to fine-tune and personalize your voice, plus one-touch buttons for instant activation

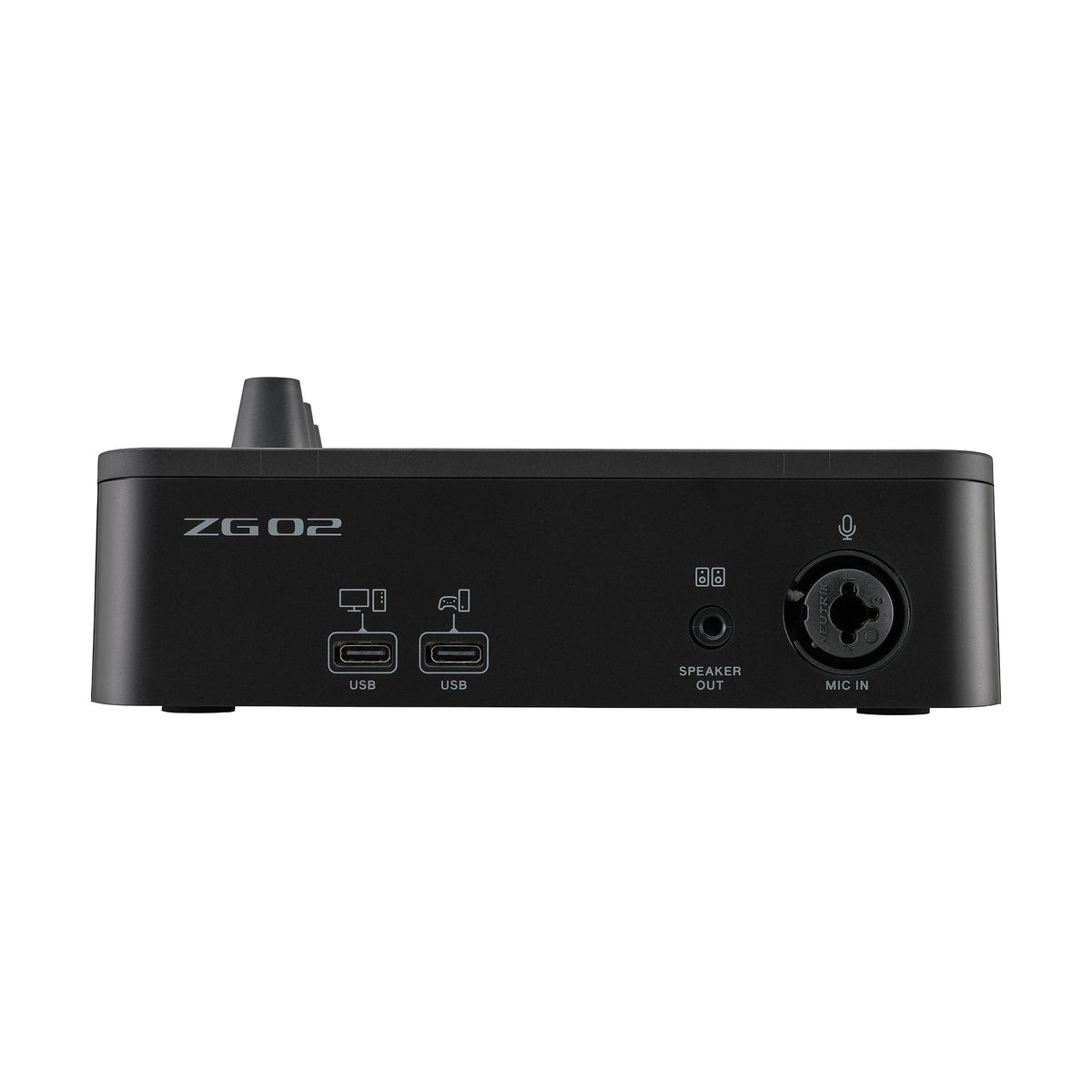

- Supports gaming headsets with a built-in mic or a dedicated mic via the rear-panel XLR / TRS combo jack; 48V phantom power for condenser mics
- 3D surround sound and unique gaming focus modes immerse you in the action and give you an edge up on your competitors
- Versatile USB interface for Windows/Mac computers that allows audio to be assigned to two different apps (e.g., Discord and OBS), plus a dedicated USB connection for PlayStation® 4/5 or Nintendo Switch™
- ZG Controller app for Windows/Mac lets you go deep with settings and customizations that can be saved and quickly recalled from one-touch buttons on the mixer
- Compatible with the Elgato Stream Deck family of controllers
| ZG02 | ||
|---|---|---|
| Input Channels | Microphone | 1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously |
| USB | 2 - Virtual devices (Voice, Streaming) | |
| Output Channels | PHONES | 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones) |
| MONITOR OUT | 1 - Stereo mini (Speaker out) | |
| USB | 2 - Virtual devices (Voice, Speaker) | |
| Functions | MUTE button x 1, Monitor output select button x 1, Effect preset button x 3 (Voice x 2, Game x 1) | |
| On-board processors | DSP | ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects. Detailed settings made via the ZG Controller software. |
| USB | USB Audio | USB (PC) Sampling Frequency: 48 kHz, Bit Depth: 24-bit / USB (Console) Sampling Frequency: 48 kHz, Bit Depth: 16-bit |
| USB DC Power input | 5 V DC, 900 mA | |
| Power requirements | DC 5 V, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 162 mm (6.4") |
| H | 61 mm (2.4") | |
| D | 113 mm (4.4") | |
| Net weight | 0.6 kg (1.32 lbs) | |
| Included Accessories | USB 2.0 cable (USB-A to USB-C) 1.5 m ×1, Start Guide × 1, Safety Guide × 1 | |
| Others | Operating Temperature: 0 to + 40 ℃ (32 to 104 °F) | |
