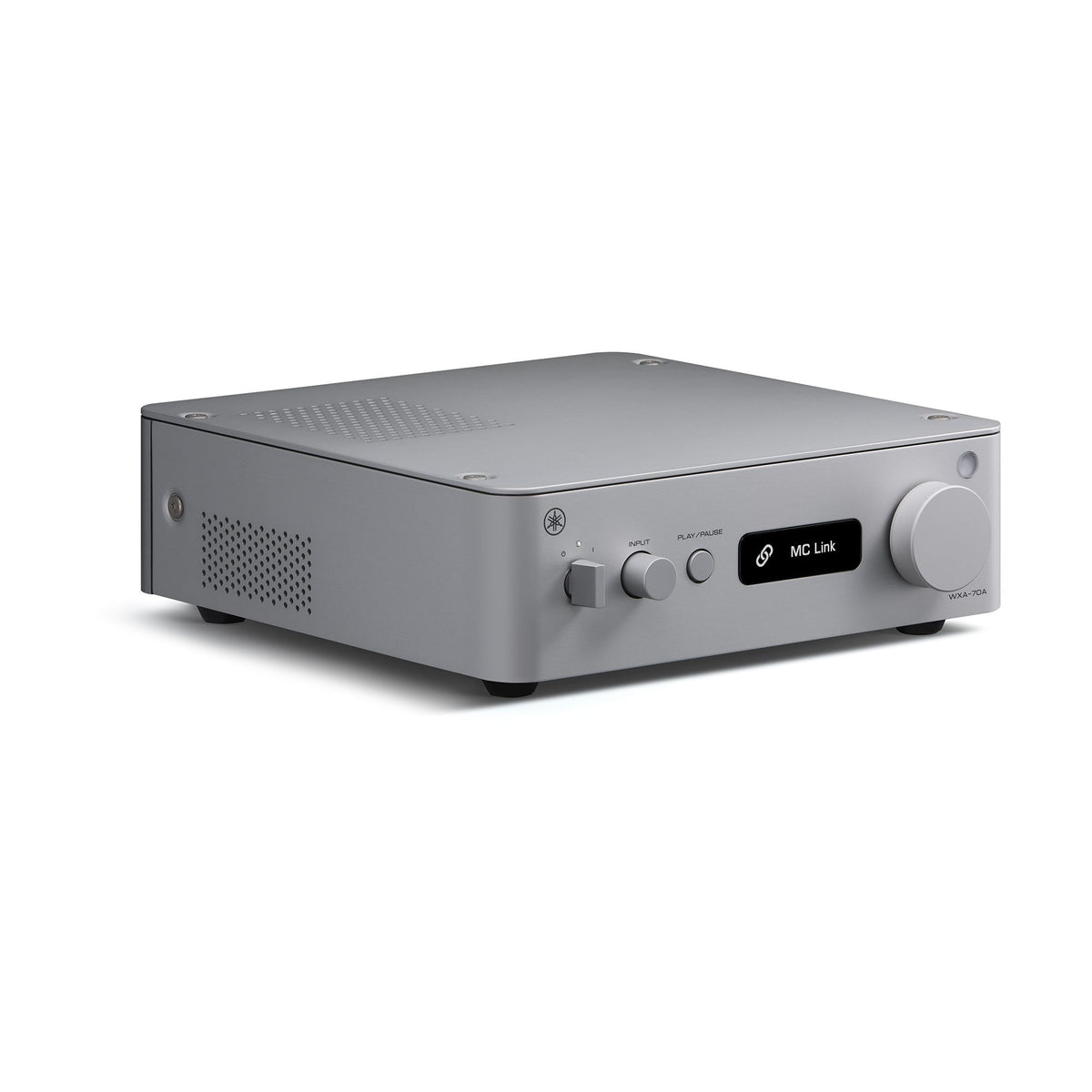

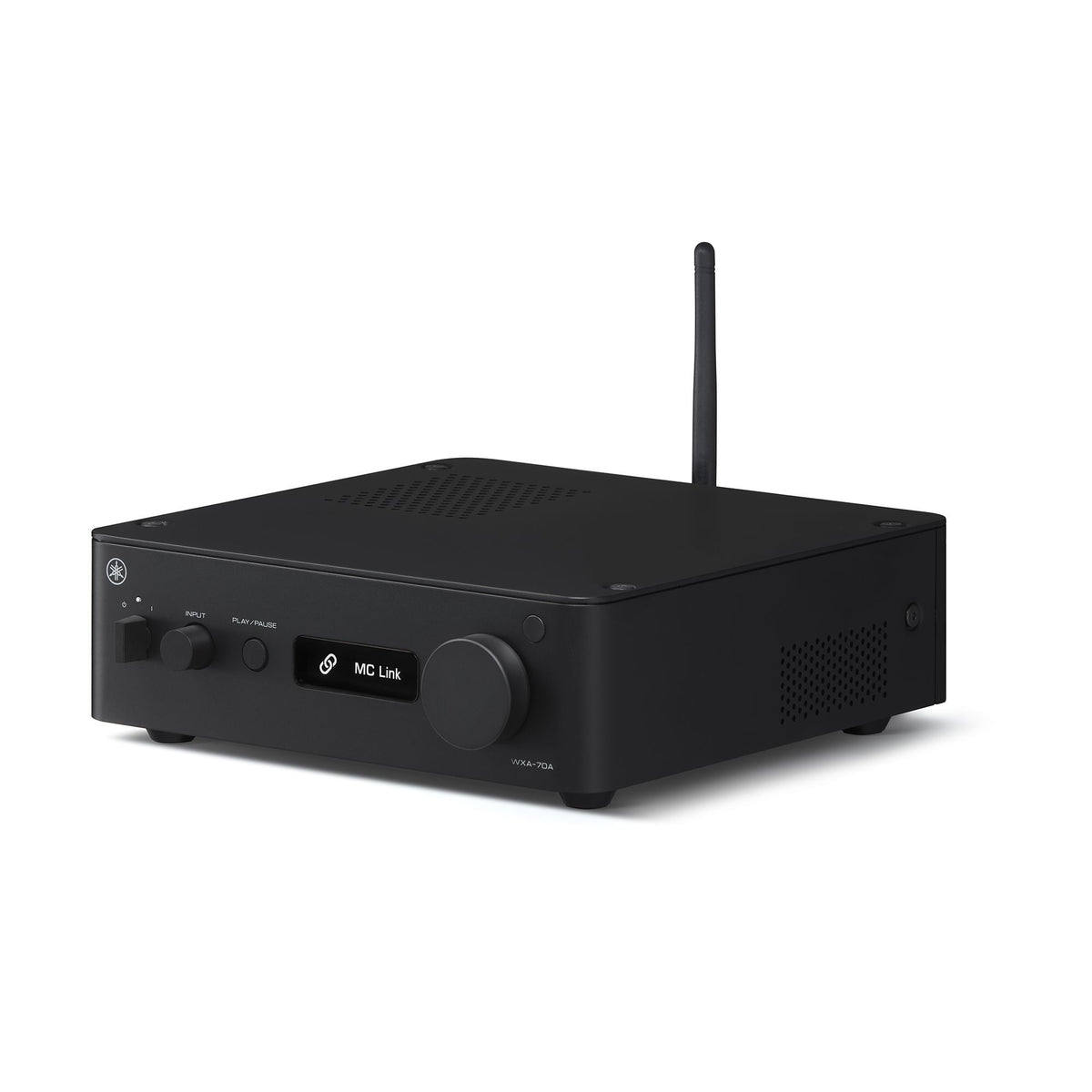

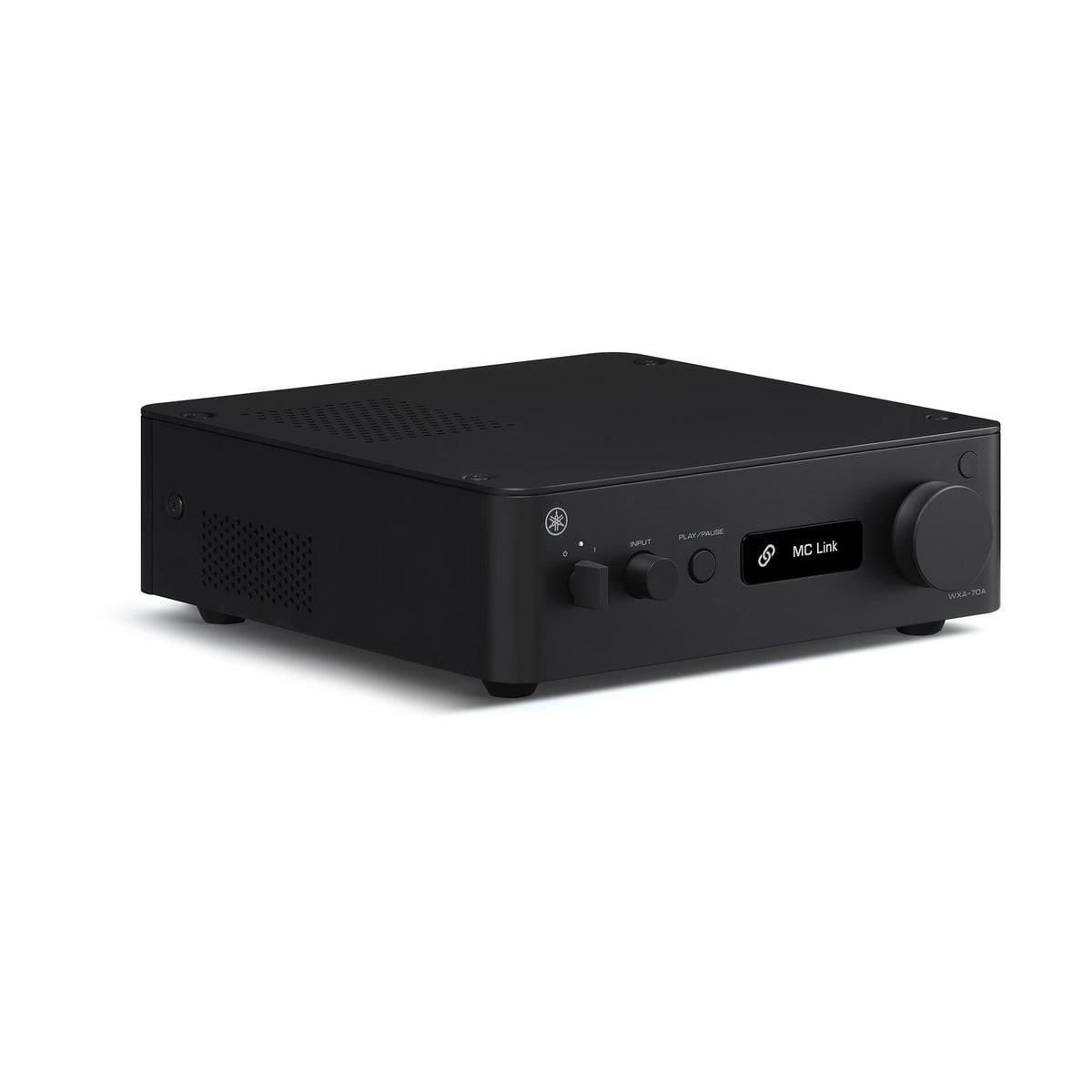

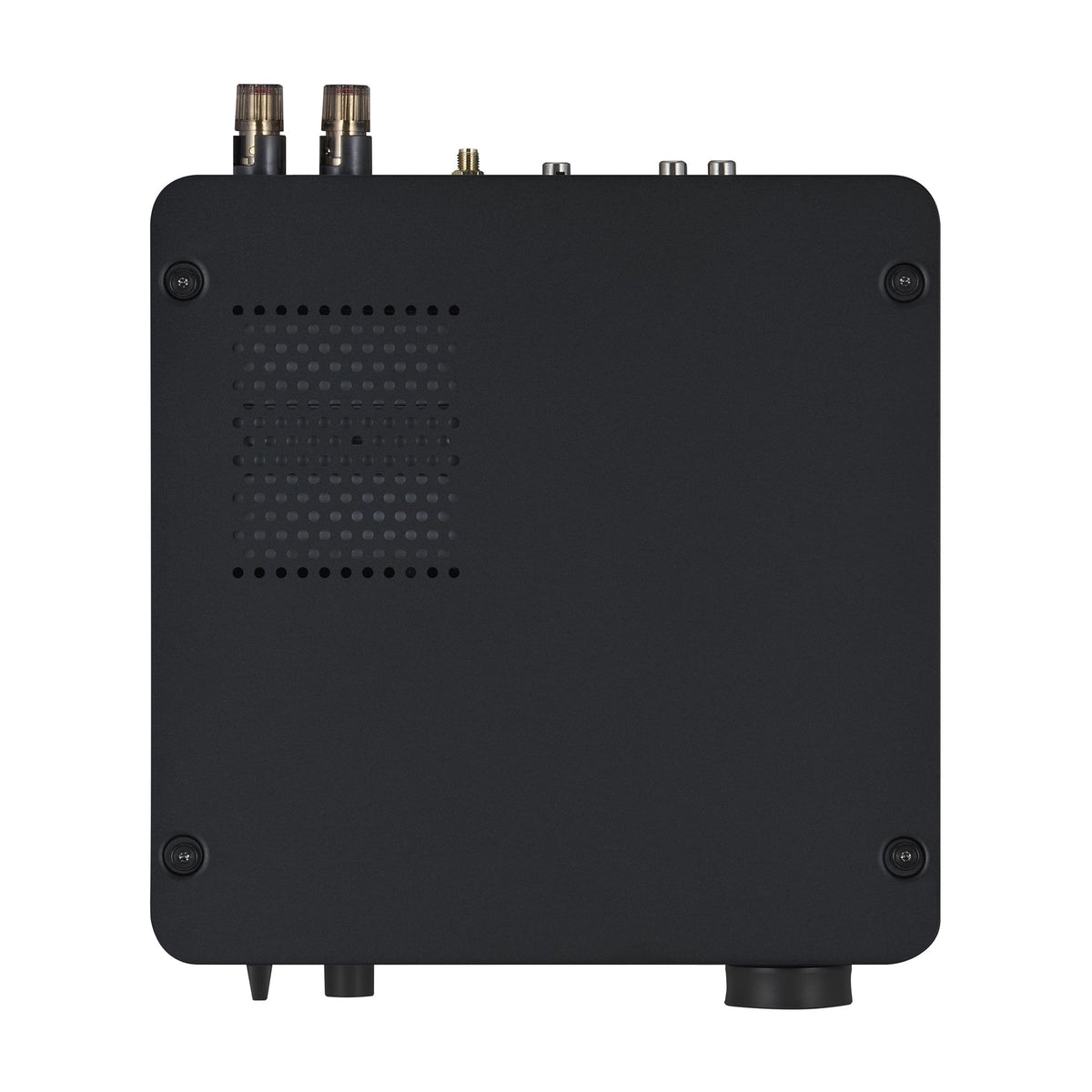

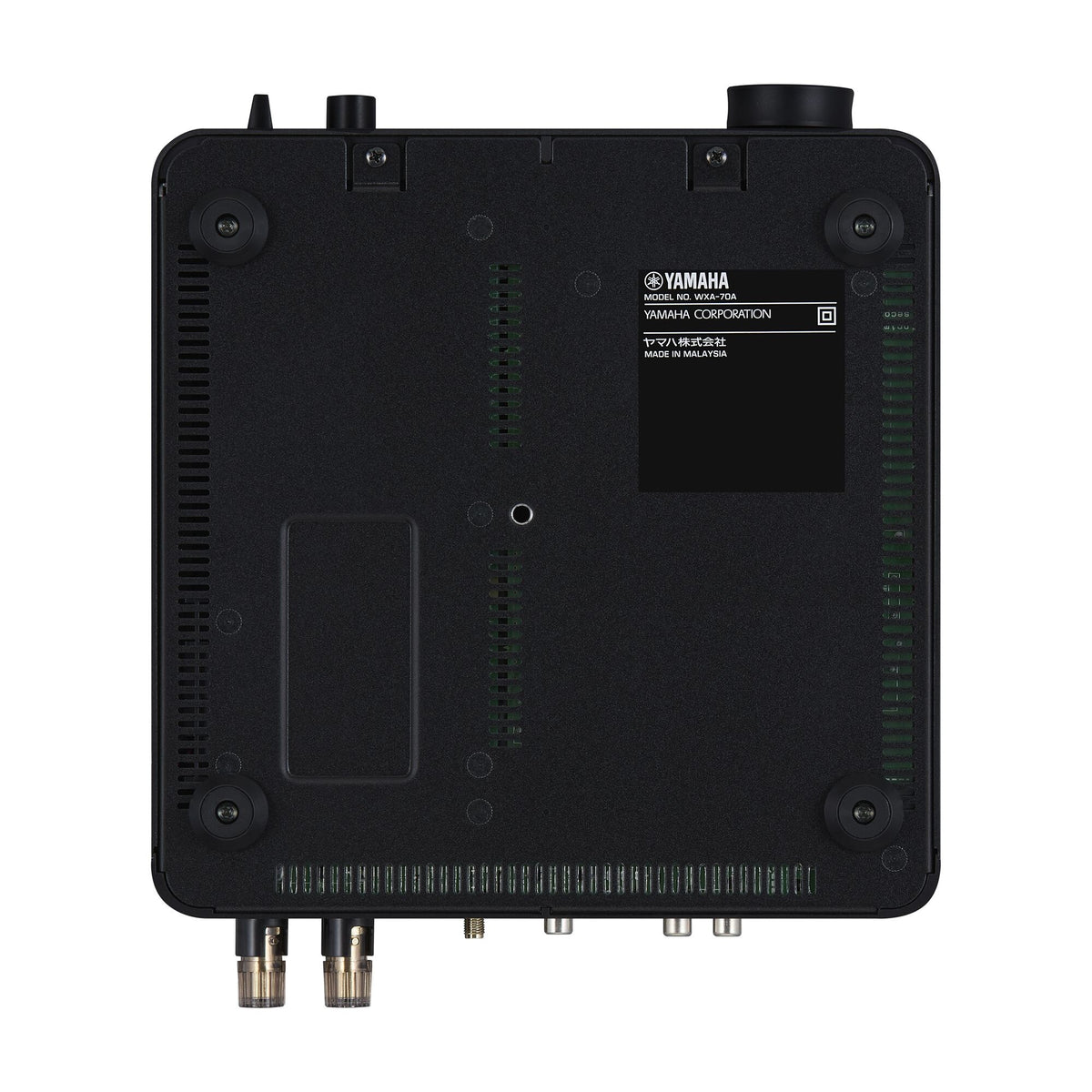

Yamaha WXA-70A Compact Streaming Amplifier
Product Details
A compact wireless streaming amp that transforms your favorite speakers into a modern Hi-Fi listening system, bringing together music streaming, TV audio, and connected sources with intuitive control through the MusicCast app.
Features
- Authentic Hi-Fi sound and premium build quality in a compact form factor
- High-performance Wi-Fi streaming with AirPlay, Google Cast™, Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready and more
- HDMI eARC for high-quality TV sound, plus inputs for a turntable and CD player
- MusicCast multi-room audio with intuitive app control
- YPAO room calibration optimizes sound for your space
- Integration-ready with Control4 compatibility, web setup, IR input, 12V trigger and more
Specifications
| WXA-70A | ||
|---|---|---|
| Wireless Streaming Amplifier | ||

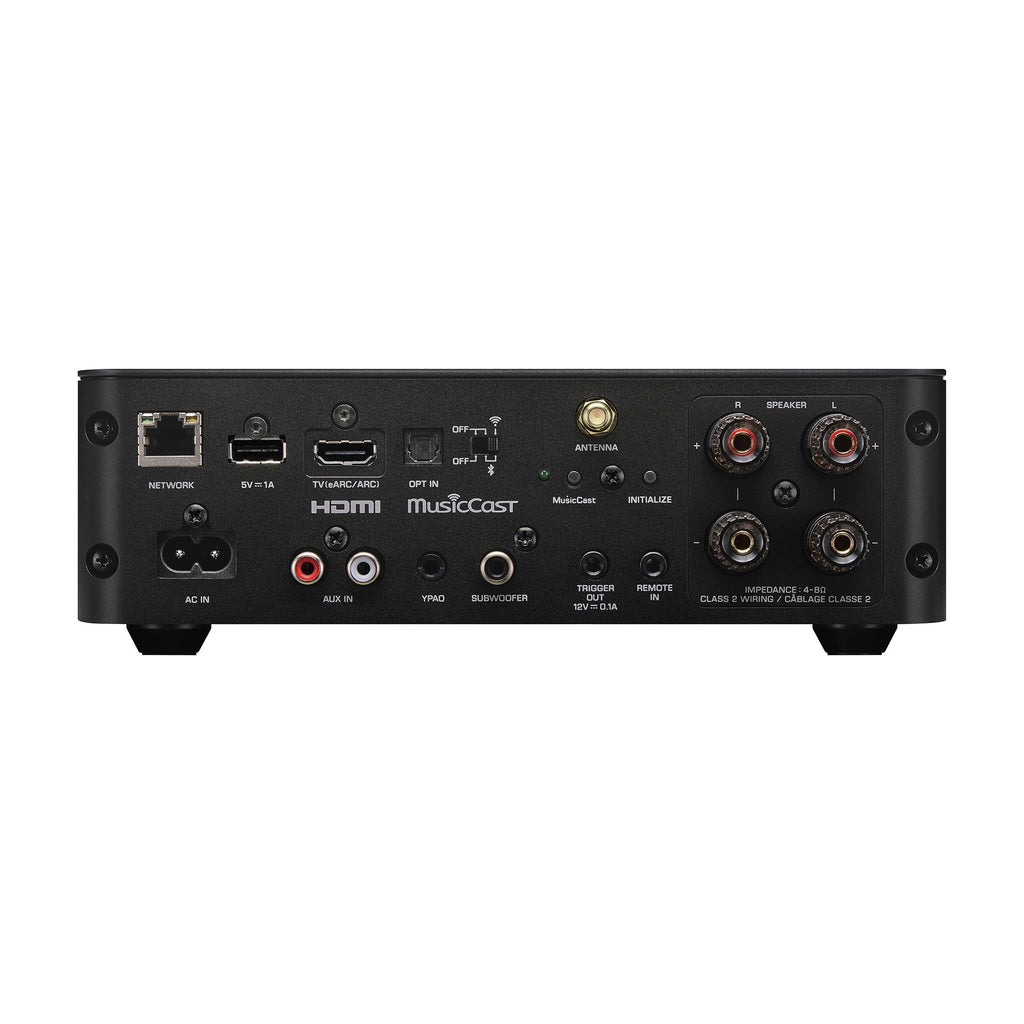

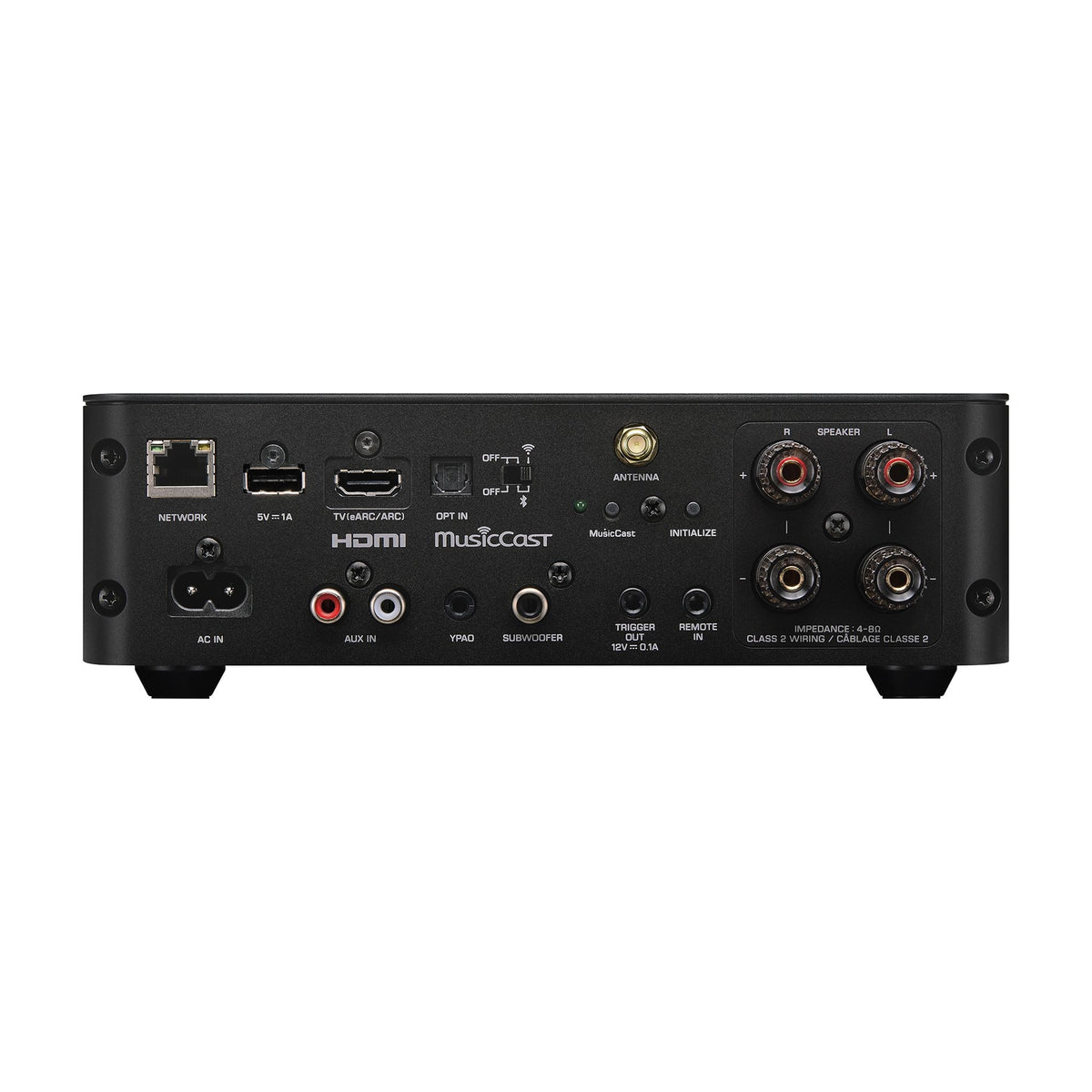

| Audio In / Out | Input: Analog input (RCA), Optical, HDMI (CEC/eARC/ARC), USB Type-A (Music Playback/Firmware Update) / Output: Speaker terminals, Subwoofer output | |
| Control (Trigger) In / Out | 0 / 1 | |
| Remote In / Out | 1 / 0 | |
| Specifications | ||
| Output Power | 120V / 230V models: 55 W + 55 W (8 ohms, 20 Hz - 20 kHz, 0.06% THD, 2-ch driven), 105W ＋ 105W (4Ω, 2ch Driven 20-20kHz 0.06%THD), 165 W (4Ω, 1 kHz, 10% THD, 1-ch driven) / 220 V models: 60 W + 60 W (6Ω, 20 Hz - 20 kHz, 0.06% THD, 2-ch driven), 90 W + 90 W (4Ω, 20 Hz - 20 kHz, 0.06% THD, 2-ch driven), 150 W (4Ω, 1 kHz, 10% THD, 1-ch driven) / 100 V models: 50 W + 50 W (6Ω, 20 Hz - 20 kHz, 0.06% THD, 2-ch driven), 70 W + 70 W (4Ω, 20 Hz - 20 kHz, 0.06% THD, 2-ch driven), 115 W (4Ω, 1 kHz, 10% THD, 1-ch driven) | |
| Network section | File Format | MP3, WMA, MPEG-4 AAC, WAV, FLAC, ALAC, AIFF, DSD |
| Wi-Fi | Server, Net Radio, AirPlay, Spotify Connect, TIDAL Connect, Google Cast, Roon Ready, Qobuz Connect | |
| Bluetooth | Yes (SBC/AAC) | |
| YPAO | PEQ, Reflected Sound Control (R.S.C), YPAO Volume | |
| Standby Power Consumption | 2.0 W | |
| Dimensions (W x H x D) | 220 x 73 x 267 mm; 8 5/8" x 2 7/8" x 10 1/2" | |
| Weight | 2.6 kg; 5.7 lb | |

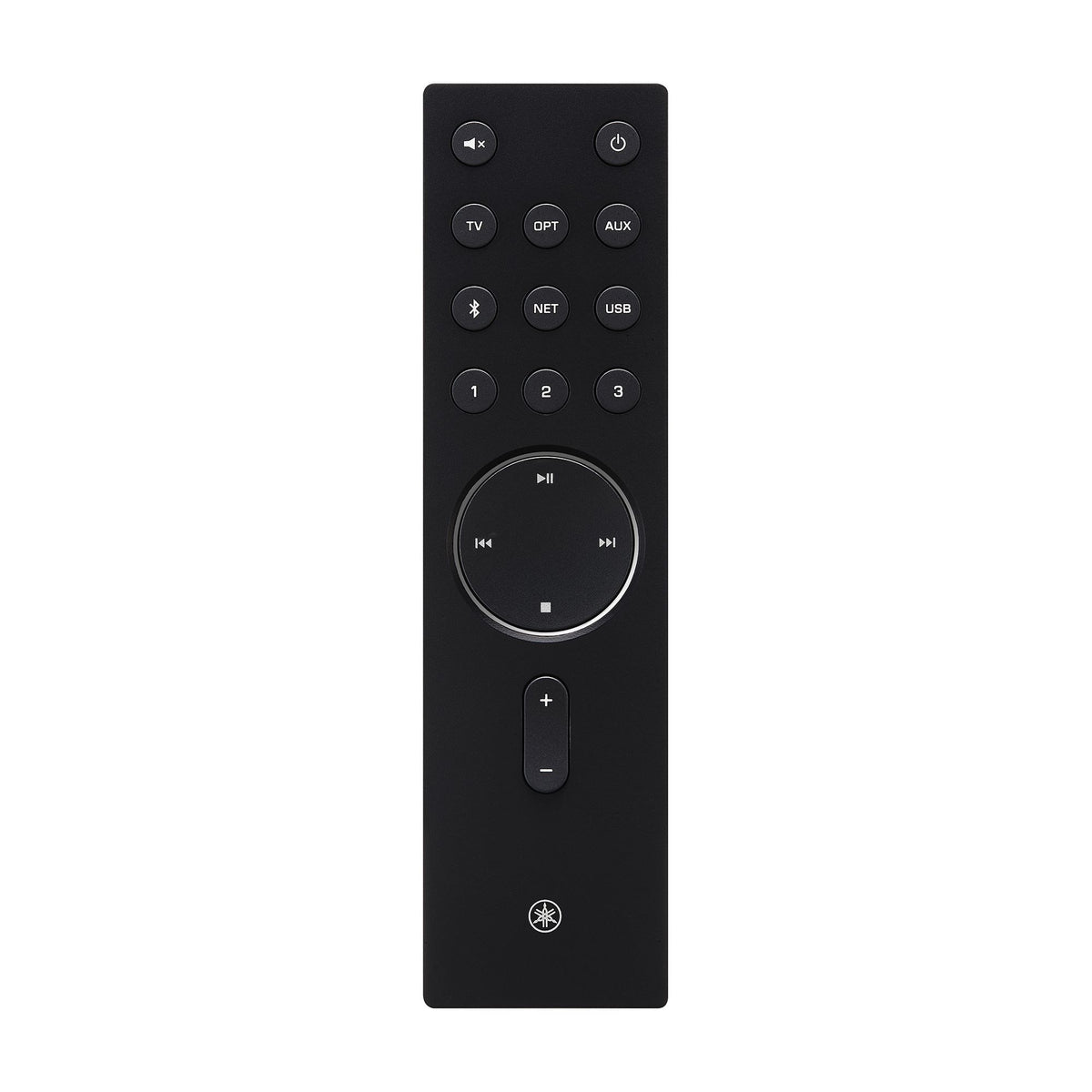

| Accessories | Remote control, Batteries (AAA, LR03, UM-4), Power cable (2 m), YPAO microphone (6 m), Quick guide, Safety guide | |
