Description

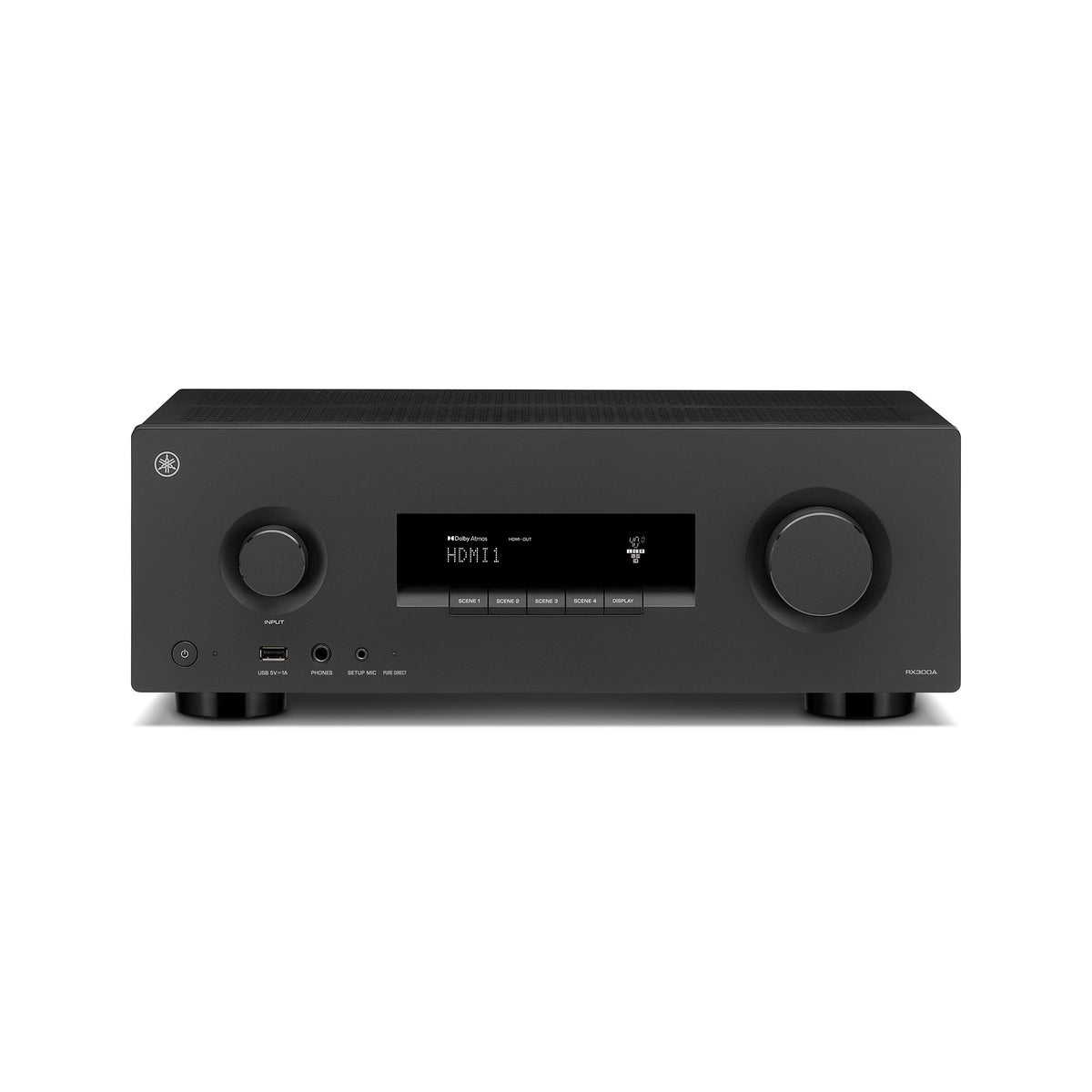

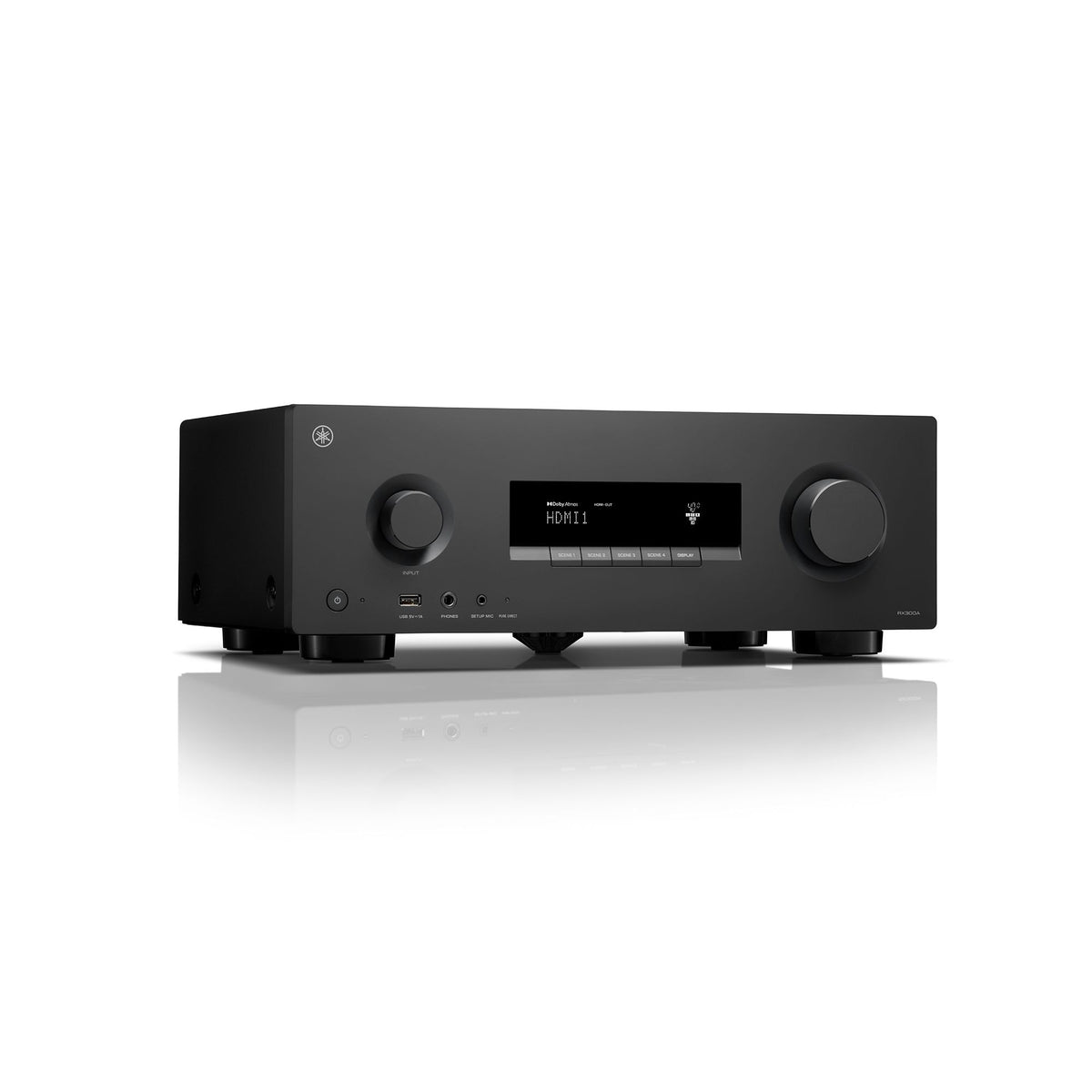

Yamaha RX300ABL 5.2-Channel 8K Home Theater AV Receiver, Black
Beyond the basics, this 5.2-channel home theater AV receiver delivers standout performance and value with Dolby Atmos®, 4K120/8K HDMI, Bluetooth Multipoint and effortless setup.
- 5.2-ch surround sound with 3.1.2-ch flexibility
- Dolby Atmos and DTS Virtual:X® immersive audio
- Next-gen video with 4K120/8K60 HDMI (4-in/1-out) and HDMI eARC
- Advanced HDR support, including Dolby Vision® and HDR10+
- Room Correction automatically optimizes sound for your space
- Bluetooth® Multipoint for seamless switching between two devices
- Scene buttons for instant access to your favorite listening modes
Specifications:
| AV Receiver | ||
|---|---|---|
| Amplification | Channels | 5.2 |
| Decodable Channels | 5.1 | |
| Amp Channels | 5 | |
| Output Power | 70 W (8 ohms, 20 Hz - 20 kHz, 0.09% THD, 2-ch driven) / 145 W (6 ohms, 1kHz, 10% THD, 1ch driven) | |
| Bi-amp Capable | Yes | |
| Audio | Surround Sound Decoding Formats | Dolby Atmos, Dolby True HD, Dolby Digital Plus, Dolby Digital, DTS |
| Surround Sound Post Decoding Formats | Dolby Surround | |
| Network Decoding Formats | - | |
| USB Decoding Formats | MP3, MPEG4-AAC, WMA, WAV | |
| HDMI Decoding Formats | PCM (8ch max) | |
| Sound Modes | Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night | |
| Zone B | Yes | |
| Room Calibration | Room Correction | |
| Other Features | Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync | |
| HDMI | HDMI | 4 Inputs / 1 Output |
| HDMI Features | HDMI 2.1, 8K 60Hz/4K 120Hz, eARC, ARC, VRR / ALLM / QMS, HDCP 2.3, CEC, Auto Lip Sync, Deep Color, x.v. Color, HD audio playback | |
| High Dynamic Range Support | HDR (High Dynamic Range), HDR10+, Dolby Vision, Hybrid Log-Gamma | |

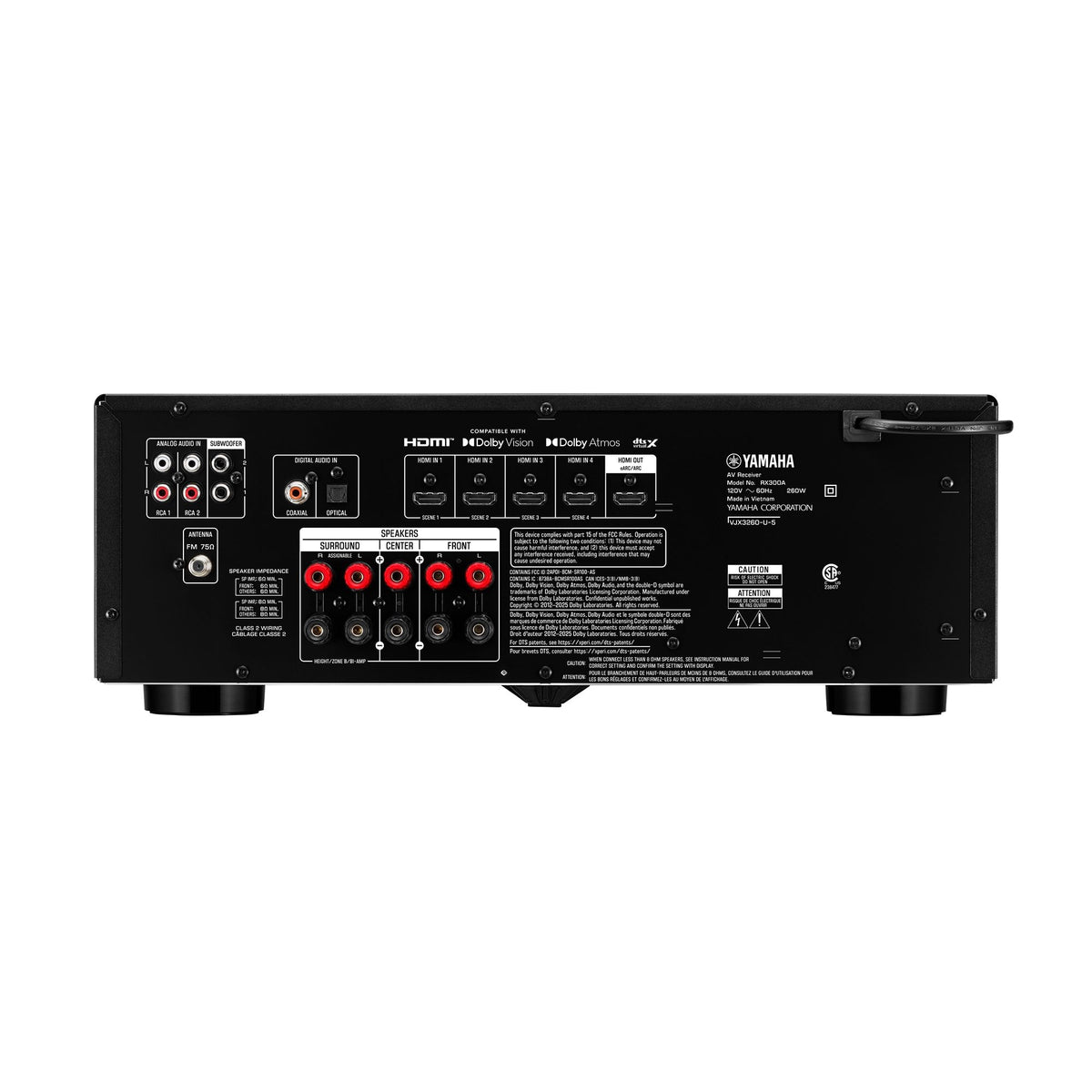

| Connectivity | Speaker Output | 5 (binding post terminals) |
| Subwoofer Pre-outs | 2 | |
| HDMI | 4 Inputs / 1 Output | |
| Analog RCA Input | 2 | |
| Optical Input | 1 | |
| Coaxial Input | 1 | |
| USB | 1 (Audio File Playback from a Mass Storage Device, Firmware Updates) | |
| FM/AM Tuner | Yes / No | |
| Bluetooth | Yes (Ver. 5.3, Multipoint) | |
| Streaming | - | |
| Wi-Fi / Ethernet Port | - | |
| Extensive Connections | Headphone Output | 1 |
| General | Power Consumption | 260 W |
| Standby Power Consumption | ≤0.3 W | |
| Auto Power Standby | Yes | |
| Dimensions (Unit) | 434 W x 157 H x 319 D mm; 17-1/8" W x 6-1/8" H x 12-1/2" D | |
| Dimensions (Package) | 525 W x 230 H x 400D mm; 20-5/8" W x 9-1/8" H x 15-3/4" D | |
| Weight (Unit) | 7.6 kg; 16.8 lbs. | |
| Weight (Package) | 9.1 kg; 20.1 lbs. | |
| App | - | |
| Included Accessories | Remote Control, Batteries, FM Antenna, Setup Mic, Microphone Stand, Quick Guide, Safety Guide | |
