Description

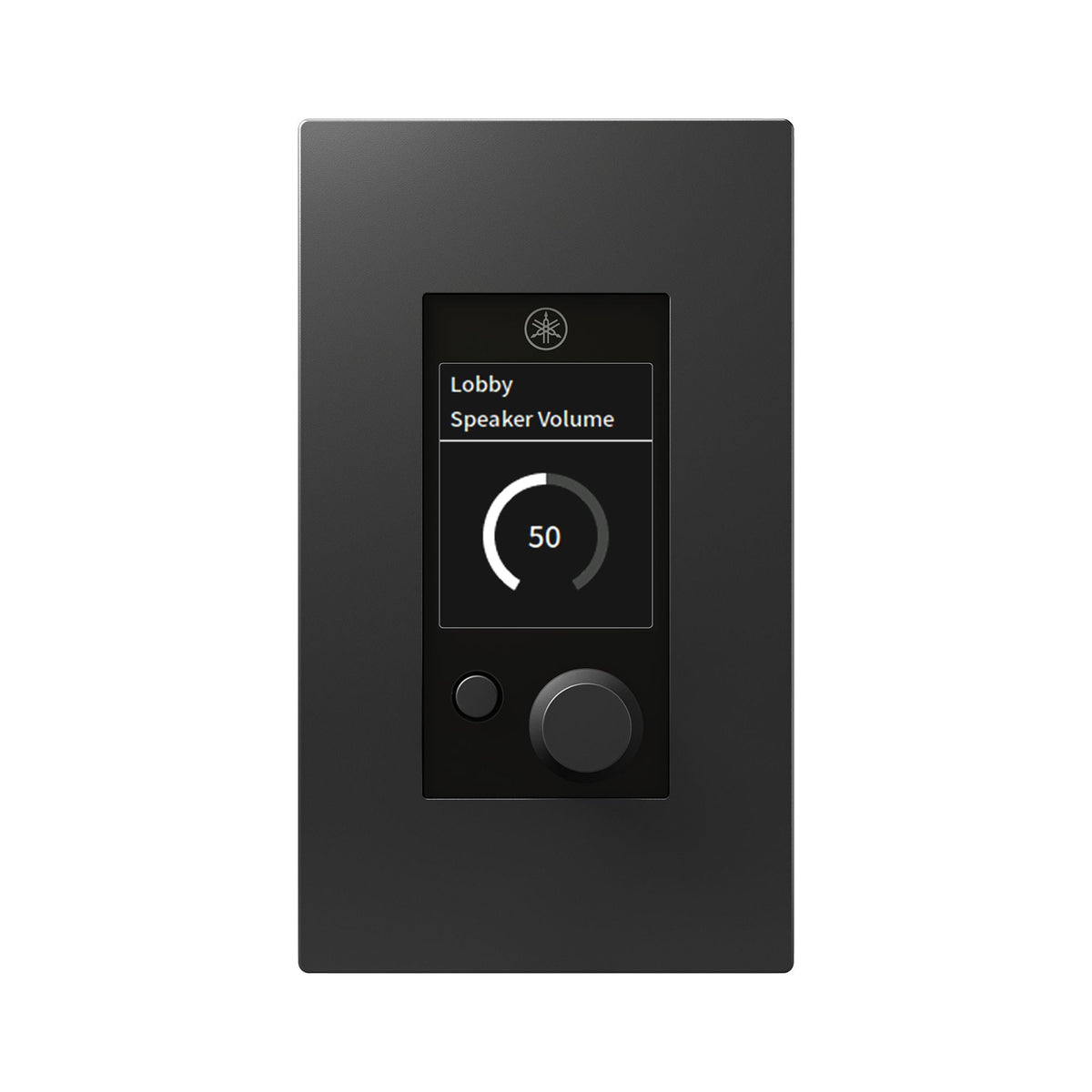

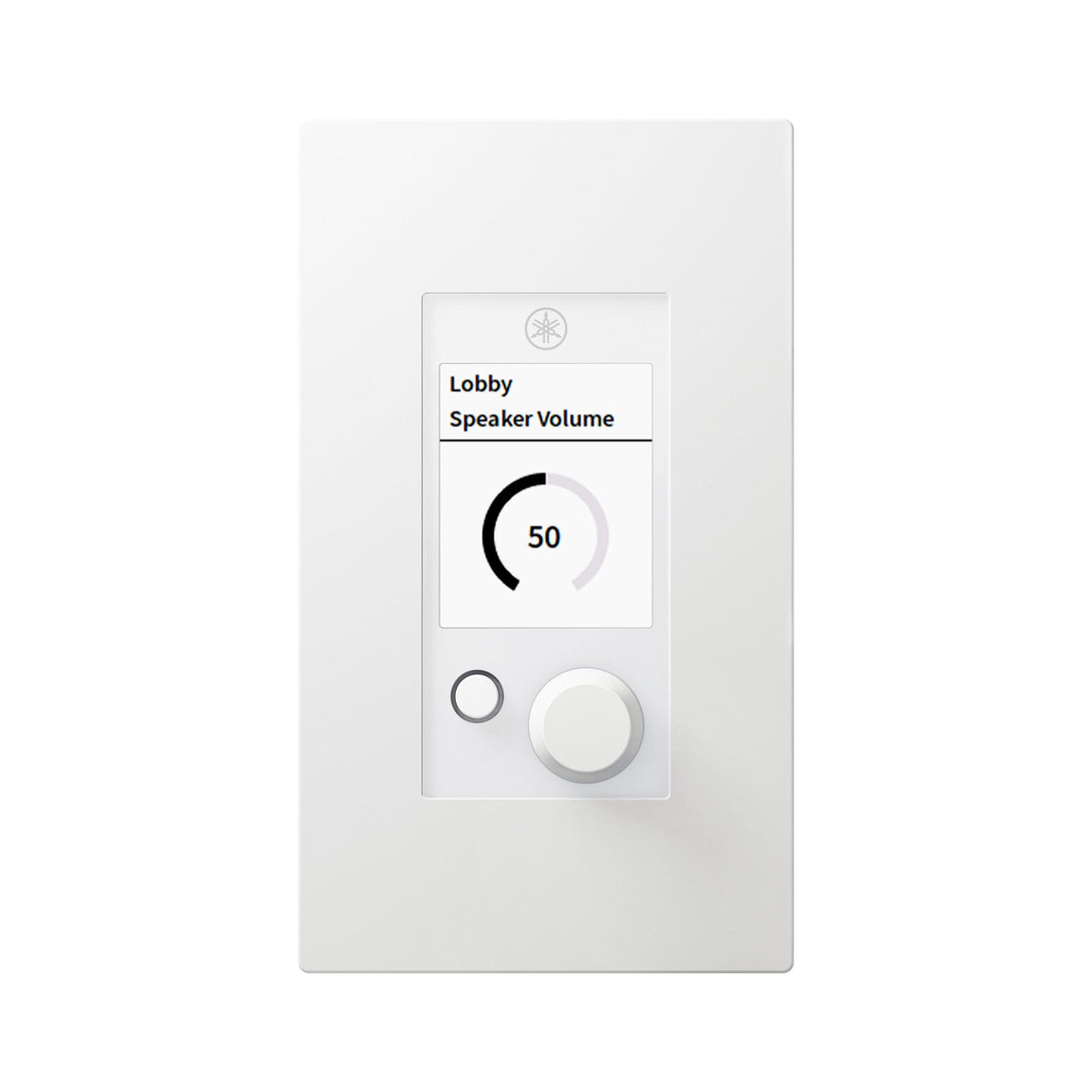

Yamaha CIS Wall-Mount Controller
Wall-mounted controller that could be assigned up to 64 items. Simple and intuitive design for easy control of Yamaha and third-party devices.
- Customizable user interface
- Pages and control parameters configured by ProVisionaire Design
- Fits US standard 1-gang box
- PoE supported (Cat 5e or higher)
- PIN lock for secure and reliable operation
- 1.77” color LCD for clear visibility
- Weight: 0.2 kg
Specifications:
| MCP2 | ||
|---|---|---|
| Dimensions (W x H x D) | 70 x 120 x 52 mm (2.8 x 4.8 x 2.1 in) | |
| Weight | 0.2 kg (0.4 Ibs) | |
| Power requirements | PoE (IEEE 802.3af) | |
| Power consumption | 2.2 W | |
| I/O Connectors | Network | RJ-45 x 1 (100BASE-TX) |
| Operating temperature | 0℃ to 40℃ | |
| Storage temperature | -20℃ to 60℃ | |
| Included Accessories | Owner’s Manual x1, Plastic Cover x1 | |
| Finish | White (Munsell approximate value N9.0, RAL 9016) / Black (Munsell approximate value N1.5, RAL 000 15 00) | |
