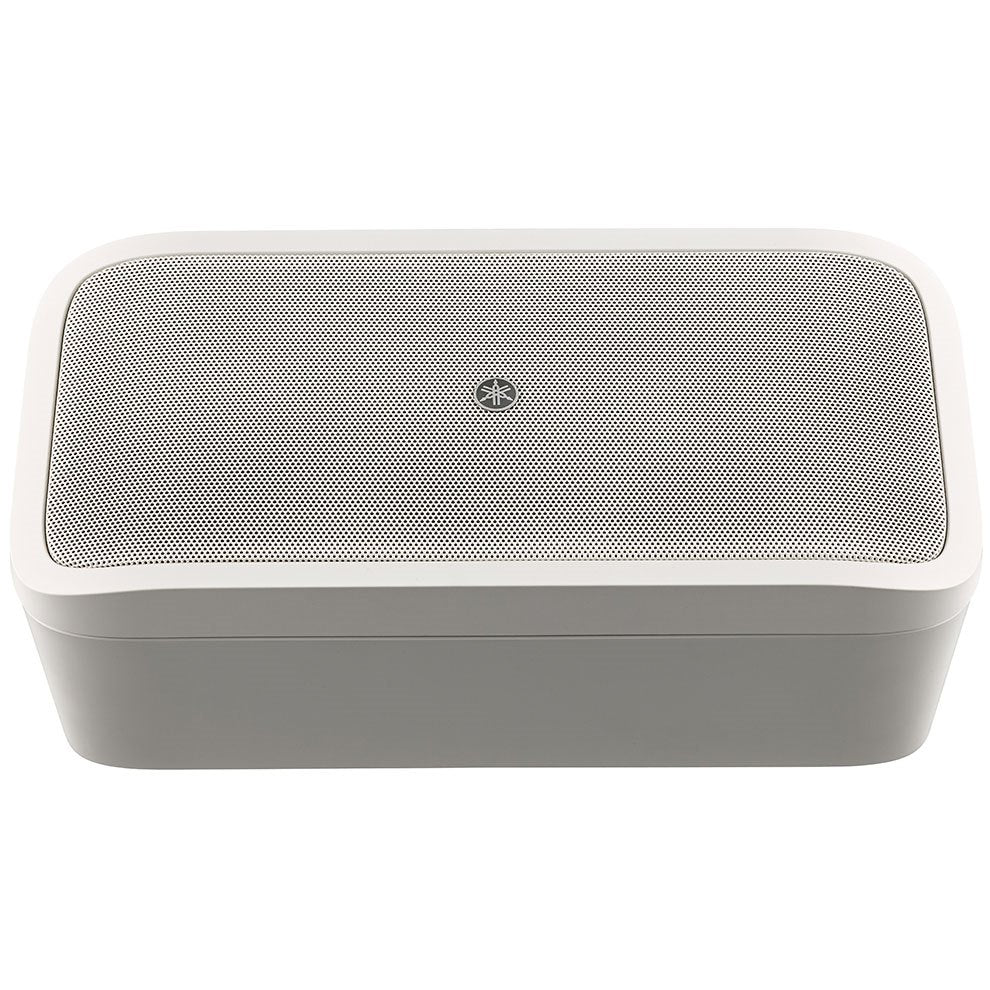

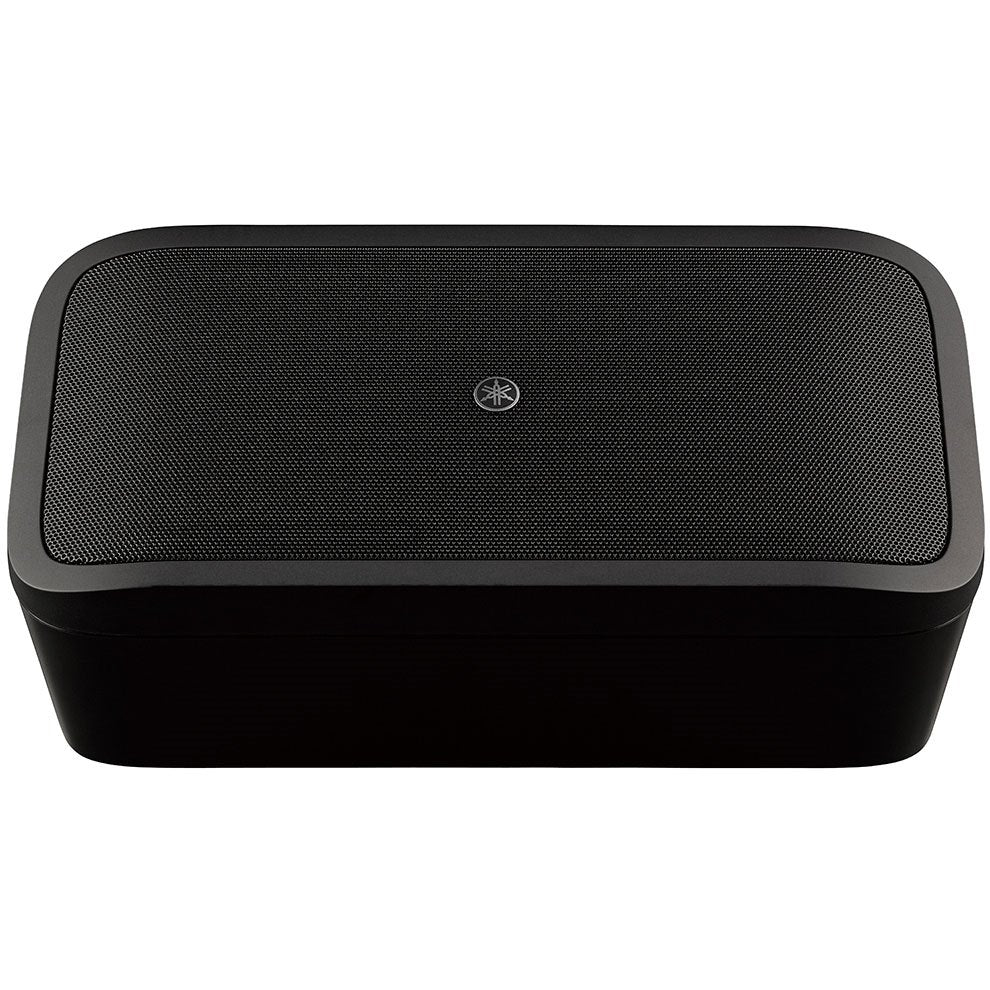

Yamaha CIS VXS Series 3.5" Dual SR-Bass™ Subwoofer For High And Low Impedance
Product Details
3.5" Dual SR-Bass™ subwoofer for high and low impedance systems
Features
- Versatile subwoofer compatible with low and high impedance systems
- Sound and size ideally matched to the VXS1ML
- SR-Bass™ technology delivers solid bass in a compact unit
- Satellite connectors for easy setup
- Dedicated wall/ceiling mount hardware supplied

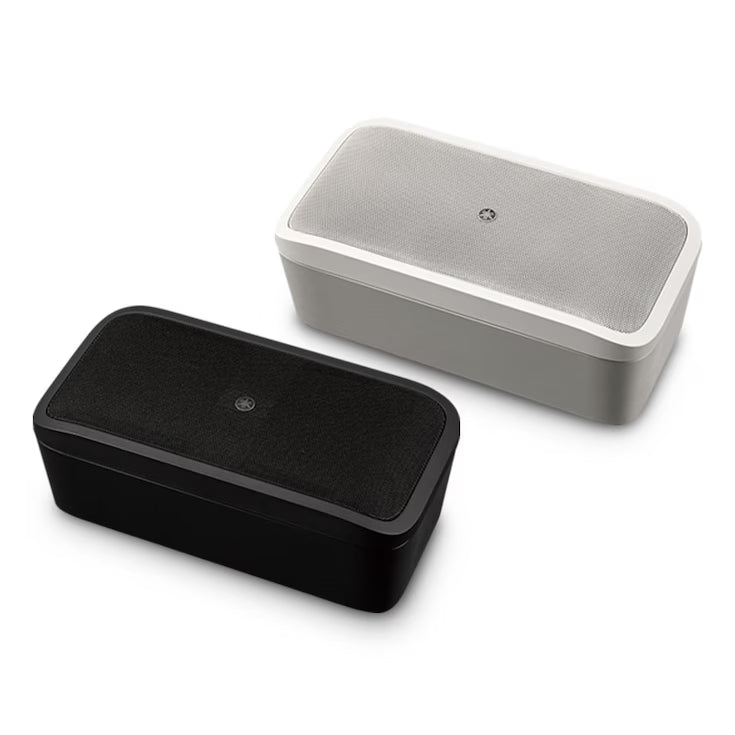

- Black and white models available
- Paintable enclosures and grilles
- Recommended satellite speakers: VXS1ML
Specifications
|
|
|||
|---|---|---|---|
| Speaker type | SR-Bass™ type Subwoofer | ||
| Frequency range (-10dB) | 65Hz-180Hz | ||
| Components | LF | 3.5" Cone | |
| Power rating | NOISE | 20W | |
| PGM | 40W | ||
| PEAK | 80W | ||
| Nominal impedance | 8Ω | ||
| Satellite impedance | 8Ω load per satellite output recommended *1 | ||
| Transformer taps | 100V | 15W, 7.5W, 3.8W | |
| 70V | 15W, 7.5W, 3.8W, 1.9W | ||
| SPL | Sensitivity (1W; 1m on axis) | 79dB SPL *3 | |
| Peak (Calculated) | 98dB SPL *4 | ||

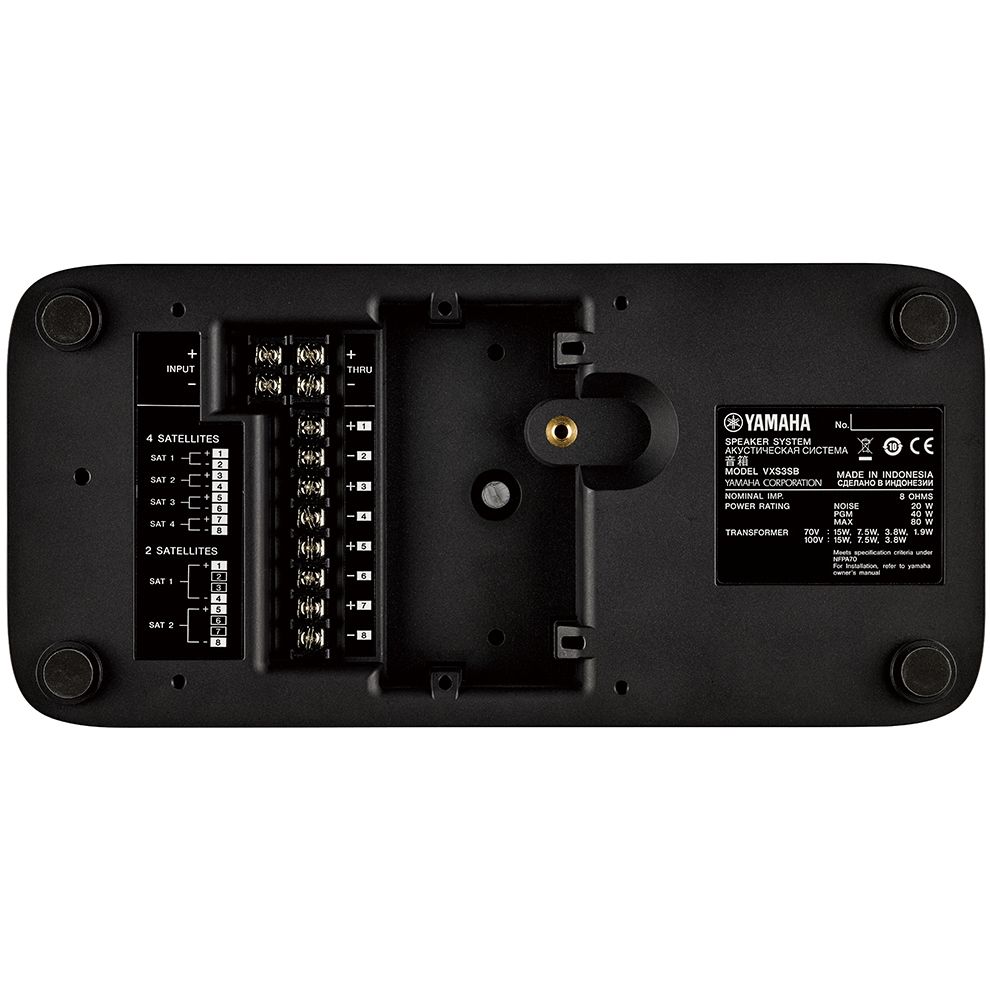

| I/O connectors | TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1～ST4) | ||
| Protection circuit | Load protection | Full-range power limiting for protecting network and transducers | |
| Shape | Rectangular | ||
| Cabinet material | ABS | ||
| Finish | VXS3SB:Black (approximate value:Munsell N3) VXS3SW:White (approximate value:Munsell N9) | ||
| Dimensions | W | 322mm (12.7") *5 | |
| H | 162mm (6.4") *5 | ||
| D | 118mm (4.6") *5 | ||
| Net weight | 2.7kg (6.0 lbs) *5 | ||

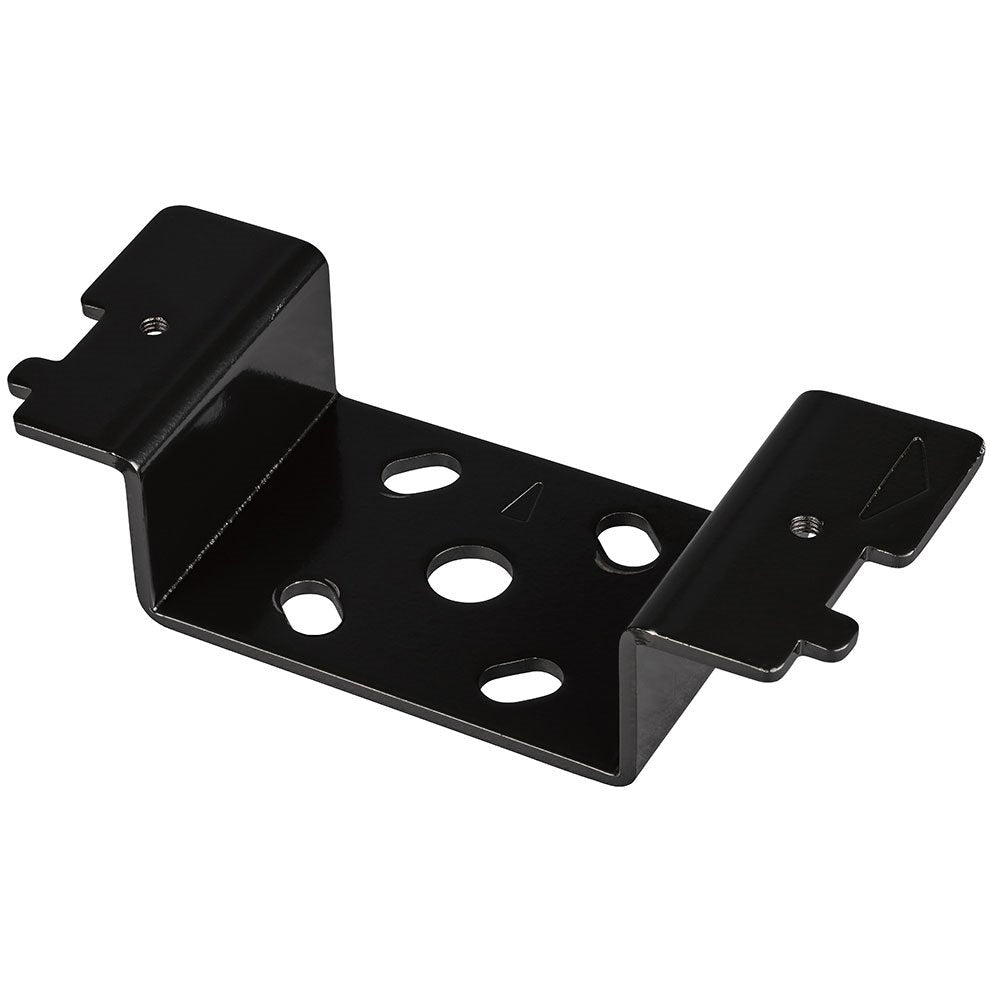

| Accessories | Mounting bracket, Safety wire, Spacer, Screw, Masking sheet | ||
| Packaging | Packaged each | ||
| Certificate | NFPA70, CE, RoHS | ||
| Options | CMA3SB / CMA3SW: Ceiling Mount Adapter | ||
| EN54-24 compliance | - | ||
