Yamaha CIS VXH Series Pendant Speaker
Product Details
Stunning sound from any ceiling
VXH series pendant speakers are an ideal choice for open-structure or sloped ceilings, adding versatility for a variety of environments and sonic needs.
Two models are available: the wide-dispersion 6.5-inch VXH6 for use where the speakers are to be suspended at a relatively low position, and the high-power 8-inch VXH8 with narrower dispersion for higher suspension positions. You can select or mix and match models to achieve the best sound and coverage in any application.
Recommended Applications
Installations for high-ceiling, huge space and open structure or sloped ceiling such as amusement facility, large hall sales floor, gymnastic hall and other design-conscious restaurant, clothing store,etc.
Models for a wide range of applications
Two models are available to adapt varying heights in a wide range of applications. The wide-dispersion 6.5-inch VXH6 is ideal for use where the speakers are to be suspended at a relatively low position, while the high-power 8-inch VXH8 has narrower dispersion that is suited for high suspension positions.
Stylish Yet Unobtrusive
Clean architectural settings require fixtures that seamlessly blend into their environments while maintaining full functionality. VXH series combine unprecedented acoustical performance and a music instrument inspired design that will be at home in a wide variety of settings.
World-class Installation Ease and Safety

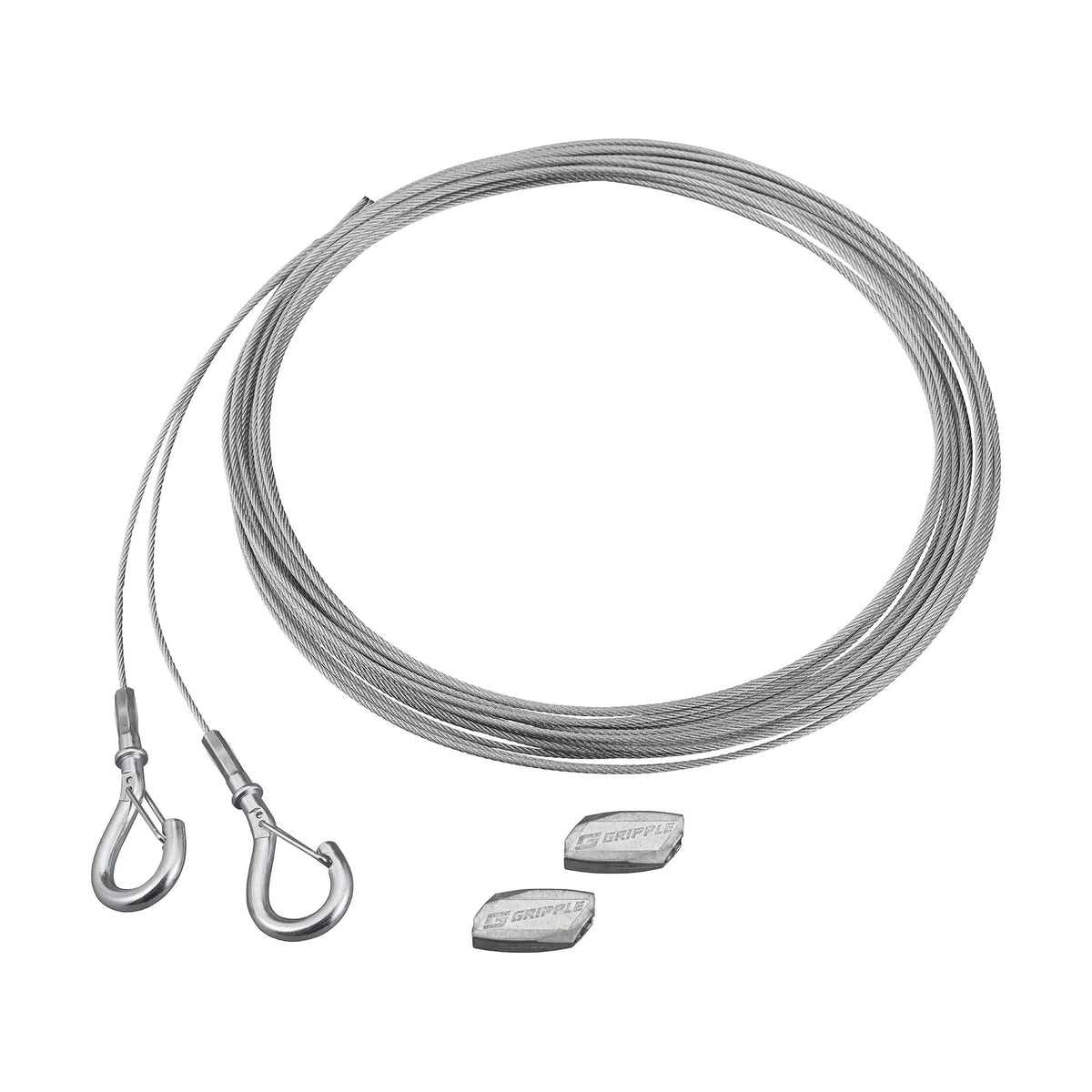

Gripple suspension hardware and wire kit included for easy, safe height adjustment during installation.
High-impedance and low-impedance supported

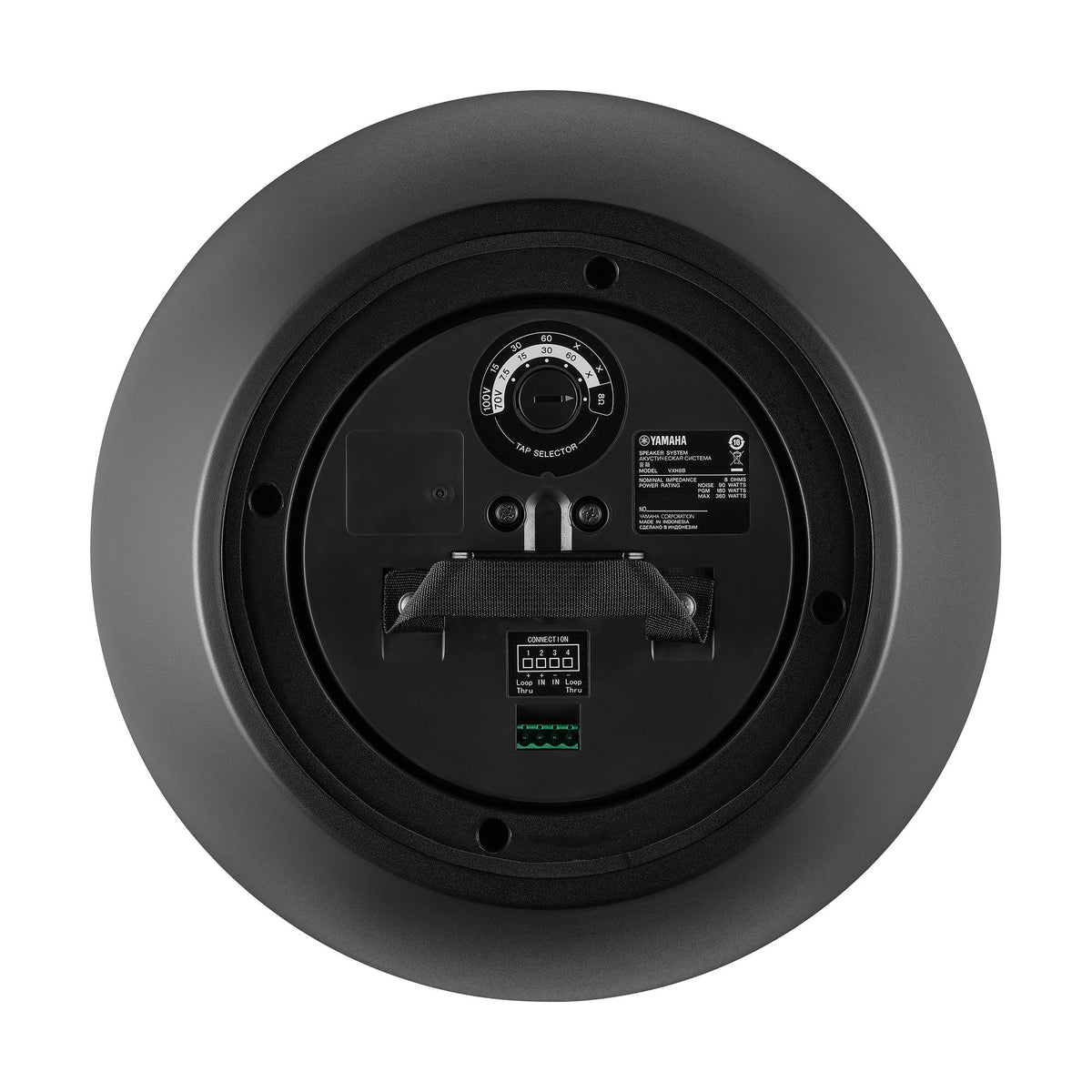

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. The need for additional units is minimized and systems can be designed to ideally meet the requirements of any application.
A suspension hardware and wire kit from Gripple, the world standard in suspension products, ensures safe height adjustment during installation.
VXH Series speakers are IP45 rated for use in a wide range of environments, including outdoors.
* Not for use in humid places.
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

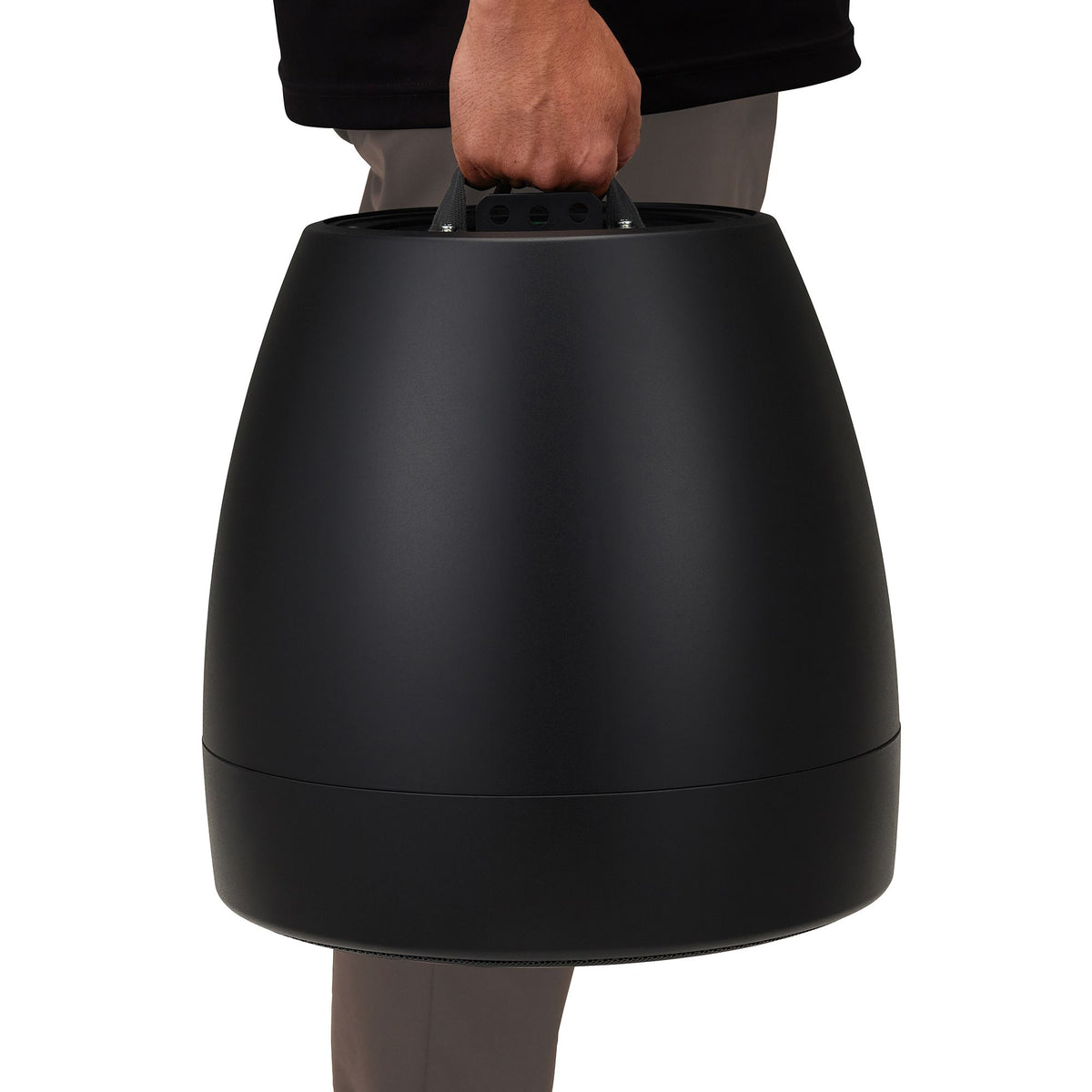

A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

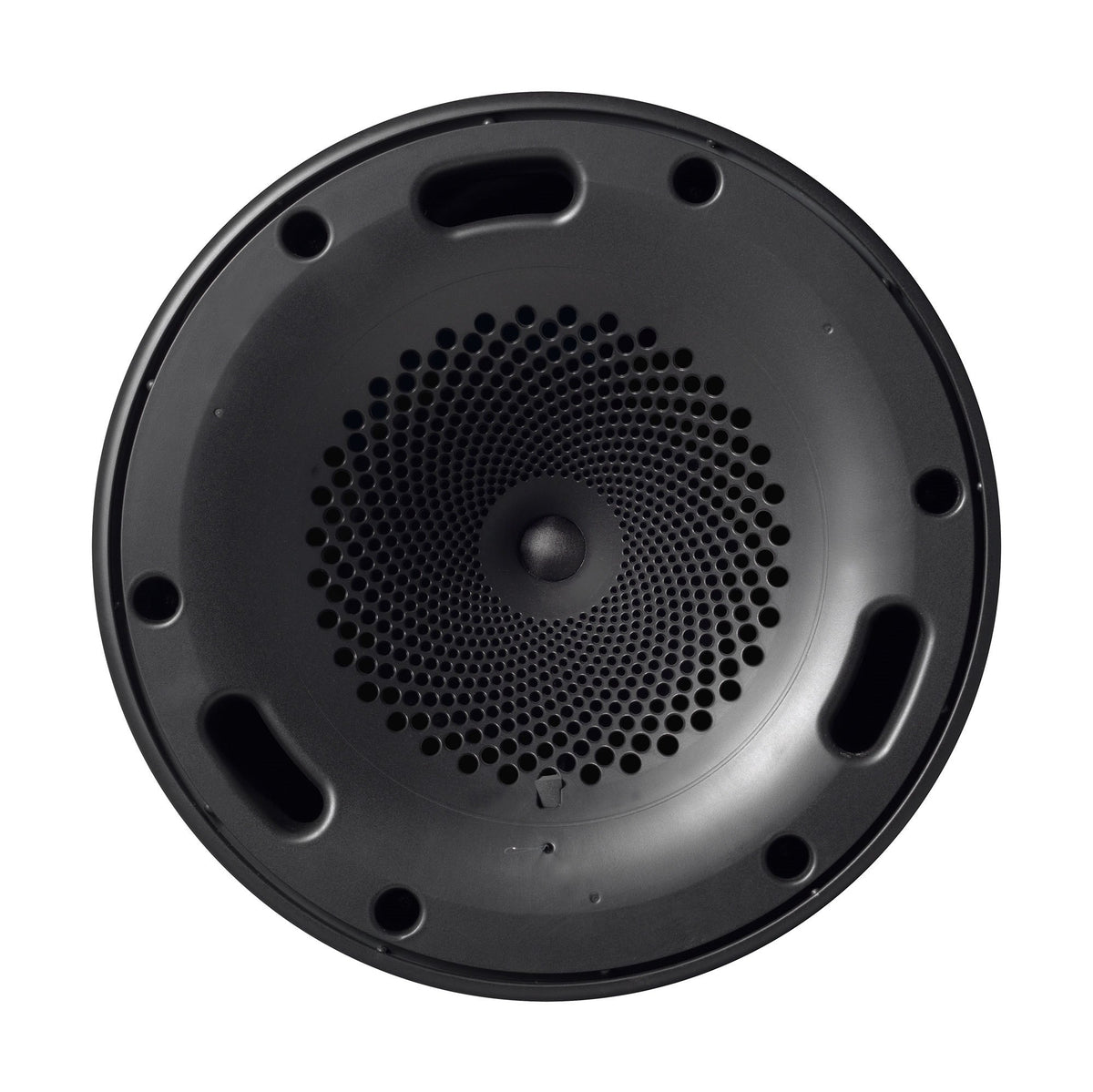

The supplied grilles can be painted any color to match interior decor.
Specifications
|
VXH8B / VXH8W |
VXH6B / VXH6W |
| General specifications |
| Speaker type |
Coaxial 2 way, Bass reflex type |
Coaxial 2 way, Bass reflex type |
| Frequency range (-10dB) |
57 Hz – 20 kHz (Full-space:4π) |
55 Hz - 20 kHz (Full-space:4π) |
| Nominal coverage |
75° conical (Full-space:4π) |
120° conical (Full-space:4π) |
| Crossover Frequencies |
3 kHz |
3 kHz |
| Components |
LF |
8" (20 cm) Cone |
6.5" (16 cm) Cone |
| HF |
1" (2.5 cm) Soft Dome |
1" (2.5 cm) Soft Dome |
| Power rating |
NOISE |
90 W |
75 W |
| PGM |
180 W |
150 W |
| PEAK |
360 W |
300 W |
| Nominal impedance |
8 Ω |
8 Ω |
| Transformer taps |
100V |
60 W, 30 W, 15 W |
60 W, 30 W, 15 W |
| 70V |
60 W, 30 W, 15 W, 7.5 W |
60 W, 30 W, 15 W, 7.5 W |
| SPL |
Sensitivity (1W; 1m on axis) |
94 dB (Full-space:4π) |
93 dB (Full-space:4π) |
| Peak (Calculated) |
120 dB (Calculated, 1 m) |
118 dB (Calculated, 1 m) |
| I/O connectors |
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq) |
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq) |
| Protection circuit |
Load protection |
Full-range power limiting to protect network and transducers |
Full-range power limiting to protect network and transducers |
| Finish |
VXH8B Black powder coating (approximate value: Munsell N3), VXH8W White powder coating (approximate value: Munsell N9.3) |
VXH6B Black powder coating (approximate value: Munsell N3), VXH6W White powder coating (approximate value: Munsell N9.3) |
| Dimensions |
Diameter |
Ø356 mm (14") |
Ø341 mm (13 - 3/8") |
| D |
434 mm (17 - 3/32") |
379 mm (14 - 1/2") |
| Net weight |
7.2 kg |
5.7 kg |
| Accessories |
Gripple Kit × 1, Euro Block (4 pin) × 1, Cushion Seal × 1, Back Cover Set × 1, Owner’s Manual × 1, GRIPPLE Kit Installation Guide × 1 |
Gripple Kit × 1, Euro Block (4 pin) × 1, Cushion Seal × 1, Back Cover Set × 1, Owner’s Manual × 1, GRIPPLE Kit Installation Guide × 1 |
| Dust and water resistant |
IP45 (when waterproofing the cover hole) |
IP45 (when waterproofing the cover hole) |
| Packaging |
Single package |
Single package |
| Certificate |
UL1480A, NFPA70, CE, RoHS |
UL1480A, NFPA70, CE, RoHS |
