Description

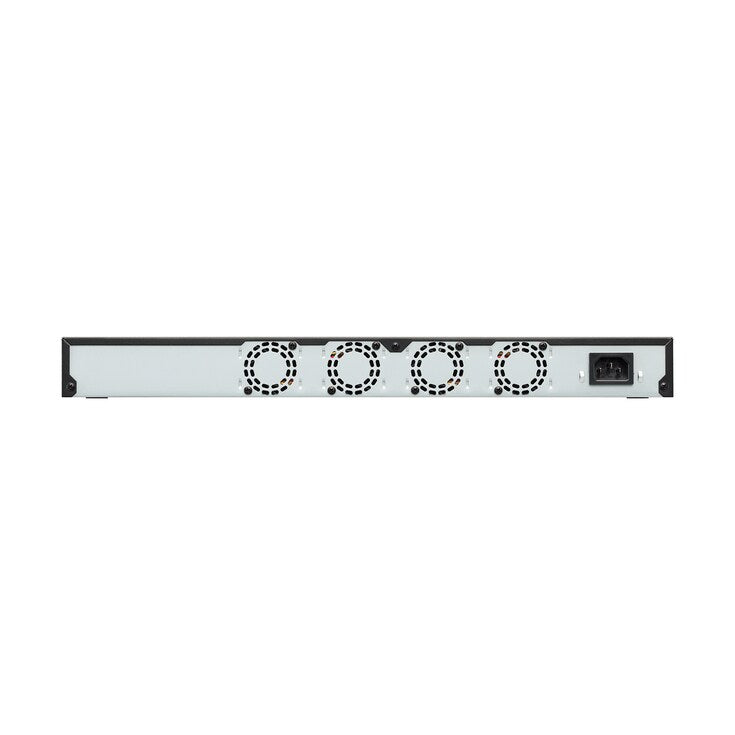

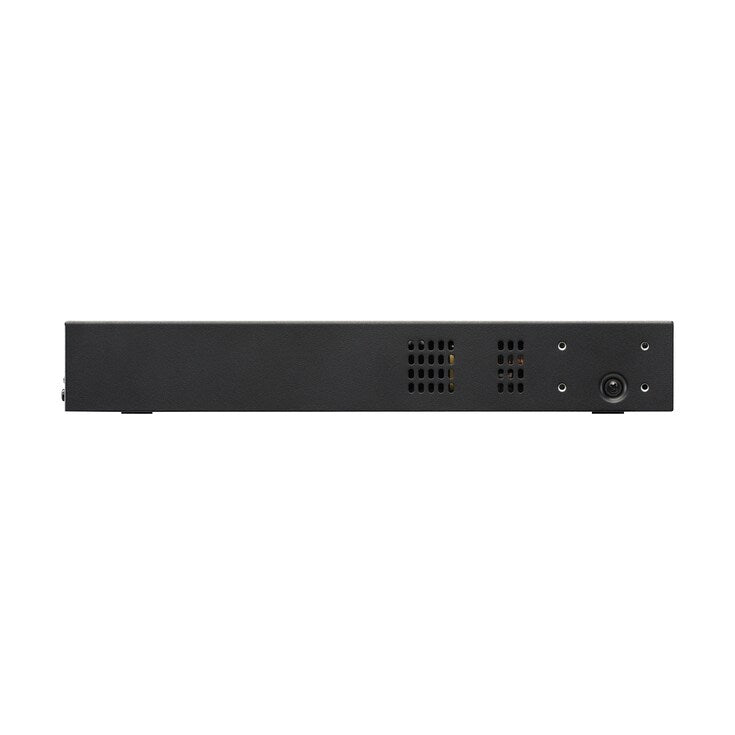

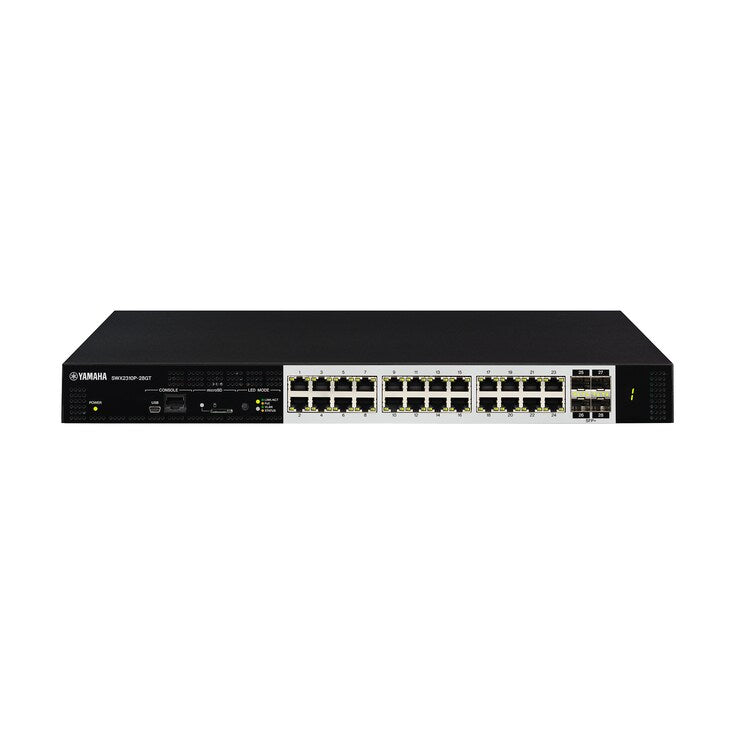

Yamaha CIS 24-Port L2, 370W PoE Network Switch With 24 PoE Ports, 4 SFP+ with 10G Uplink; 1RU
Product Details
Intelligent L2 switch optimized for Dante and PoE+ for Large/Medium ADECIA systems.
Specifications
- Auto-apply Dante settings upon connection to ADECIA devices
- Ports 1-24 support PoE+
- Supports PoE+ up to 30W per port (Total: 370W)
- SFP+ supports scalable cascading of multiple switches
| LAN ports | Standard | IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) |
|---|---|---|
| Number of ports | 24 | |
| Communication mode | Auto negotiation | |
| Connector type | RJ-45 | |
| MAC address | Printed on top surface label | |
| Polarity | Automatic detection of straight/cross, or fixed at straight | |
| Combo ports | LAN ports | - |
| SFP ports | - | |
| SFP+ ports | Standard | IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR) |
| Number of ports | 4 | |
| SFP ports | Standard | - |
| Number of ports | - | |
| Console ports | Standard | RS-232C, USB 2.0 |
| Connector type | RJ-45, USB mini-B (5-pin) | |
| Data transmission speed | 9600 bit/s | |
| Ports available for PoE power supply | 24 ports (1-24) | |
| PoE standards | IEEE 802.3at | |
| Power supply system | Alternative A | |
| Maximum power supply | Per port | 30 W |
| All ports | 370 W | |
| microSD slot | Standard | microSD/microSDHC (microSDXC is not supported) |
| File System | FAT/FAT32 | |
| Number of slots | - | |
| Indicators | POWER, microSD, STACK ID, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED) | |
| MAC address | Indicated in product label on top panel of unit | |
| Operating environment | Ambient temperature: 0–50 °C, Ambient humidity 15–80% (non-condensing) | |
| Storage environment | Ambient temperature: -20–60 °C, Ambient humidity 10–90% (non-condensing) | |
| Power supply voltage, frequency | AC100 – 240V, 50/60 Hz | |
| Maximum power consumption | 459W | |
| Dimensions | W | 440 mm |
| H | 44 mm | |
| D | 294 mm | |
| Weight | 3.9kg | |
| Accessories | Read this first, power cords, power cord clamp, 19-inch rack mount hardware and screws | |
| Console port | - | |
| Compatible PoE powered devices | - | |
| Switches | - | |
| Power consumption | - | |
