Description
Yamaha CIS SFP Module For Long-Distance Transmission
Product Details
SFP-SWRG-LX SFP module for SWX/SWR series switches
Specifications
- Maximum Transmission Distance: 10km*
- Compatible Cables: Single-mode optical fiber (9/125μm)
- Regulatory standards: IEEE802.3z, 1000BASE-LX
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.

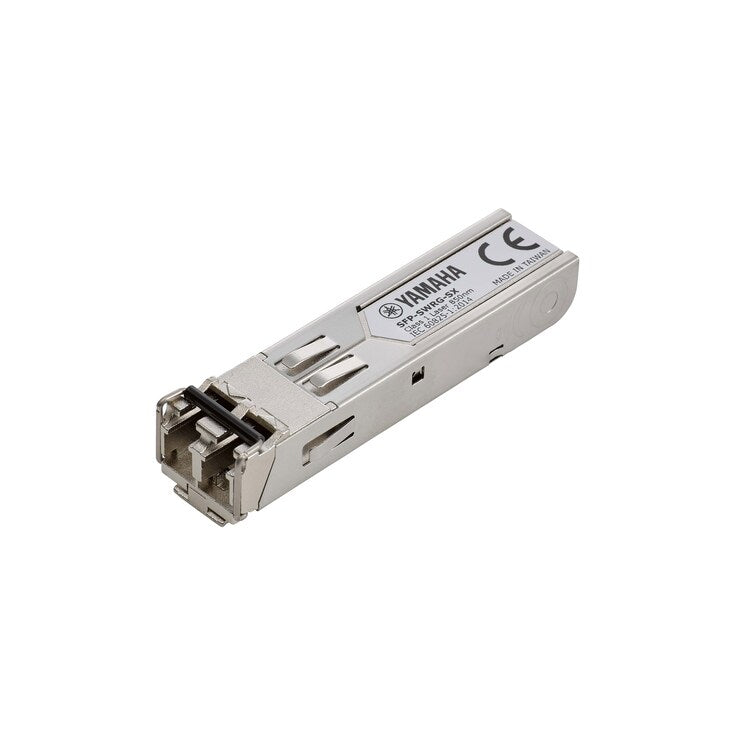

SFP-SWRG-SX SFP module for SWX/SWR series switches
- Maximum Transmission Distance: 550m (50/125μm) / 300m (62.5/125μm)*
- Compatible Cables: Multi-mode optical fiber (50/125μm, 62.5/125μm)
- Regulatory standards: IEEE802.3z, 1000BASE-SX
- Connector: 2-prong LC connector
- Optical Wavelength: 850nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
