Yamaha CIS 10Gbps SFP+ Module For Long-Distance Transmission
Product Details

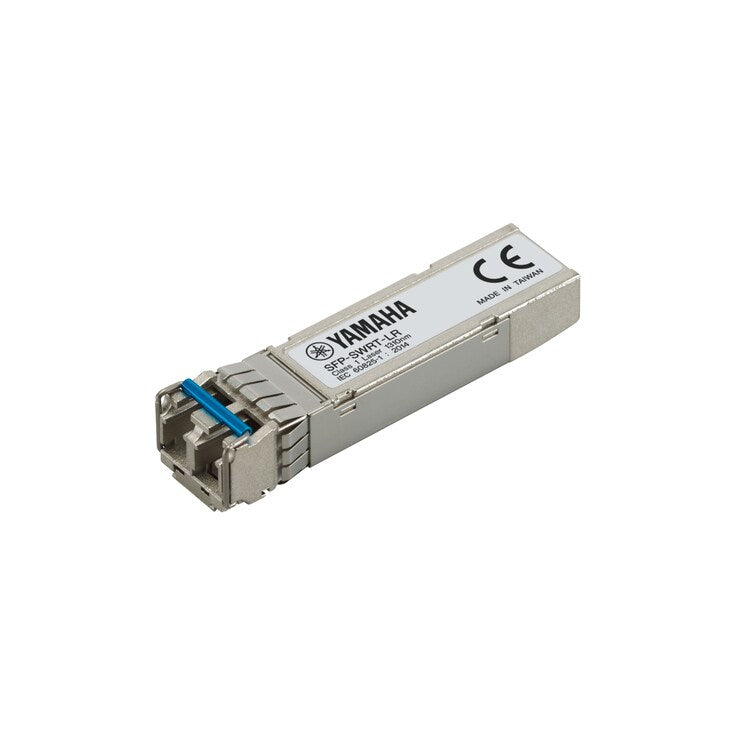

SFP-SWRT-LR SFP+ module for 10Gbps audio network
Specifications
- Maximum Transmission Distance: 10km*
SFP-SWRT-LR - Compatible Cables: Single-mode optical fiber (9/125μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-LR
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
SFP-SWRT-SR SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: OM1 (62.5/125μm): 33m, OM2 (50/125μm): 82m, OM3 (50/125μm): 300m, OM4 (50/125μm): 400m
- Compatible Cables: Multi-mode optical fiber (50/125μm, 62.5/125μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-SR
- Connector: 2-prong LC connector
- Optical Wavelength: 850nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
