Description

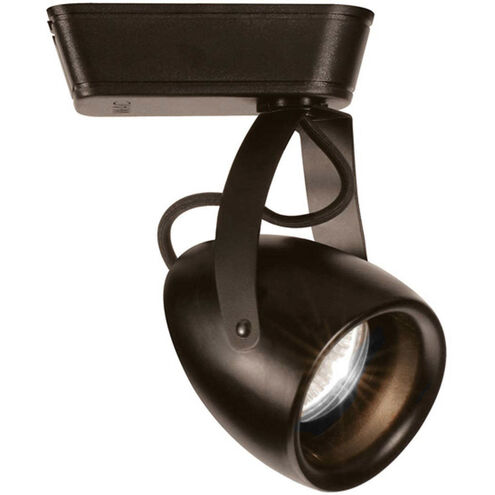

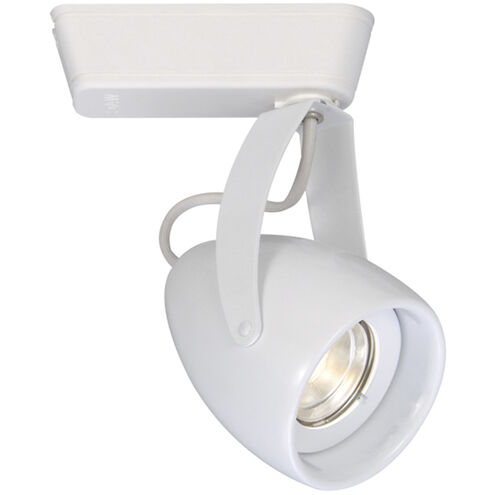

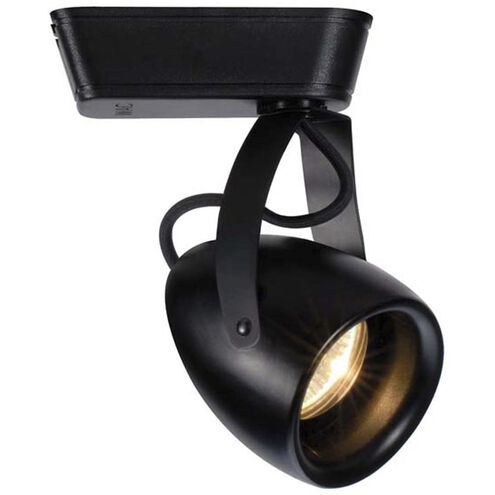

WAC Lighting Impulse 1 Light 120 J Track Fixture Ceiling Light, 1005 Lumens, and 90 CRI
Product Details
Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this thermally efficient Energy Star compliant luminaire offers architectural lighting options including a framing projector and barn door accessories. Spot and fl ood beam spreads and two color temperatures make this an all-in-one choice for lighting. For use with 120V track. Track Fixture is available in H, J/J2, and L track configurations. Order according to track layout specifications. Available in 14W and 23W options.
Features
- Standards: UL & cUL Listed for Dry Locations
- Interior/Exterior: Interior
- Mounting: J-Track
- Title 24 Compliant (90CRI Version) Replaceable LED module
- Smooth and continuous dimming to 10% with an Electronic Low Voltage Dimmer.
- Complete System: No
- For use with 120V track Track Fixture is available in H, J/J2, and L track configurations, order according to track layout specifications.
- Additional Features:
- Hardwired or Portable: Portable
- Accessory 1 Type: Interchangeable Reflector
- Accessory 1 SKU: RF-S, RF-F
- Accessory 2 Type: Framing Projector and Barn Doors
- Accessory 2 SKU: 008FP-BK, 008FP-DB, 008FP-WT, 801DB-BK, 801DB-DB, 801DB-WT
- Die-cast aluminum construction. 360Deg horizontal rotation and 180Deg vertical aiming.
- High Powered LED module (No Lamp Required): Color Temp: 2700K, 3000K, 3500K, and 4000K, CRI: 85 or 90, Rated Hours: 60,000
Material: Aluminum
Specifications
Product Information
Brand: WAC Lighting
Brand Category: J Track Fixture
Brand Product Description: LED820 Impulse LED Low Voltage Track Head
Shipping Method: Ground
Electrical and Operational Information
Color Rendering Index: 90
Dimmable: Yes
Lamping Category: LED
Lamping Features:
- Bulb Shape: LED Module
- Delivered Lumens: 1005
- Beam Spread: 20
- Average Hours: 60000
- Replacement Bulb(s): BXRC-30G1000-B-03
Lamping Included: Bulbs Included
Lamping Type: LED
Lumens: 1005
Primary Number of Bulbs: 1
Socket: LED Module
Total Number of Bulbs: 1
Total Watts: 23.00
Voltage: 120
Wattage Max: 23.00
Dimensions and Measurements
Diameter: 3.88
Extension: 7.88
Height: 7.88
Length: 4.38
Maximum Adjustable Height: 7.88
Weight: 1.95
Width: 3.88
Warranty and Specifications
Country of Origin: China
Title 24: Yes
UL Ratings: ETL/cETL Dry
Warranty: 5 Years Functional, 2 Years Finish
