Vertical 213-166ST/5BK LED Cable 16/6, 500 ft, Black, CL3, 500 ft Spool
The 213-166ST/5BK is an LED cable designed for powering landscape lighting, LED strips, and architectural lighting installations. This LED cable features six 16 AWG stranded bare copper conductors with color-coded PVC insulation and a durable black PVC jacket. CL3-rated for in-wall residential use and ETL-Listed, this LED cable delivers reliable power distribution for outdoor, signage, and decorative lighting applications.
KEY FEATURES
Here’s what makes the 213-166ST/5BK ideal for LED and low-voltage lighting installations:

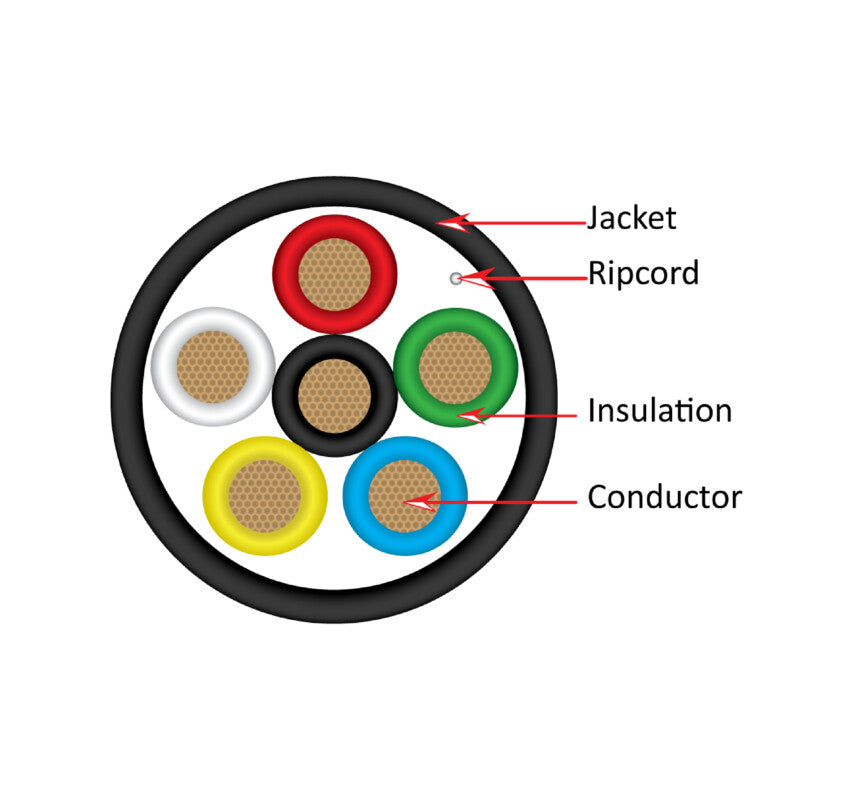

- 16 AWG Stranded Bare Copper: Six stranded conductors (26 × 0.254 mm stranding) provide flexibility and solid current-carrying capacity.
- 6-Conductor Configuration: Supports multi-zone lighting control, RGB+W LED strips, and complex lighting layouts.
- CL3 Rated: Meets NEC requirements for in-wall residential installations without conduit.
- Color-Coded Conductors: Black, blue, green, red, yellow, and white insulation for easy circuit identification.
- Durable PVC Jacket: Black PVC jacket protects against moisture, UV exposure, and physical damage.
- Integrated Ripcord: Easy jacket removal for efficient termination.
- Compact Design: Smaller 0.29 in. (7.4 mm) outer diameter for easier routing in tight spaces.
- Wide Temperature Range: Rated for operation from -20°C to +75°C for outdoor and indoor use.
- 300V Voltage Rating: Adequate for low-voltage LED lighting and control applications.
- ETL-Listed and RoHS Compliant: Third-party verified for safety and environmental compliance.

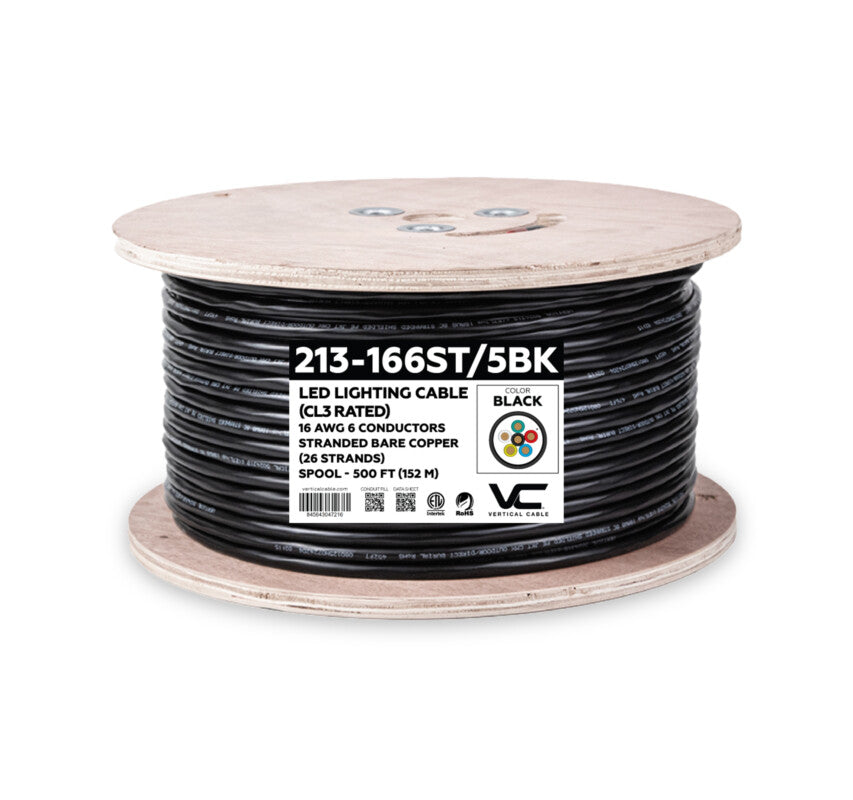

- 500 ft Spool: Professional spool packaging for efficient installation on larger projects.
APPLICATIONS
The 213-166ST/5BK LED cable excels in residential and commercial lighting installations:
- Landscape Lighting: Power pathway lights, garden fixtures, and accent lighting throughout outdoor spaces.
- Deck and Patio Lighting: Install low-voltage lighting in outdoor living and entertainment areas.
- LED Strip Lighting: Connect RGB, RGBW, and multi-color LED strip installations requiring multiple conductors.
- Architectural Lighting: Power decorative and accent lighting in commercial and residential buildings.
- Signage Lighting: Install illuminated signs, channel letters, and display lighting for retail and commercial applications.
- Security Lighting: Connect perimeter and security lighting systems for residential and commercial properties.
WHY CHOOSE THE 213-166ST/5BK LED CABLE?
Professionals choose the 213-166ST/5BK for its reliable power distribution and multi-conductor flexibility in a compact, lightweight design. Here are 5 reasons to specify it for your next project:
- Multi-Conductor Flexibility – Six color-coded conductors support complex lighting layouts, RGB+W strips, and multi-zone control in a single cable run.
- CL3 In-Wall Rated – Meets NEC requirements for in-wall residential installations without conduit, simplifying indoor runs.
- Compact Profile – Smaller outer diameter than 14 AWG versions makes routing easier in tight spaces and conduits.
- Durable Construction – PVC jacket withstands outdoor conditions, UV exposure, and temperature extremes from -20°C to +75°C.
- Verified Quality – ETL-Listed for safety assurance in residential and commercial lighting installations.
WHAT’S NEXT
Once you’ve specified the 213-166ST/5BK for your project:
- Calculate Voltage Drop – Verify 16 AWG is adequate for run length and total wattage; consider upgrading to 14 AWG for longer runs or higher loads.
- Plan Conductor Assignments – Map out which conductor colors will carry power, ground, and control signals before installation.
- Use Weatherproof Connections – Protect outdoor splices and connections with weatherproof junction boxes or direct burial splice kits.
- Follow NEC Guidelines – Maintain proper installation practices for CL3 cable in accordance with local codes.
