Description

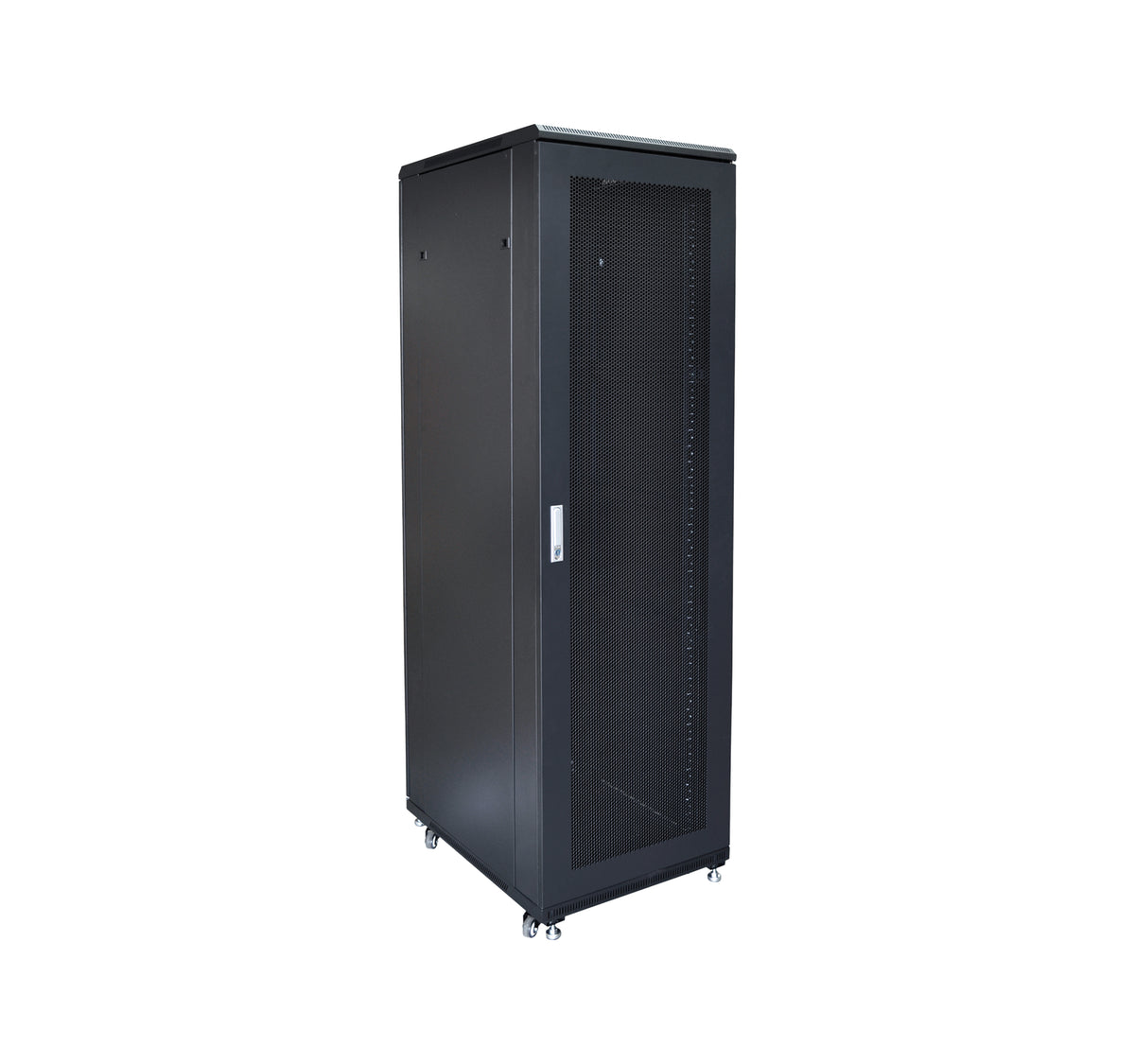

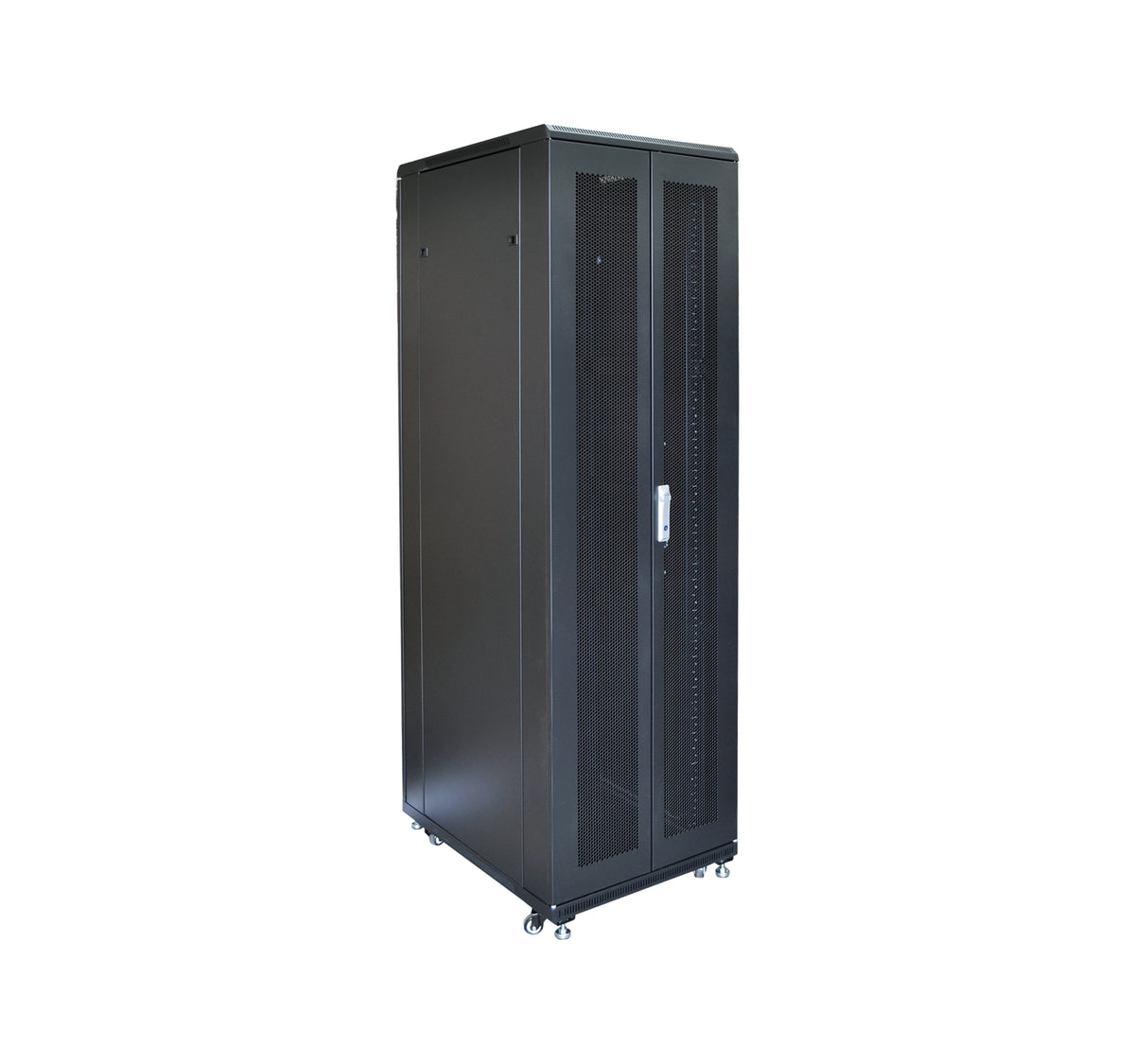

Vertical 047-SRD-3768 37 RMU Rack Space Network Server Cabinet
The 047-SRD-3768 is a durable, full-size network server cabinet designed for secure, high-capacity rack-mount installations. With excellent ventilation, cable access, and included cooling fans, it’s ideal for data centers and enterprise networks.
| Height | Width | Depth | Usable Depth | Color | Weight | Capacity |
| 72 in. (1828.8 mm) | 24 in. (609.6 mm) | 31.5 in. (800.1 mm) | 27.1 in. (688.34 mm) | Black | 220 lb (99.79 kg) | 2204 lb (999.72 kg) |
KEY FEATURES
Here are some of the key features that make it stand out:
- Rack Capacity: 37 rack units (RMU) for standard 19″ (482.6 mm) rack-mount equipment
- Usable Depth: 27.1″ (688.34 mm) for equipment installation
- Load Capacity: Supports up to 2204 lb (999.72 kg) of equipment
- Construction: Sturdy steel frame with black powder-coated finish
- Cooling System: Includes built-in fans and top/bottom vented panels
- Access Design: Front and rear locking doors with removable side panels
- Cable Routing: Top and bottom adjustable channels for easy cable management
- Mobility & Support: Caster wheels and support feet installed for stability
- Fully Assembled: Ships complete and ready to deploy on-site
APPLICATIONS
The 047-SRD-3768 is designed for secure and efficient server organization in professional environments. Best suited for:
- Data Centers & Server Rooms
- Enterprise Network Closets
- Telecom Infrastructure
- Managed Service Providers
- AV & IT Equipment Hubs
COMPATIBLE VERTICAL CABLE SHELVES
| Shelf Type | SKU |
| Single-Sided Vented Shelf | |
| Single-Sided Non-Vented Shelf | |
| Vented Sliding Shelf | 047-WSS-3551 |
| Heavy Duty Adjustable Shelf |
WHY CHOOSE THE 047-SRD-3768 SERVER CABINET?
This cabinet delivers security, convenience, and ventilation in one fully assembled rack solution:
- Secure Access: Lockable front/rear doors and side panels ensure equipment protection.
- Cooling Included: Built-in fans and venting maintain ideal airflow for servers and switches.
- Cable Friendly: Top/bottom routing channels streamline cable management.
- Heavy-Duty Support: Holds over 2200 lb (999.72 kg) of rack-mounted gear.
- Installer Ready: Ships fully assembled for faster deployment and minimal setup time.
