Description
Vanco EVO-IP 2.0 with eARC/ARC and KVM
Product Details
Experience the future of AV distribution with the second generation of our award-winning EVO-IP solution. This cutting-edge system delivers stunning 4K visuals, immersive Dante-enabled audio, eARC support, Dolby & DTS downmixing, and KVM integration. More powerful and flexible than ever, EVO-IP 2.0 takes video walls and digital signage to a whole new level.
The System Components
-
EVOIPTX2 Transmitter: Encodes audio, video, control, and USB signals to a network for distribution.
-

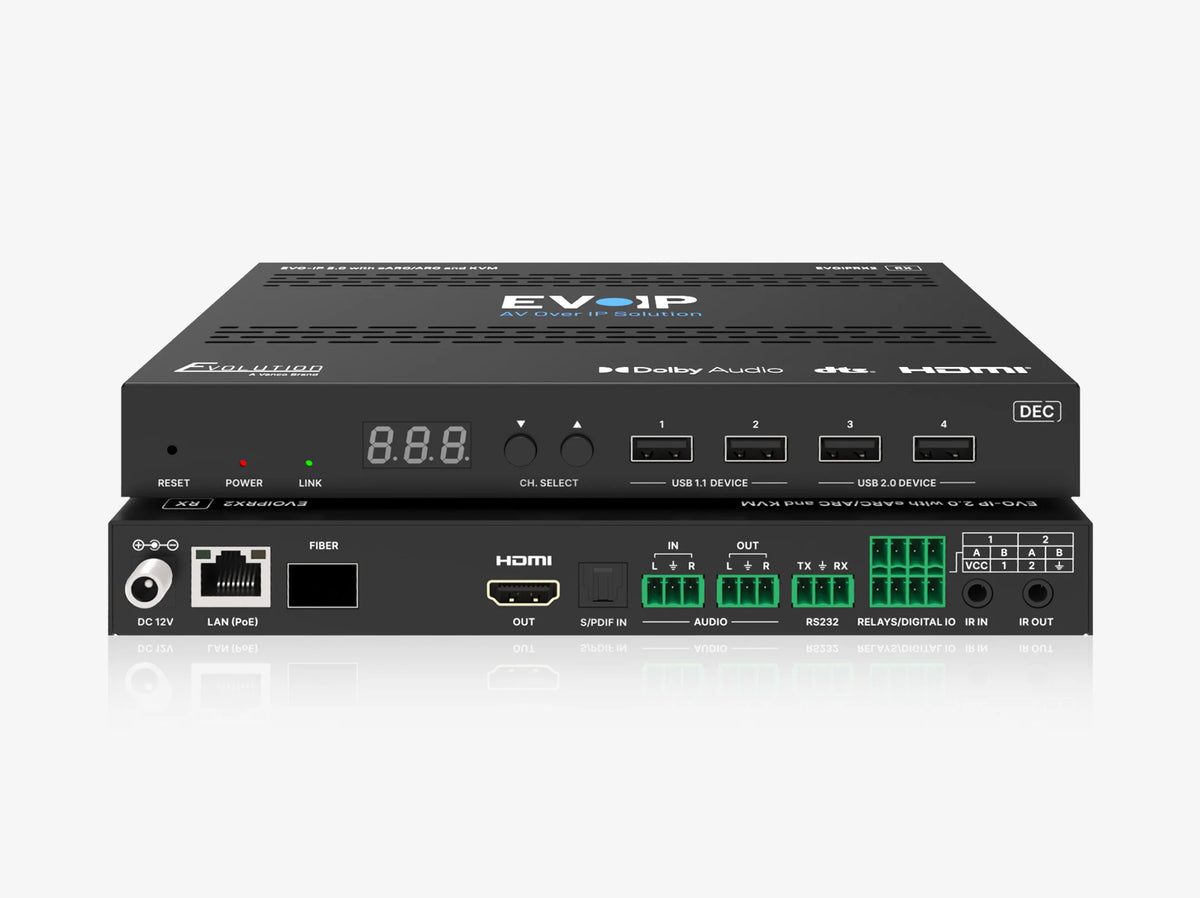

EVOIPRX2 Receiver: Decodes audio, video, control, and USB signals from a network for distribution.
-
EVOIPCTL2 Controller: Controls when, where, and how audio, video, and control signals are distributed.
Core Capabilities
-
Built with Purpose: In addition to being a point-to-point splitter, switch, and matrix, EVO-IP 2.0 features built-in support for video walls and digital signage.
-
Limitless Signal Distribution: With the ability to add hundreds of transmitters and receivers, EVO-IP 2.0's flexibility and expandability is almost limitless. Design a system with confidence knowing you can continue to add sources and displays to suit your needs.
-
Advanced Video Walls: Build video wall configurations of up to 25 displays with full flexibility. Have one source spread across all displays, rotate the displays 90, 180, or 270 degrees, create a video wall within a video wall, or switch each display to multiple sources with ease.
-
Digital Signage & OSD Mode: The perfect solution for any digital signage application. Overlay text, images, and logos to any display using On-Screen Display (OSD) mode, or have the system automatically cycle through multiple sources for custom, targeted messaging.
Features
-
4K@60Hz Resolution: Transmit 4K@60Hz resolutions with support for HDR and Dolby Vision for clear, smooth visuals.
-
Dante AV-A Enabled: Devices come Dante AV-A enabled right out of the box for high-quality audio routing.
-
Dolby & DTS Downmixing: Preserve the original audio mix by converting Dolby or DTS multi-channel audio to fewer channels when there aren't enough speakers to match the content source.
-
eARC Support with S/PDIF Backup: Transmit digital audio from a TV back to a soundbar or AV receiver. Includes optical and S/PDIF breakouts on every endpoint to create an immersive audio experience.
-
KVM and Signal Mapping: No control system required. Features fully routable independent mapping of USB, IR, RS232, CEC, and audio signals built into its remotely accessible cloud-based interface.
-
Transmission Distance Options: Transmit AV signals up to 328ft (100m) over Cat 6 cable, 984ft (300m) over multi-mode fiber, or up to an impressive 3.72 miles (6km) over single-mode fiber.
-
TAA Compliant: All EVO-IP 2.0 products are manufactured in compliance with TAA regulations, making them suitable for federally funded projects and government sites.
Management & Cloud Interface (Vanco.IO)
Take command of your EVO-IP 2.0 network with the Vanco.IO cloud-based user interface for real-time control and system visibility from anywhere.
-
Global Command Center: Power cycle units, plan content, and troubleshoot setups remotely.
-
Live Monitoring & Diagnostics: See which devices are online, get instant alerts, and spot issues before they cause downtime.
-
Alert-Driven Automation: Set up automated emails or notifications to keep integrators and users updated on when a system needs attention.
-
Scheduling & Remote Updates: Instantly reboot devices, push firmware updates, or swap digital signage content without needing to be on-site.
