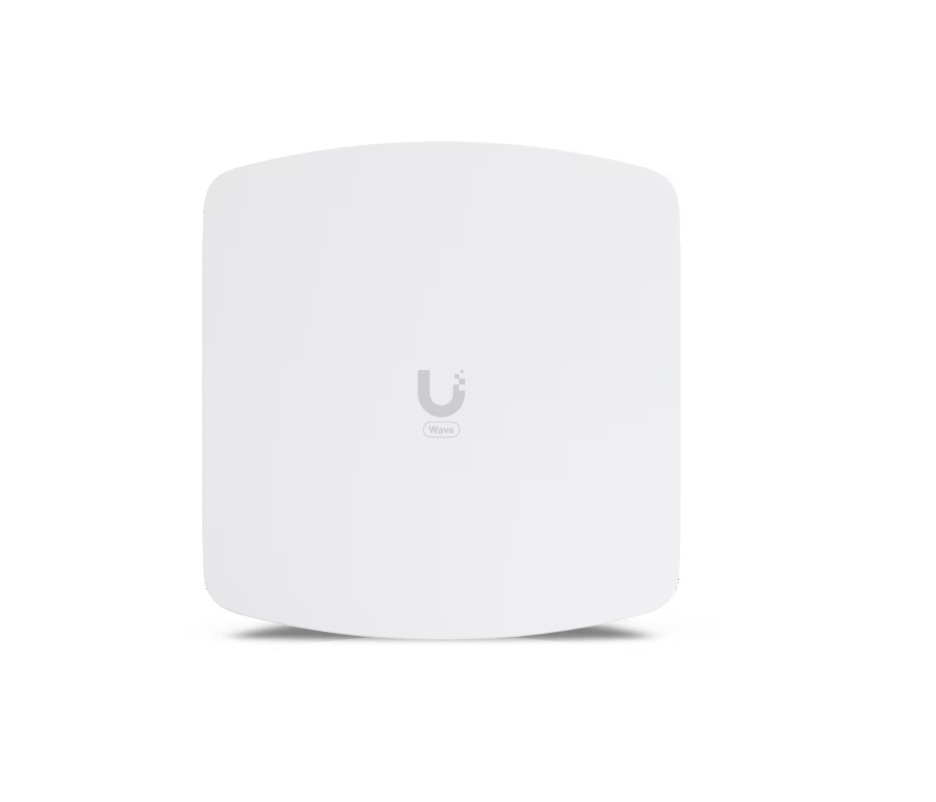

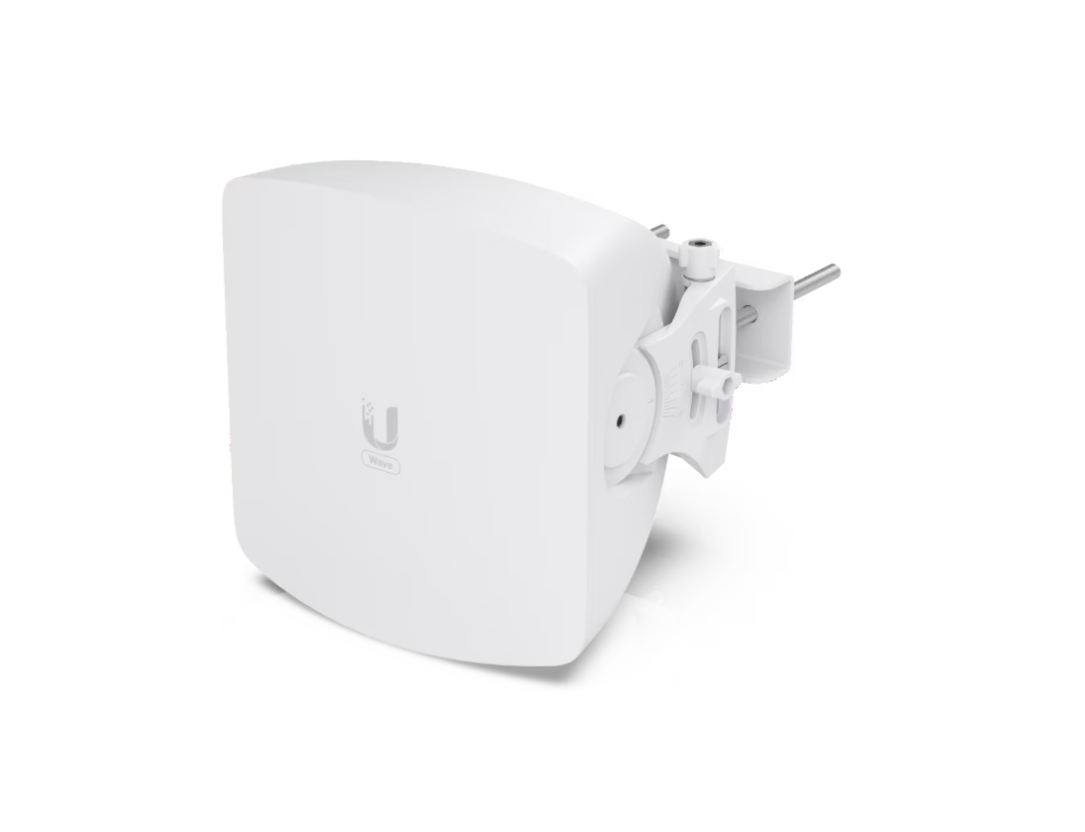

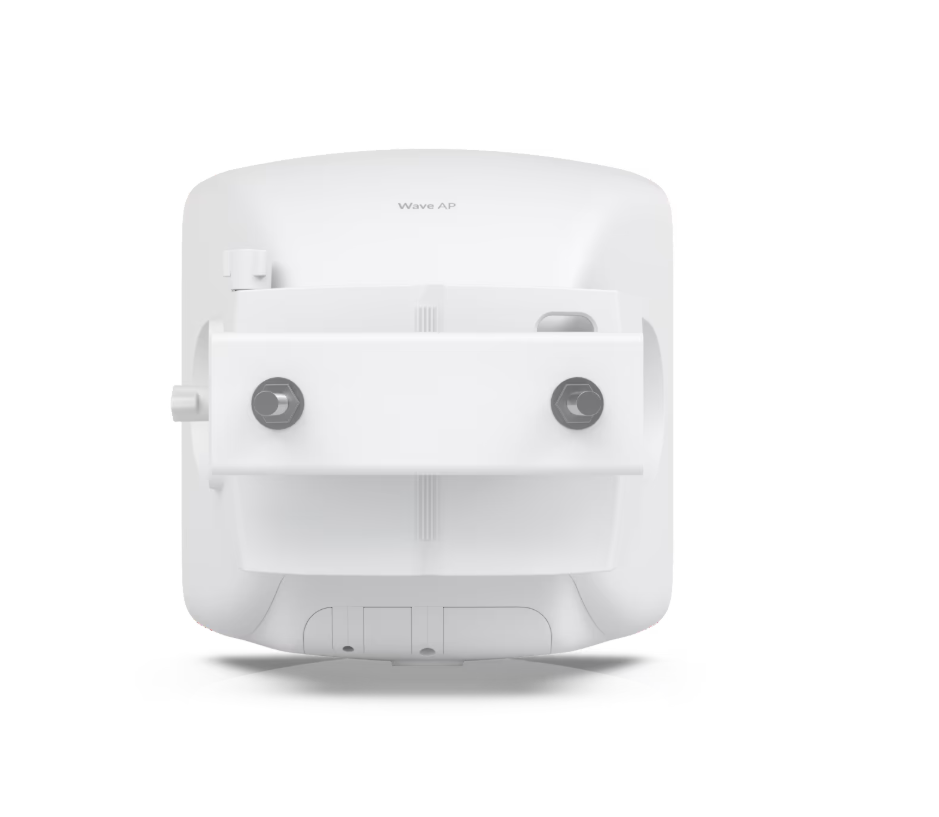

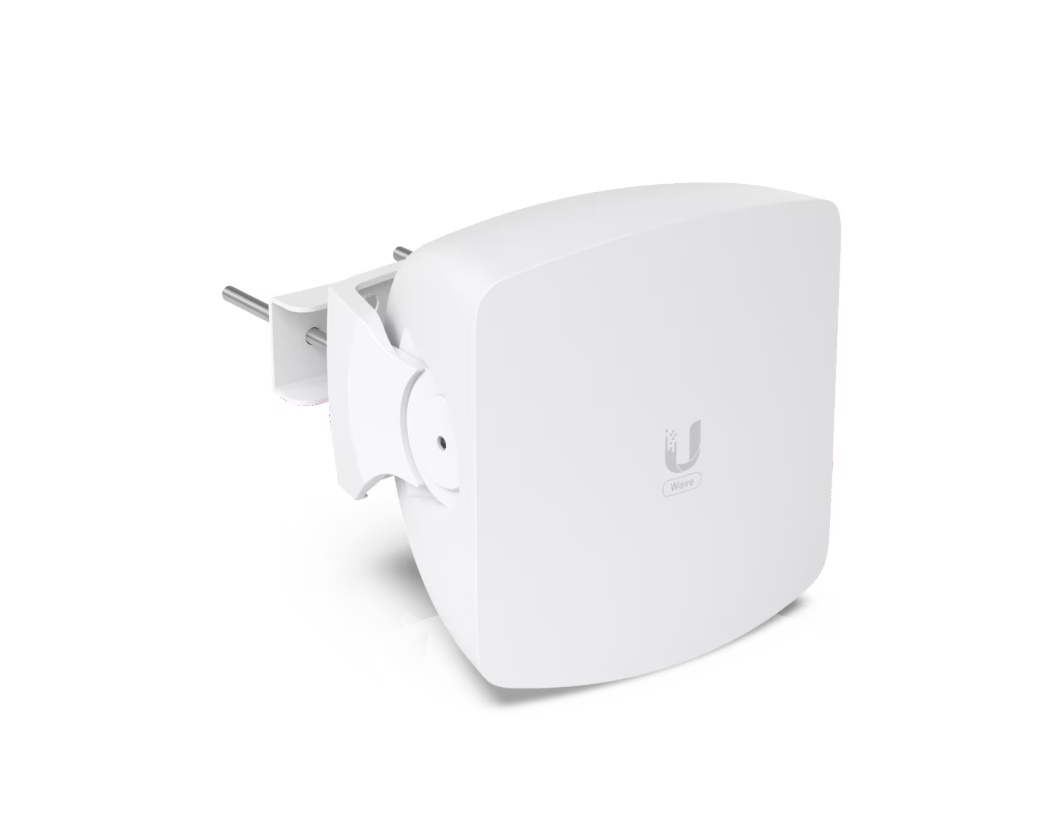

Ubiquiti Wave-AP Wave Access Point
Product Details
60 GHz PtMP access point powered by Wave Technology.
Specifications

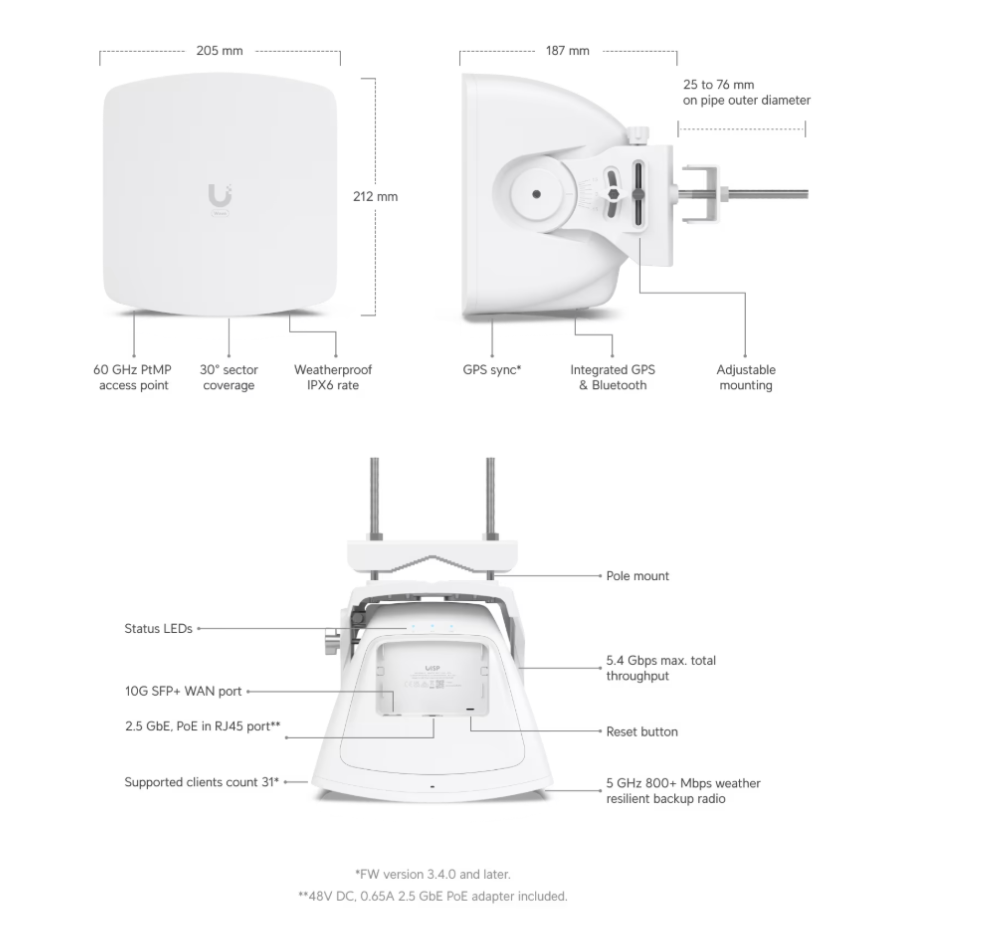

| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.1 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Pole Mount Diameter | ⌀ 25 to 76 mm (1 to 3") |
| Wind Loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface |
(1) 2.5GbE RJ45 port (100/1000/2500) (1) 10G SFP+ port (1/10) |
| Max. Power Consumption | 24W |
| Power Method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A 2.5GbE PoE adapter (Included) |
| GPS | ✓ |
| Buttons | (1) Factory reset |
| LEDs: Power |
Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| LEDs: Ethernet |
Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected |
| LEDs: GPS | Blue: receiving at least (4) GPS satellite signal |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Operating Modes | PtMP access point |
| Ubiquiti Specific Features | Discovery Protocol ✓ |
| Services | UISP ✓, Ping Watchdog ✓, NTP Client ✓, SNMP ✓ |
| Tools | Cable Test ✓, Wave AI ✓, Wave Technology ✓ |
| Utilities | Antenna Alignment ✓, Ping ✓, Site Survey ✓, Speed Test ✓, Traceroute ✓, Discovery Utility ✓ |
| Network | Bridge mode |
| Application Requirements | UISP Version 1.5.7 and later |
| Total Throughput | 5.4 Gbps |
| Supported Clients | 31 |
| Max. Range |
Connecting to a Wave Pro: up to 8 km (5 mi) Connecting to a Wave Long-Range: up to 8 km (5 mi) Connecting to a Wave Nano: up to 5 km (3.1 mi) Connecting to a Wave Pico: up to 1.3 km (0.8 mi) |
| Encryption | WPA2-PSK (AES) |
| Operating Frequency | Worldwide: 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 24 dBi |
| Polarization | Vertically-Linear |
| Beamwidth |
Azimuth: 3 dB 30° Elevation: 3 dB 3° |
| Electrical Downtilt | 0° |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency |
US/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
|
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 12 dBi |
| Polarization | Dual-Linear |
| Beamwidth |
Azimuth: 3 dB 35° Elevation: 3 dB 60° |
| Cross-Pol Isolation | 10 dB |
| Electrical Downtilt | 0° |
