Description
Ubiquiti USL-Motion Motion Sensor
SuperLink motion sensor designed for versatile installation, delivering up to 6 years of battery life.
Specifications:
| Category | Feature | Specification |
| Overview | Dimensions |

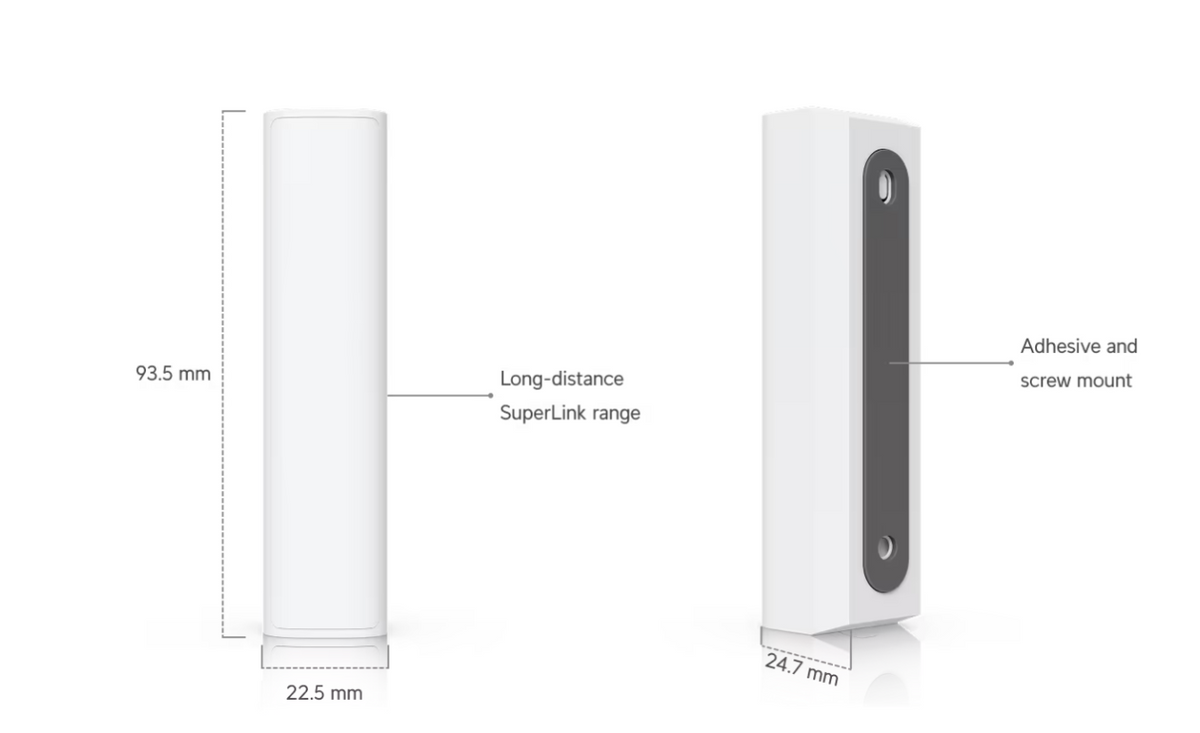

Wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97") Corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
| Mounting | Adhesive and screw mount | |
| UniFi Suite | Protect | |
| Performance | Connectivity | SuperLink (Proprietary) |
| Freq. Range | US: 915.6–927.6 MHz / EU: 865.1–869.5 MHz | |
| Antenna Gain | SuperLink: 1 dBi | |
| Max. TX Power | SuperLink: 14 dBm | |
| Max. Range | SuperLink: 2 km (1.2 mi) | |
| Sensors | Horizontal PIR | Detection range up to 1.5 m (4.9 ft) |
| Vertical PIR | Detection range up to 6 m (19.7 ft) with pet immunity | |

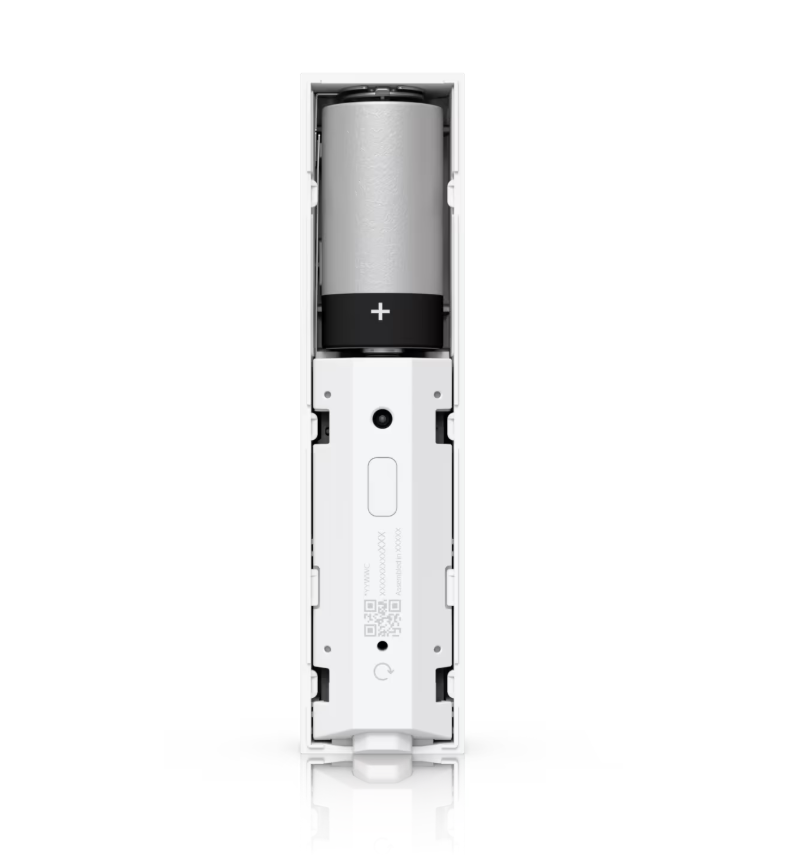

| Hardware | Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years | |
| Max. Consumption | 22.6mW | |
| Voltage Range | 3V | |
| Weight | 45 g (1.6 oz) | |
| Materials | Polycarbonate, High-density polyethylene (HDPE) | |

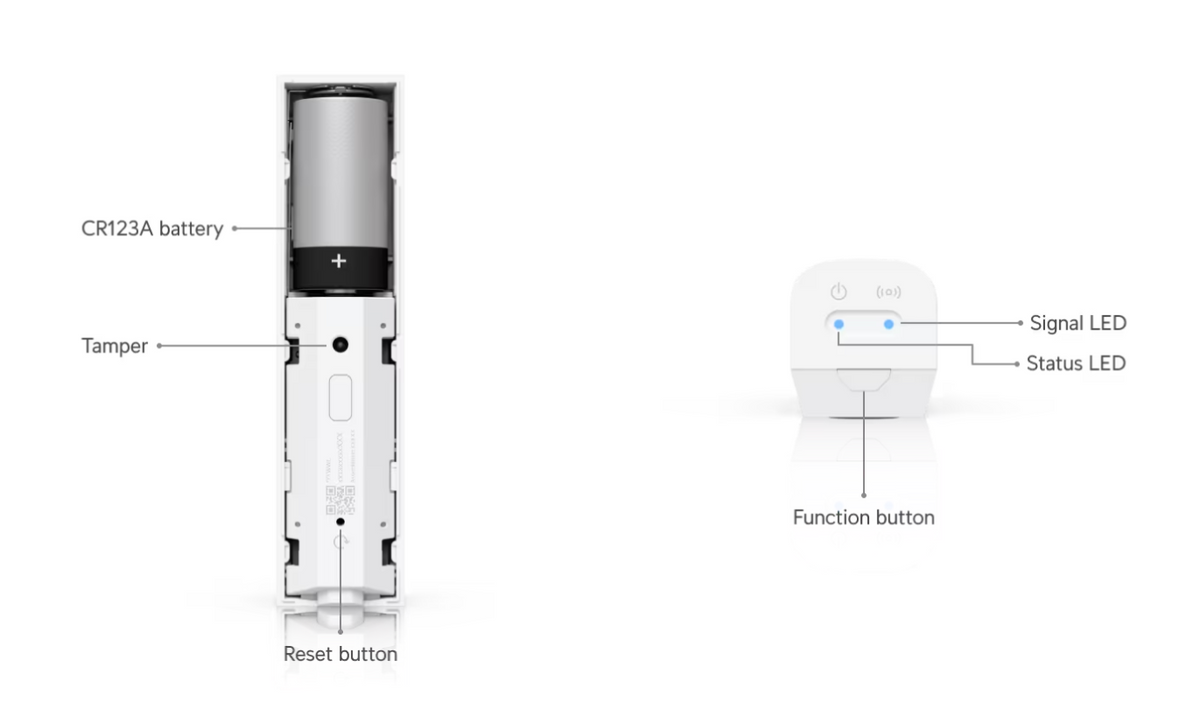

| UI & Control | Buttons | Factory reset, Function, Tamper switch |
| LEDs | Status (R/B/W), Signal (B/R) | |
| Environment | Operating Temp. | 0 to 40° C (32 to 104° F) |
| Humidity | 10 to 90% noncondensing | |
| Compliance | Certifications | FCC, IC, CE |
| NDAA Compliant | Yes (✓) | |
| Software | Management | UniFi Protect (Web, iOS, Android) |
