Ubiquiti USL-Relay

UbiquitiSKU: USL-Relay

Price:

Login to see pricing

Description

Ubiquiti USL-Relay

Product Details

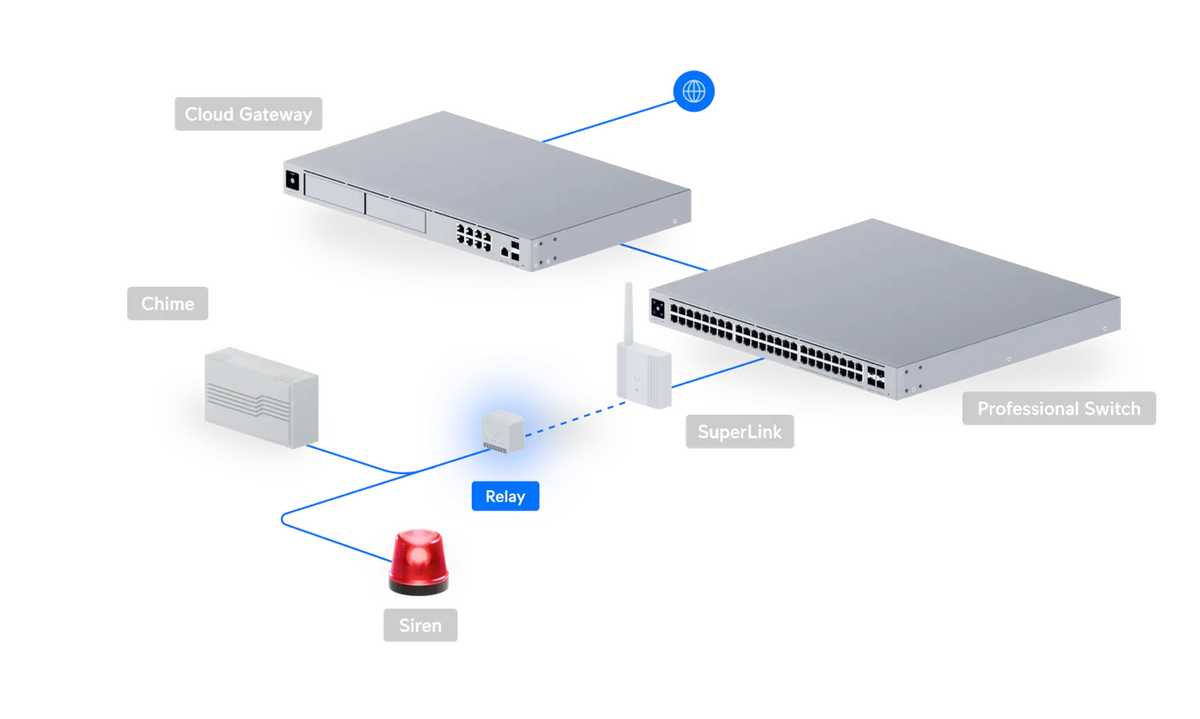

The Ubiquiti USL-Relay is a compact SuperLink relay module, described by Ubiquiti as “designed with I/O interfaces for seamless integration with third-party sensors and signaling devices”. It is the part that lets UniFi Protect reach equipment that was never built to talk to it: a gate motor, a garage door, a lighting contactor, an alarm panel, a legacy sensor with nothing but a dry contact.

It connects over SuperLink, Ubiquiti's proprietary wireless link, at up to 2 km line of sight — so the relay goes where the equipment is rather than where the cabling reaches. That is the argument for it over a wired I/O module: a gate at the end of a drive, a pump house, an outbuilding, any point where running network cable is the expensive part of the job. A SuperLink Gateway is required and is sold separately.

There are two configurable signal inputs for monitoring external sensors or switches, and two dry contact relay outputs for switching external systems, rated 10 A per port with a 12 A total under UL or 16 A under IEC. The outputs handle both DC and AC circuits. Power is 12, 24 or 48 V DC on a terminal block, and it mounts by adhesive pad, wall screw or DIN rail, which makes it practical inside a control cabinet. Everything is managed from UniFi Protect, so inputs can drive event-based triggers and outputs can be operated from the same interface as the cameras.

Features

  • Compact SuperLink I/O relay module for UniFi Protect
  • Two configurable dry contact signal inputs
  • Two dry contact relay outputs, 10 A per port
  • 12 A total maximum (UL) / 16 A (IEC)
  • Outputs switch both DC and AC circuits
  • SuperLink wireless connectivity, up to 2 km line of sight
  • 12 V, 24 V or 48 V DC power input
  • Adhesive, wall screw or DIN rail mounting
  • Managed in UniFi Protect with event-based triggers
  • NDAA compliant
  • SuperLink Gateway required, sold separately

Specifications

Technical
Product Type SuperLink I/O relay module
Connectivity SuperLink, proprietary wireless
Operating Frequency (US) 915.6 – 927.6 MHz
Operating Frequency (EU) 865.1 – 869.5 MHz
Antenna Gain 1 dBi
Maximum Transmit Power 14 dBm
Maximum Range 2 km (1.2 mi) line of sight

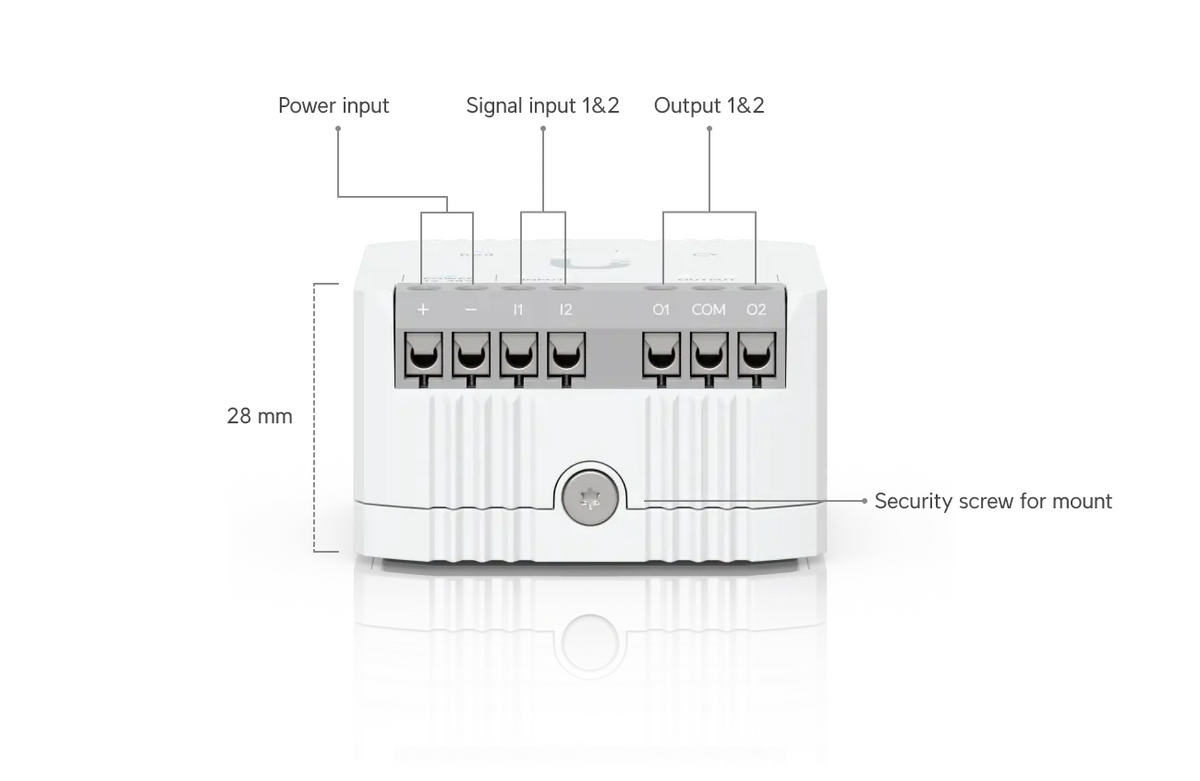

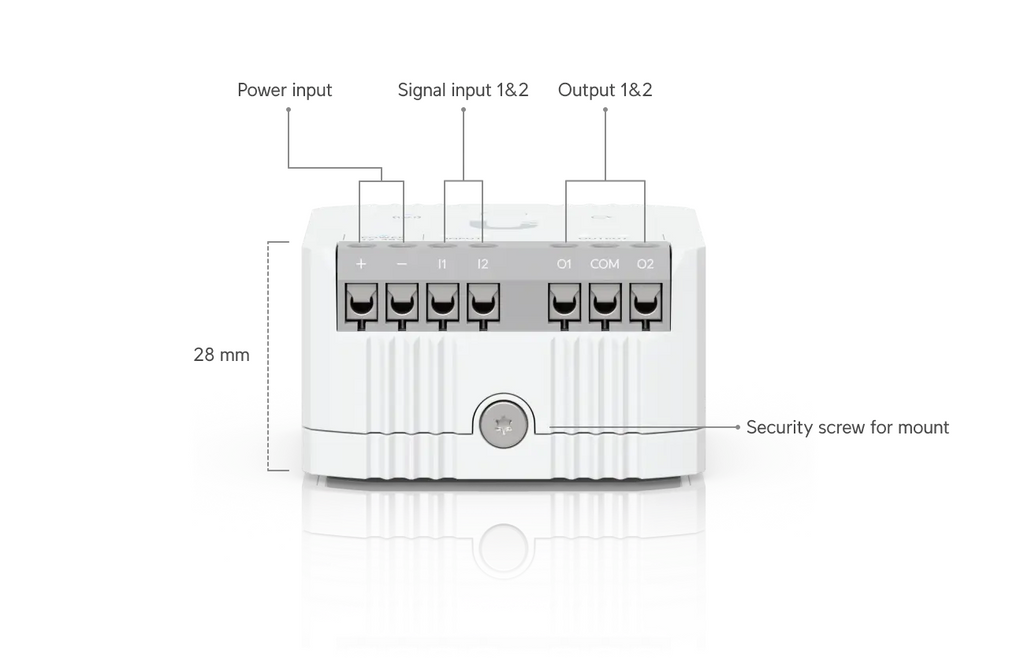

Signal Inputs 2 configurable dry contact inputs (I1, I2)
Relay Outputs 2 dry contact outputs (O1, COM, O2)
Relay Contact Rating 10 A per port | 12 A total maximum (UL) | 16 A (IEC)
Switched Circuits DC and AC
Power Input 12 V DC / 24 V DC / 48 V DC, terminal block
Management UniFi Protect, web and iOS/Android apps
System Requirement SuperLink Gateway, sold separately
Operating Temperature 0 to 40 °C (32 to 104 °F)
Operating Humidity 10 to 90 %, non-condensing
Certifications CE, FCC, IC | NDAA compliant
Physical

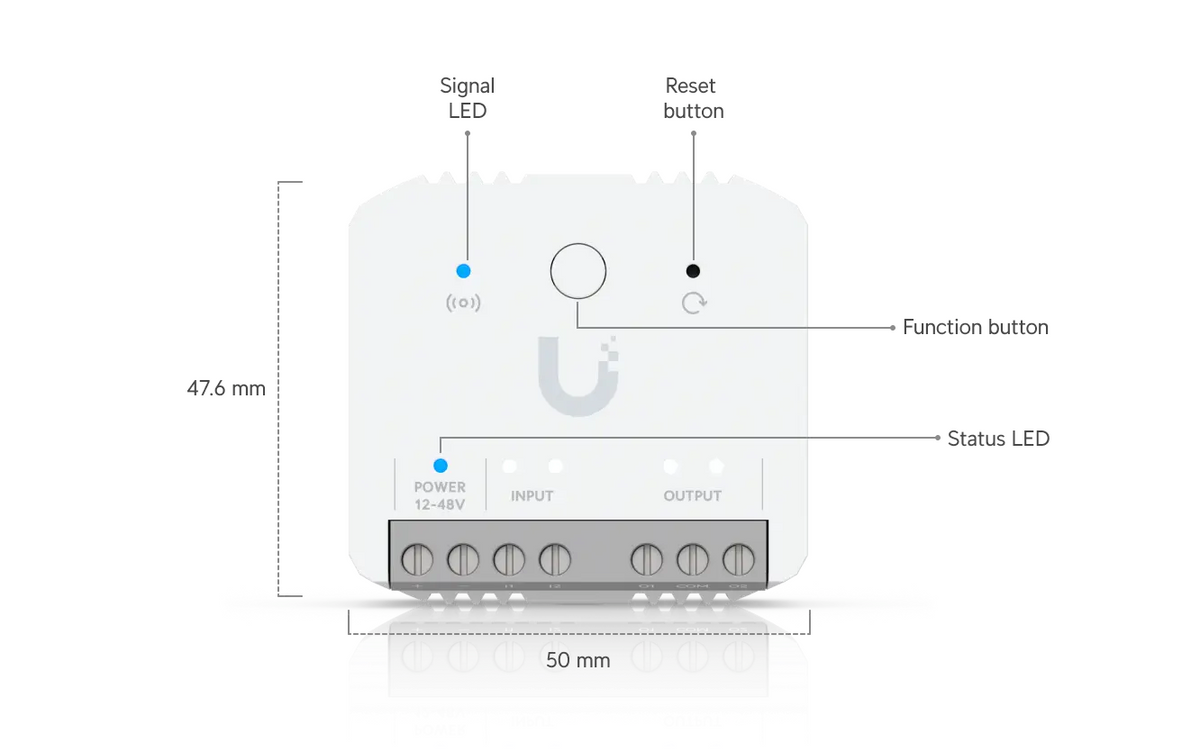

Dimensions 50 × 47.6 × 28 mm (2.0 × 1.9 × 1.1 in)
Weight 100 g (3.5 oz)
Enclosure Material Polycarbonate

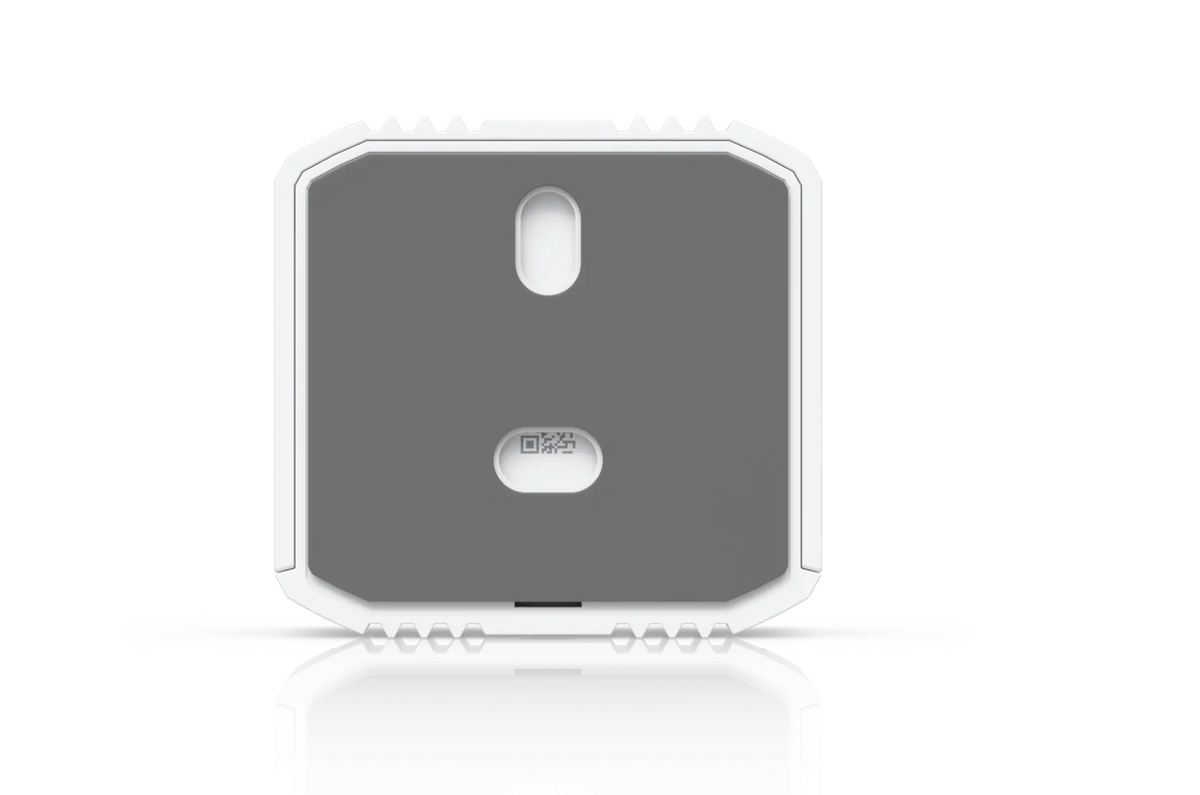

Mounting Options Adhesive pad, wall screw, DIN rail

Specifications subject to change.
