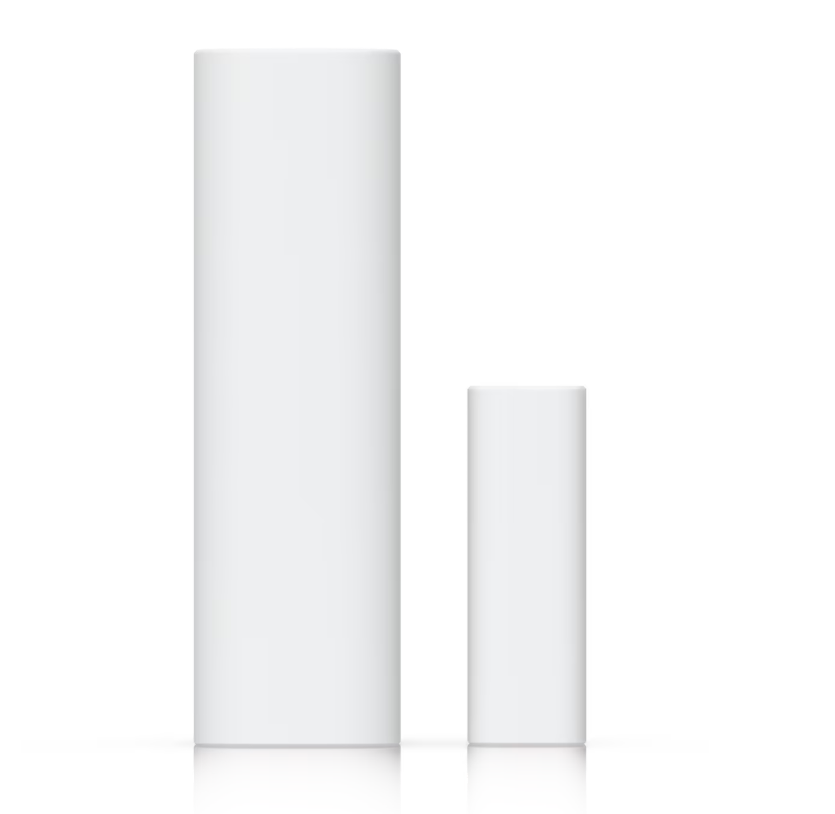

Ubiquiti USL-Entry Entry Sensor
SuperLink sensor with up to 6-year battery life for monitoring door and window open/closed status.
Specifications:
| Category | Feature | Specification |
| Overview | Dimensions |

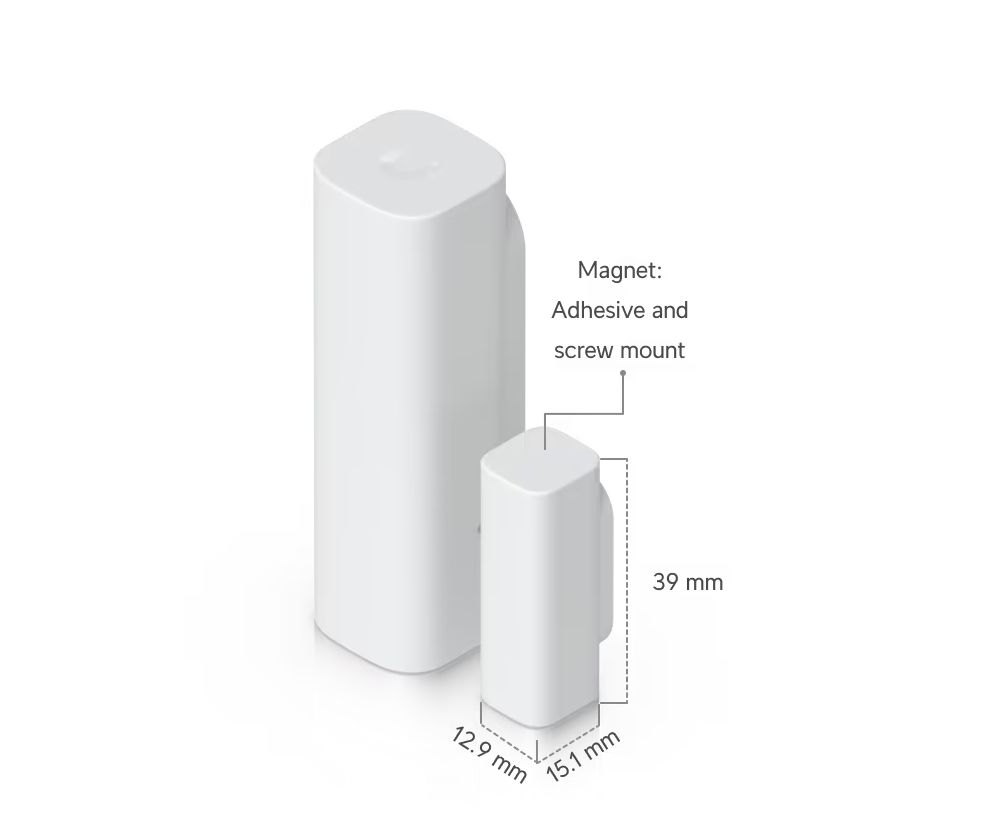

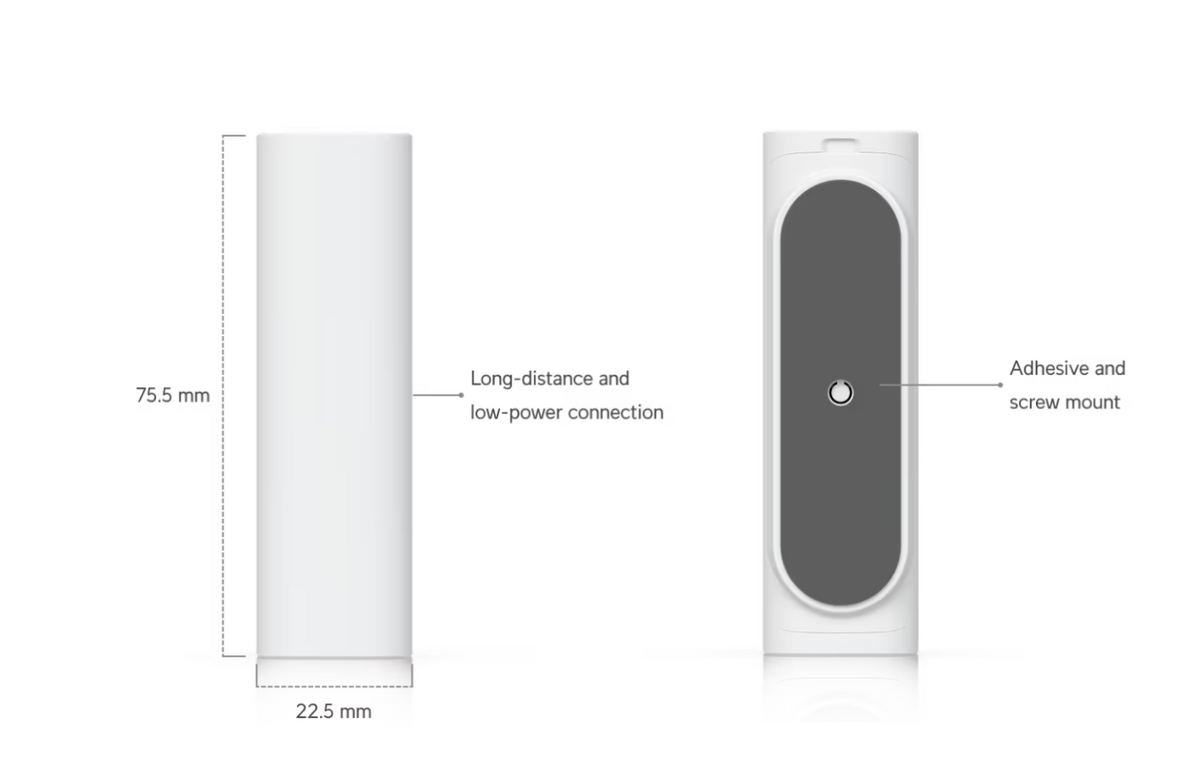

Device: 75.5 x 23.5 x 22.5 mm (3 x 0.93 x 0.89") Magnet: 39 x 15.1 x 12.9 mm (1.5 x 0.6 x 0.5") |
| Mounting | Adhesive and screw mount | |
| UniFi Suite | Protect | |

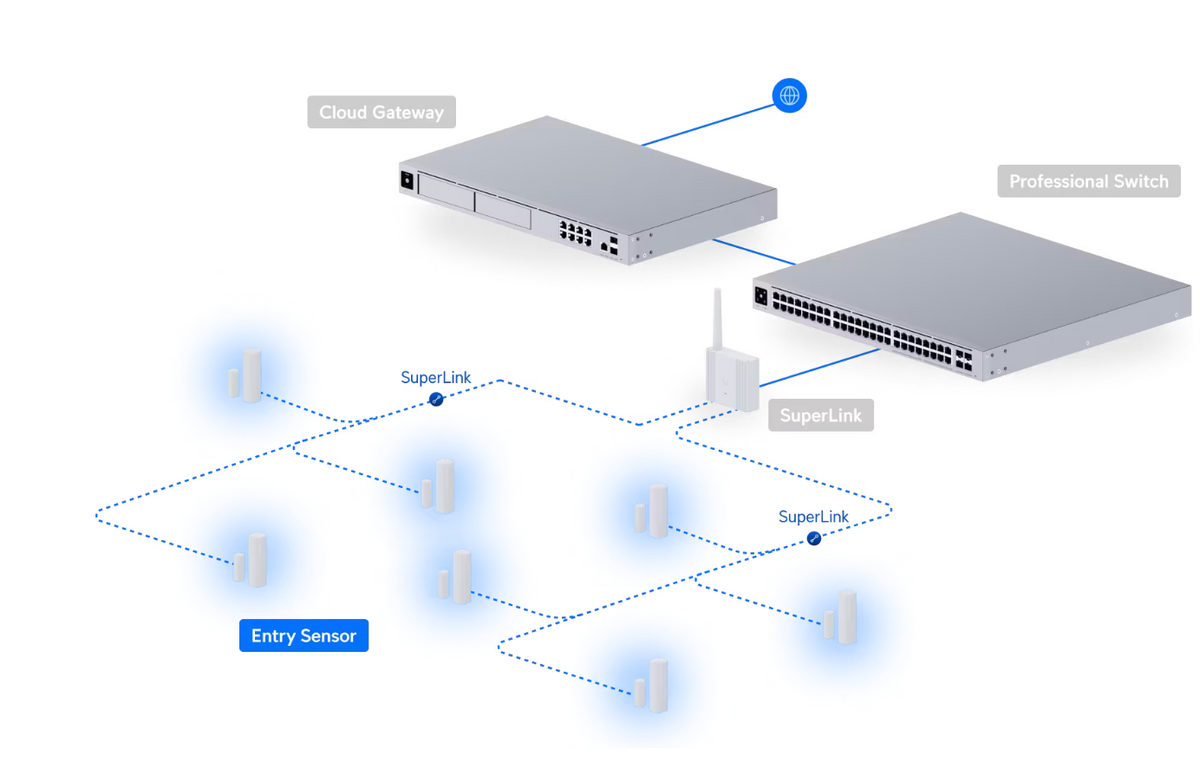

| Performance | Connectivity | SuperLink (Proprietary) |
| Freq. Range | US: 915.6–927.6 MHz / EU: 865.1–869.5 MHz | |
| Antenna Gain | SuperLink: 0 dBi | |
| Max. TX Power | SuperLink: 14 dBm | |
| Max. Range | SuperLink: 2 km (1.2 mi) | |
| Sensors | Features | Reed Switch (✓) |

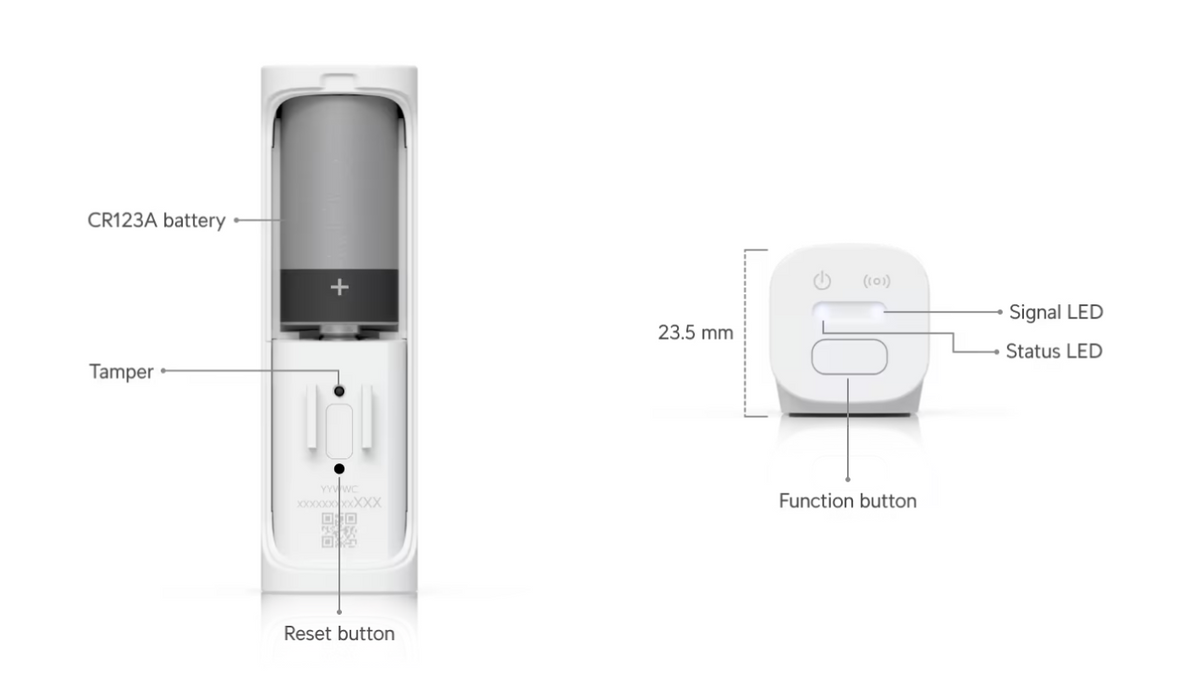

| Hardware | Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years | |
| Max. Consumption | 27.7mW | |
| Voltage Range | 3V | |
| Weight |
Device: 41 g (1.4 oz) Magnet: 22 g (0.8 oz) |
|
| Materials | Polycarbonate (Enclosure and Mount) | |
| UI & Control | Buttons | Factory reset, Function, Tamper switch |
| LEDs | Status (R/B/W), Signal (B/R) | |
| Environment | Operating Temp. | 0 to 40° C (32 to 104° F) |
| Humidity | 10 to 90% noncondensing | |
| Compliance | Certifications | FCC, IC, CE |
| NDAA Compliant | Yes (✓) | |
| Software | Management | UniFi Protect (Web, iOS, Android) |
