Ubiquiti UPS 2U Pro

UbiquitiSKU: UPS-2U-Pro

Price:

Login to see pricing

Description

Ubiquiti UPS 2U Pro

Product Details

The Ubiquiti UPS 2U Pro is described by Ubiquiti as a UniFi-managed 1.92 kVA rackmount UPS with pure sine wave output, 8 individually controllable outlets with per-port power monitoring and remote power cycling, a hot-swappable 720 Wh battery, and up to 22 minutes of runtime at half load 960 W. Supports Graceful Shutdown for UNVR and UNAS, and NUT compatibility for third-party devices.

What separates it from a generic rack UPS is that it is a UniFi device. All eight outlets are individually switchable from the UniFi interface with per-outlet power monitoring, so a hung recorder can be power-cycled remotely without anybody driving to site. Graceful shutdown works directly with UNVR and UNAS devices — they are told to close down cleanly before the battery runs out rather than being dropped — and NUT support extends the same courtesy to third-party servers. There is a 3.7-inch touchscreen on the front for local status.

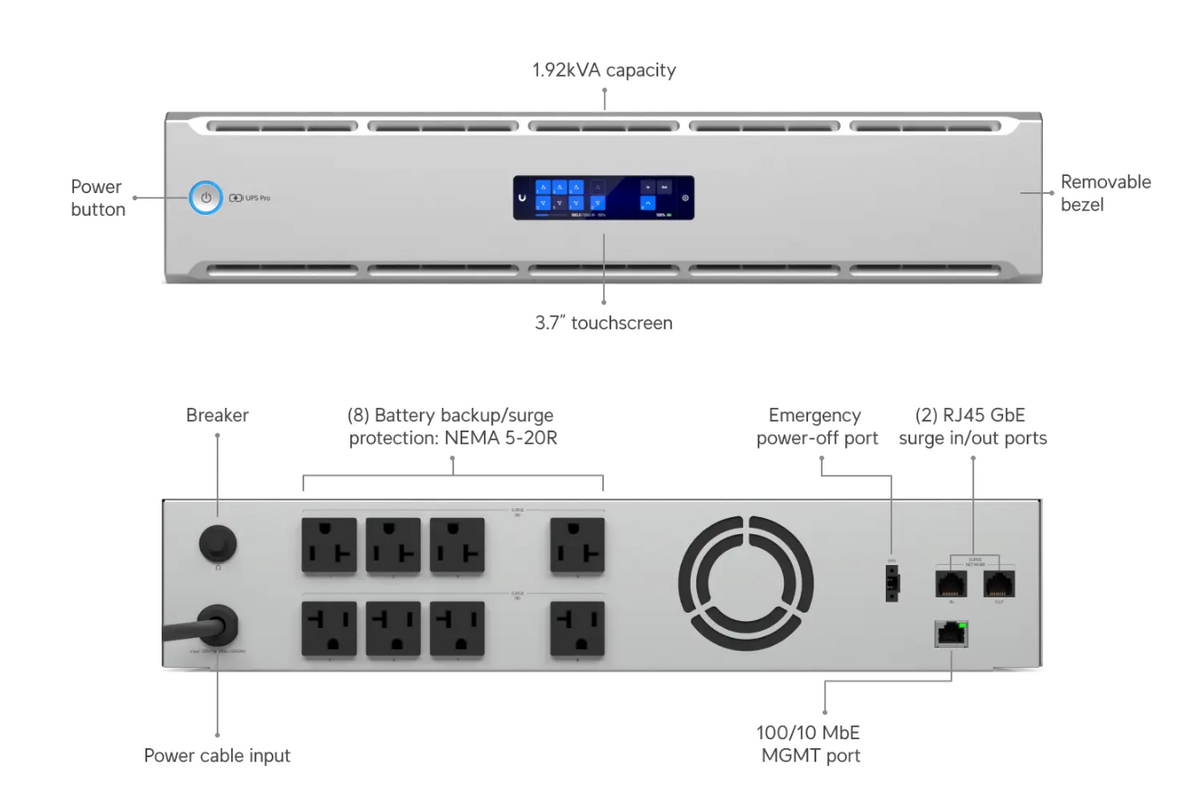

The electrical figures: 1920 VA and 1920 W, line interactive, pure sine wave on battery, 6 ms typical transfer time, with a 72 V 10 Ah lead-acid battery giving 9 minutes at full load or 22 minutes at half load and recharging to 90 per cent in eight hours. The battery is hot-swappable, so it is replaced without dropping the load. The connectors: this is a 120 V AC unit with a NEMA 5-20P input and eight NEMA 5-20R outlets, all of them battery-backed and surge-protected, plus a pair of gigabit ports for Ethernet surge protection in and out. It is 2U, 630 mm deep and 32 kg, so check the rack and plan a second pair of hands. It needs UniFi OS 5.1.25 and UniFi Network 10.5.67 or later.

Features

  • 1920 VA / 1920 W line-interactive rack-mount UPS
  • Pure sine wave output on battery
  • Eight NEMA 5-20R outlets, all battery-backed and surge-protected
  • Individually controllable outlets with per-outlet power monitoring and remote power cycling
  • Hot-swappable 720 Wh battery, replaced without powering down the load
  • 9 minutes runtime at full load, 22 minutes at half load
  • Graceful shutdown for UNVR and UNAS, NUT support for third-party systems
  • 3.7-inch touchscreen display
  • UniFi managed over Ethernet
  • Two gigabit ports for Ethernet surge protection in and out
  • 6 ms typical transfer time, 10 ms maximum
  • Emergency power off

Specifications

Technical
Model UPS-2U-Pro
Product Type UniFi-managed line-interactive rack-mount UPS, 2U
Capacity 1920 VA / 1920 W
Topology Line interactive
Output Waveform Pure sine wave in battery mode
Battery Type 1 x lead acid, 72 V, 10 Ah, 720 Wh, hot-swappable
Runtime 9 minutes at full load | 22 minutes at half load (960 W)
Battery Charging Time 8 hours to 90 % capacity
Outlets 8 x NEMA 5-20R, battery backup and surge protection on all eight
Input Connector 1 x NEMA 5-20P, OVC II AC in
Nominal Input Voltage 120 V AC
Input Voltage Range 89–145 V AC
Power Method 1 x TN system, 120 V AC, 16 A max, 50/60 Hz
Output Voltage 120 V AC
Frequency Range AC mode 50/60 Hz ±5 Hz auto sensing | battery mode 60 Hz ±1 Hz
AC Voltage Regulation ±1.5 % in battery mode
Transfer Time 6 ms typical, 10 ms maximum
Overload, Line Mode 103–120 % fault after 5 min | 120–150 % after 10 s | above 150 % after 1 s
Overload, Battery Mode 103–120 % fault after 1 min | 120–150 % after 10 s | above 150 % after 0.5 s
Short Circuit Protection Breaker, 250 V AC, 20 A
Emergency Power Off Yes
Networking Interface 1 x 100/10 Mbps port for network management | 2 x gigabit ports for surge in and out
Management UniFi over Ethernet, with graceful shutdown for UNVR and UNAS and NUT support
Display 3.7-inch touchscreen
Buttons 1 x power | 1 x factory reset | 1 x circuit breaker
Software Requirement UniFi OS 5.1.25 or later | UniFi Network 10.5.67 or later | UniFi mobile iOS 10.36.1 or Android 10.39.3 or later | graceful shutdown needs UniFi OS 4.4.3 or higher
Operating Altitude 3,000 m
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -15 to 50 °C (5 to 122 °F)
Operating Humidity 0 to 95 %, non-condensing
NDAA Compliant Yes
Certifications FCC, IC, UL 1778, CSA C22.2 No. 107.3
Physical

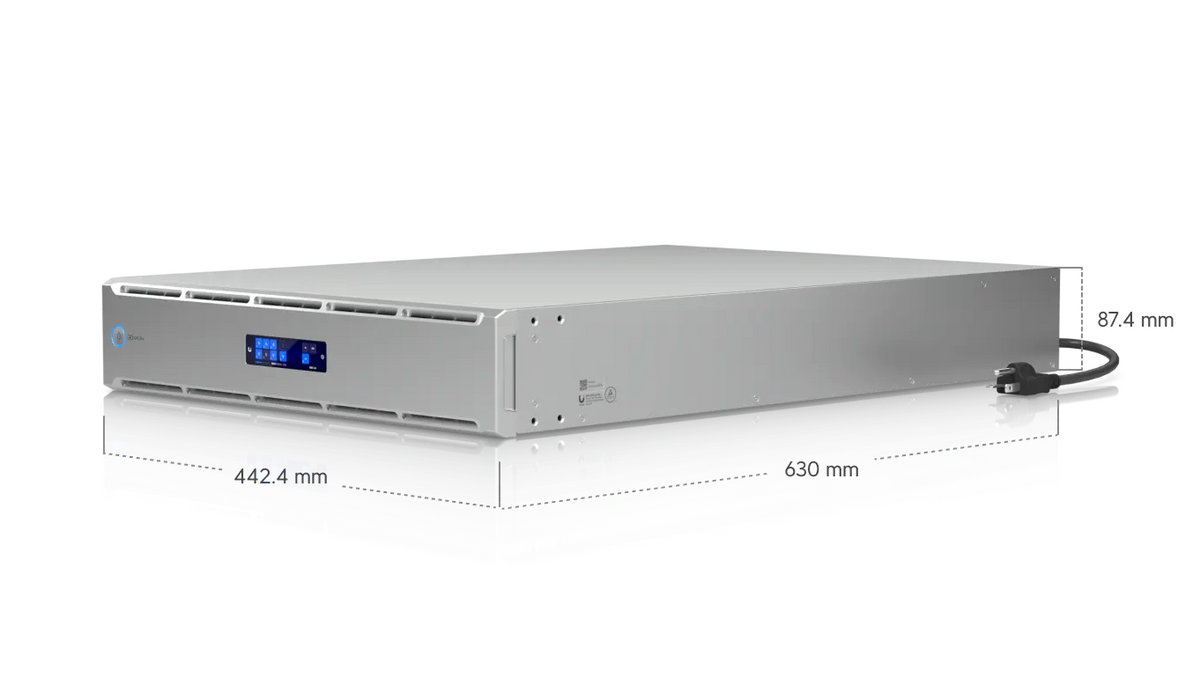

Dimensions 442.4 × 87.4 × 630 mm (17.4 × 3.4 × 24.8 in)
Weight 32 kg (70.5 lb)
Form Factor Rack mount, 2U
Enclosure Material Galvanized steel
Ingress Protection IP20

Specifications subject to change.
