Ubiquiti UPL-Port PoE Audio Port
Product Details
A digital audio streamer with an ultra-compact, versatile design and an intuitive control system, supporting multiple music streaming services and scalable multi-zone installations.
Note. EU version comes with EU power plug only.
Specifications
| Category | Feature | Specification |

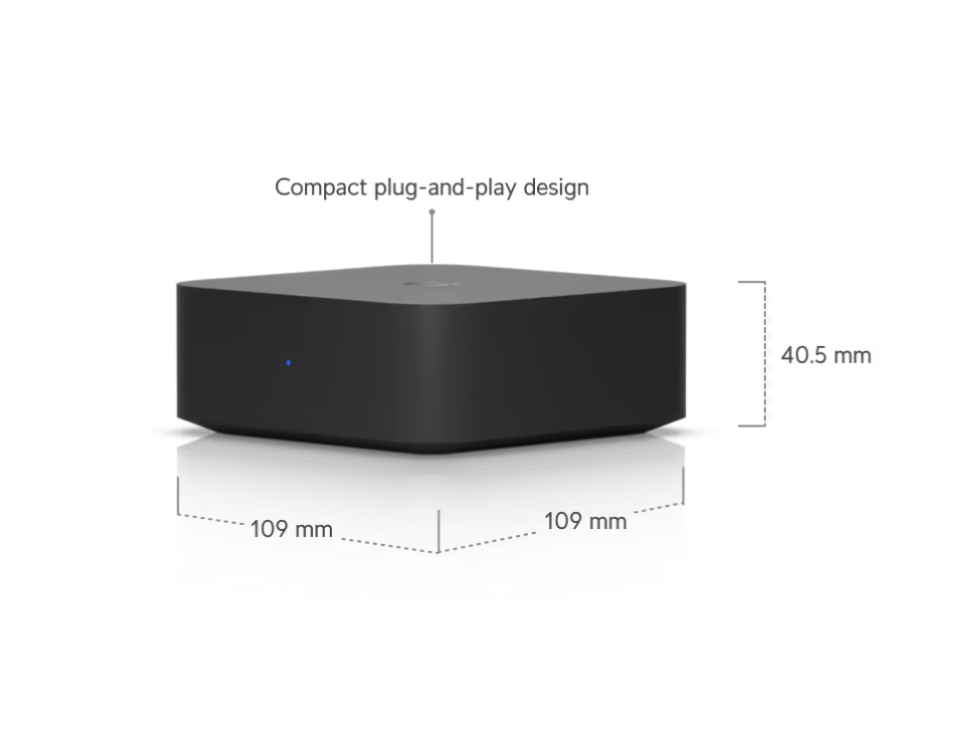

| Mechanical | Dimensions | 109 x 109 x 40.5 mm (4.3 x 4.3 x 1.6") |
| Weight | 250 g (8.5 oz) | |
| Enclosure Material | Polycarbonate | |
| Mounting | Compact Desktop | |

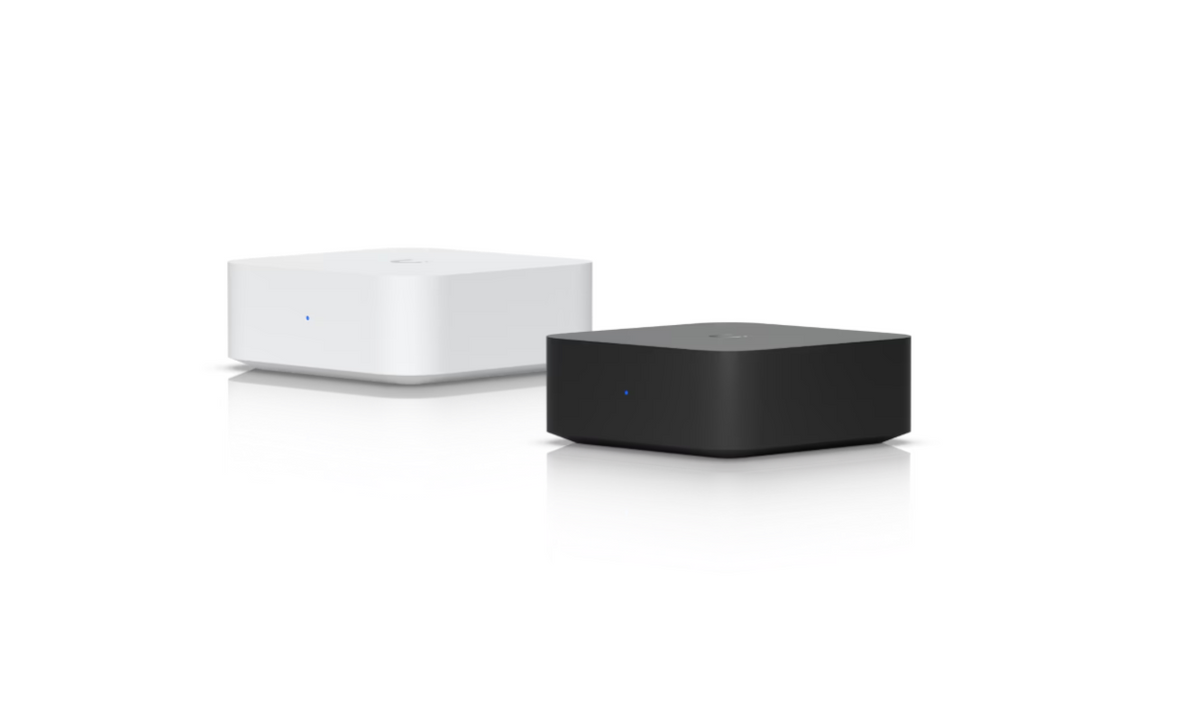

| Available Colors | Black, White | |
| Audio | Output | Mono / Stereo sound |
| Surround Format | PCM | |
| Zone | Up to 32 PowerAmps and PoE Audio Ports | |

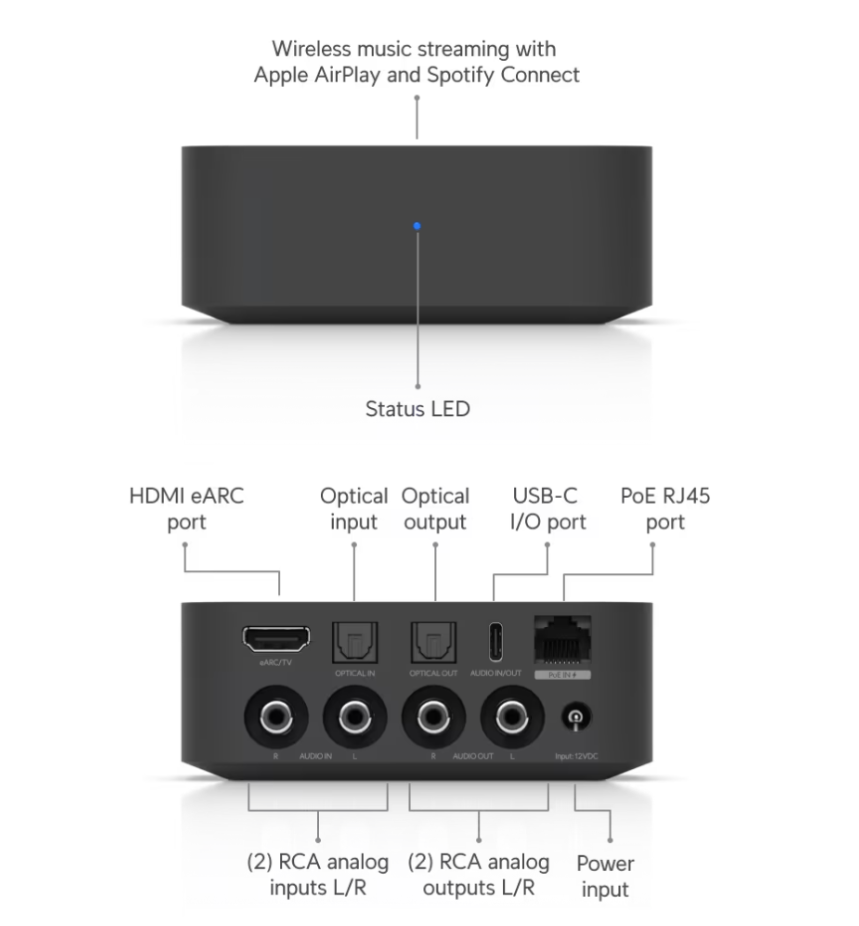

| Audio Input | (2) RCA analog inputs L/R, (1) HDMI eARC, (1) Optical In, (1) USB-C versatile port | |
| Audio Output | (2) RCA analog outputs L/R, (1) Optical Out, (1) USB-C versatile port | |
| Streaming | AirPlay, Google Cast, Spotify Connect, Soundtrack Your Brand | |
| Hardware | Networking Interface | (1) 10/100 MbE RJ45 port |
| WiFi Standards | 802.11 a/b/g/n/ac/ax | |
| Connectivity | WiFi 2.4G (BW 20/40 MHz), WiFi 5G (BW 20/40/80 MHz) | |
| Power Method | (1) AC/DC adapter, 12V DC (Included); (1) PoE | |
| Max. Power Consumption | 10W | |
| Button | (1) Factory reset | |
| Operating Temp. | -5 to 40° C (23 to 104° F) | |
| Operating Humidity | 5 to 90% noncondensing | |
| NDAA Compliant | Yes (✓) | |
| Certifications | FCC, IC, CE, Anatel: 07624-25-08356 | |
| Software | App Requirements | UniFi Play iOS™ and Android™: Version 2.0.0 and later |
