Ubiquiti UNAS Pro 4
1U rack-mount NAS with (4) 2.5/3.5" HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.

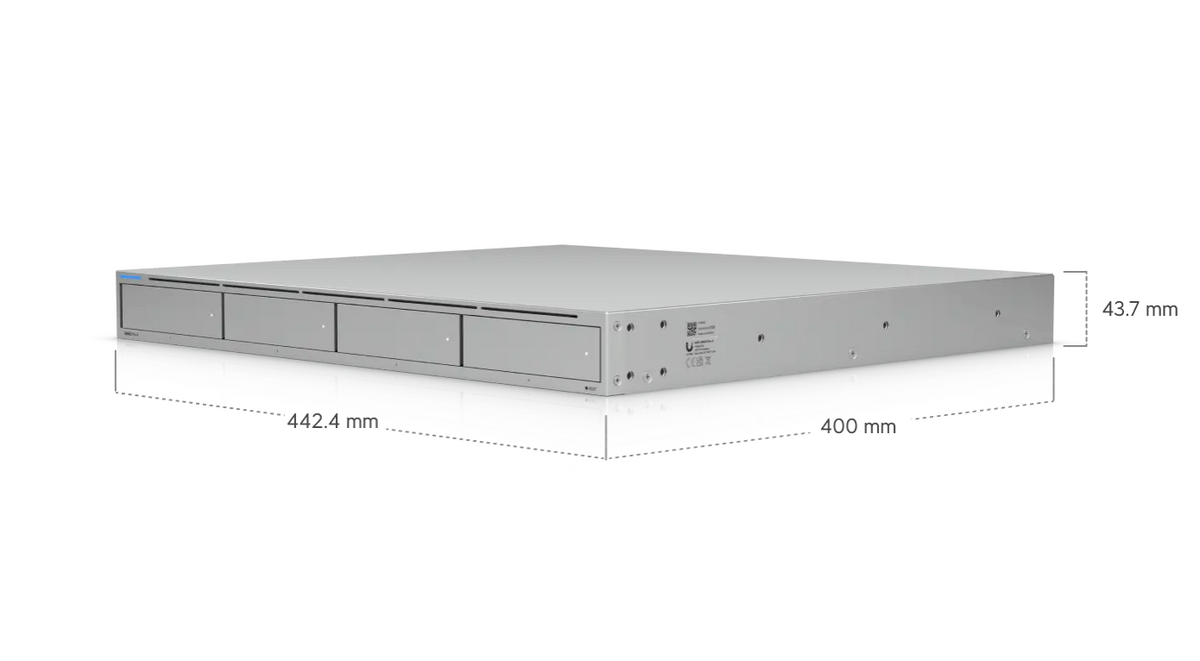

| Dimensions | 442.4 x 400 x 43.7 mm (17.4 × 15.7 × 1.7") |

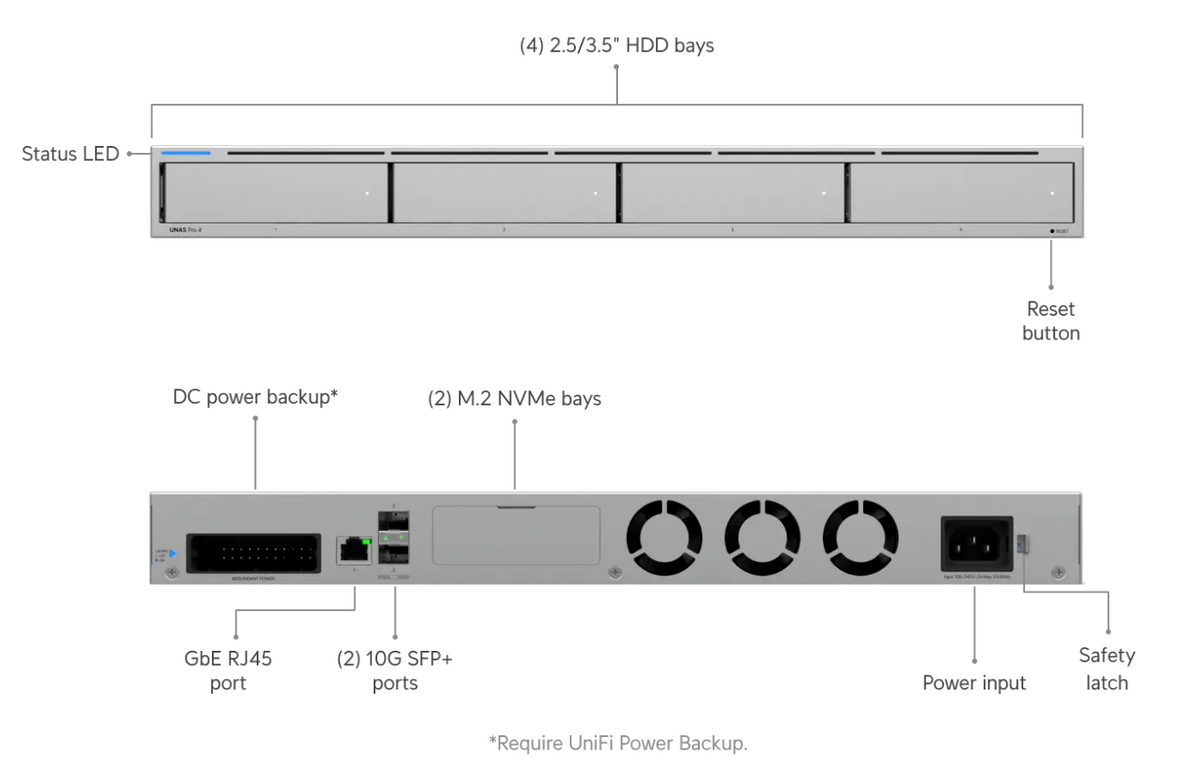

| Storage Capacity | (4) 2.5/3.5" drive bays, (2) M.2 NVMe bays |
| Networking Interface | (2) 10G SFP+ (10G only), (1) GbE RJ45 (1G/100M/10M) |
| Power Redundancy | ✓ |
| Form Factor | Rack mount (1U) |
| Hard Drive Capacity | (4) 2.5/3.5" HDD/SSD support, (2) M.2 NVMe SSD support |
| Max. Power Budget for Drives | 125W |
| Max. Power Consumption | 150W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz; (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 150W |
| Processor | Quad-Core ARM® Cortex®-A57 at 2.0 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Weight | 6.7 kg (14.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

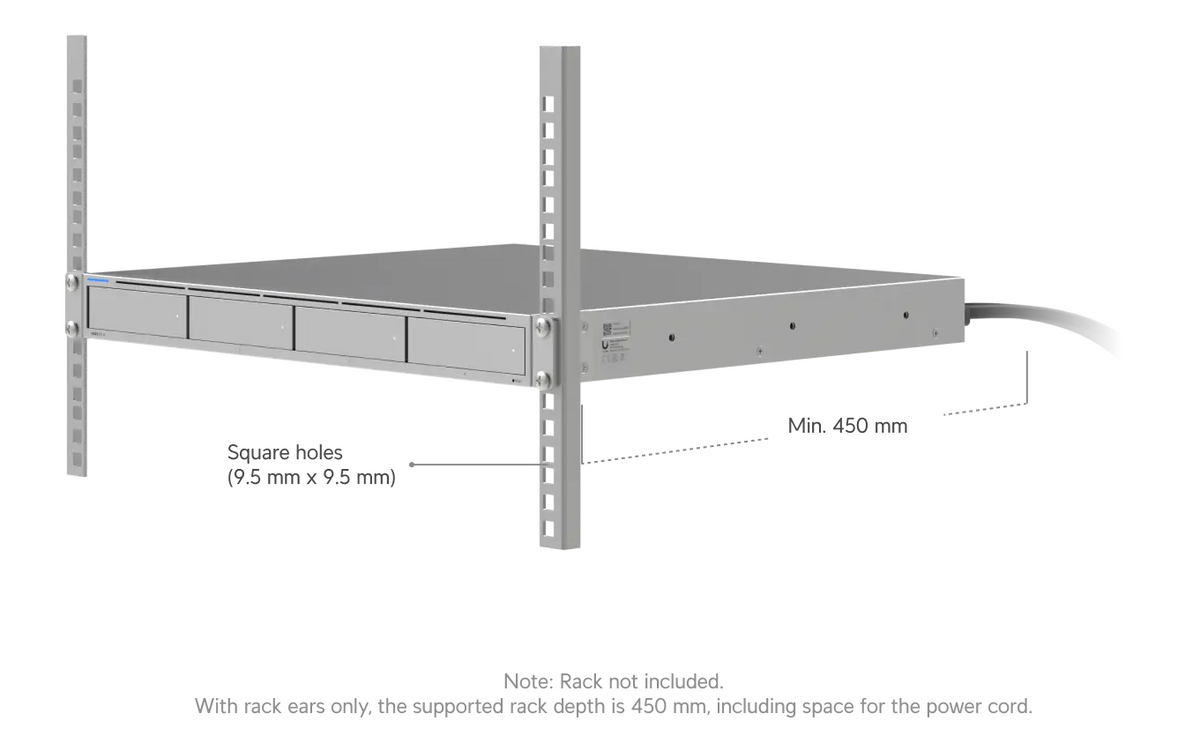

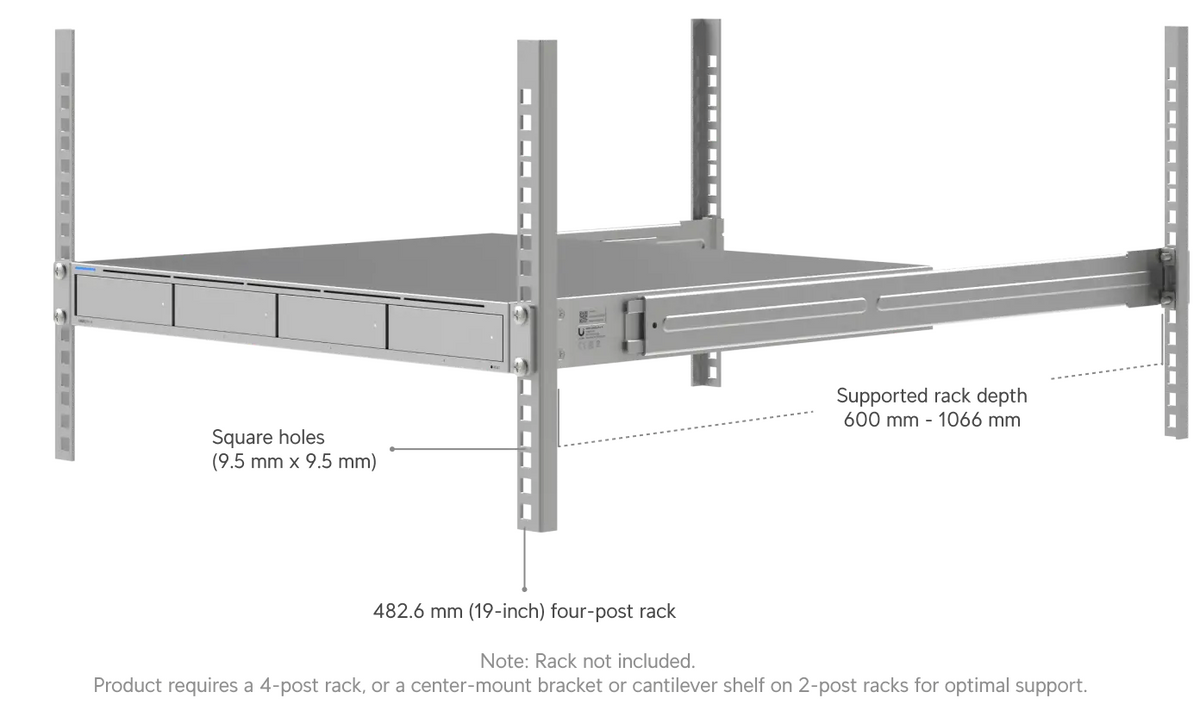

| Supported Rack Depth | Rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm); post depths ranging from 600–1066 mm (23.6–42") |
| LEDs | Ethernet ✓, SFP+ ✓, RPS ✓, HDD ✓, System ✓ |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, CE, IC |
| Supported File Protocols | NFS ✓, SMB ✓ |
| RAID Type | RAID 5, RAID 6, RAID 10 |
| RAID Group | Single |
| Personal Drive & Shared Drive | ✓ |
| SSD Cache | ✓ |
| Max. NVMe SSD Capacity Supported | 4 TiB |
| File Encryption | ✓ |
| Backup to Remote UNAS | ✓ |
| Backup to CIFS/SMB Server | ✓ |
| Backup to Cloud Services | Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi ✓ |
| Snapshots | ✓ |
| Share Links | ✓ |
| Time Machine Backup | ✓ |
| Client App Support | ✓ |
| User Groups | ✓ |
