Description
Ubiquiti UDM-Beast Dream Machine Beast
Product Details
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
Specifications
| Category | Specification | Detail / Support |

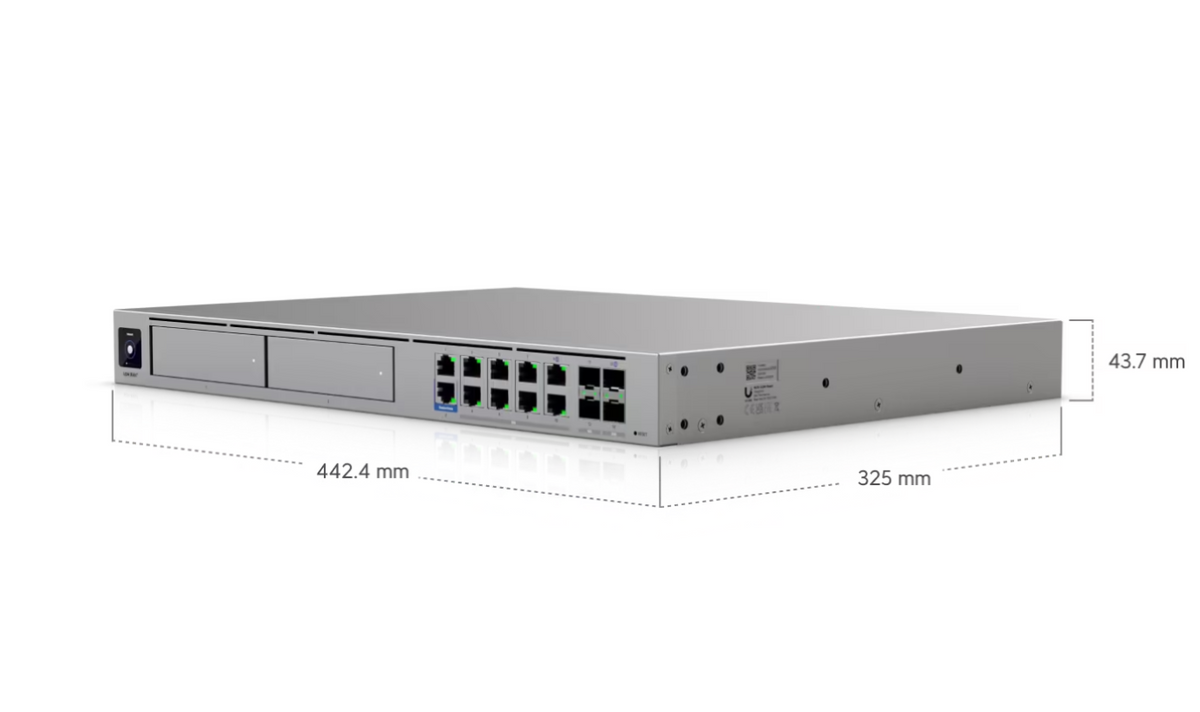

| Overview | Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | 5.5 kg (12.13 lb) | |
| Processor | Octa-core ARM® v9 at 2.1 GHz | |
| System Memory | 16 GB | |
| On-board Storage | Integrated 128 GB SSD | |
| IDS/IPS Throughput | 25 Gbps | |
| Form Factor | Rack mount (1U) | |
| Capacity | Managed UniFi Devices | 750+ |
| Managed Cameras | (100) HD, (60) 2K, (40) 4K | |
| Managed Access Hubs | 200 | |
| Simultaneous Users | 7,500+ | |

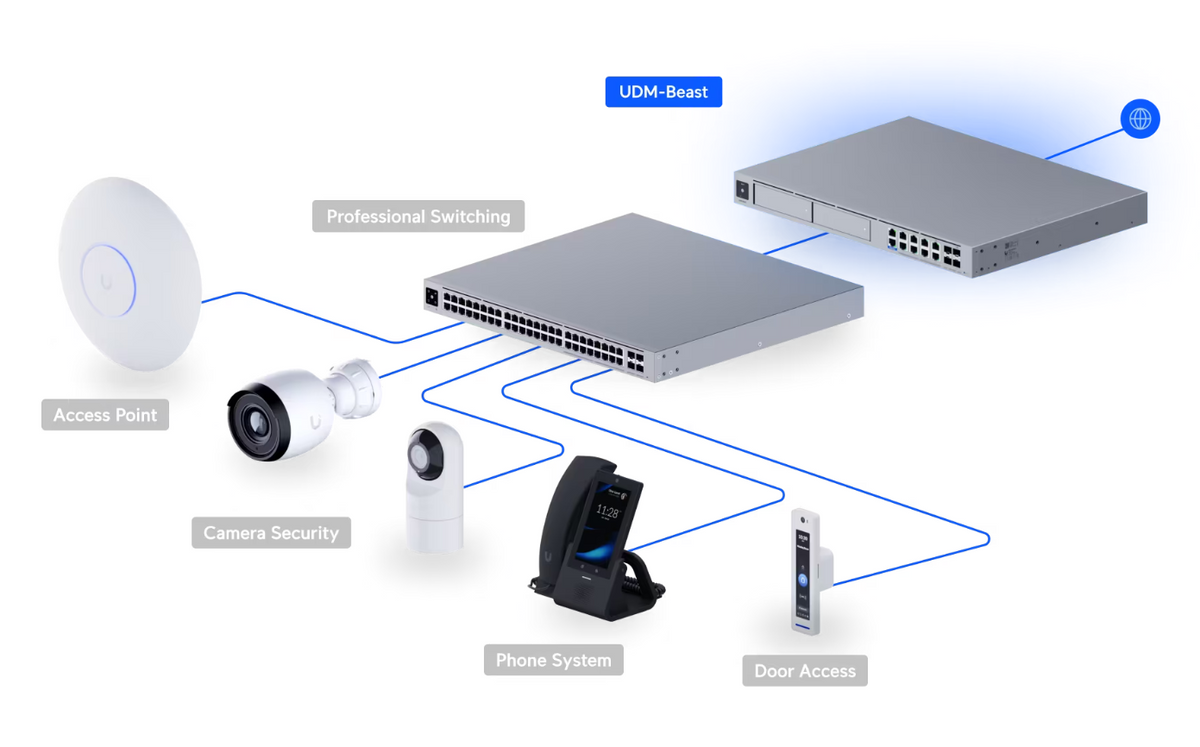

| UniFi Apps | Supported Suites | Network, Protect, Access, Talk, Connect (All ✓) |

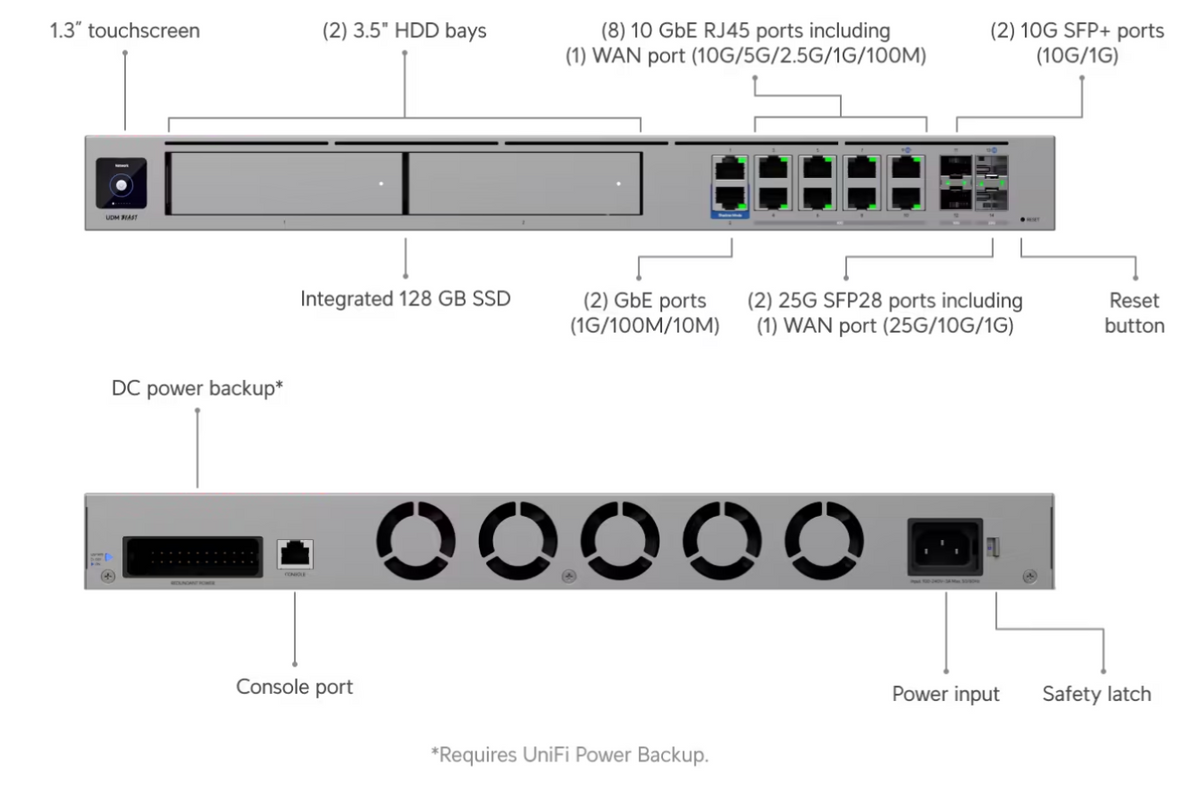

| Connectivity | Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 25G SFP28, (1) 10 GbE RJ45 | |
| 1 GbE RJ45 Ports | 2 (1G/100M/10M) | |
| 10 GbE RJ45 Ports | 8 (10G/5G/2.5G/1G/100M) | |
| 10G SFP+ Ports | 2 (10G/1G) | |
| 25G SFP28 Ports | 2 (25G/10G/1G) | |
| Console | 1 | |
| Security | Firewall Features | Stateful, Layer 7, DPI, Traffic ID, Ad Blocking |
| Advanced Filtering | Zone-Based (Regions, Domains, Apps), Content Filtering | |
| IDS/IPS Signatures | 55,000+ with CyberSecure | |
| VPN & SD-WAN | SD-WAN | License-Free, Site Magic ✓ |
| VPN Server | One-Click, Teleport, WireGuard, OpenVPN, L2TP, IPsec | |
| VPN Client | OpenVPN, WireGuard | |
| Networking | Routing & HA | OSPF, BGP, Multi-WAN Load Balancing, Shadow Mode (VRRP) |
| Advanced | LACP, QoS, mDNS, RadSec, Advanced NAT, IGMP Proxy | |
| Hardware | NVR Storage | (2) 3.5" NVR HDD bays |
| Power Consumption | 100W Max | |
| Power Method | Universal AC (100–240V) & USP-RPS DC Input | |
| Heat Dissipation | 342 BTU/hr | |
| Materials | Aluminium CNC, SGCC steel | |
| LCM Display | 1.3" touchscreen | |
| Management | Ethernet, Bluetooth | |
| Environment | Operating Temp | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing | |
| Protection | Air: ± 8kV, Contact: ± 4kV | |
| Compliance | Certifications | NDAA Compliant, CE, FCC, IC |
| Software | iOS App Req. | Version 10.34.0 and later |
| Android App Req. | Version 10.37.1 and later |
