Ubiquiti UACC-PoE++-10G 10G PoE++ Adapter (60W)
Product Details
The Ubiquiti 10G PoE++ Adapter is described by Ubiquiti as an adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection. It delivers up to 60 W.
It exists for the situation every installer knows: one device on the network wants far more power than the rest, and upgrading the whole switch to feed it makes no sense. This injector sits between the switch port and that device and supplies the power itself. It covers 802.3af at 15.4 W, 802.3at at 30 W and 802.3bt Type 3 at 60 W, with an output of 54 V DC at 1.12 A over all four pairs, so it will run the hungrier UniFi access points — the options are the E7 family, the E7 Campus and Audience models and the U7 Pro XG and XGS among the compatible devices.
Protection is built in rather than bolted on: surge, peak pulse and overcurrent protection on both sides, 1500 A maximum surge discharge on the power side and 36 A peak pulse on the data side, with clamping at 11 V on data and 60 V on power and a response time under a nanosecond. Efficiency is above 88 per cent. The data connectors are shielded RJ45 sockets, there is a status LED, and the AC cable with earth ground is included. One thing to be certain about: this is the 60 W Type 3 model. If the device needs 90 W, the part is the separate 10G PoE+++ adapter, not this one.
Features
- Delivers up to 60 W of PoE++
- Supports 802.3af (15.4 W), 802.3at (30 W) and 802.3bt Type 3 (60 W)
- Output 54 V DC at 1.12 A, four-pair powering
- Surge, peak pulse and overcurrent protection

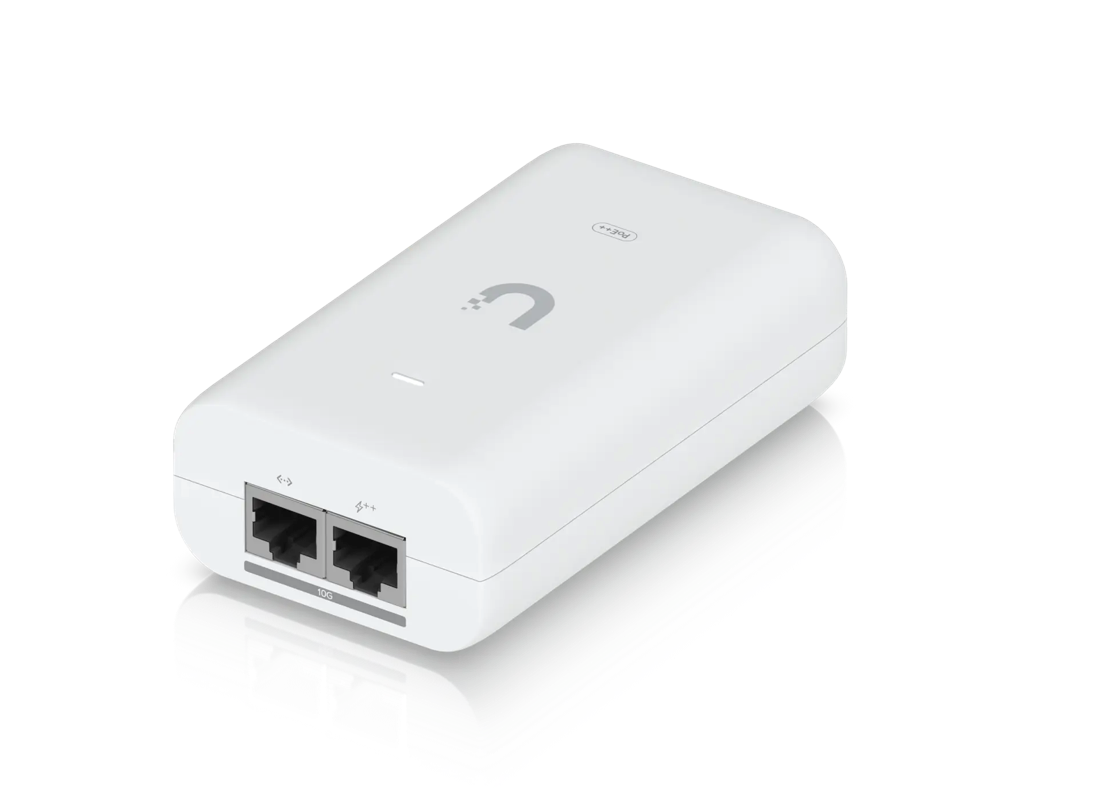

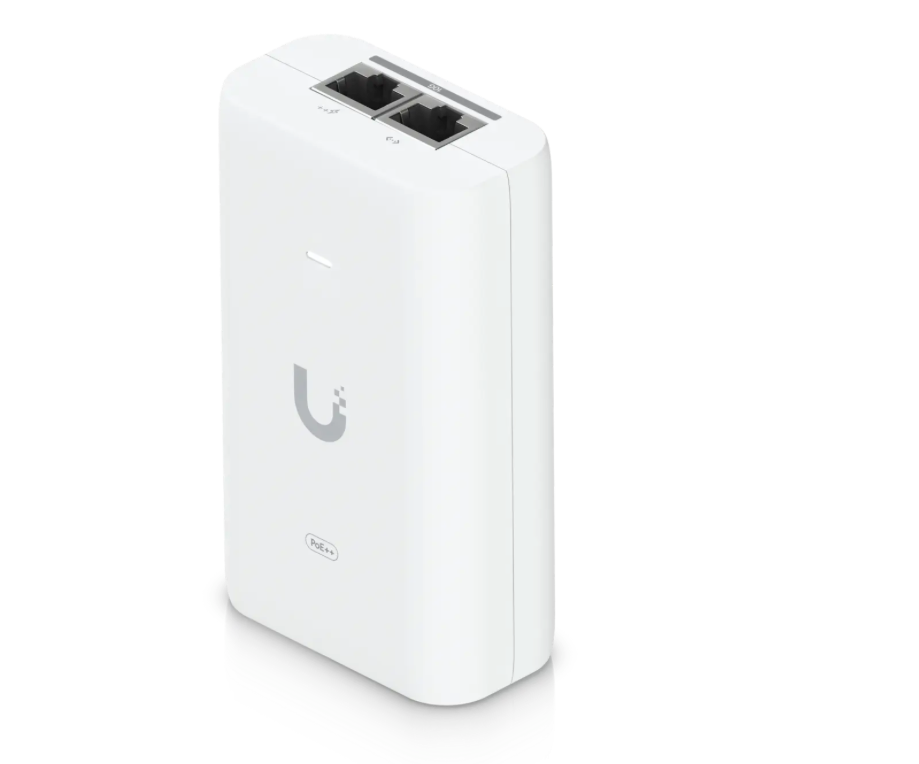

- Shielded RJ45 data input and PoE output sockets

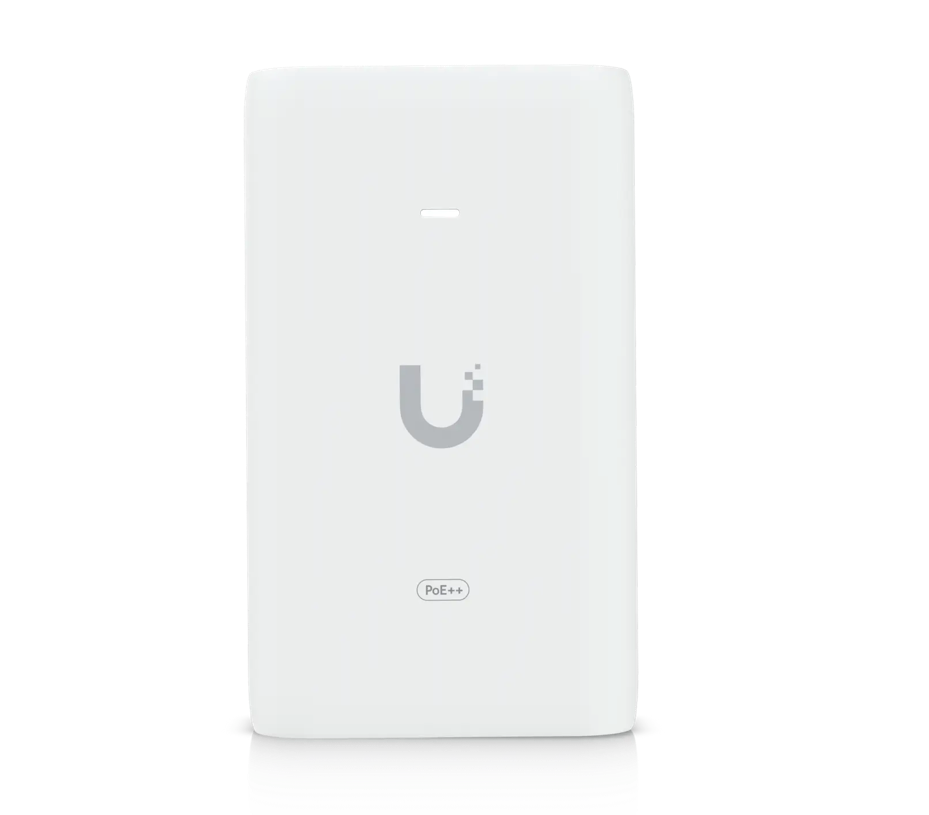

- LED indicator for status monitoring

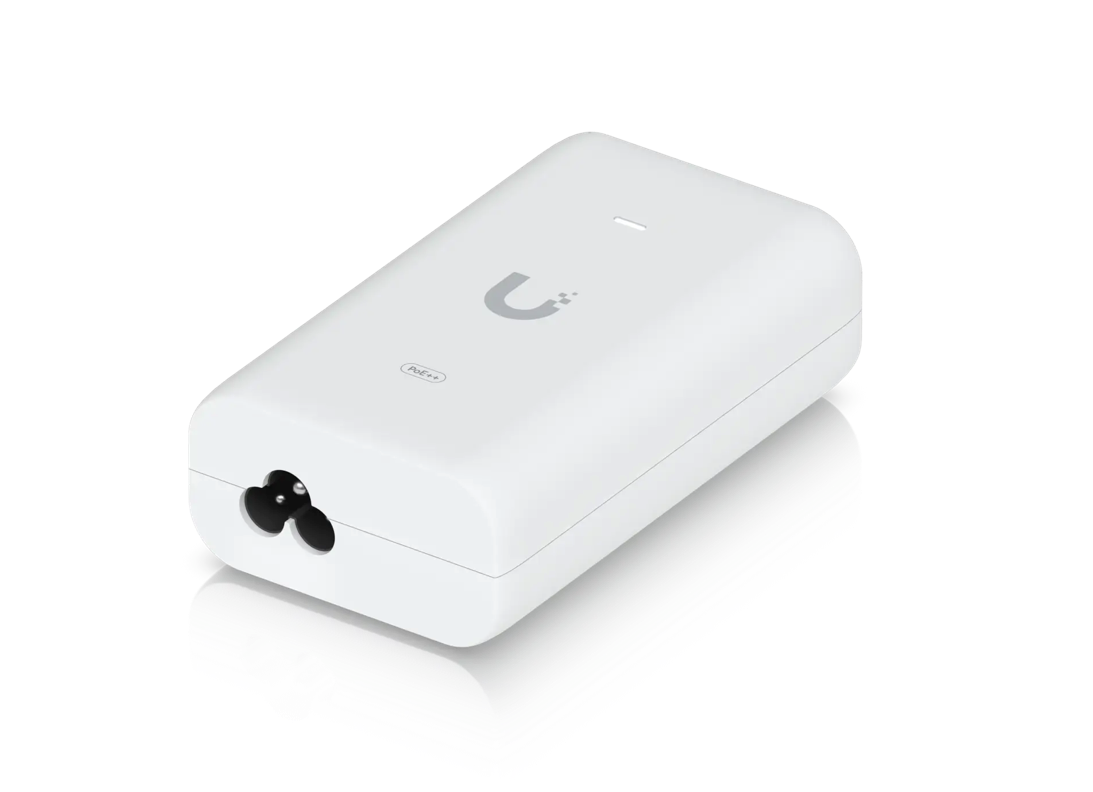

- AC cable with earth ground included
- Efficiency above 88 per cent
- Powers UniFi PoE++ devices including the E7 family and U7 Pro XG and XGS
- Not the 90 W model — that is the separate 10G PoE+++ adapter
Specifications
| Technical | |
|---|---|
| Model | UACC-PoE++-10G |
| Product Type | PoE++ power injector |
| Supported IEEE Standards | 802.3af PoE 15.4 W | 802.3at PoE+ 30 W | 802.3bt Type 3 PoE++ 60 W |
| Maximum Wattage Per Port | 60 W |
| Output Voltage | 54 V DC at 1.12 A |
| Four-Pair Powering | Pins 1, 2, 4, 5 positive and 3, 6, 7, 8 negative |
| Rated Input Voltage | 100–240 V AC at 50/60 Hz |
| Input Current | 1.5 A maximum |
| Inrush Current | Less than 150 A peak at 230 V AC |
| Data And PoE Connectors | Shielded RJ45 sockets |
| Efficiency | Greater than 88 % |
| Switching Frequency | 65 kHz |
| Output Ripple | 1 % maximum |
| Line Regulation | 2 % or less |
| Load Regulation | 5 % or less |
| Surge Protection | Difference and common mode |
| Maximum Surge Discharge | 1500 A (8/20 microseconds) on power |
| Peak Pulse Current | 36 A (10/1000 microseconds) on data |
| Clamping Protection | 11 V data, 60 V power |
| Response Time | Less than 1 ns |
| Shunt Capacitance | Less than 5 pF on data |
| Compatible Devices | UniFi PoE++ devices, including Access Point E7, E7 Campus, E7 Campus Indoor, E7 Audience, E7 Audience Indoor, U7 Pro XG and U7 Pro XGS |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -30 to 70 °C (-22 to 158 °F) |
| Operating Humidity | 10 to 95 %, non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| Physical | |
|---|---|
| Dimensions | 106 × 63 × 34 mm (4.2 × 2.5 × 1.3 in) |
| Weight | 210 g (7.4 oz) |
| Power Cable | Included, AC cable with earth ground |
| Indicators | Status LED |
Specifications subject to change.
