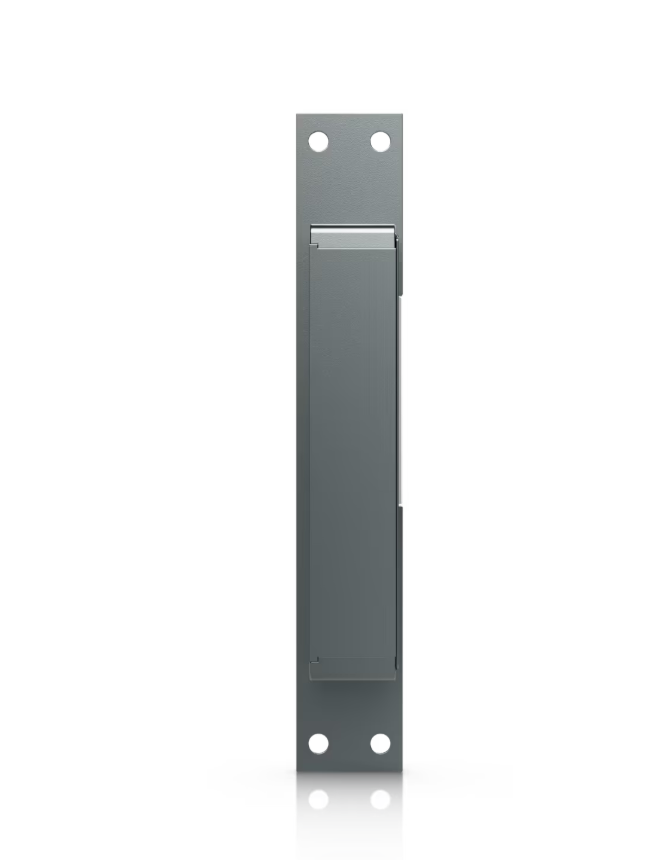

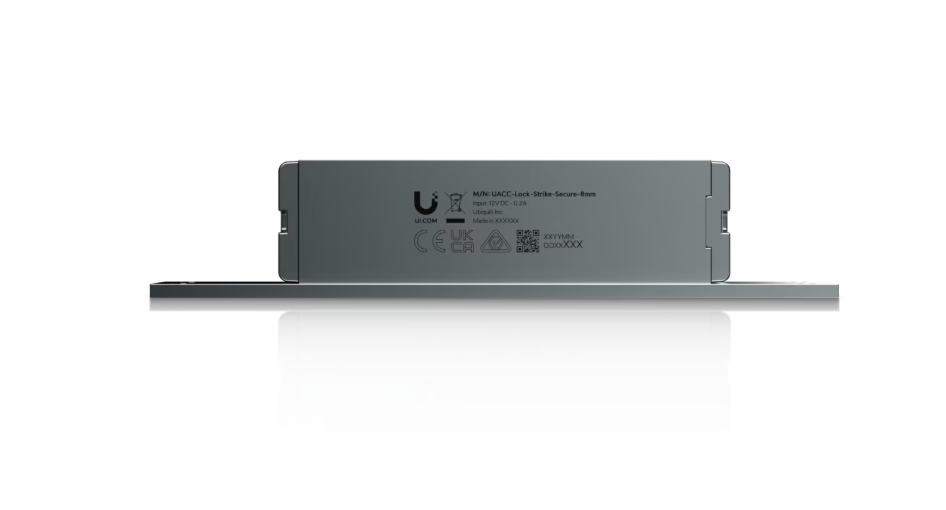

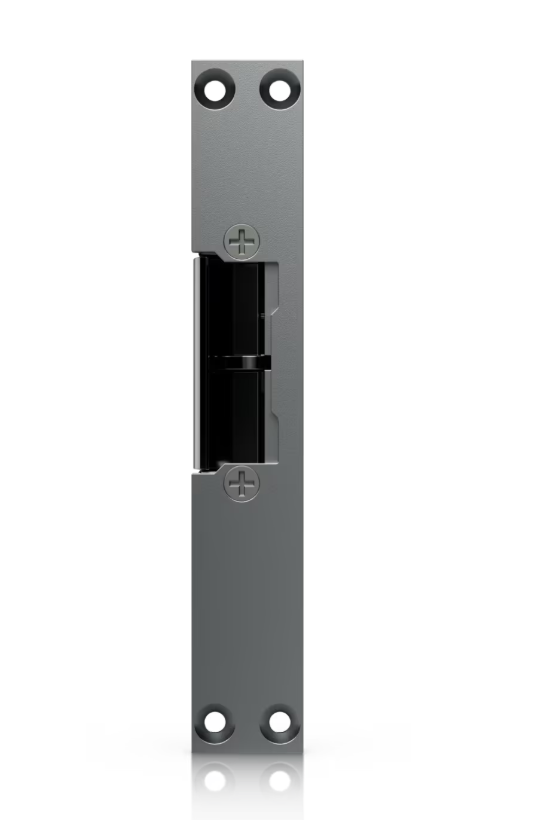

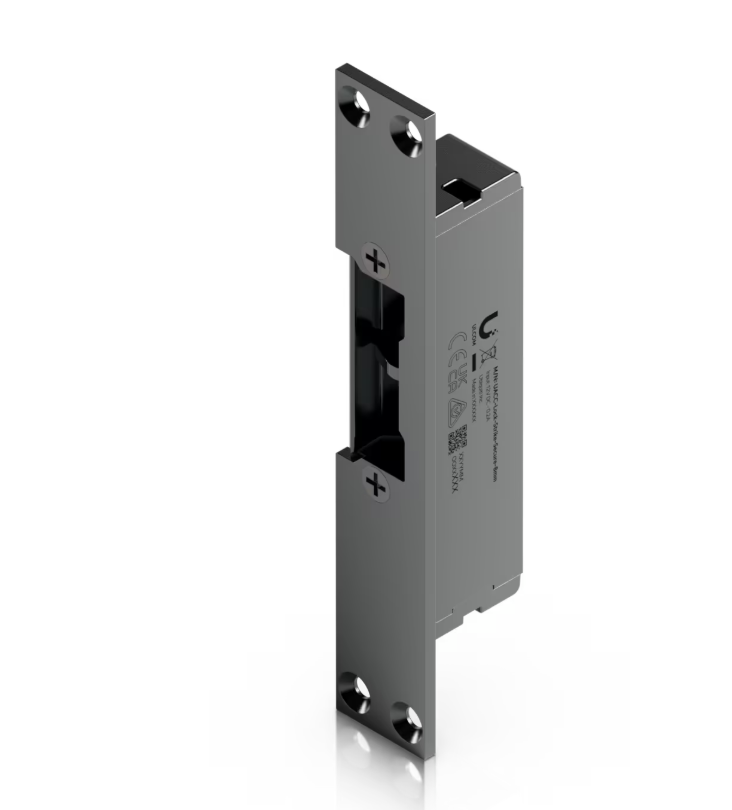

Ubiquiti UACC-Lock-Strike-Secure-8mm Fail-Secure Strike Lock 8mm
Product Details
Fail-secure electric strike lock with 8 mm lock slot depth support.

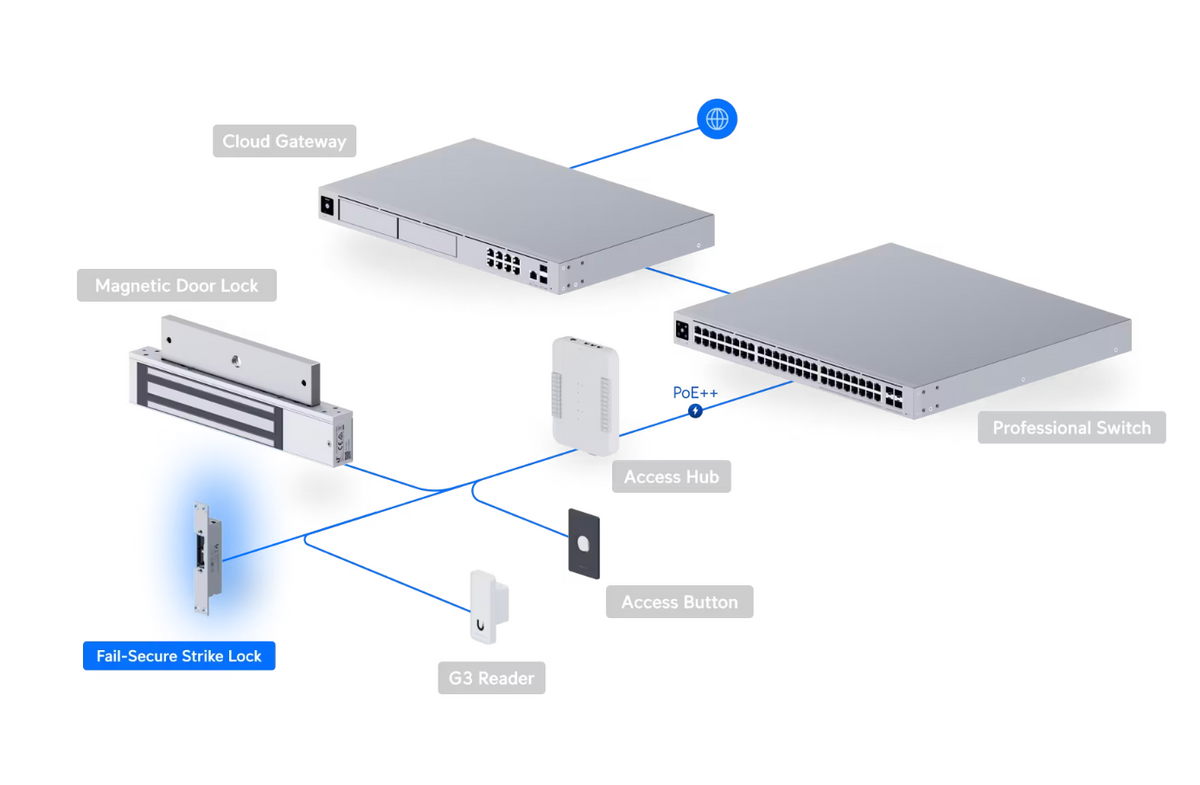

Compatibility:
- UA-Hub-Door
- EAH-8
- UA-Hub-Door-Mini
- UA-Ultra
- UA-Hub-Gate
Specifications

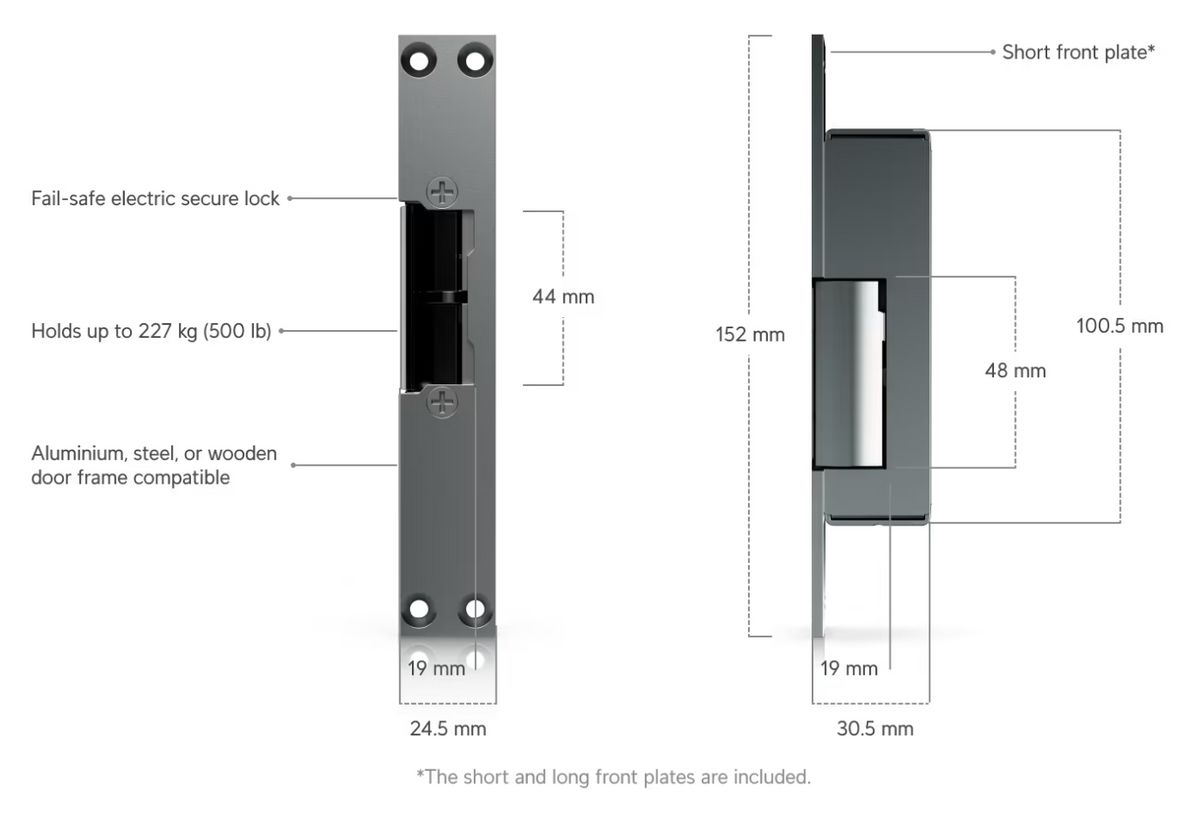

| Dimensions | Lock Body | 112 x 21 x 28 mm (4.4 x 0.8 x 1.1") |
| Short Front Plate | 153 x 25 x 3 mm (6 x 0.9 x 0.1") | |
| Long Front Plate | 250 x 25 x 3 mm (9.8 x 0.9 x 0.1") | |
| Weight | Lock Body | 197 g (6.9 oz) |
| Short Front Plate | 62 g (2.2 oz) | |
| Long Front Plate | 97 g (3.4 oz) | |
| Materials | Enclosure | Lock body: Zinc alloy; Plates/latches: Stainless steel |
| Mechanical | Lock Type | Fail secure |
| Door Support | Single door (Wooden or Metal) | |
| Holding Force | 227 kg (500 lb) | |
| Mounting | Door frame recess mount | |
| Electrical | Power | 200mA ± 10% @ 12V DC ± 10% |
| Wiring | (1) 12V/NO (Red), (1) 12V/COM (Black), (1) DPS/- (White), (1) DPS/+ (Orange) | |
| Door Status | Contact Type | Dry contact |
| Logic | Open: DPS/+ & DPS/- = Open; Closed: DPS/+ & DPS/- = Short | |
| Rating | Max. 30V DC, 0.1A | |
| Environment | Operating Temp | -10 to 60° C (14 to 140° F) |
| Storage Temp | -20 to 70° C (-4 to 158° F) | |
| Humidity | 5 to 90% noncondensing | |
| Compliance | Standards | NDAA Compliant, FCC, IC, CE |
