Description

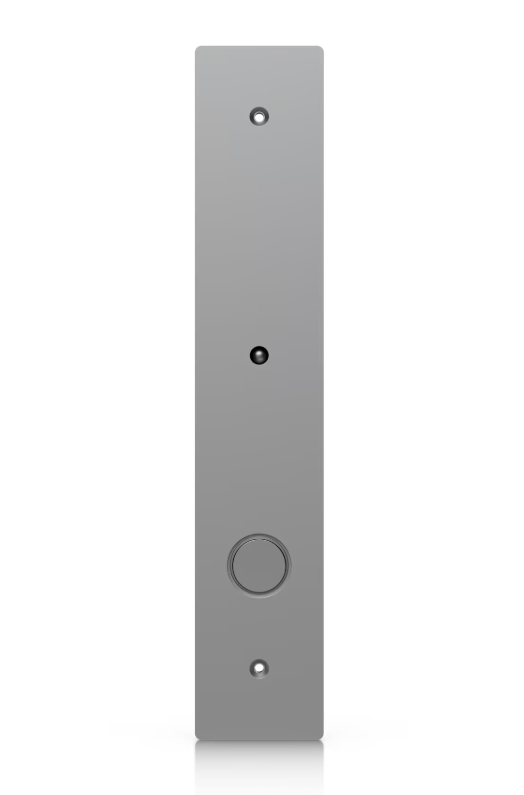

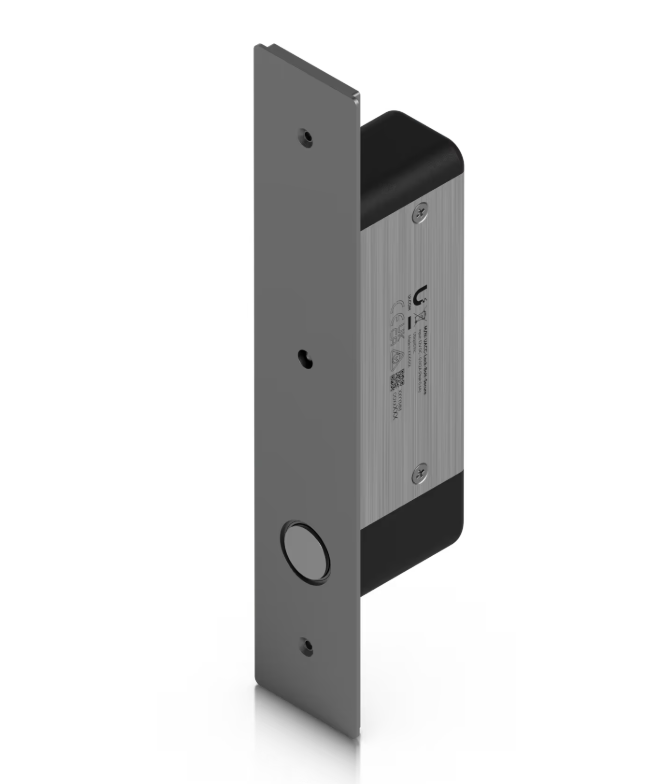

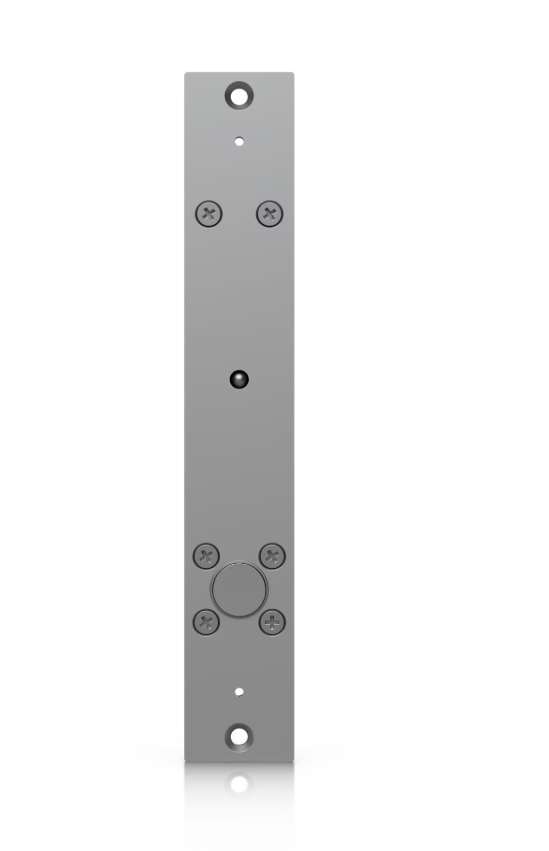

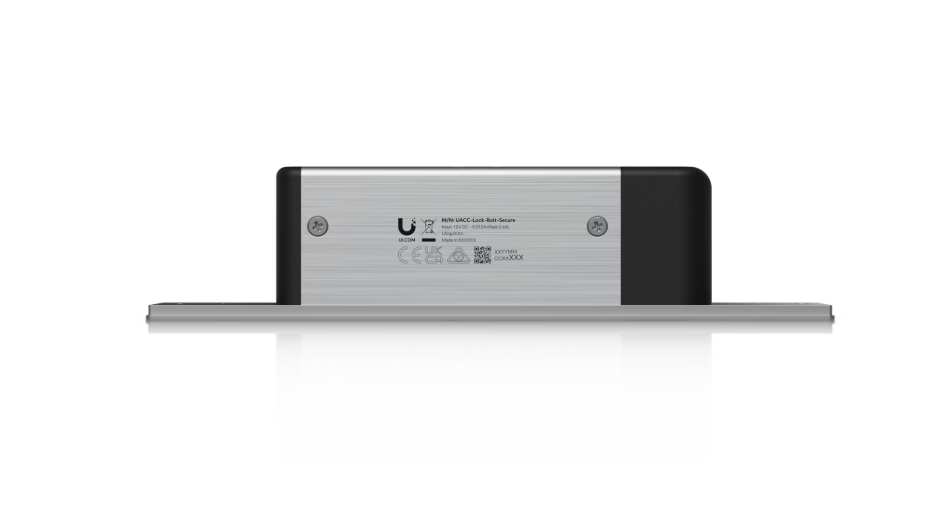

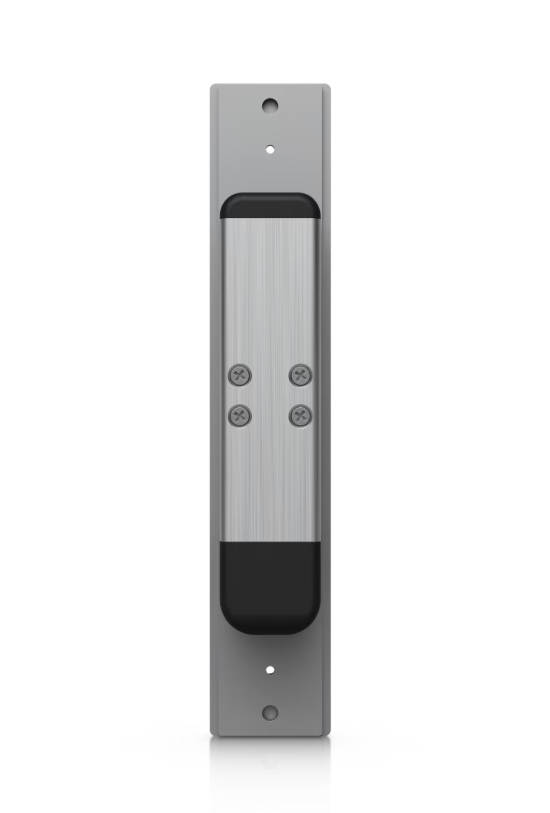

Ubiquiti UACC-Lock-Bolt-Secure Fail-Secure Bolt Lock
Product Details
Fail-secure electric drop bolt lock.

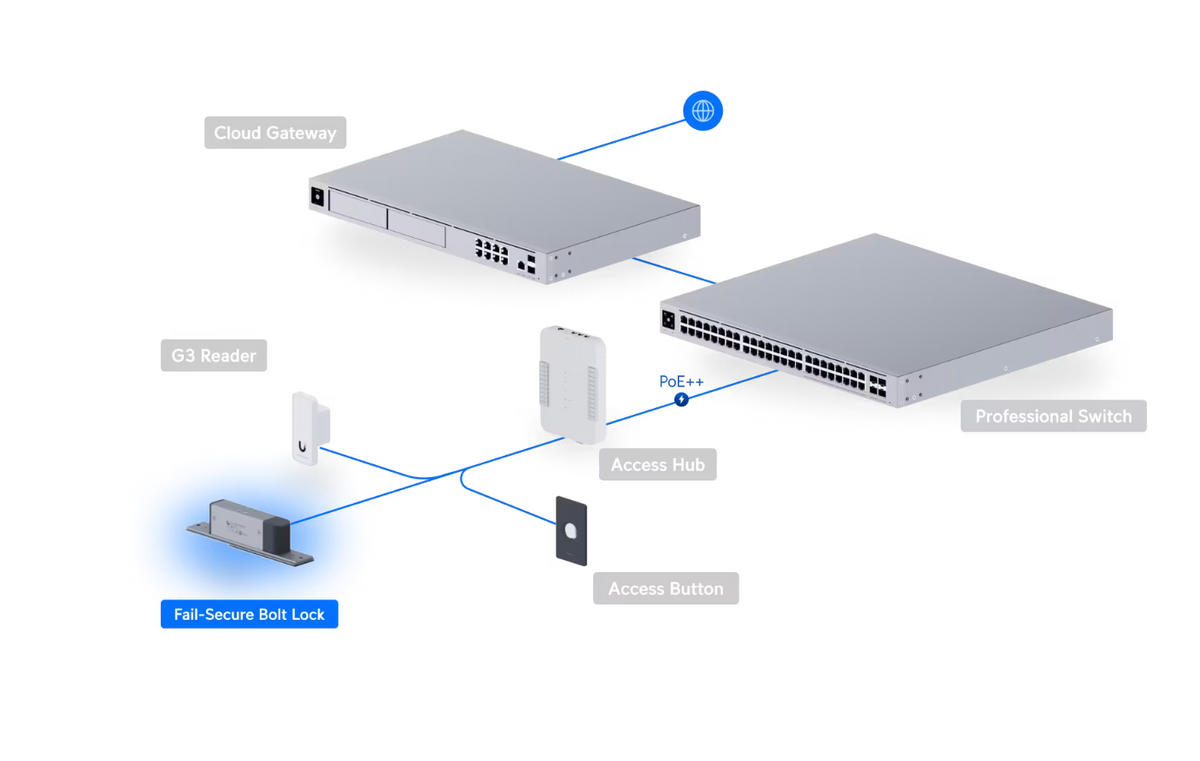

Compatibility:
- UA-Hub-Door
- EAH-8
- UA-Hub-Door-Mini
- UA-Ultra
- UA-Hub-Gate
Specifications

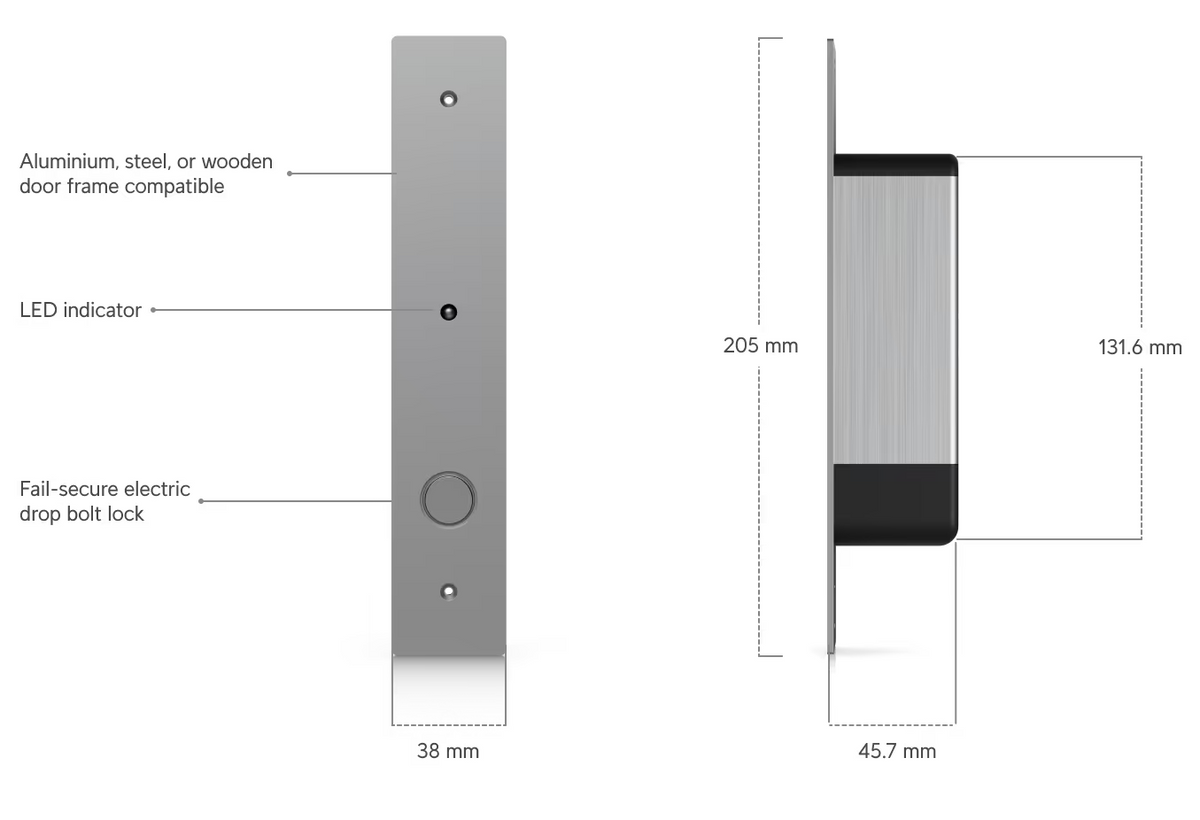

| Dimensions | Lock Body | 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") |
| Door Frame Plate | 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") | |
| Door Plate | 204 x 33 x 3 mm (8 x 1.3 x 0.1") | |
| Weight | Lock Body | 350 g (12.3 oz) |
| Door Frame Plate | 22 g (0.7 oz) | |
| Door Plate | 46 g (1.6 oz) | |
| Materials | Construction | Aluminum alloy (Body and Plates) |
| Mechanical | Lock Type | Fail secure |
| Door Support | Single door (Wooden/Metal) | |
| Mounting | Door frame recess mount | |
| Electrical | Power Consumption | Standby: 12mA ±10% / Dynamic: 600mA ±10% |
| Voltage Range | 12V DC ±10% | |
| Wiring | (1) 12V/NO (Red), (1) 12V/COM (Black), (1) 12V/NC (Blue), (1) DPS/- (White), (1) DPS/+ (Orange) | |
| Interface | LED Indicator | Red: Locked; Green: Unlocked & Power indicator |
| Door Status | DPS | Embedded; Dry contact |
| Logic | Open: DPS/+ & DPS/- = Open; Closed: DPS/+ & DPS/- = Short | |
| Rating | Max. 30V DC, 0.5A | |
| Environment | Operating Temp | -10 to 60° C (14 to 140° F) |
| Storage Temp | -20 to 70° C (-4 to 158° F) | |
| Humidity | 5 to 90% noncondensing | |
| Compliance | Standards | NDAA Compliant, FCC, IC, CE |
