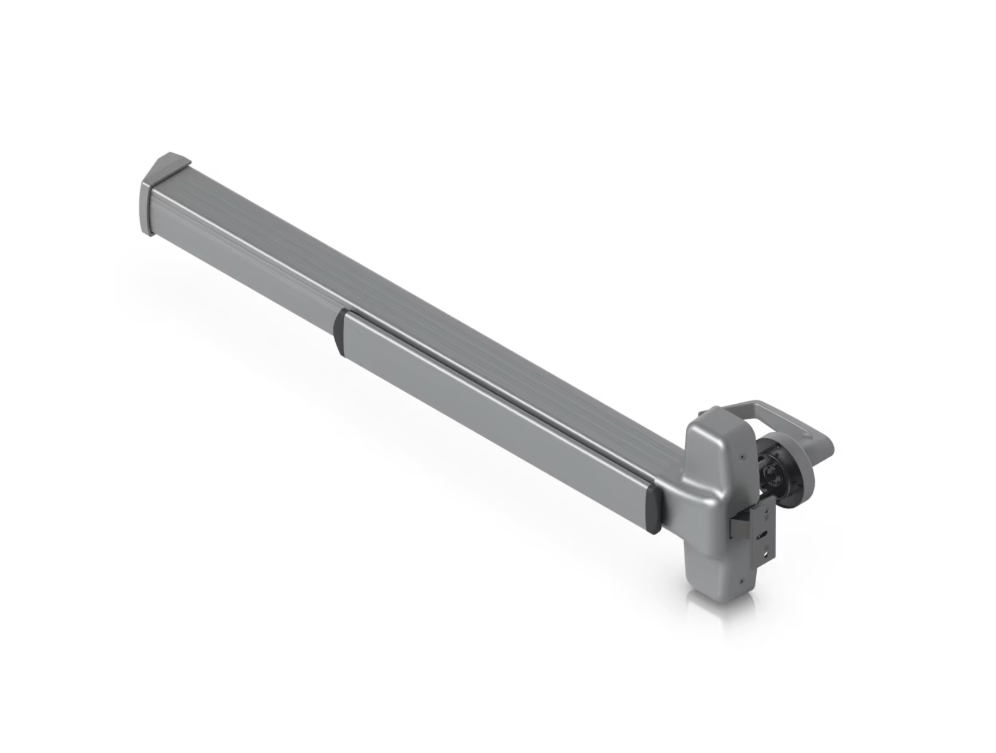

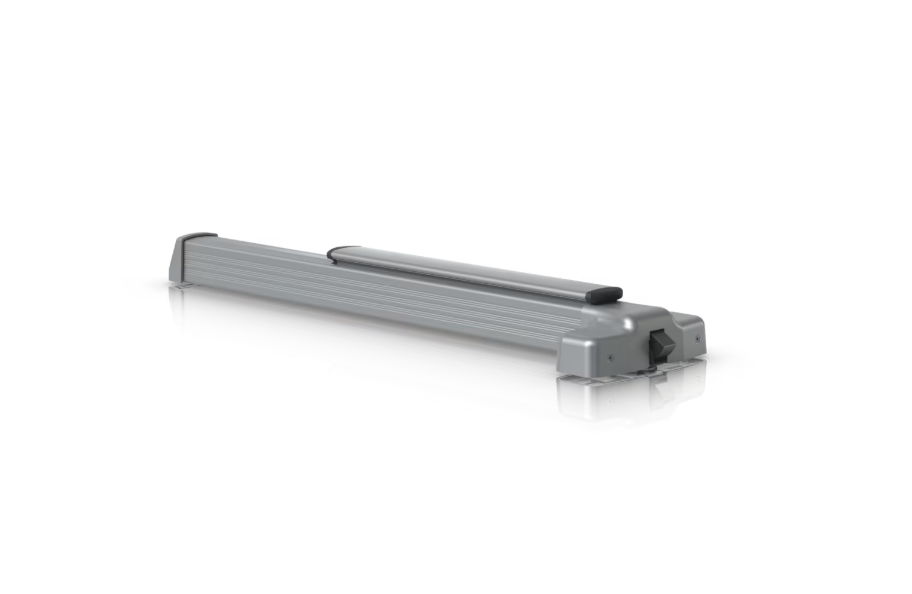

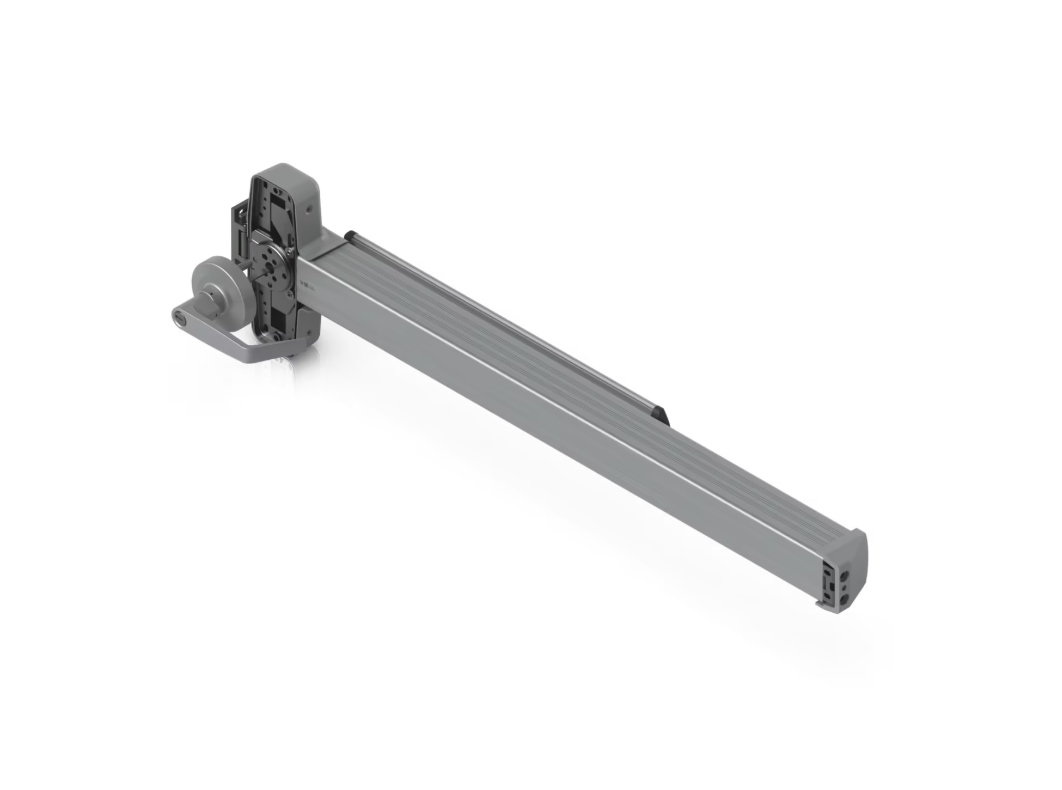

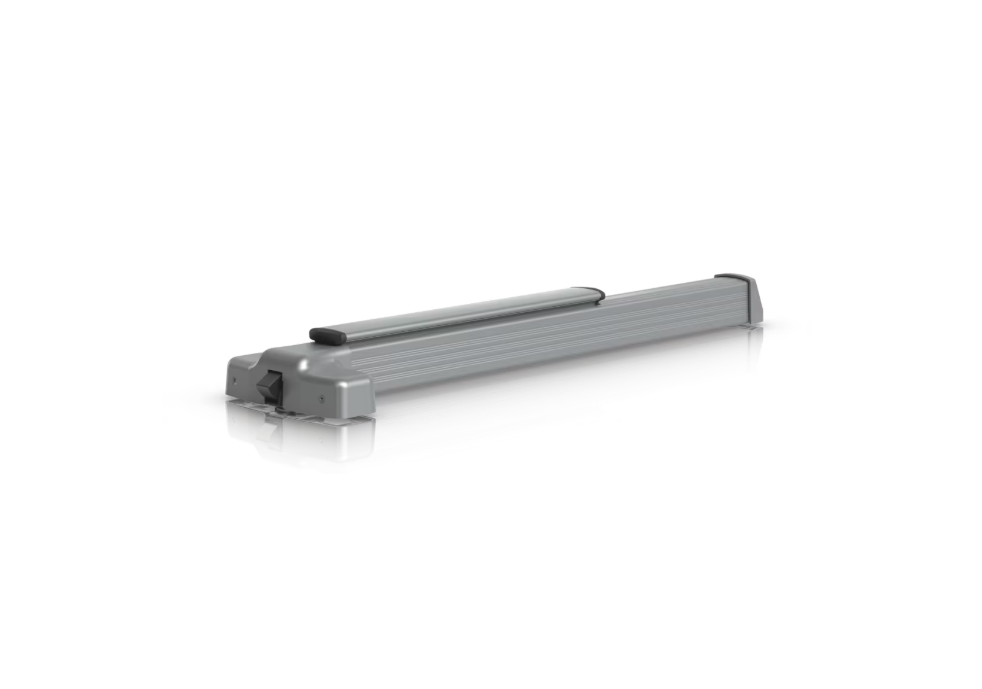

Ubiquiti UACC-PanicBar Panic Bar
Product Details
A single-latched bar installed on emergency exit doors, allowing quick and easy egress by pushing the bar to open the door during emergencies.
Specifications

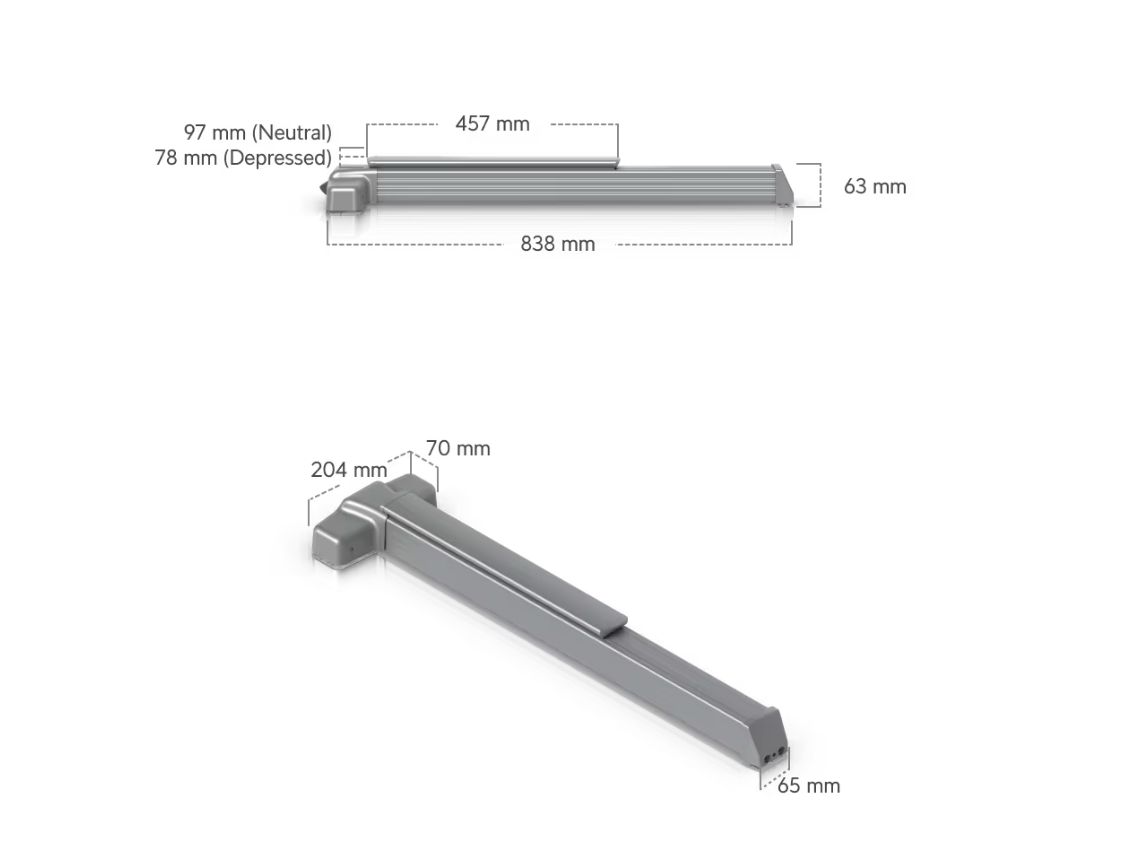

| Mechanical | Dimensions | 838 x 294 x 94 mm (33 x 11.6 x 3.7") |
| Weight | 5.8 kg (12.8 lb) | |
| Enclosure Material | Aluminum, Stainless Steel | |
| Handing | Non-handed, reversible for all functions/trims | |
| Installation | Supported Door Width | 3′ standard (for door widths 2′4″ to 3′ / 711–914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) metal or wood | |
| Minimum Stile | 4-1/4” (108 mm) | |
| Strike | For 3/4” (19 mm) stop | |
| Electrical | Connection | 2 lines for dry relay |
| Wiring Type | Dry output | |
| Contact Rating | Max. 30V DC, 1A | |
| Logic | Push = Short / Release = Open | |
| Compliance | Fire & Safety | UL 305, UL 10C, CAN/ULC-S132 |
| Performance | ANSI/BHMA A156.3 Grade 1 | |
| Accessibility | Meets California Building Code Sec. 11B-309.4 |
