Description

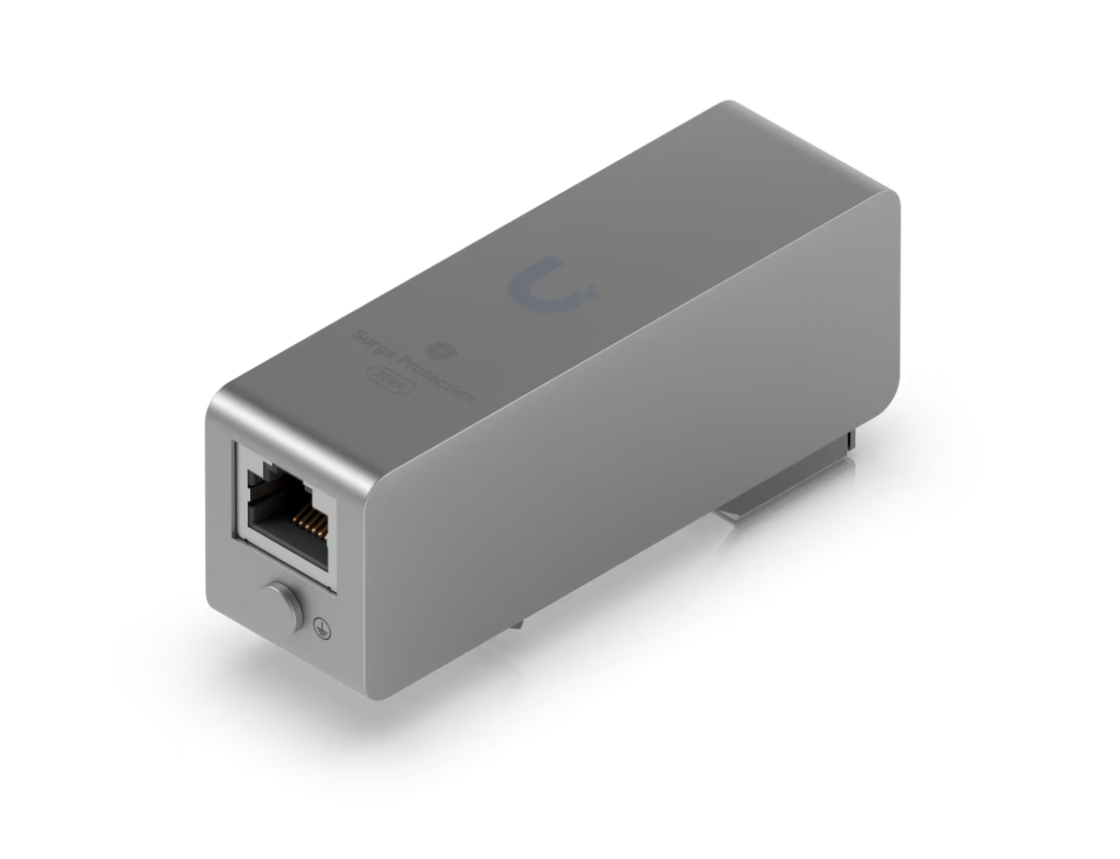

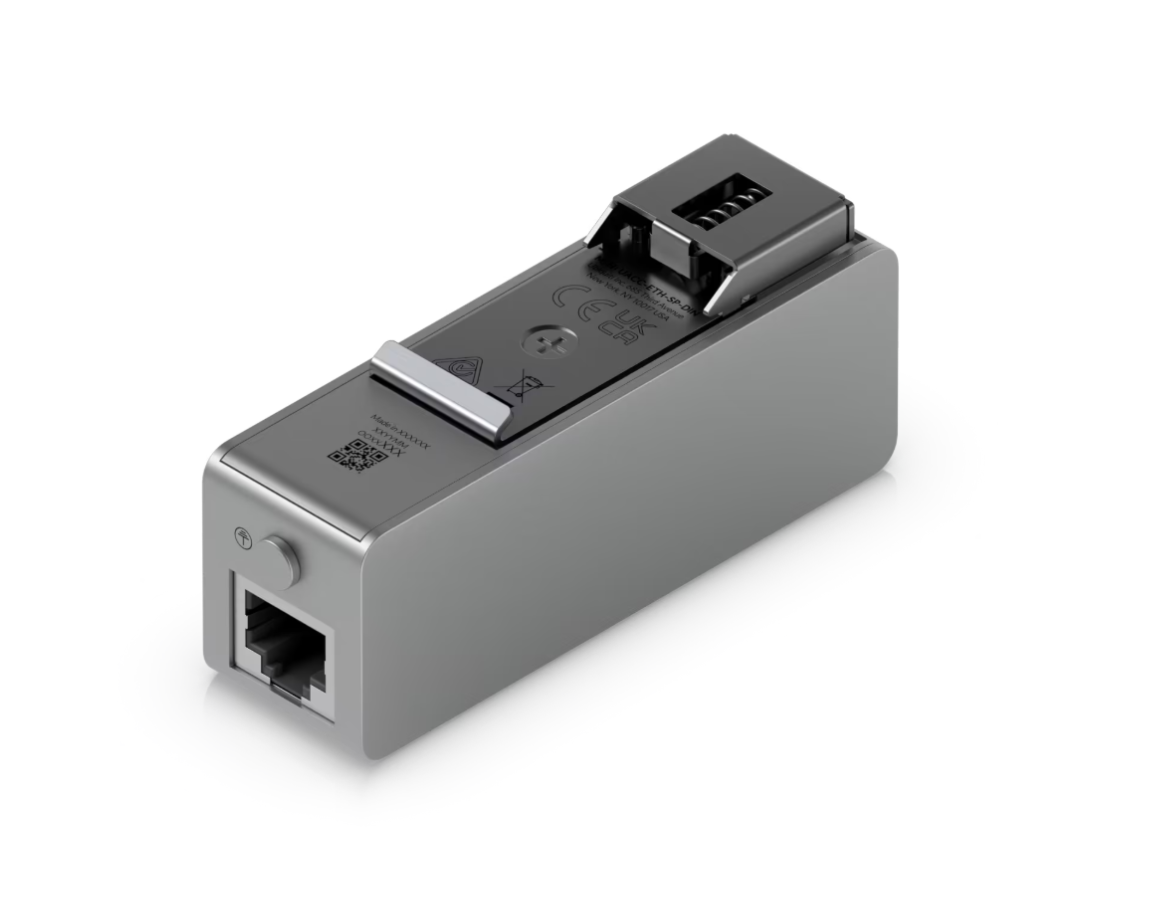

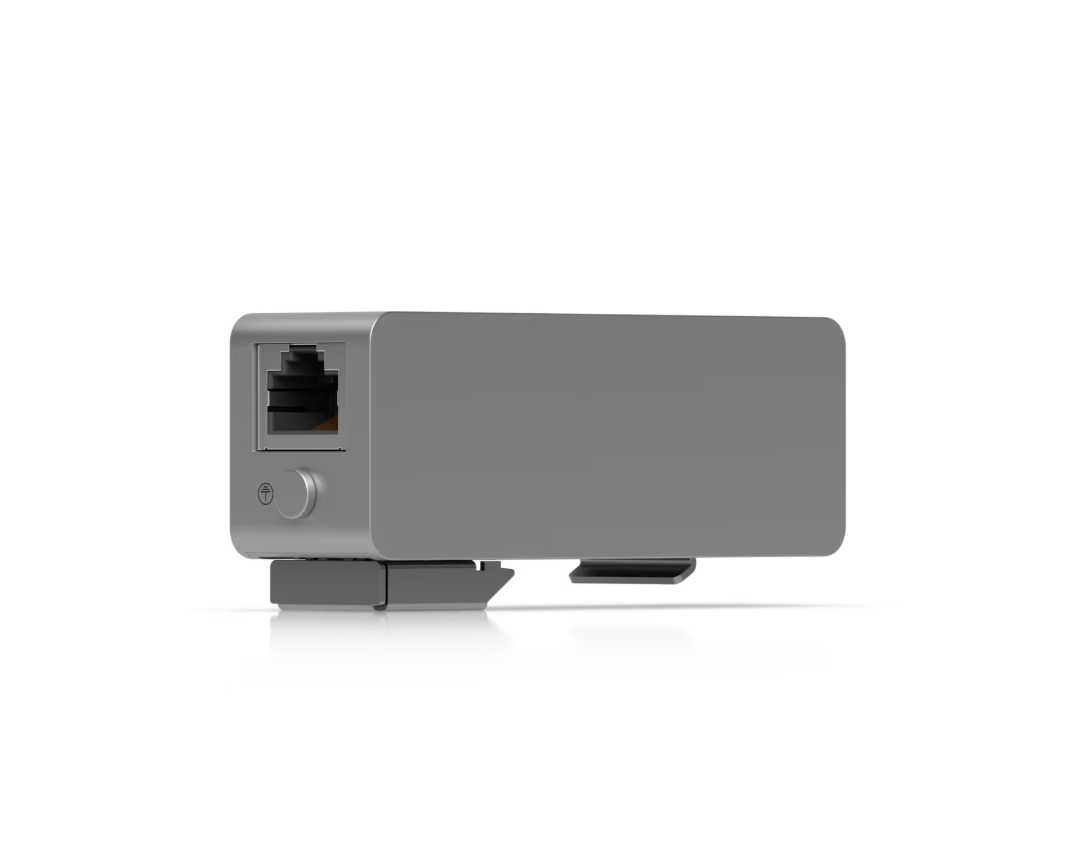

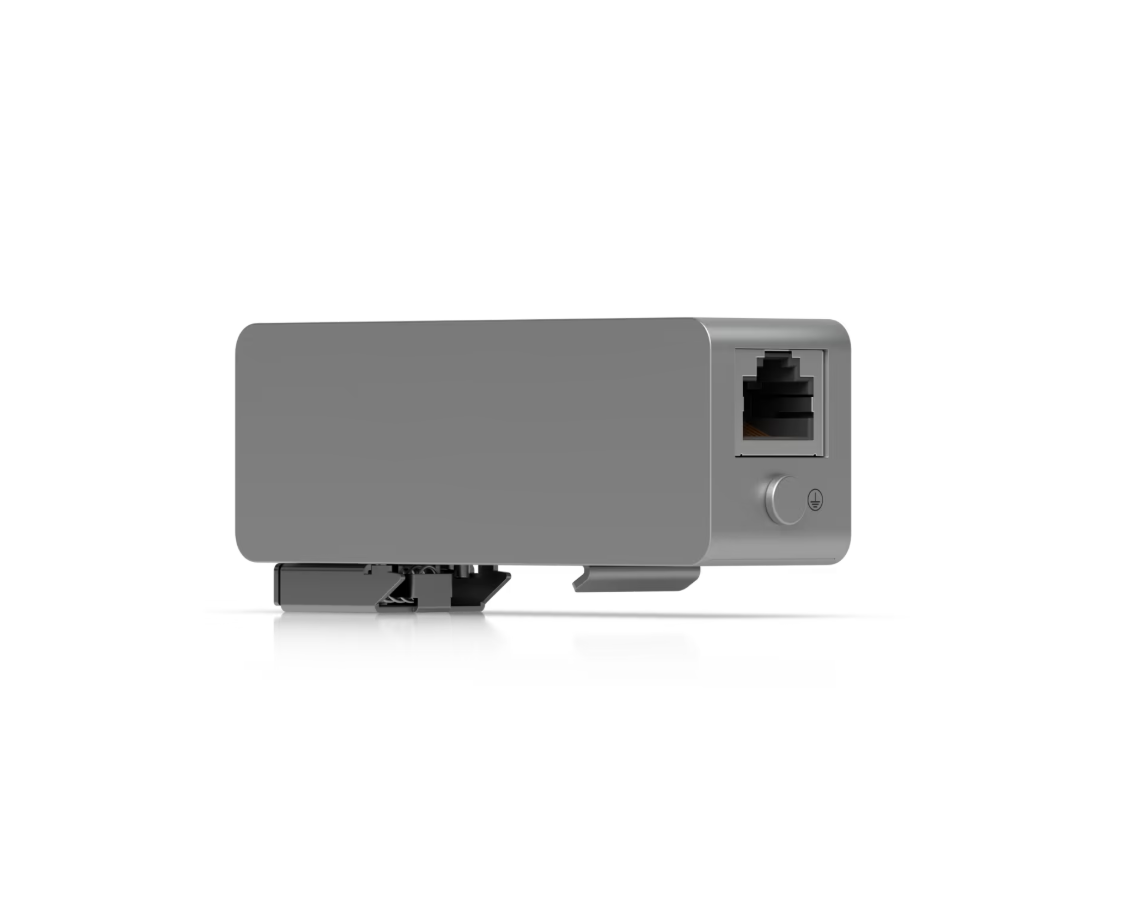

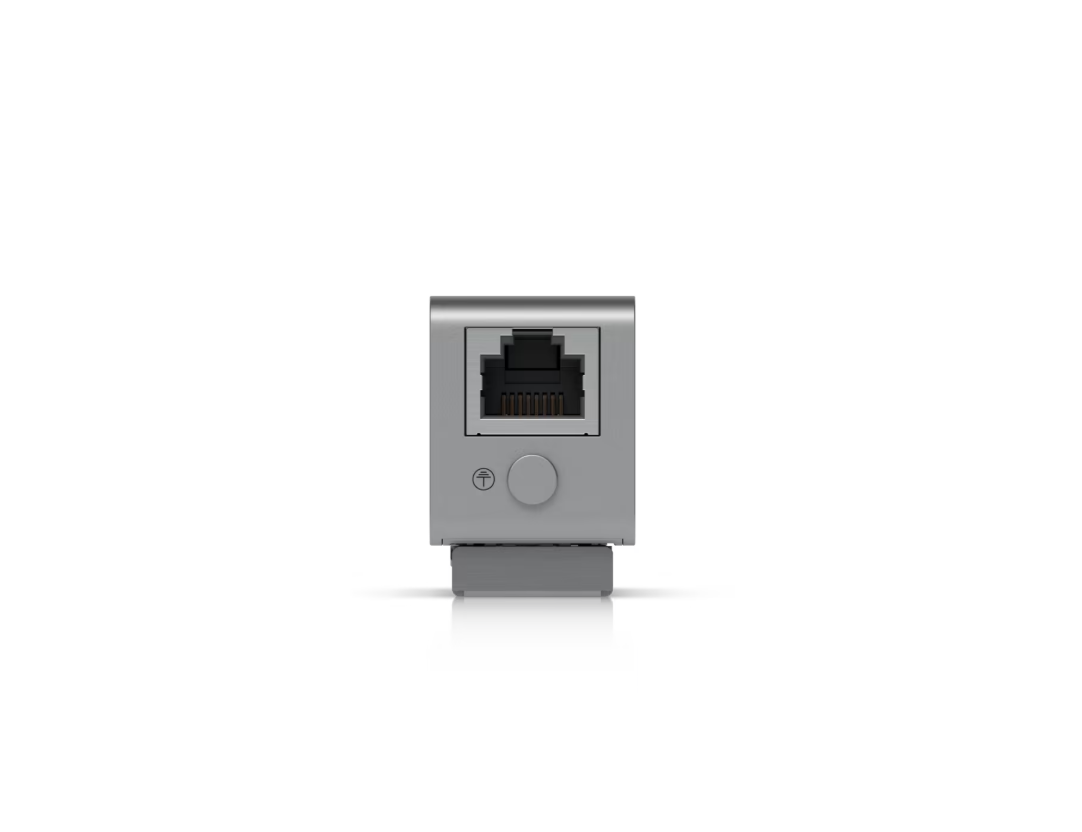

Ubiquiti UACC-ETH-SP-DIN Ethernet 2 x RJ-45 - 20 kA - RJ-45 - DIN Rail Mountable Ethernet Surge Protection
Product Details
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.
Features
Wall/DIN rail mount
Multiple grounding points
Specifications
| Mechanical | Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
| Weight | 74 g (2.6 oz) | |
| Enclosure Material | Polycarbonate, SGCC steel | |
| Hardware | Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s | |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs | |
| Discharge Current | 20kA | |
| Insulation | Max. Resistance: 1G ohm @ 50V | |
| Max. Capacitance | 1.0 pF @ 1 MHz | |
| Data Line Protection | Up to 10 Gbps | |
| PoE Support | ✓ | |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs | |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) | |
| Ambient Operating Humidity | 10 to 90% noncondensing |
