Description
Ubiquiti U7-Pro-XG-Tri-Wall Band Wi-Fi 7 IEEE 802.11n/ac/ax/be/v/r/k 5.80 Gbit/s Wireless Access Point
Product Details

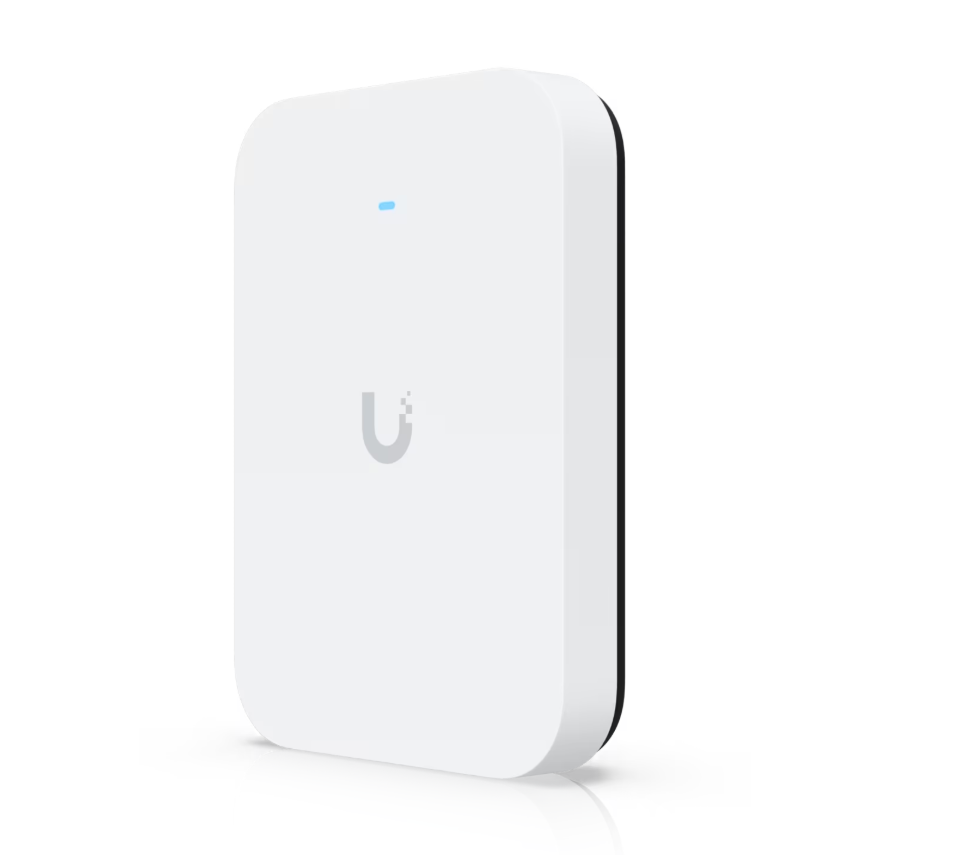

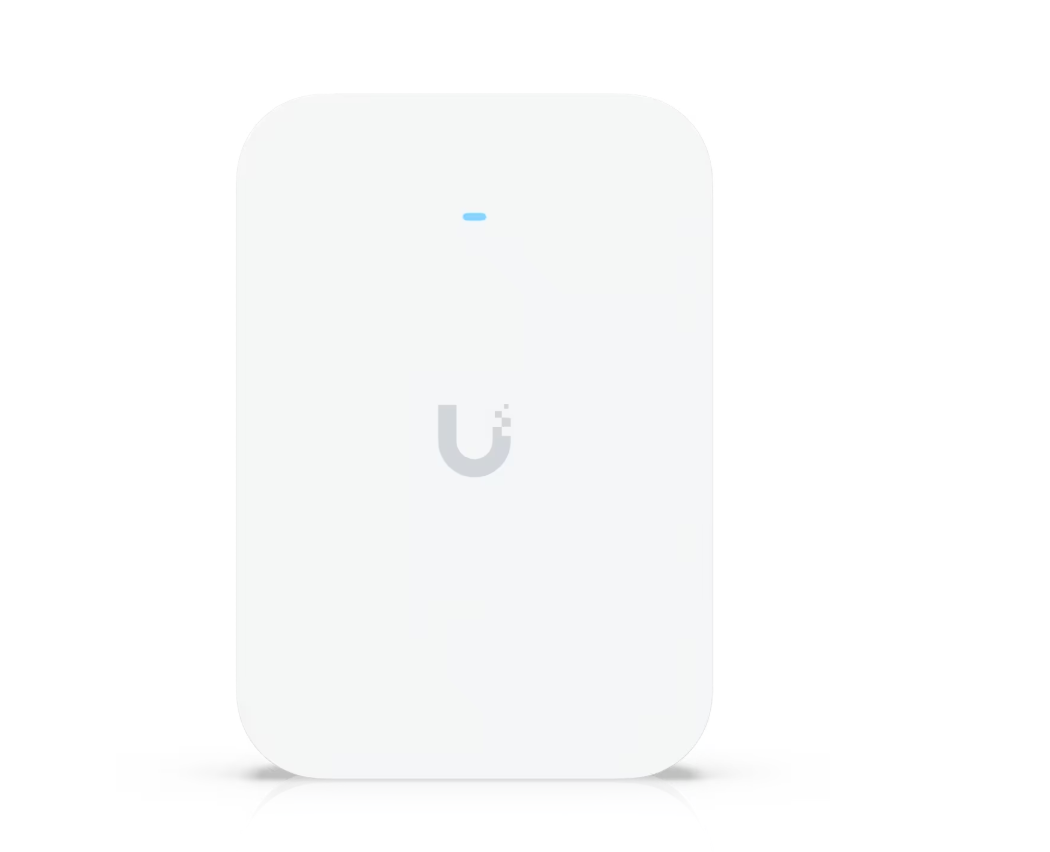

The Ubiquiti Access Point U7 Pro XG Wall is described by Ubiquiti as a “wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/5/10 GbE support”. Ubiquiti's own part number is U7-Pro-XG-Wall; the -US suffix is the regional order code used by distributors for the same product.
It is a tri-radio access point — 2.4, 5 and 6 GHz, 2 x 2 on each band for six spatial streams — in a 155 by 108 mm body only 33.5 mm deep, meant to sit on the wall of the room it serves rather than on the ceiling of the corridor outside it. Ubiquiti rates it for 140 m² and 300-plus clients, with peak rates of 5.8 Gbps on 6 GHz, 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, and Multi-Link Operation for lower latency across bands. Channel bandwidths run to EHT 320 MHz. Optional paintable covers are available if it needs to disappear into the decor.

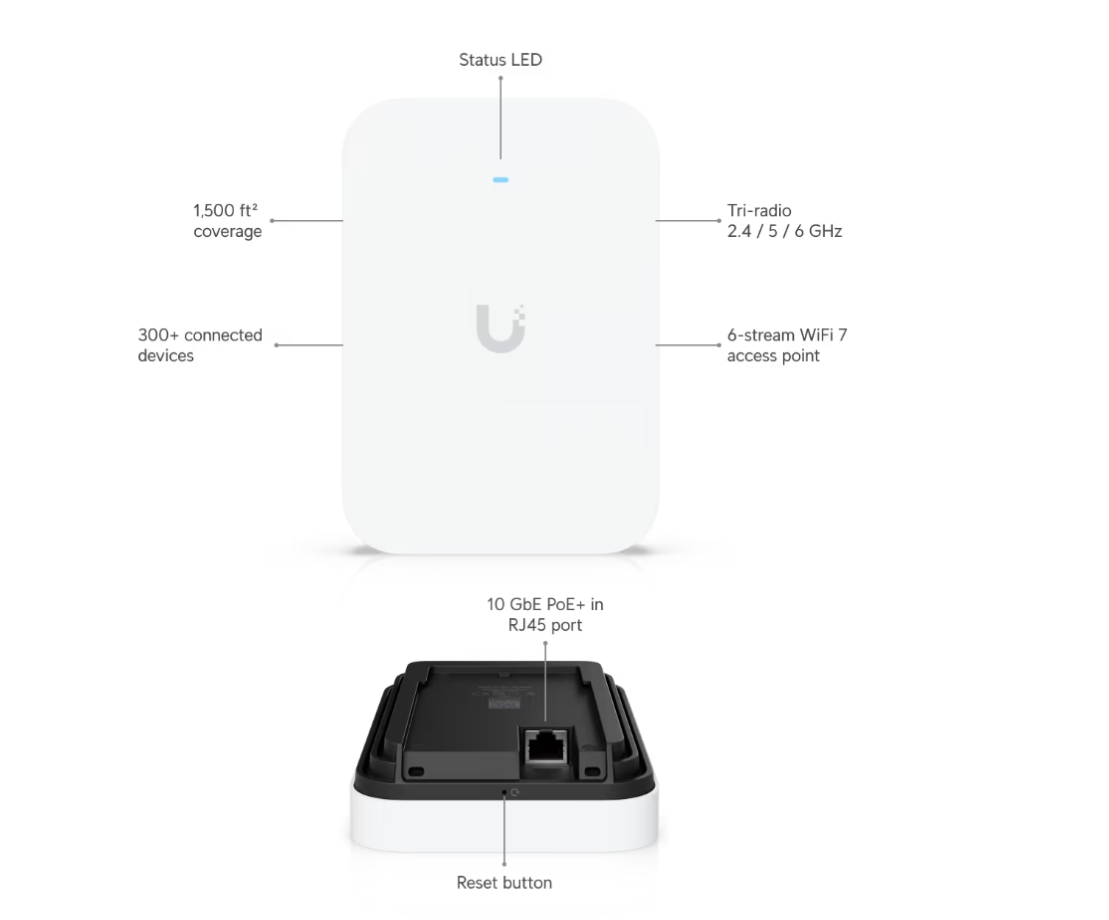

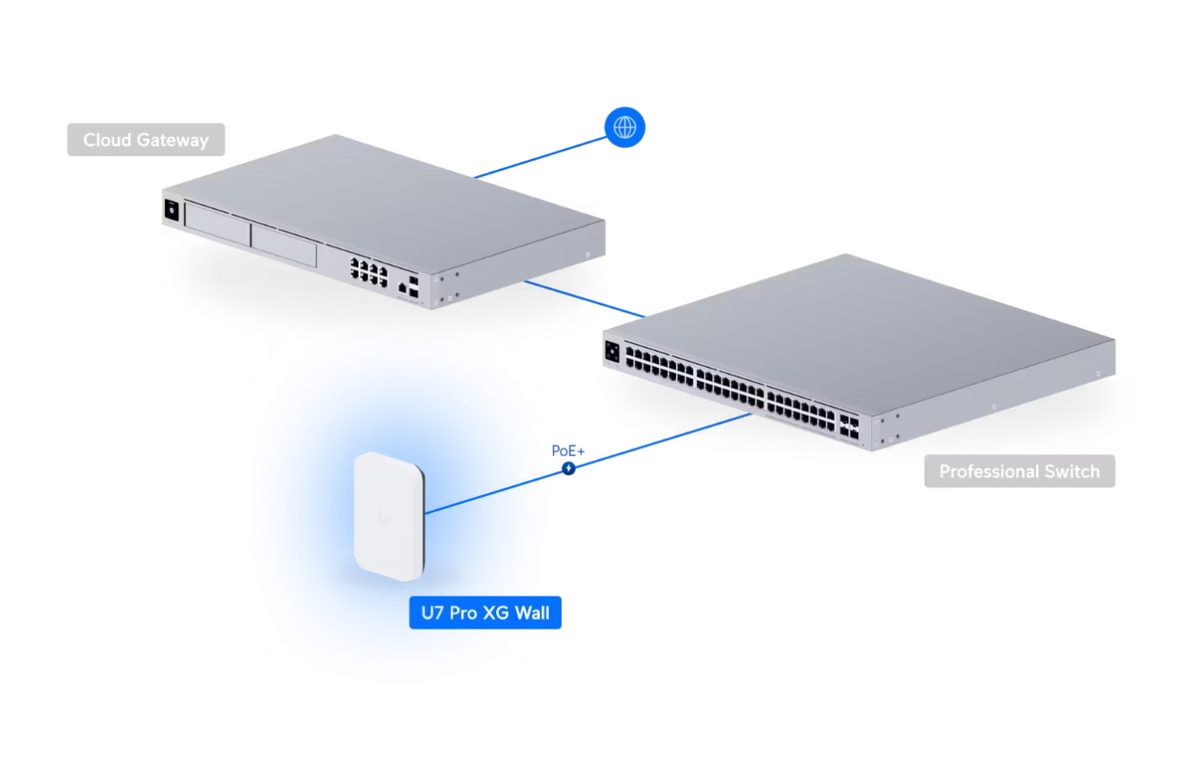

Two points that catch people out. The single RJ45 is a 10 GbE multi-speed uplink that also runs at 1, 2.5 and 5 Gbps — but it is the only port, and Ubiquiti marks the built-in switch row as not present, so there are no downlink ports for wired devices and no PoE passthrough. This is not a replacement for a desk switch. And it takes PoE+ at up to 22 W with no injector included, so the switch port has to be PoE+, not plain PoE. It is an indoor unit with no weatherproofing rating, operating from -30 to 40 °C, and it wants UniFi Network 10.0 or later.
Features
- Tri-radio WiFi 7 access point, 2.4 GHz, 5 GHz and 6 GHz
- 6 spatial streams, 2 x 2 MU-MIMO on each band
- 6 GHz up to 5.8 Gbps, 5 GHz up to 4.3 Gbps, 2.4 GHz up to 688 Mbps
- Multi-Link Operation supported
- Channel bandwidths to EHT 320 MHz
- Coverage area 140 m² (1,500 ft²), 300+ clients
- Low-profile wall form factor, 33.5 mm deep, with optional paintable covers
- 1 x 10 GbE RJ45 uplink, also running at 1, 2.5 and 5 Gbps
- No built-in switch — no downlink ports and no PoE passthrough
- PoE+ powered at up to 22 W — no PoE injector included
- Indoor use, -30 to 40 °C
- NDAA compliant
Specifications
| Technical | |
|---|---|
| Model | U7-Pro-XG-Wall |
| Product Type | UniFi WiFi 7 wall-mounted access point |
| WiFi Standard | WiFi 7 with 6 GHz support |
| Radio Bands | 2.4 GHz, 5 GHz and 6 GHz |
| Spatial Streams | 6 |
| MIMO | 2 x 2 DL/UL MU-MIMO on each band |
| Maximum Data Rate | 6 GHz 5.8 Gbps (BW320) | 5 GHz 4.3 Gbps (BW240) | 2.4 GHz 688 Mbps (BW40) |
| Antenna Gain | 6 GHz 6 dBi | 5 GHz 6 dBi | 2.4 GHz 4 dBi |
| Maximum Transmit Power | 6 GHz 24 dBm | 5 GHz 26 dBm | 2.4 GHz 23 dBm |
| Channel Bandwidth | HT 20/40 | VHT 20/40/80/160 | HE 20/40/80/160 | EHT 20/40/80/160/240/320 MHz |
| Maximum BSSIDs | 8 per radio |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 300+ |
| Networking Interface | 1 x 10 GbE RJ45 port, multi-speed 1/2.5/5/10 GbE uplink |
| Built-In Switch | None — no downlink ports and no PoE passthrough |
| Power Method | PoE+ — PoE adapter not included |
| Maximum Power Consumption | 22 W |
| Supported Voltage Range | 42.5–57 V DC |
| Wireless Features | Multi-Link Operation | wireless meshing | band steering | 802.11k, 802.11r and 802.11v | advanced radio management | Passpoint Hotspot 2.0 | PPSK | RADIUS over TLS | dynamic RADIUS-assigned VLAN |
| Hotspot Features | Custom branded landing page | voucher, payment and password authentication | external portal server | guest network isolation |
| Software Requirement | UniFi Network 10.0 or later, plus a UniFi Network host | mobile app iOS 10.29.3 or later, Android 10.31.1 or later |
| Operating Temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating Humidity | 5 to 95 %, non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Physical | |
|---|---|

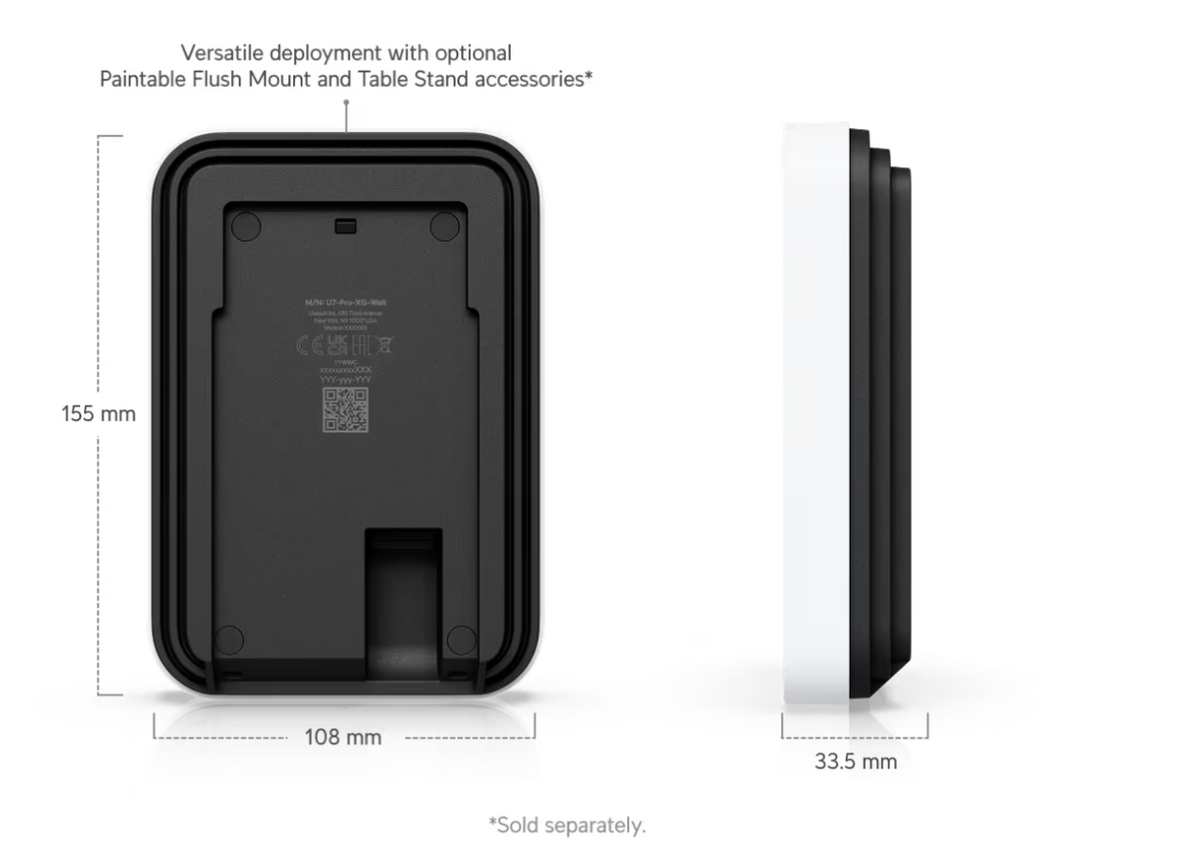

| Dimensions | 155 × 108 × 33.5 mm (6.1 × 4.3 × 1.3 in) |
| Weight | 505 g (1.1 lb) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| Mounting | Wall |
| Weatherproofing | None — indoor use |
| LEDs | White/blue status indicator |
Specifications subject to change.
