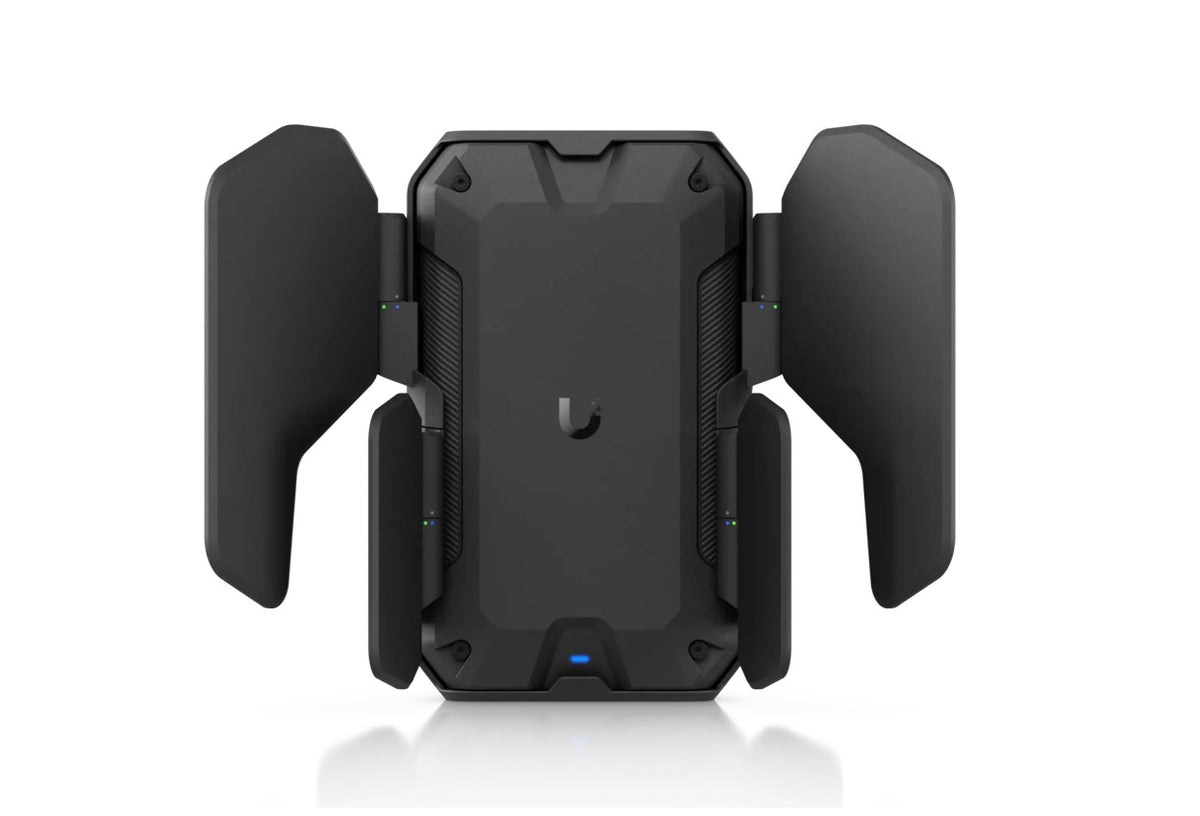

Ubiquiti U7 Industrial Access Point
IP67 industrial WiFi 7 access point with extended-temperature operation, integrated high-gain directional RF system with adjustable isolation and beamwidth control.
Note. Requires UniFi Network 11 RC and Access Point 8.8.12 (expected Oct 12).
| Overview | Dimensions |

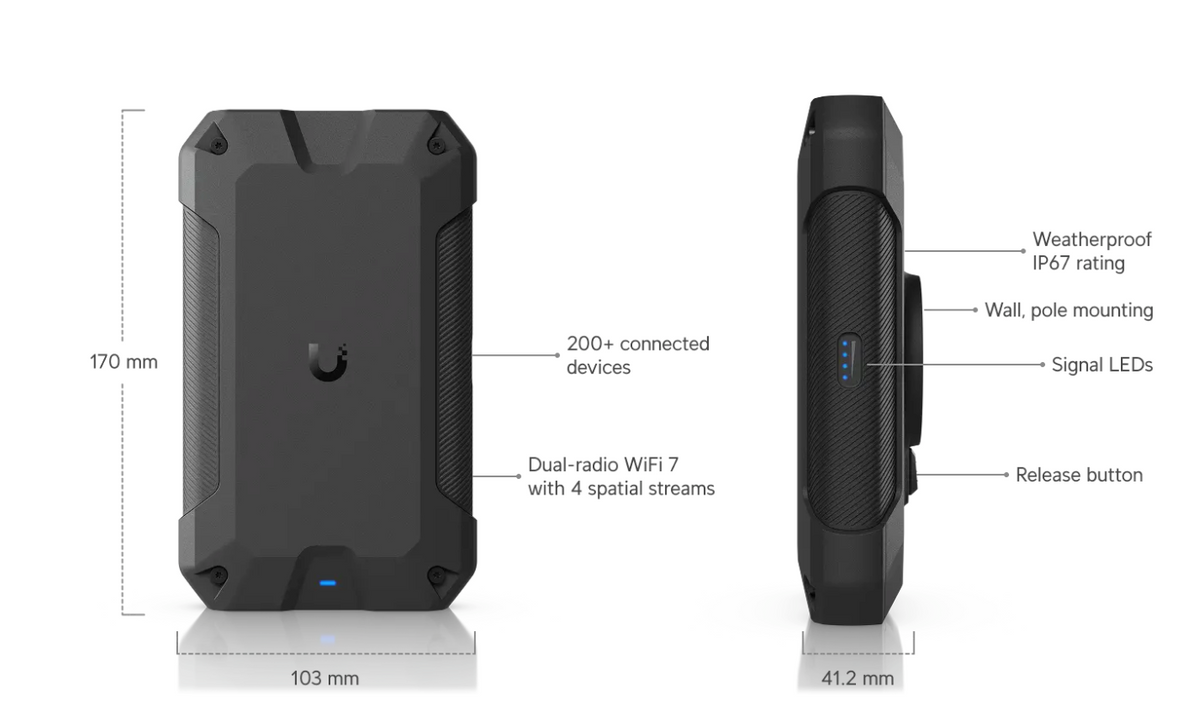

• Device: 170 × 103 × 41.2 mm (6.7 × 4.1 × 1.6")
• Ball mount installed: 170 × 103 × 107.6 mm (6.7 × 4.1 × 4.2")

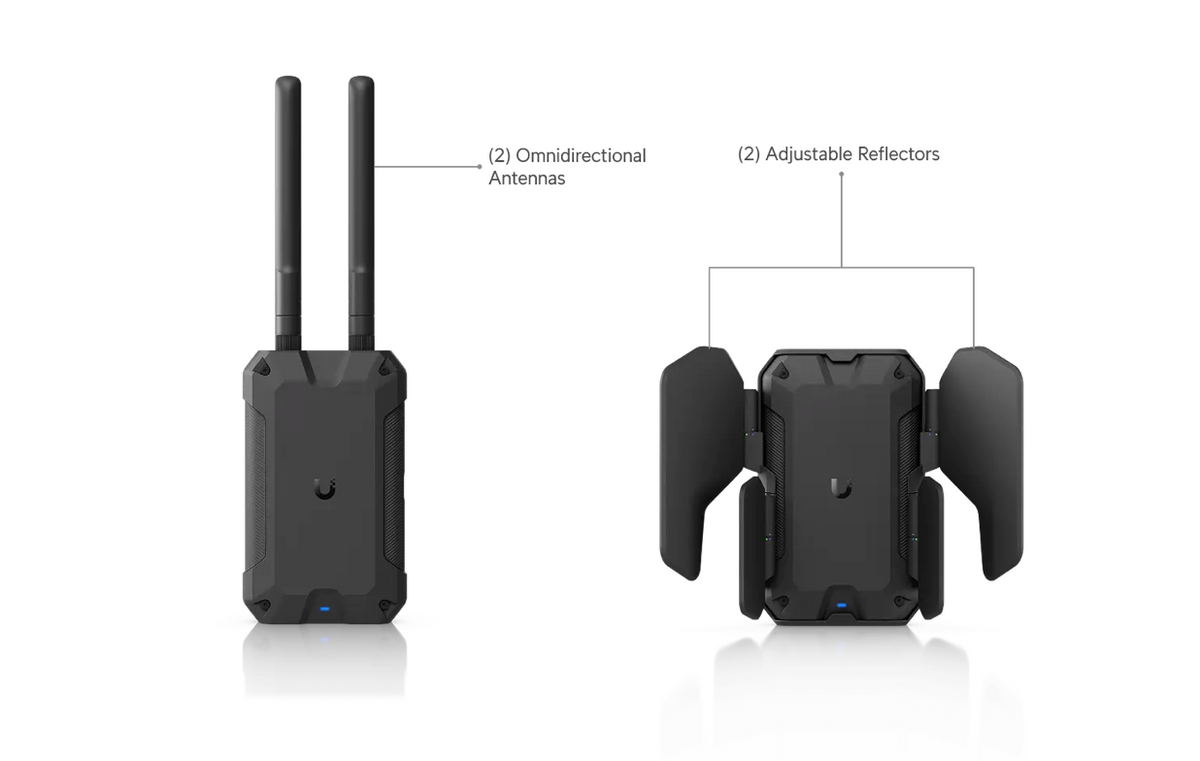

• Adjustable reflectors installed: 177.6 × 299.7 × 177.8 mm (7 × 11.8 × 7")
• Omnidirectional antennas installed: 341.8 × 103 × 107.6 mm (13.5 × 4.1 × 4.2")
|
| WiFi Standard | WiFi 7 | |
| Spatial Streams | 4 | |
| Coverage Area | 465 m² (5,000 ft²) | |
| Max. Client Count | 200+ | |
| Uplink | 2.5 GbE | |
| Mounting | Wall, Pole (Mounts included) | |
| Weatherproofing | IP67 | |
| Power Method | PoE | |
| Performance | MIMO |
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
|
| Max. Data Rate |
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
|
|
| Antenna Gain (5 GHz) |
• Directional internal (Built-in): 10 dBi, 95° × 45°
• Directional internal (Reflector Wide Angle): 11 dBi, 70° × 45°
• Directional internal (Reflector Narrow Angle): 12 dBi, 55° × 45°
• External omni: 6 dBi, 360° × 45°
|
|
| Antenna Gain (2.4 GHz) |
• Directional internal (Built-in): 8 dBi, 100° × 45°
• Directional internal (Reflector Wide Angle): 9 dBi, 80° × 45°
• Directional internal (Reflector Narrow Angle): 10 dBi, 65° × 45°
• External omni: 5 dBi, 360° × 45°
|
|
| Max. TX Power |
• 5 GHz: 24 dBm
• 2.4 GHz: 23 dBm
|
|
| Features | Wireless Features |
• Wireless Meshing: ✓
• Band Steering: ✓
• 802.11v BSS Transition Management: ✓
• 802.11r Fast Roaming: ✓
• 802.11k Radio Resource Management (RRM): ✓
• Advanced Radio Management: ✓
• Real-Time Spectral Analysis: ✓
• Passpoint (Hotspot 2.0): ✓
|
| Captive Hotspot Portal |
• Custom Branding Landing Page: ✓
• Voucher Authentication: ✓
• Payment-Based Authentication: ✓
• External Portal Server Support: ✓
• Password Authentication: ✓
|
|
| Network & Security |
• Guest Network Isolation: ✓
• Private Pre-Shared Key (PPSK): ✓
• WiFi Speed Limiting: ✓
• Client Device Isolation: ✓
• WiFi Schedules: ✓
• RADIUS over TLS (RadSec): ✓
• Dynamic RADIUS-assigned VLAN: ✓
|
|
| Hardware | Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC | |

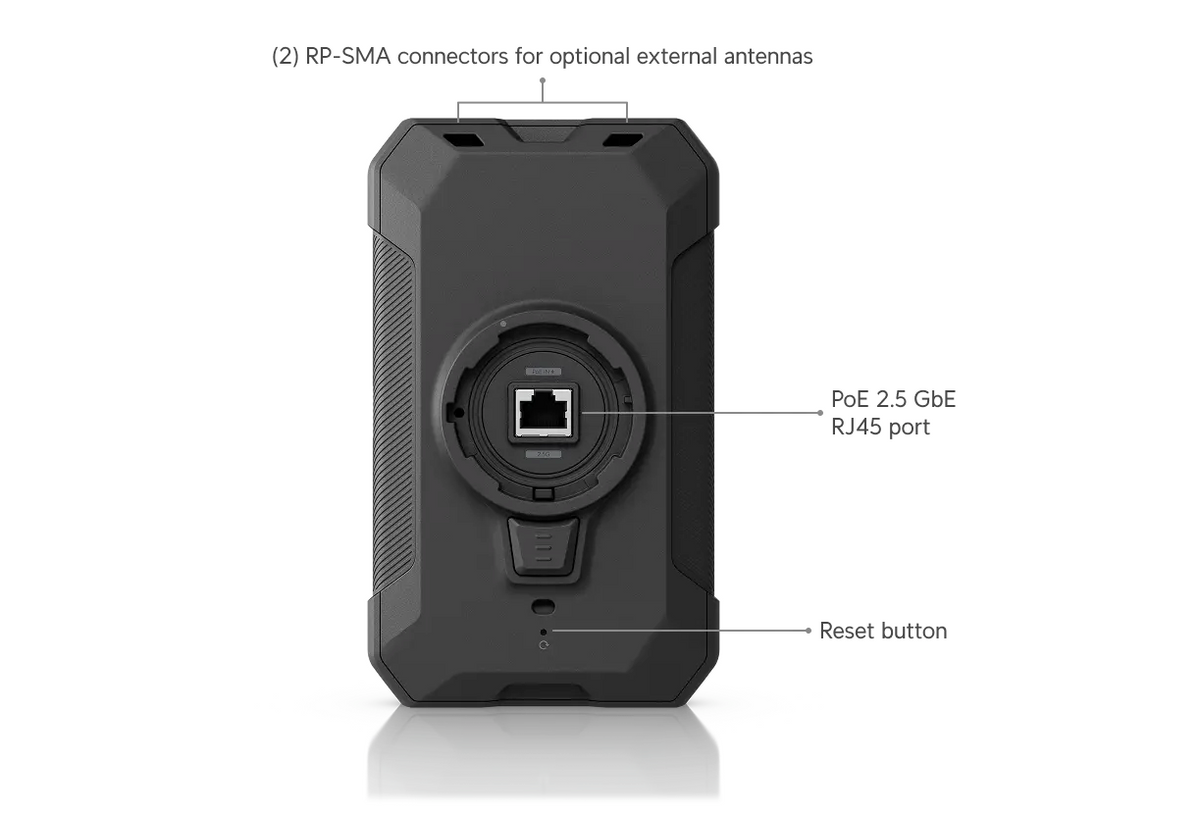

| Networking Interface | (1) 2.5 GbE RJ45 port | |
| Weight |
• Device: 577 g (1.3 lb)
• Ball mount: 163 g (5.8 oz)
• Reflector antenna set: 500 g (1.1 lb)
• Omni antenna set: 52 g (1.8 oz)
|
|
| Wind Loading | 97.3 N at 200 km/h (21.9 lbf at 125 mph) | |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) | |
| Management | Ethernet | |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy | |
| Mount Material | Aluminum alloy | |
| LEDs |
• System
• (4) Blue: signal
• (1) White/Blue: indicator
|
|
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) | |
| Ambient Operating Humidity | 5 to 95% noncondensing | |
| NDAA Compliant | ✓ | |
| Certifications | CE, FCC, IC |
