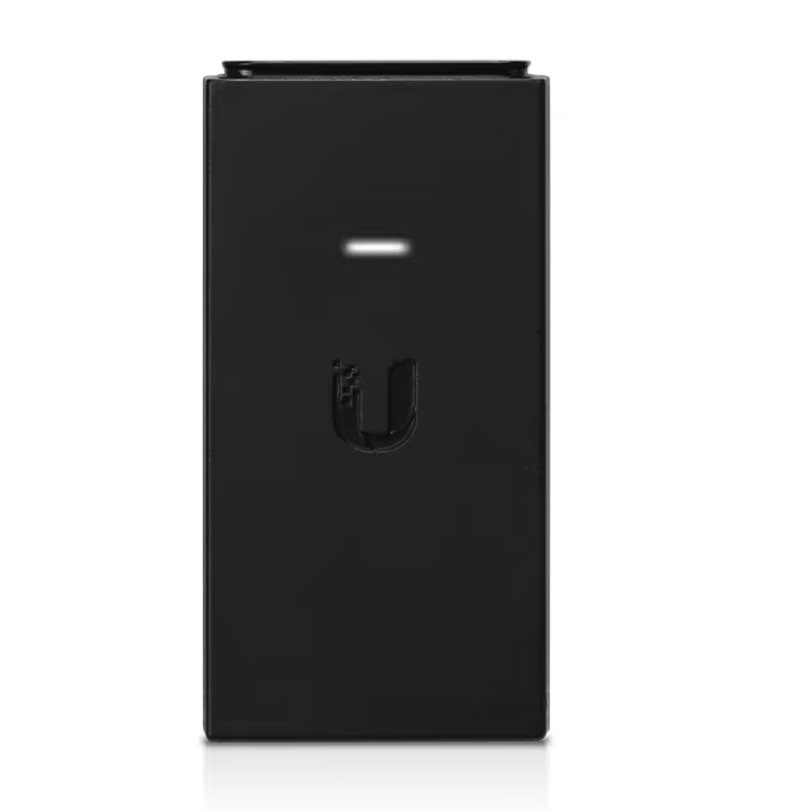

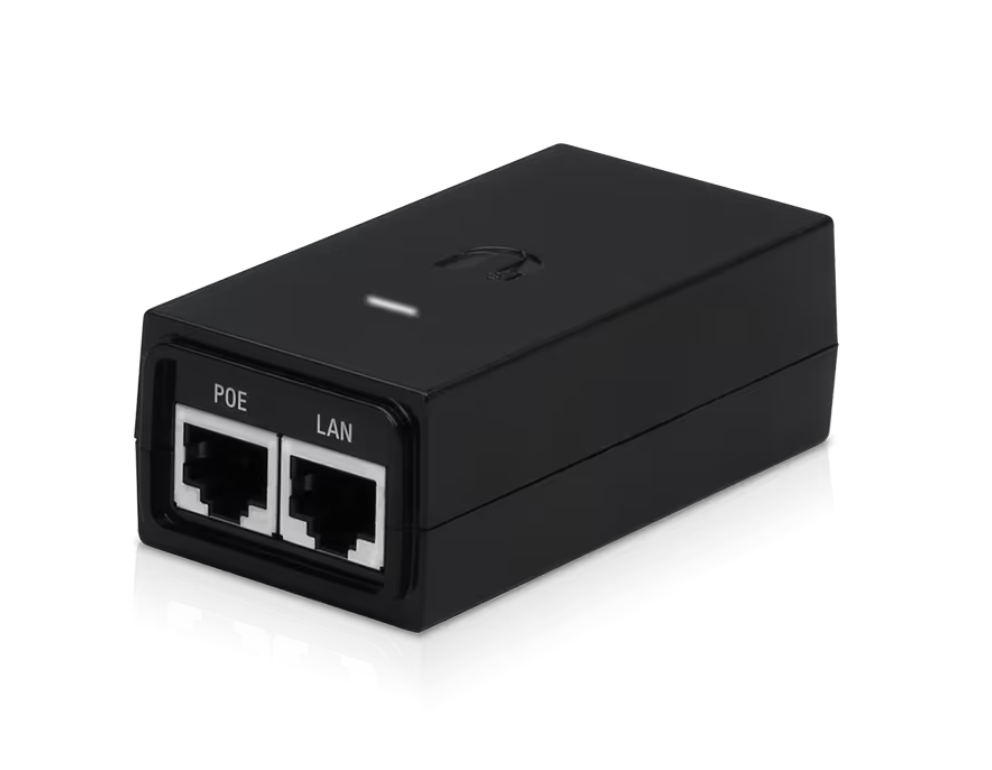

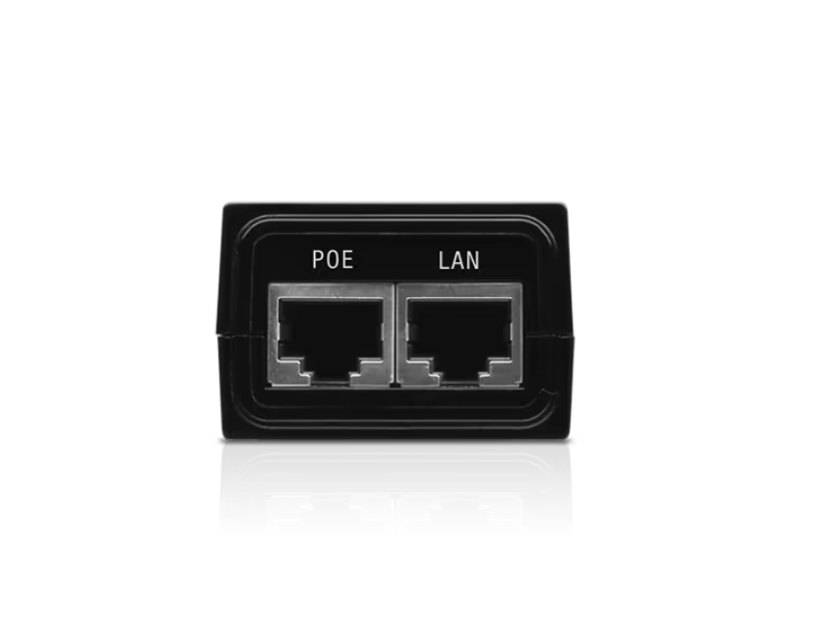

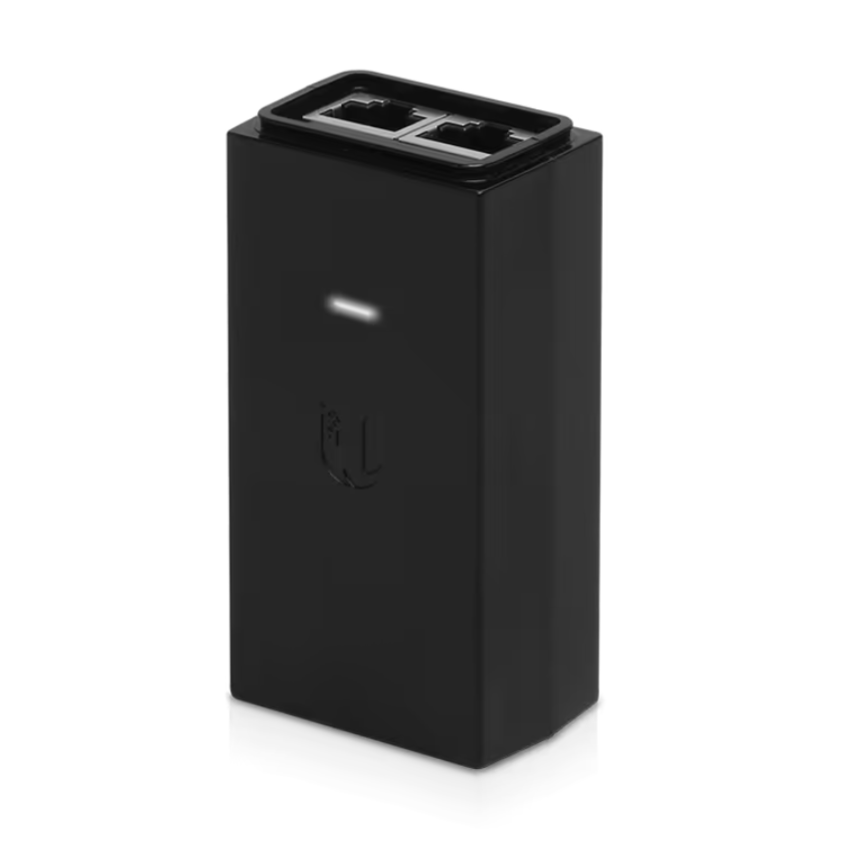

Ubiquiti POE-24-12W-G 24V PoE Adapter
Product Details
Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
Features
- Surge and clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Specifications
| Feature | Specification |
| Dimensions | 87 x 44 x 29 mm (3.4 x 1.7 x 1.1") |
| Weight | 99 g (3.5 oz) |
| Output Voltage | 24V DC @ 0.5A |
| Gigabit LAN Port | Yes |
| LAN Activity Indicator | No |
| Remote Reset / Reset Button | Yes / Yes |
| Input Rated Voltage | 100-240V AC @ 50/60Hz |
| Input Current | 0.3A @ 120V AC, 0.2A @ 240V AC |
| Inrush Current | <30A peak @ 120V AC, <60A peak @ 230V AC |
| Efficiency | 75+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 50 kHz |
| Line / Load Regulation | Line: ≤ 3% / Load: ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE Port | RJ45 shielded socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
