Ubiquiti Network Video Recorder G2 Pro

UbiquitiSKU: UNVR-G2-Pro

Price:

Login to see pricing

Description

Ubiquiti Network Video Recorder G2 Pro

Product Details

The Ubiquiti Network Video Recorder G2 Pro is described by Ubiquiti as a “2U UniFi Protect NVR with built-in AI event analytics, HDMI output, eight 2.5″/3.5″ HDD bays, and support for up to 50 4K or 100 Full HD cameras”.

The Pro is not a faster recorder than the standard G2 — the processor and the port set are identical. What it buys is scale: a 2U chassis with eight drive bays instead of four, 16 GB of memory instead of 8 GB, a 200 W supply instead of 100 W, and camera limits raised to 100 HD, 70 2K or 50 4K. That is the decision in a sentence. If the camera count or the retention period has outgrown four drives, this is the box; if it has not, the standard G2 does the same job in half the rack space for three hundred dollars less.

Like the G2 it is a UniFi console in its own right, running UniFi Protect, UniFi Access and UniFi Connect with built-in Edge AI for object vector encoding, semantic search and re-identification. Drives are not included. Networking is one 10G SFP+ port and one 2.5 GbE RJ45, and the SFP+ port does not support 1G speeds. It needs UniFi Protect 7.1.55 or later and is ready for a UniFi RPS.

Features

  • 2U rack-mount UniFi Protect network video recorder
  • Runs UniFi Protect, UniFi Access and UniFi Connect as a console in its own right
  • Up to 100 HD, 70 2K or 50 4K cameras
  • Eight 2.5 or 3.5 inch HDD or SSD bays with RAID protection
  • 16 GB memory
  • Built-in Edge AI for object vector encoding, semantic search and re-identification
  • HDMI viewport output for a live monitoring display
  • 1 x 10G SFP+ and 1 x 2.5 GbE RJ45 — the SFP+ port does not support 1G speeds
  • Manages 150+ UniFi Access hubs
  • 200 W internal supply, UniFi RPS ready
  • NDAA compliant
  • Drives sold separately

Specifications

Technical
Model UNVR-G2-Pro
Product Type UniFi Protect network video recorder, 2U
Managed Cameras 100 HD | 70 2K | 50 4K
Maximum Simultaneous Viewport Streams 16 4K cameras
Managed Access Hubs 150+ | Reader Pro and Intercom quantities must stay below the Protect camera limits
Storage Capacity 8 x 2.5/3.5-inch drive bays, HDD or SSD, drives not included
Data Protection RAID
Processor Qualcomm Kryo CPU on Arm Cortex technology, 4 nm | 1 prime core 3.2 GHz, 4 performance cores 2.8 GHz, 3 efficiency cores 2.0 GHz
Memory 16 GB

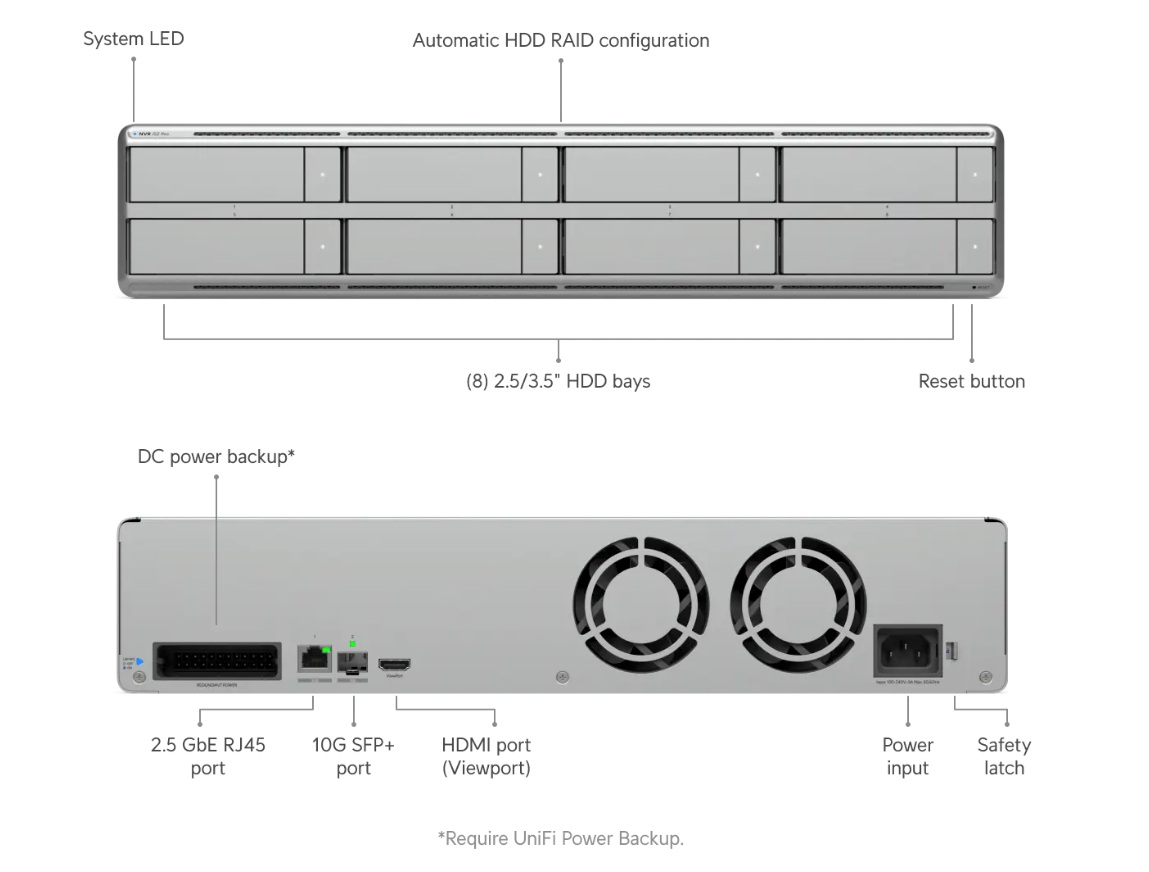

Networking Interface 1 x 10G SFP+ port | 1 x 2.5 GbE RJ45 port | SFP+ does not support 1G speeds
Video Output HDMI viewport
Management Applications UniFi Protect, UniFi Access, UniFi Connect
Software Requirement UniFi Protect 7.1.55 or later | UniFi Access 4.2.16 or later
Power Method 1 x universal AC input 100–240 V AC, 3 A max, 50/60 Hz | 1 x USP-RPS DC input 11.5 V DC
Power Supply Internal AC/DC, 200 W
Maximum Power Budget For Drives 155 W
Maximum Power Consumption 200 W
Power Redundancy UniFi Power Backup ready, RPS sold separately
Management Ethernet, Bluetooth
Operating Temperature 0 to 40 °C (32 to 104 °F)
Operating Humidity 5 to 95 %, non-condensing
NDAA Compliant Yes
Certifications CE, FCC, IC
Physical

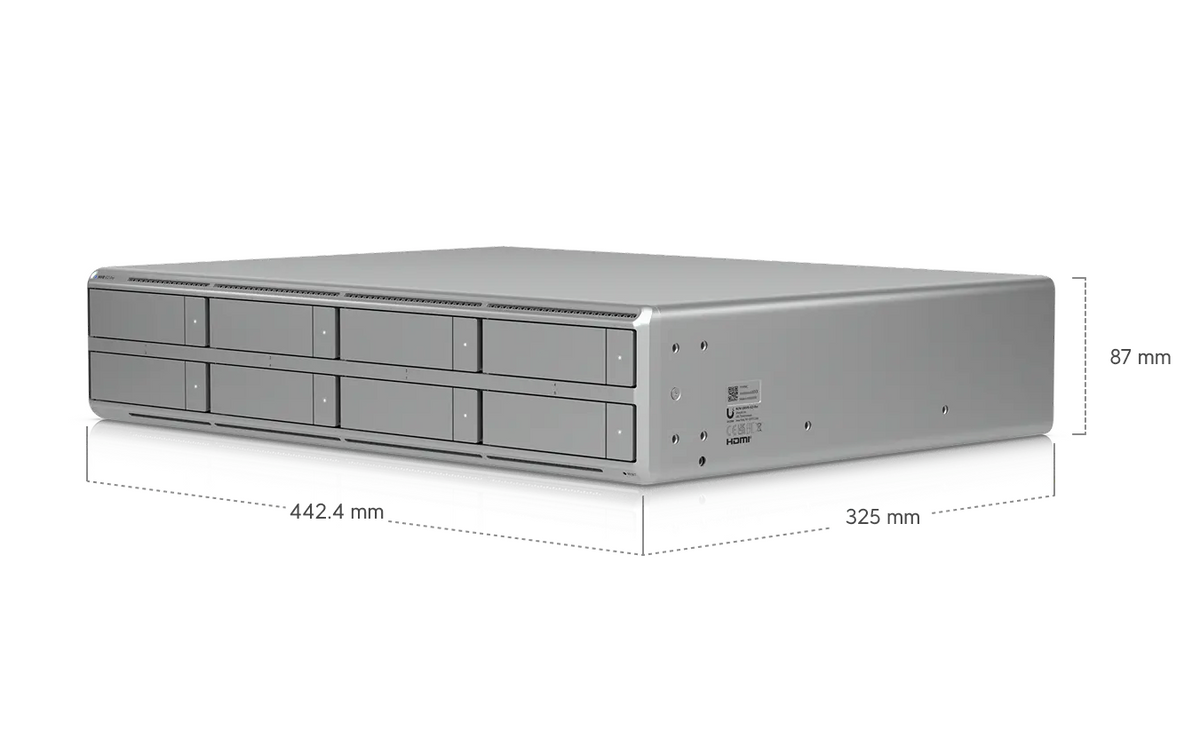

Dimensions 442.4 × 87.4 × 325 mm (17.4 × 3.4 × 12.8 in)
Weight 8.4 kg (18.5 lb)
Form Factor Rack mount, 2U
Enclosure Material SGCC steel
Mount Material SGCC steel
LED Indicators Ethernet, SFP+, RPS, HDD, system

Specifications subject to change.
