Ubiquiti Network Video Recorder G2

UbiquitiSKU: UNVR-G2

Price:

Login to see pricing

Description

Ubiquiti Network Video Recorder G2

Product Details

The Ubiquiti Network Video Recorder G2 is described by Ubiquiti as a “1U UniFi Protect NVR with built-in AI event analytics, HDMI output, four 2.5″/3.5″ HDD bays, and support for up to 30 4K or 60 Full HD cameras”.

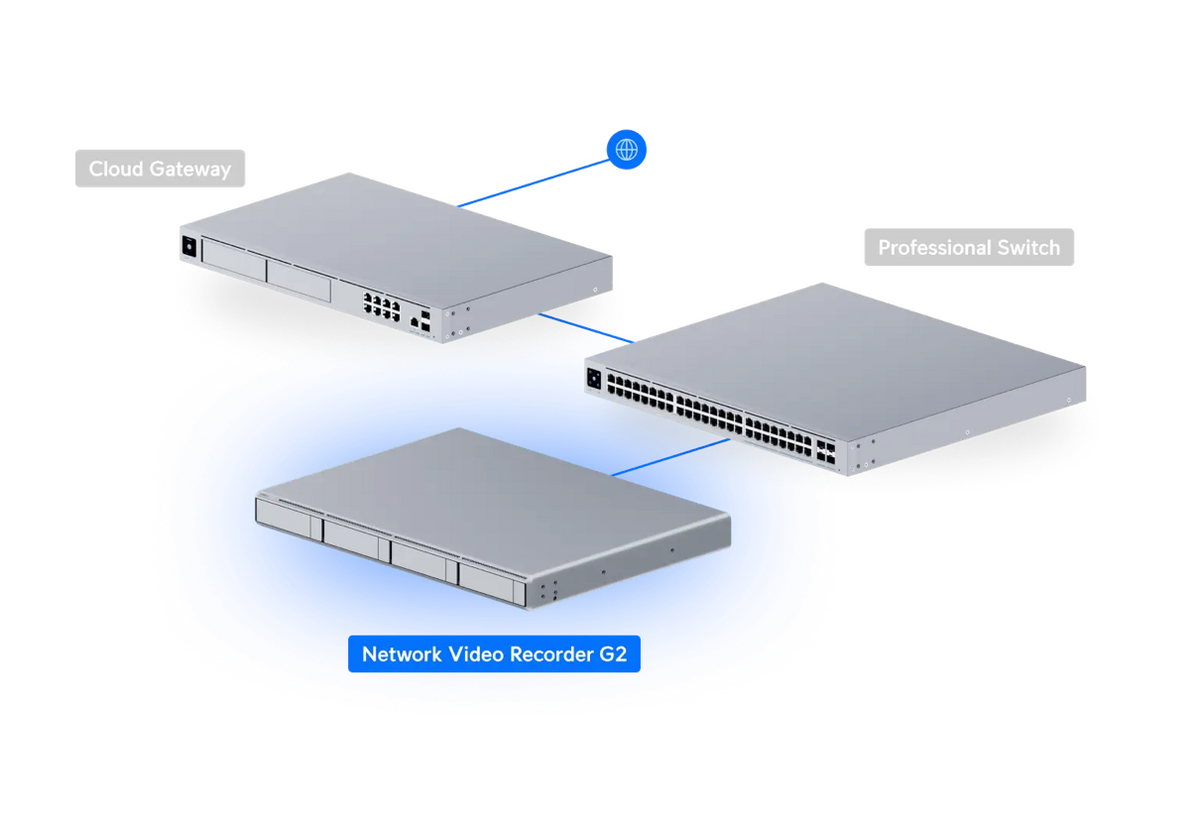

It is a UniFi console in its own right, not an accessory to one: it runs UniFi Protect, UniFi Access and UniFi Connect itself, so a site does not need a separate gateway to host Protect. Camera capacity is published by resolution rather than by camera model — 60 HD, 50 2K or 30 4K — and it is worth reading that carefully, because every 4K camera costs twice the budget of a 2K one. Note too that using the HDMI viewport cuts the figure to 40 HD, 30 2K or 20 4K. If the plan is 30 4K cameras and a monitor on the wall, this is the wrong box and the G2 Pro is the right one.

Four 2.5 or 3.5 inch bays take HDDs or SSDs with RAID protection, and no drives are included — budget for those separately. Networking is one 10G SFP+ port and one 2.5 GbE RJ45; the SFP+ port does not support 1G speeds, so a 1G module will not work in it. Built-in Edge AI handles object vector encoding, semantic search and re-identification across the connected cameras. It needs UniFi Protect 7.1.55 or later, draws up to 100 W, and is ready for a UniFi RPS if power redundancy is wanted.

Features

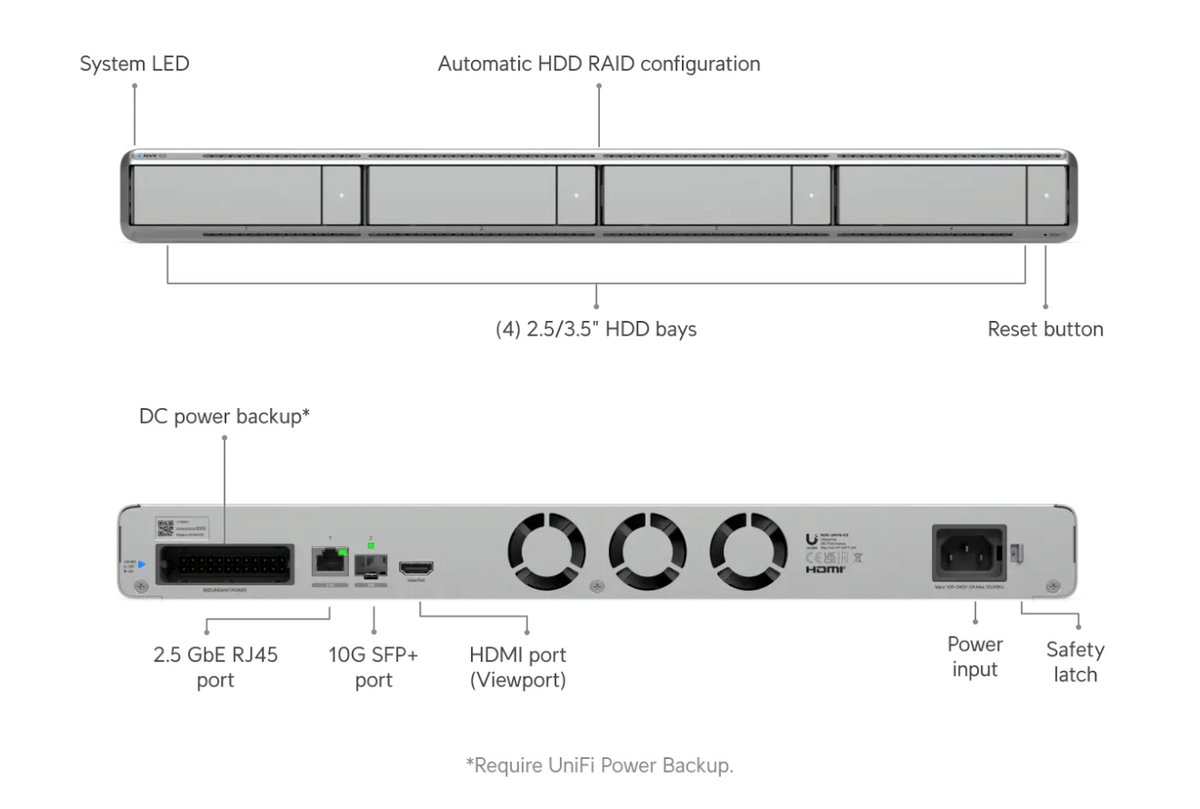

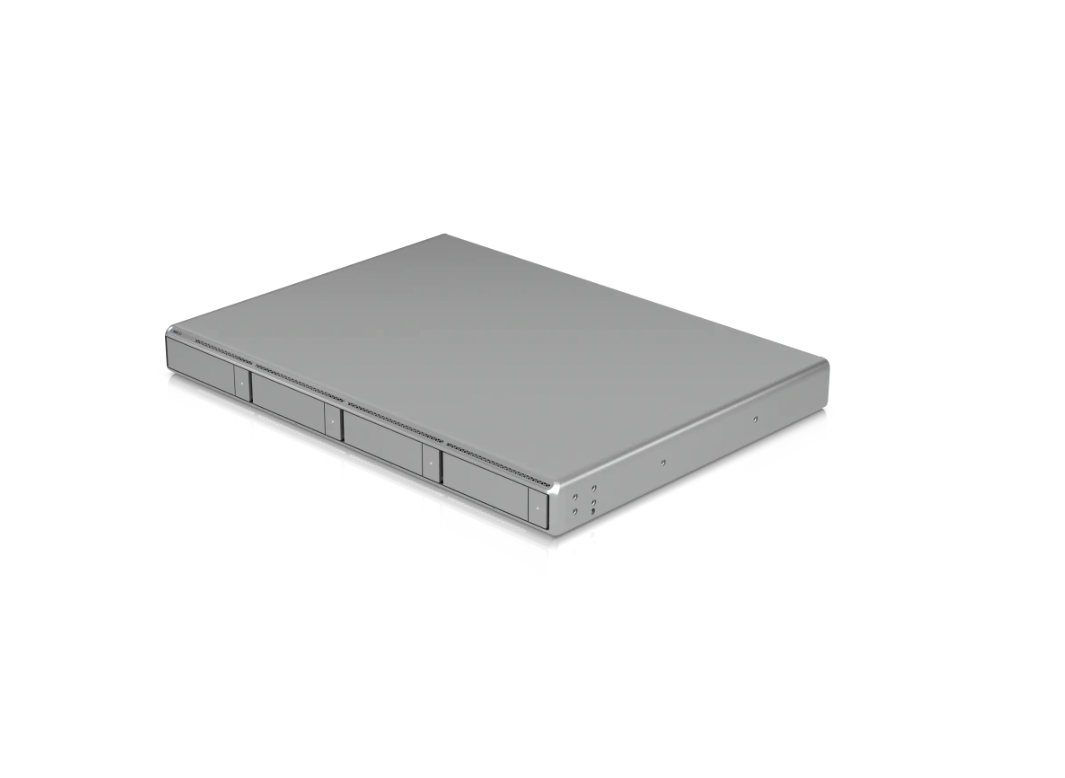

  • 1U rack-mount UniFi Protect network video recorder
  • Runs UniFi Protect, UniFi Access and UniFi Connect as a console in its own right
  • Up to 60 HD, 50 2K or 30 4K cameras with the viewport disabled
  • Up to 40 HD, 30 2K or 20 4K cameras when the HDMI viewport is in use
  • Four 2.5 or 3.5 inch HDD or SSD bays with RAID protection
  • Built-in Edge AI for object vector encoding, semantic search and re-identification
  • HDMI viewport output for a live monitoring display
  • 1 x 10G SFP+ and 1 x 2.5 GbE RJ45 — the SFP+ port does not support 1G speeds
  • Manages 150+ UniFi Access hubs
  • UniFi RPS ready for DC power backup
  • NDAA compliant
  • Drives sold separately

Specifications

Technical
Model UNVR-G2
Product Type UniFi Protect network video recorder, 1U
Managed Cameras 60 HD | 50 2K | 30 4K with the viewport disabled
Managed Cameras, Viewport In Use 40 HD | 30 2K | 20 4K
Maximum Simultaneous Viewport Streams 16 4K cameras
Managed Access Hubs 150+ | Reader Pro and Intercom quantities must stay below the Protect camera limits
Storage Capacity 4 x 2.5/3.5-inch drive bays, HDD or SSD, drives not included
Data Protection RAID
Processor Qualcomm Kryo CPU on Arm Cortex technology, 4 nm | 1 prime core 3.2 GHz, 4 performance cores 2.8 GHz, 3 efficiency cores 2.0 GHz
Memory 8 GB
Networking Interface 1 x 10G SFP+ port | 1 x 2.5 GbE RJ45 port | SFP+ does not support 1G speeds
Video Output HDMI viewport
Management Applications UniFi Protect, UniFi Access, UniFi Connect
Software Requirement UniFi Protect 7.1.55 or later | UniFi Access 4.2.16 or later
Power Method 1 x universal AC input 100–240 V AC, 2 A max, 50/60 Hz | 1 x USP-RPS DC input 11.5 V DC
Power Supply Internal AC/DC, 100 W
Maximum Power Budget For Drives 75 W
Maximum Power Consumption 100 W
Power Redundancy UniFi Power Backup ready, RPS sold separately
Management Ethernet, Bluetooth
Operating Temperature 0 to 40 °C (32 to 104 °F)
Operating Humidity 5 to 95 %, non-condensing
NDAA Compliant Yes
Certifications CE, FCC, IC
Physical

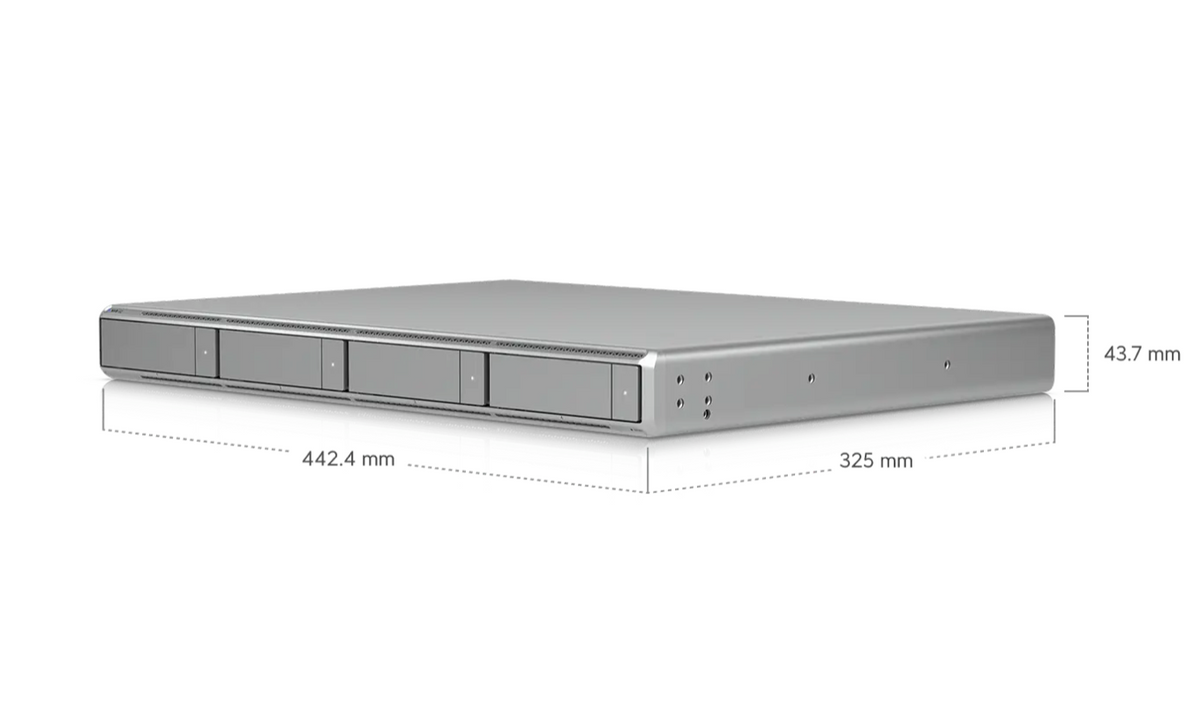

Dimensions 442.4 × 43.7 × 325 mm (17.4 × 1.7 × 12.8 in)
Weight 6 kg (13.2 lb)
Form Factor Rack mount, 1U
Enclosure Material SGCC steel
Mount Material SGCC steel
LED Indicators Ethernet, SFP+, RPS, HDD, system

Specifications subject to change.
