Description

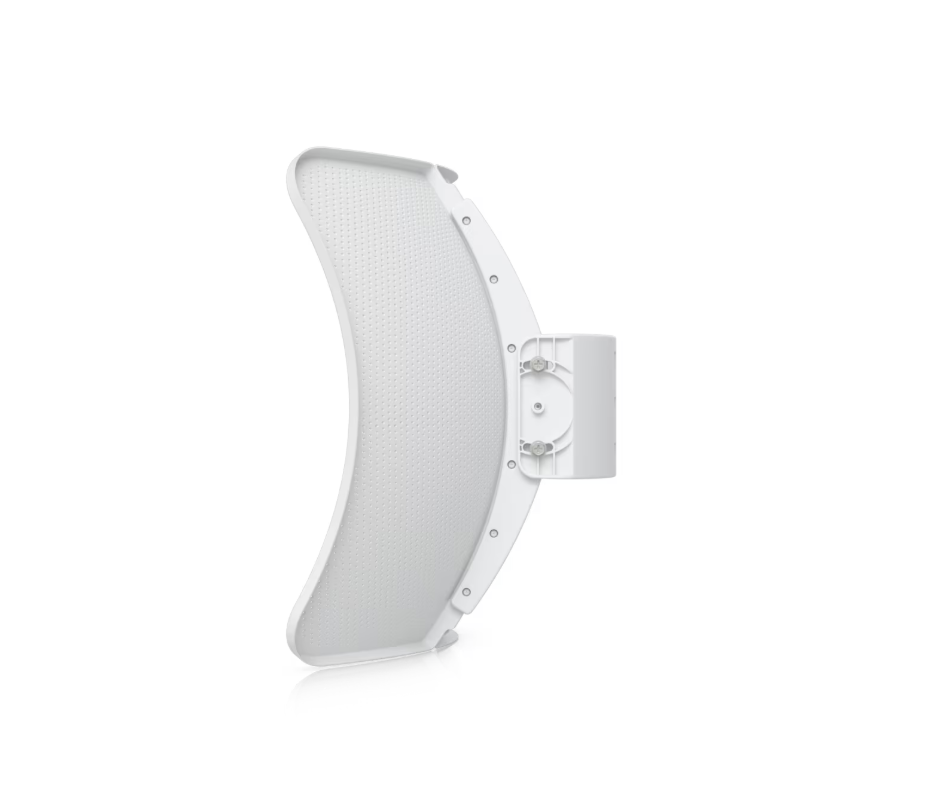

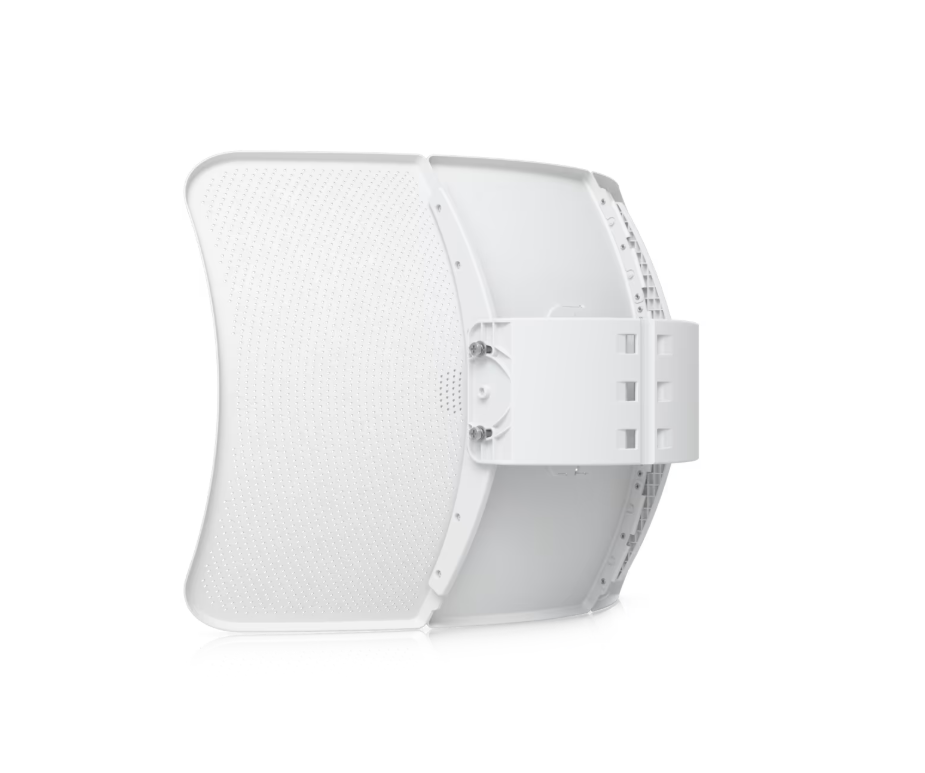

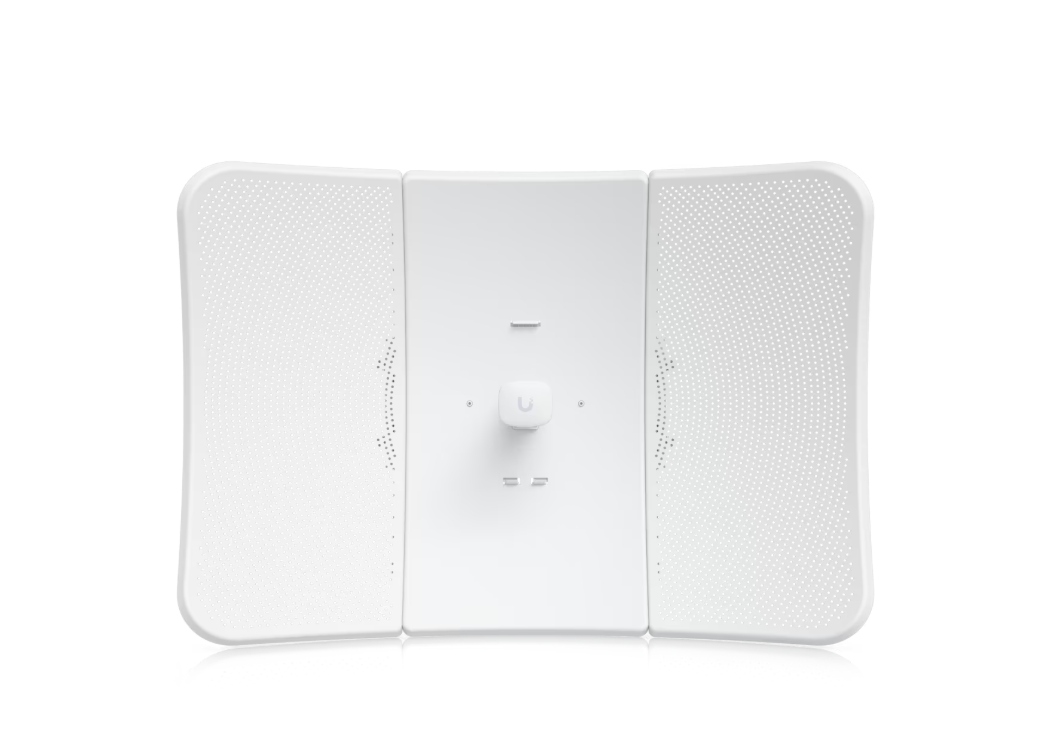

Ubiquiti LBE-5AC-XR airMAX LiteBeam 5AC Extreme-Range
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
| Physical | Dimensions | 747 x 525 x 347 mm (29.4 x 20.7 x 13.7") |
| Weight | 3.2 kg (7.1 lb) | |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate | |
| Mount Material | UV stabilized polycarbonate | |
| Mounting | Integrated pole mount (Ø35 to 60 mm) | |
| Wind Loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) | |
| Weatherproofing | IPX6 | |
| Hardware | Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8- return) | |
| Power Supply | 24V DC, 0.5A gigabit PoE adapter (Included) | |
| Max. Power Consumption | 7W | |
| Operating Temp | -40 to 70° C (-40 to 158° F) | |
| System | Max Throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) | |
| Modes | PtMP, PtP | |
| Management | Dedicated 2.4 GHz management radio / UISP App | |
| Radio/Antenna | Operating Frequency | 5.15 to 5.85 GHz |
| Max TX Power | 25 dBm | |
| Antenna Gain | 29 dBi | |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz | |
| Beamwidth | 5.5° (HPOL / VPOL / Elevation) | |
| Isolation | 20 dB | |
| Compliance | Certifications | FCC, IC, CE, NDAA Compliant |
