Description
Ubiquiti Enterprise Campus Switch Core
3.2 Tbps high-density 100G Layer 3 Etherlighting™ core switch with MC-LAG support for high availability system design.

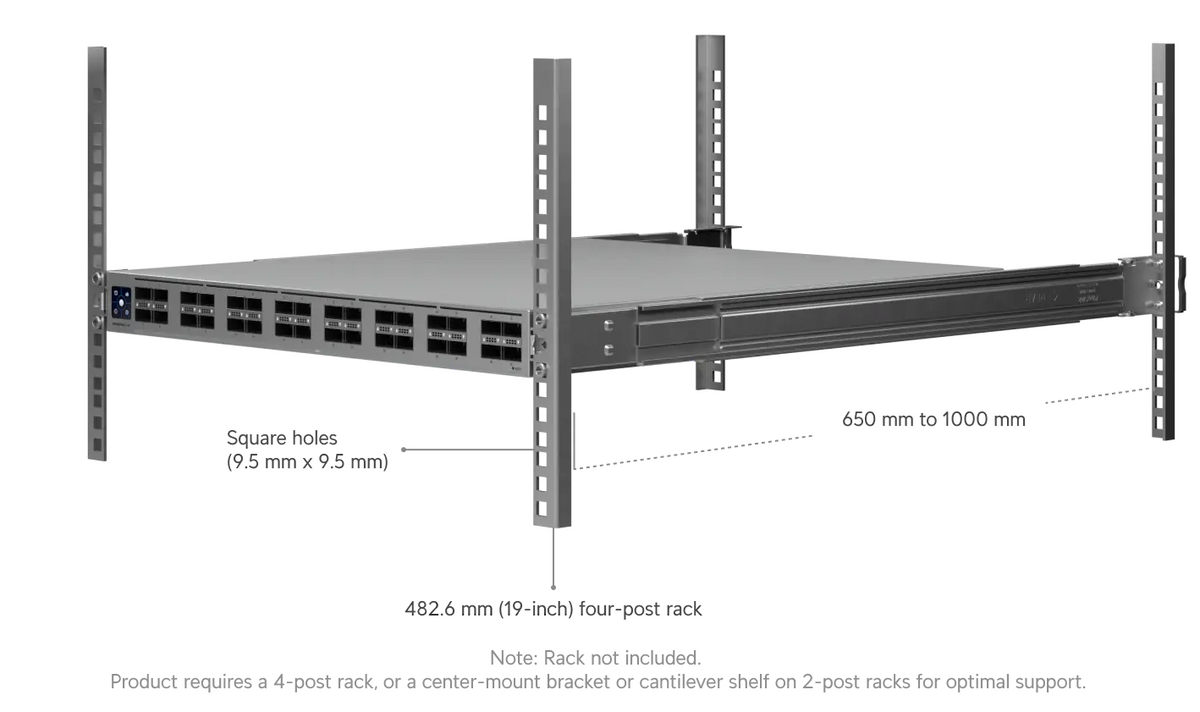

Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
| Category | Specification | Details |

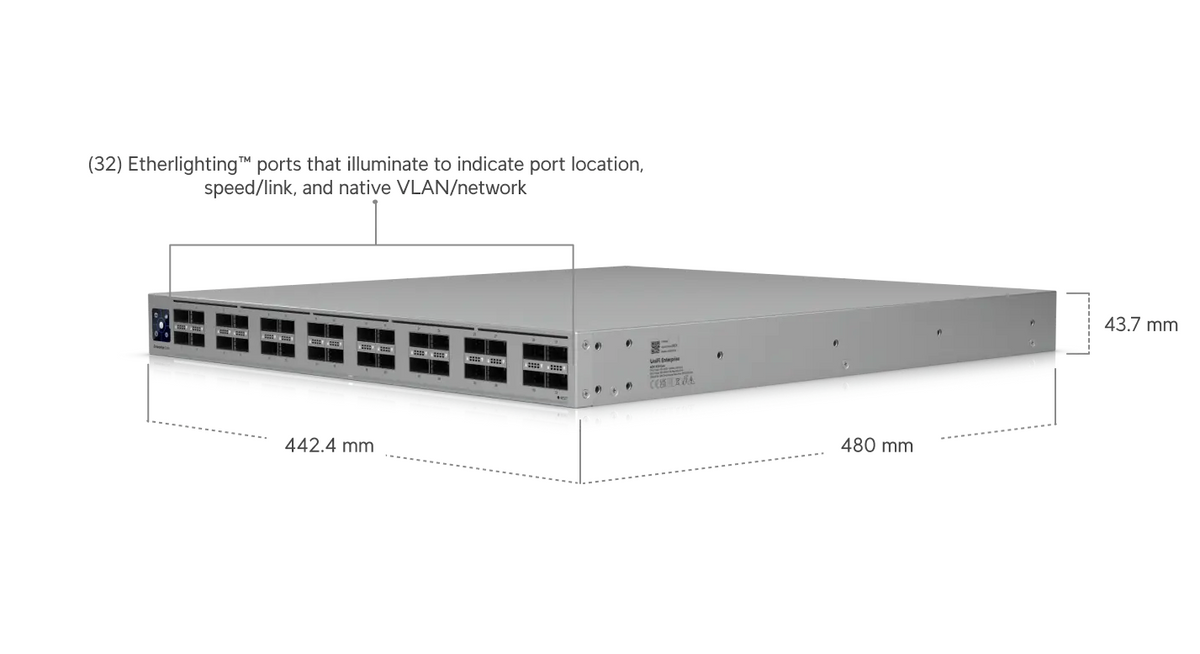

| Overview | Dimensions | 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") |
| Overview | Port Layout |
(1) GbE RJ45 (1G/100M/10M)

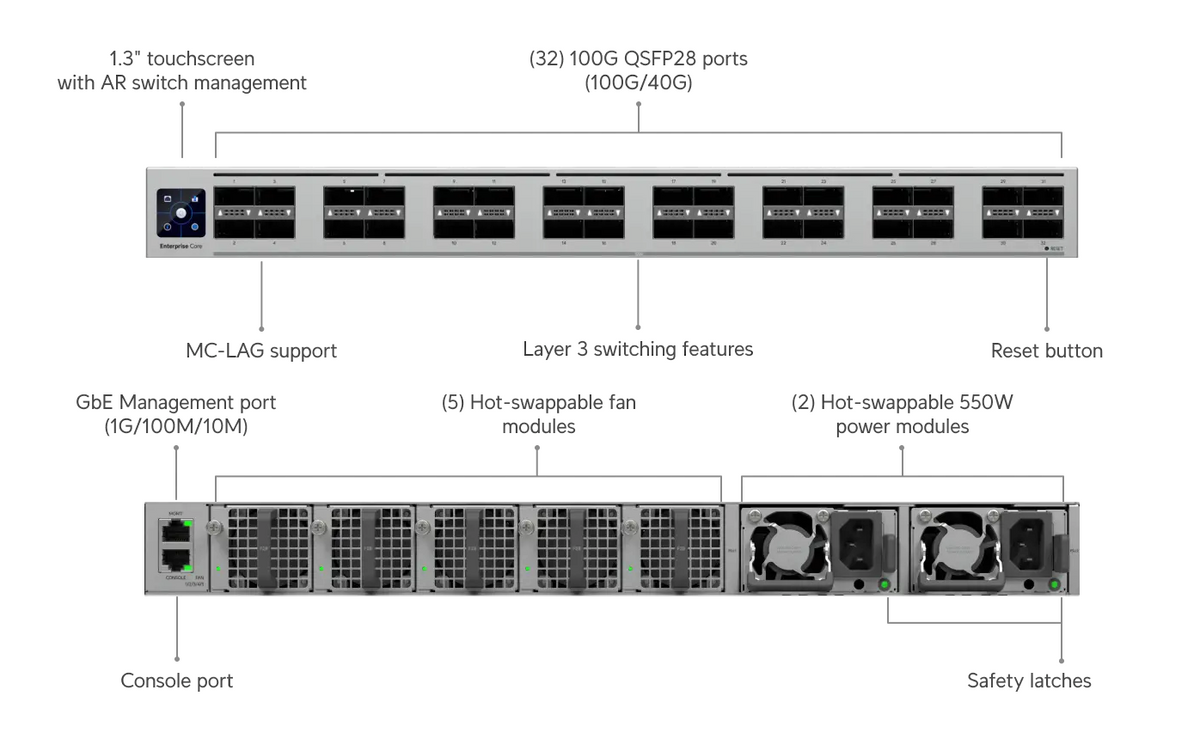

(32) 100G QSFP28 (100G/40G)
(1) Console
|
| Overview | Redundancy |
Multi-Chassis Link Aggregation (MC-LAG)
(2) Hot-Swappable PSUs
(5) Hot-Swappable Fans
|
| Overview | Layer 3 | ✓ |
| Overview | Form Factor | Rack Mount (1U, Full-Depth) |
| Overview | Etherlighting™ | ✓ |
| Performance | Switching Capacity | 6.4 Tbps |
| Performance | Total Non-Blocking Throughput | 3.2 Tbps |
| Performance | Forwarding Rate | 2.8 Bpps |
| Performance | Supported VLANs | 1,000 |
| Performance | MAC Address Table Size | 128,000 |
| Performance | IPv4 Static Routes | 256 |
| Performance | Packet Buffer Size | 24 MB |
| Performance | Access Lists |
IPv4: 512
MAC: 512
|
| Layer 3 Features | Features |
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
|
| Layer 2 Features | Features |
LACP Port Aggregation
MC-LAG
STP & RSTP
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
|
| Hardware | Max. Power Consumption | 360W |
| Hardware | Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Hardware | Power Input Method | (2) AC input, Hot-swappable power modules |
| Hardware | Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Hardware | Supported Voltage Range | 100–240V AC |
| Hardware | Management | Ethernet, AR, Serial Console |
| Hardware | Heat Dissipation | 1,228 BTU/hr |
| Hardware | Weight |
Without mounting brackets: 9.7 kg (21.4 lb)
With mounting brackets: 9.8 kg (21.6 lb)
|
| Hardware | Enclosure Material | SGCC steel |
| Hardware | Mount Material | SGCC steel |
| Hardware | Supported Rack Depth |
482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
|
| Hardware | LCM Display | 1.3" touchscreen |
| Hardware | Fan Method | (5) Hot-swappable fan modules |
| Hardware | ESD Protection | Air: ± 12KV; contact: ± 8KV |
| Environmental | Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Environmental | Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Supported Optics | QSFP28 ✓ |
| LEDs | Status Indicators | Ethernet ✓, PSU ✓, Fan ✓ |
| Compliance | NDAA Compliant | ✓ |
| Compliance | Certifications | CE, FCC, IC |
| Software | Application Requirements | UniFi Network Version 10.6.101 and later |
