Ubiquiti EAV-Bridge Enterprise Audio/Video Bridge
Product Details
PoE+ powered AV-over-IP transceiver that bridges 4K60 HDMI and professional XLR audio as either a source or destination.
Specifications
| Feature |
Specification |

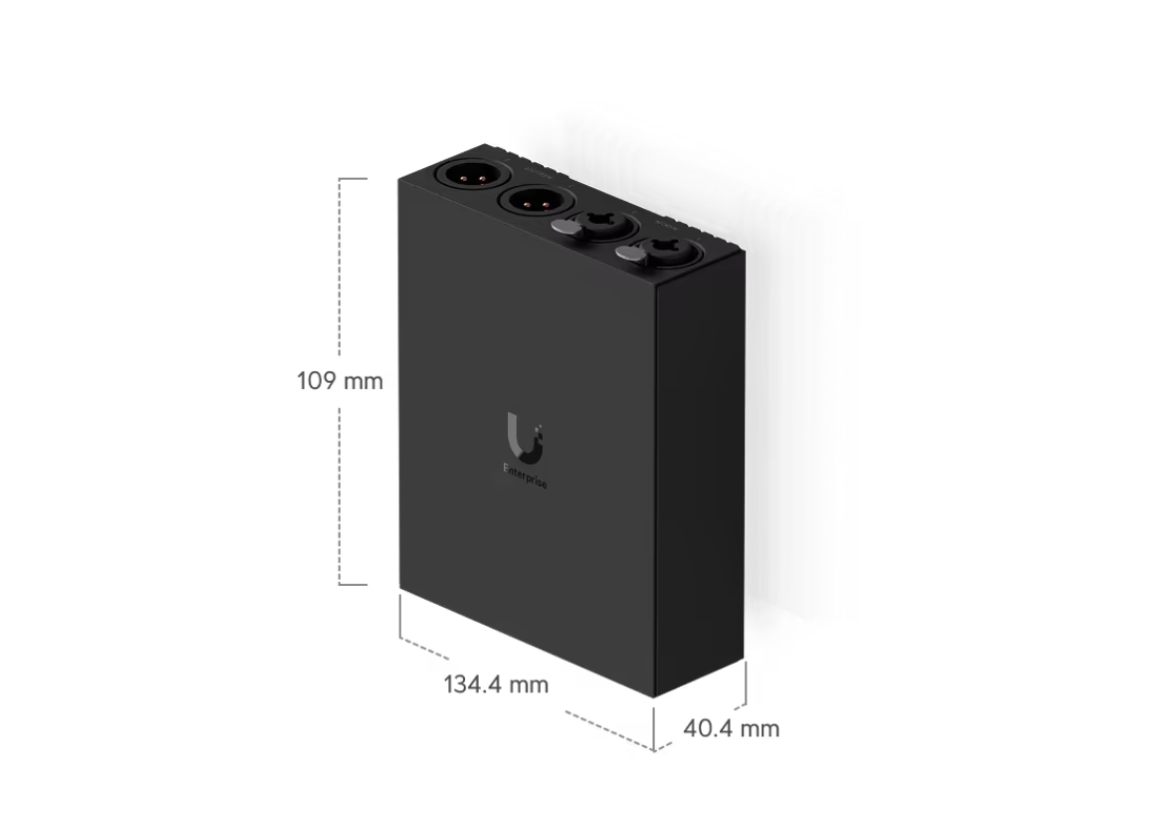

| Dimensions |
109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6") |
| Weight |
560 g (1.2 lb) |
| Enclosure Material |
Aluminum |
| Mounting Options |
DIN rail, Wall, Pole (1.5–2" / 38–50 mm diameter) |
| Display |
1.3” Touchscreen LCM |
| Visual Indicators |
Etherlighting™ (Ethernet port) |
Audio & Video Capabilities
| Category |
Feature |
Specification |

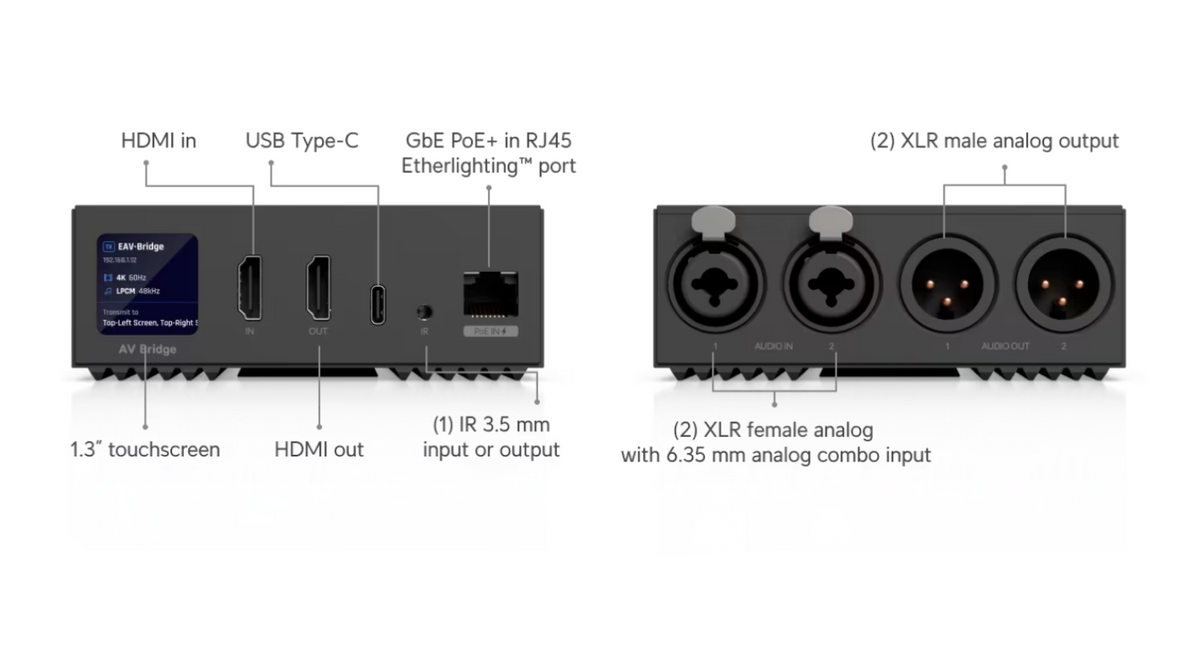

| Video I/O |
HDMI |
(1) HDMI 2.0 In / (1) HDMI 2.0 Out |
| Resolution |
Max Support |
4K at 60 Hz (60 FPS) |
|
Compatibility |
480p, 720p, 1080p, 4K |

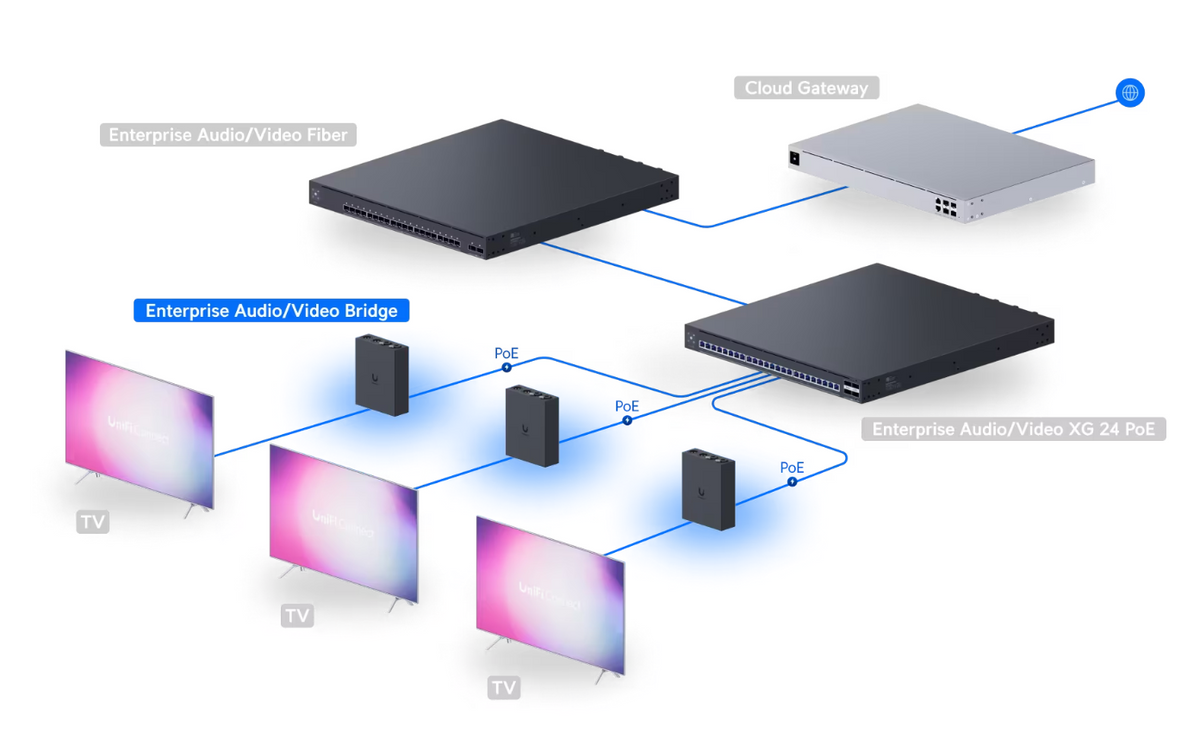

| Distribution |
Configuration |
1-to-1, 1-to-N streaming; Up to 8x8 TV Wall |
| Audio I/O |
Analog Input |
(2) XLR/6.35 mm Combo (Female) with 48V Phantom Power |
|
Analog Output |
(2) XLR (Male) |
|
Digital |
HDMI In/Out (PCM Surround Support) |
| Audio Performance |
Frequency Response |
20 Hz – 20k Hz ±0.5dB |
|
Output Mode |
Mono / Stereo |
Connectivity & Hardware
| Feature |
Specification |
| Networking |
(1) GbE RJ45 PoE+ In with Etherlighting™ |
| USB Port |
(1) USB Type-C (5V, 1A) |
| IR Interface |
(1) 3.5 mm Input/Output |
| Power Method |
PoE+ |
| Max Power Draw |
14W |
| Button |
Factory Reset |
Environmental & Compliance
| Feature |
Specification |
| Operating Temp |
-5 to 40° C (23 to 104° F) |
| Operating Humidity |
5 to 90% noncondensing |
| Standards |
NDAA Compliant |
| Certifications |
FCC, IC, CE |
