Ubiquiti EAV-XG-24-PoE (2150W) Enterprise Audio/Video XG 24 PoE
Product Details

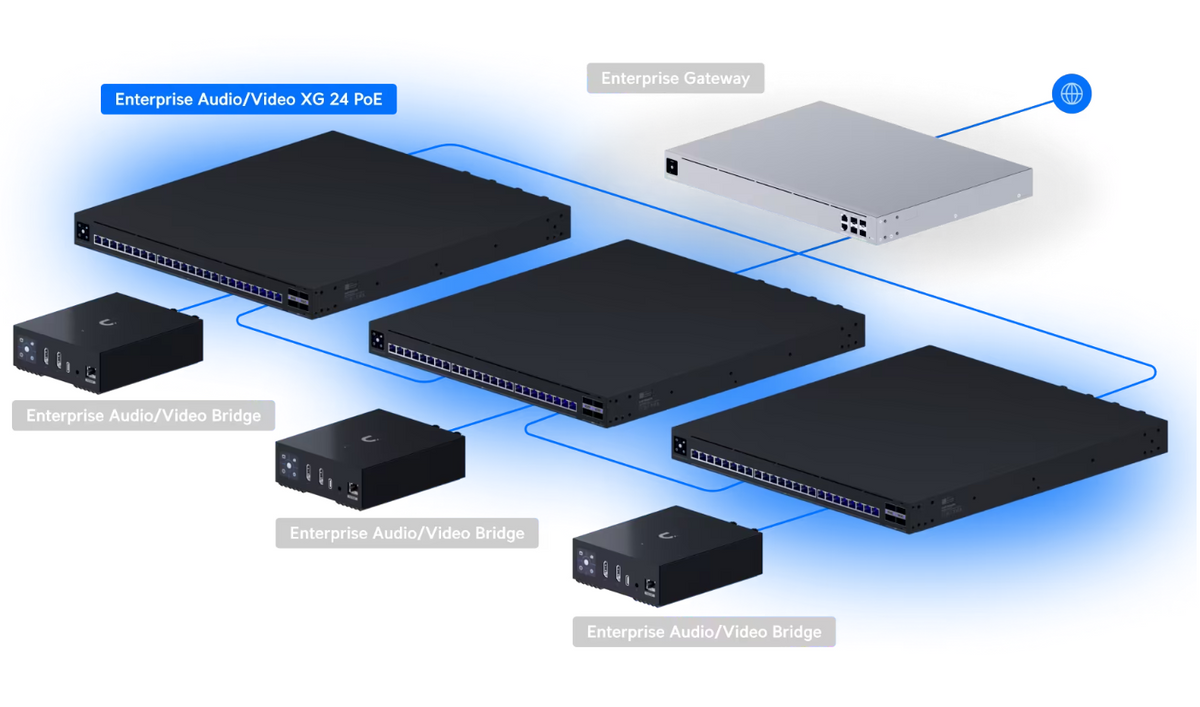

Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.
Note. 2,150W total PoE availability requires Shared Mode (coming soon).

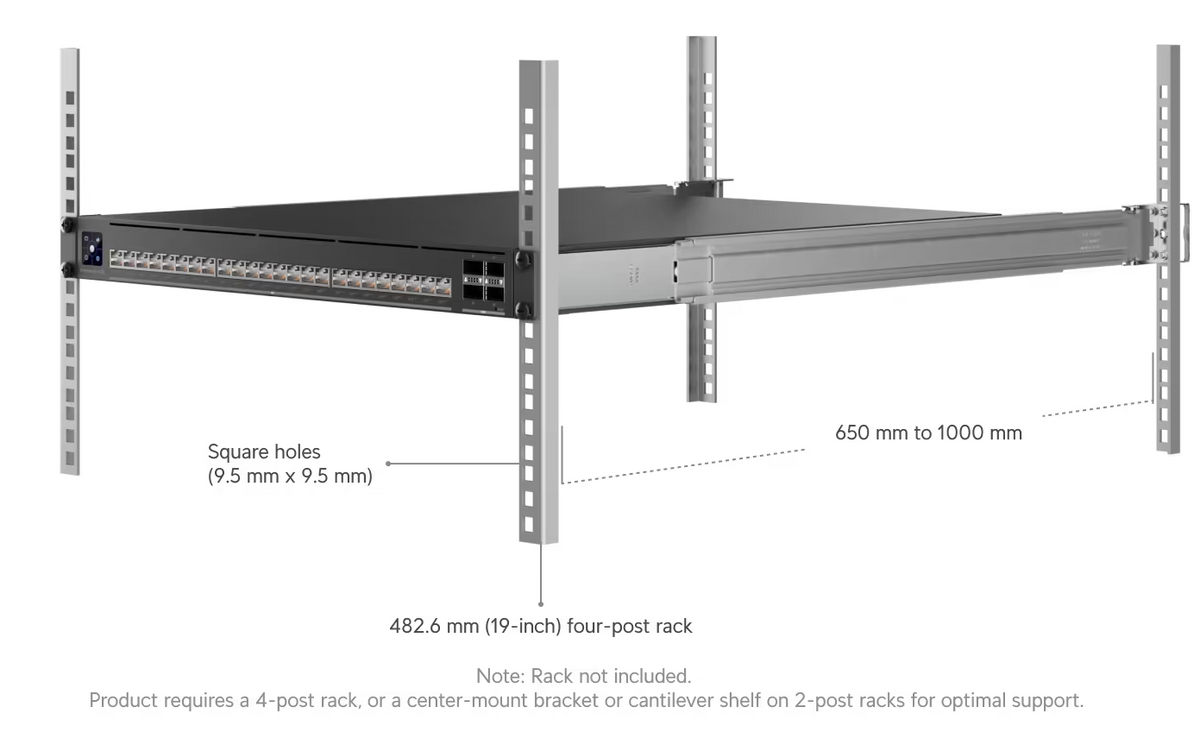

Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Specifications
| Category |
Feature |
Specification |
| Physical |
Dimensions |
442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7") |
|
Weight |
9.85 kg (21.7 lb) / 9.95 kg (21.9 lb) with brackets |
|
Enclosure Material |
SGCC Steel |
|
Form Factor |
1U Rack Mount (Full-Depth) |

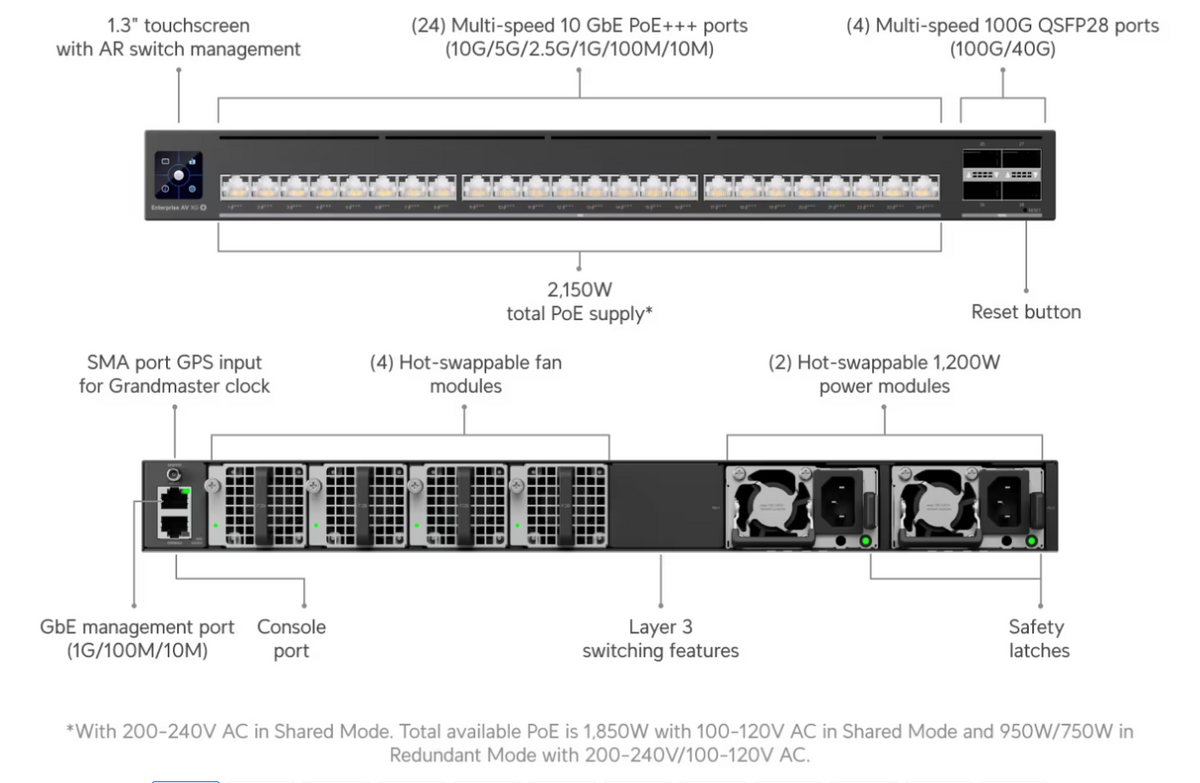

| Port Layout |
10 GbE RJ45 |
24 Ports (All PoE+++) |
|
100G QSFP28 |
4 Ports |
|
1 GbE RJ45 |
1 Management Port |
|
Console |
1 Serial / 1 SMA |
| Display |
LCM |
1.3" Touchscreen |
| Visuals |
Etherlighting™ |
Supported (Ethernet & QSFP28) |
PoE & Power Delivery
| Feature |
Details |
| PoE Standards |
PoE (15.4W), PoE+ (30W), PoE++ (60W), PoE+++ (90W) |
| Max. PoE Availability |
Shared Mode: 2,150W (200-240V) / 1,850W (100-120V) |
|
Redundant Mode: 1,050W (200-240V) / 850W (100-120V) |
| Power Supply |
(2) Hot-swappable 1,200W AC/DC modules |
| Power Consumption |
150W (Excluding PoE) / 2,400W (Full PoE Load) |
| Heat Dissipation |
512 BTU/hr (Excluding PoE Output) |
Performance & Layer 3 Capabilities
| Performance Metric |
Value |
| Switching Capacity |
1,280 Gbps |
| Non-Blocking Throughput |
640 Gbps |
| Forwarding Rate |
810 Mpps |
| MAC Address Table |
32,000 |
| Packet Buffer |
8 MB |
| IPv4 Routes |
256,000 |
| ARP Entries |
128,000 |
| Static Routes |
512 |
| L3 Features |
DHCP Server/Relay, Inter-VLAN Routing, Static Routing |
Layer 2 & Pro AV Features
| Category |
Supported Features |
| Standard L2 |
STP/RSTP, LACP, Jumbo Frames, LLDP-MED, IGMP Snooping |
| Pro AV |
PTPv2, SyncE, Advanced IGMP (Querier/Fast Leave) |
| AV Profiles |
Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Security |
802.1X, DHCP Snooping, Port Isolation, Storm Control, MAC/IP ACLs |
| Management |
Ethernet, AR (Augmented Reality), Serial Console |
Environmental & Compliance
| Feature |
Details |
| Cooling |
(4) Hot-swappable fan modules |
| Operating Temp |
-5 to 40° C (23 to 104° F) |
| Operating Humidity |
10 to 90% noncondensing |
| ESD Protection |
Air: ± 12KV, Contact: ± 8KV |
| Compliance |
NDAA Compliant, CE, FCC, IC |
