Description

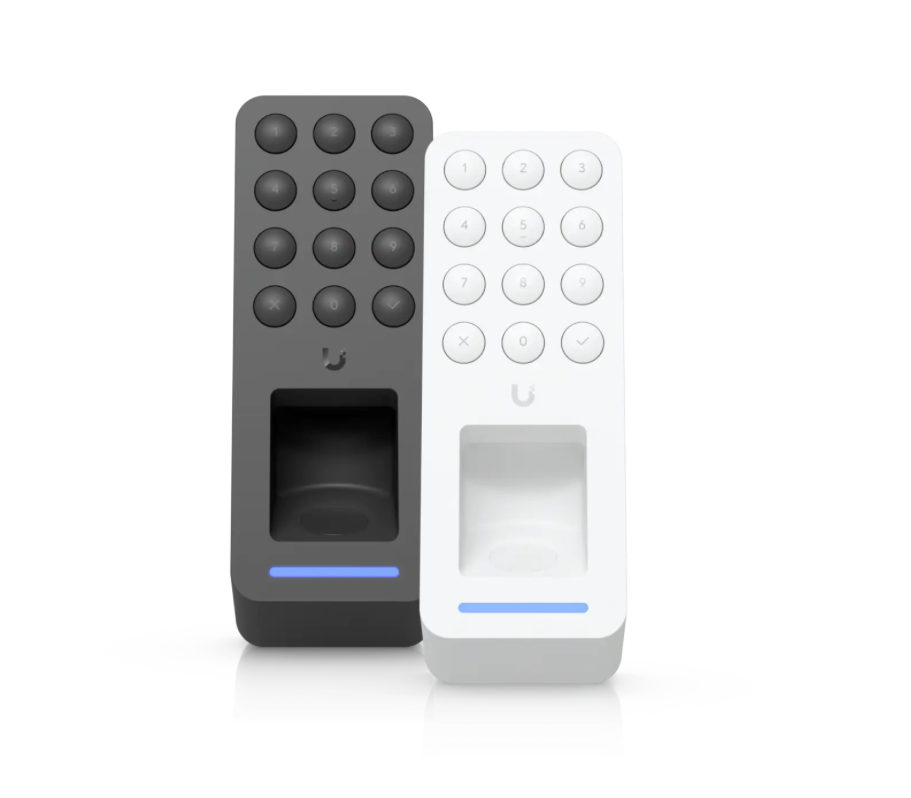

Ubiquiti Access G3 Reader Fingerprint
Third-generation, indoor/outdoor NFC card reader with fingerprint, keypad and Touch Pass support.
Requires UniFi OS 6.0 RC
Note. 10 free 1-year Touch Passes included.

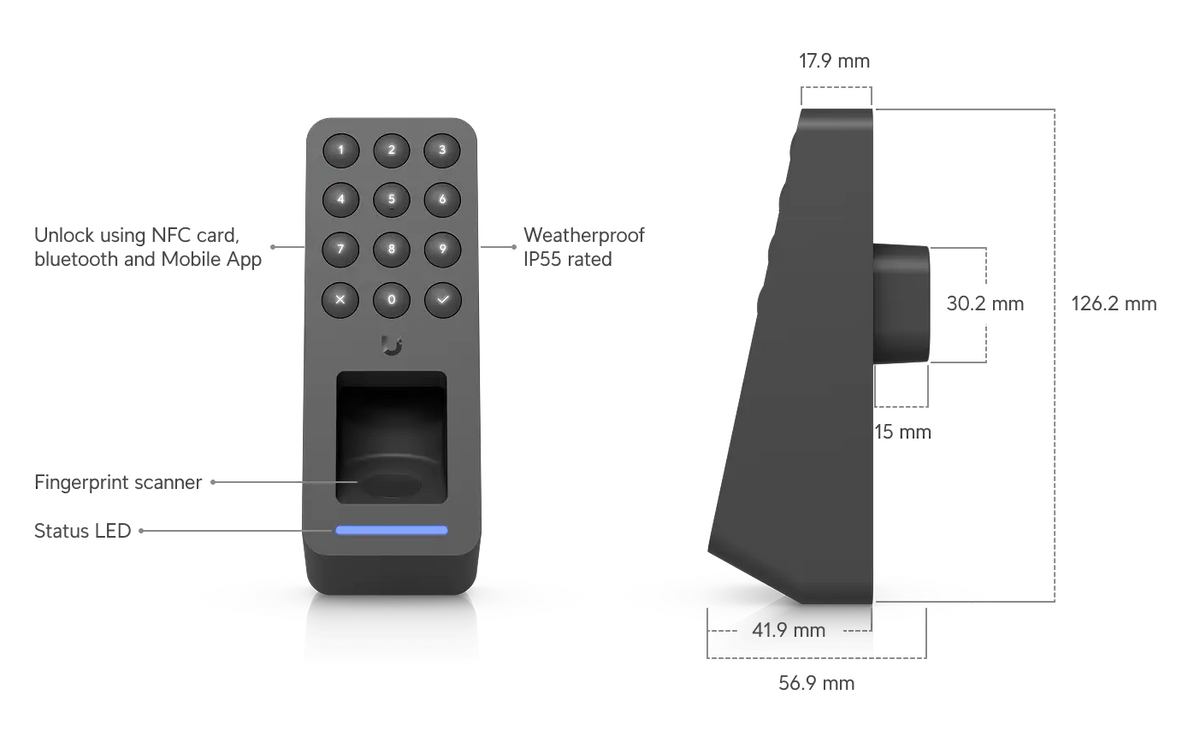

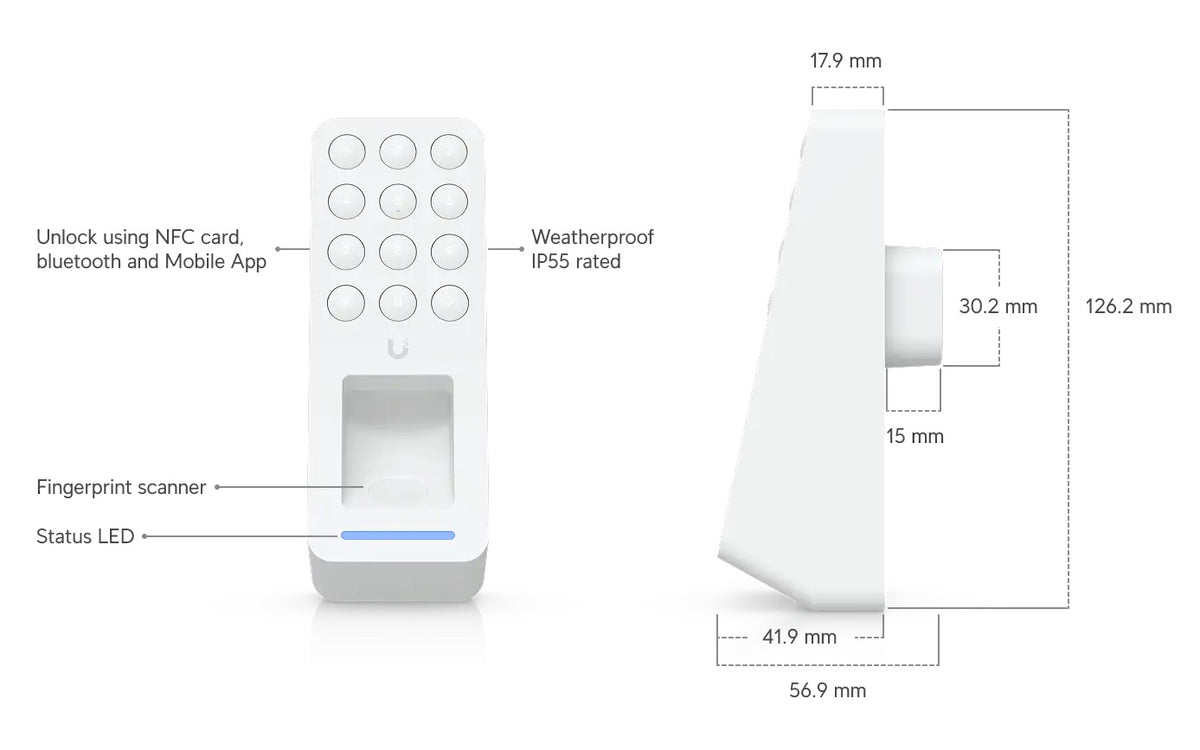

| Overview | Dimensions | 126.2 × 45 × 56.9 mm (5 × 1.8 × 2.2") |
| UniFi Application Suite | Access | |
| NFC Card & Keyfob Access | ✓ | |
| PIN Access | ✓ | |
| Apple/Google Wallet | ✓ | |
| Mobile Unlock | ✓ | |
| Fingerprint Unlock | ✓ | |
| Fingerprint Capacity | 300 | |
| Weatherproofing | IP55 | |
| NDAA Compliant | ✓ | |
| Mechanical | Weight | 164 g (5.8 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy | |
| Mount Material | Steel | |

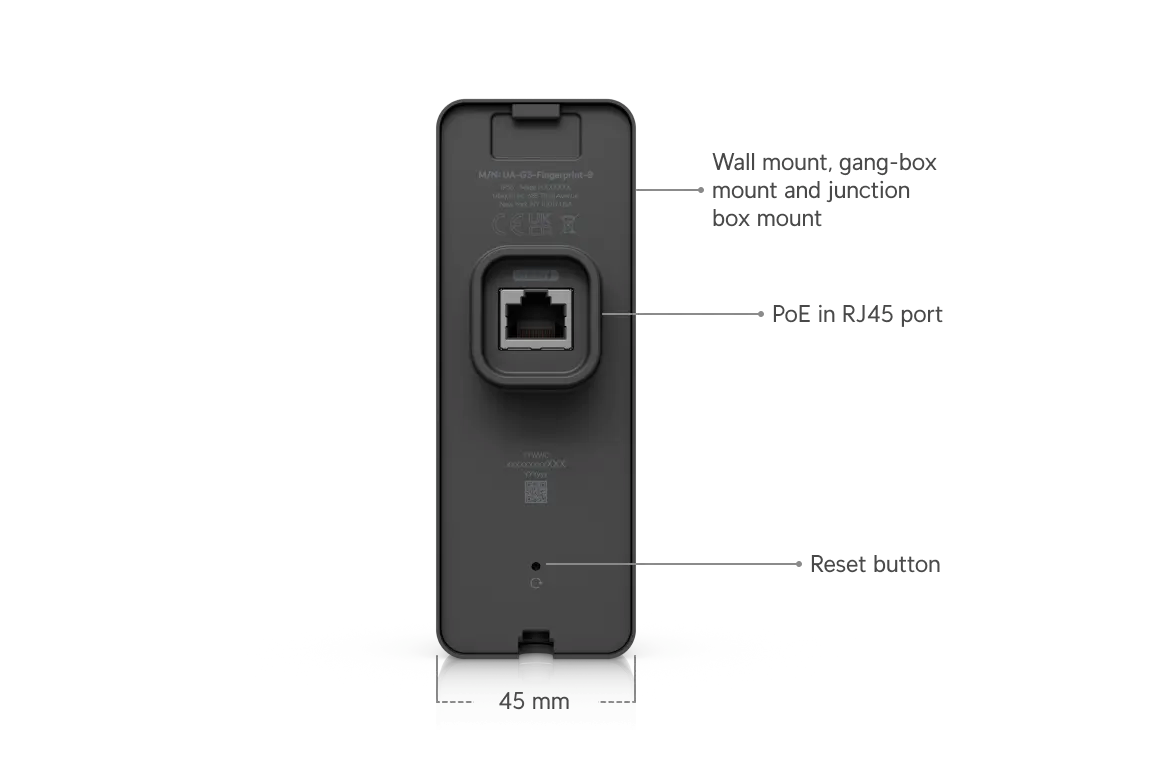

| Mounting |
• Wall, gang-box mount (Included)
• Junction box (Optional)
|
|
| Hardware | Indoor and Outdoor Use | Yes |
| Networking Interface | (1) 10/100 MbE RJ45 port | |
| Connectivity |
• BLE 4.2
• NFC
|
|
| Power Method | PoE | |
| Max. Power Consumption | 5W | |
| Supported Voltage Range | 48V DC | |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV | |
| Sensors | Capacitive Fingerprint | |
| Speaker | ✓ | |
| LEDs | R/G/B/W | |
| Button | (1) Factory reset | |
| NFC Frequency | 13.56 MHz | |
| NFC Read Range | < 30 mm (1.18'') | |
| NFC Technology |
• ISO 14443A, 14443B, 15693
• NFC Tag 1, 2, 3, 4, 5
• MIFARE Classic
• MIFARE Plus
• MIFARE Ultralight
• MIFARE DESFire
|
|
| Certifications | CE, FCC, IC | |
| Ambient Operating Temp. | -30 to 50° C (-22 to 122° F) | |
| Ambient Operating Humidity | 5 to 90% noncondensing | |
| Software | Management Application | Access |
| Software Information | Check version at https://unifi.ui.com |
