TRENDnetSKU: TPE-BE200
Price:

Login to see pricing

Description

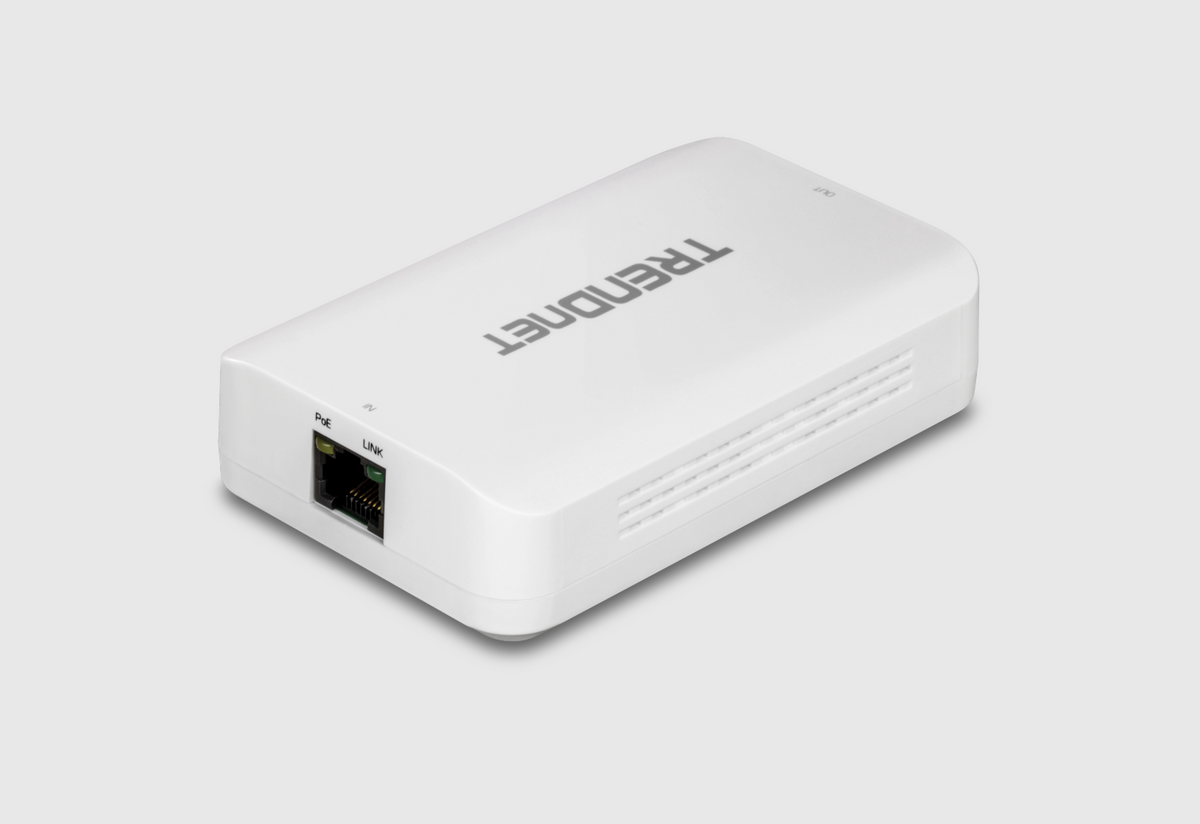

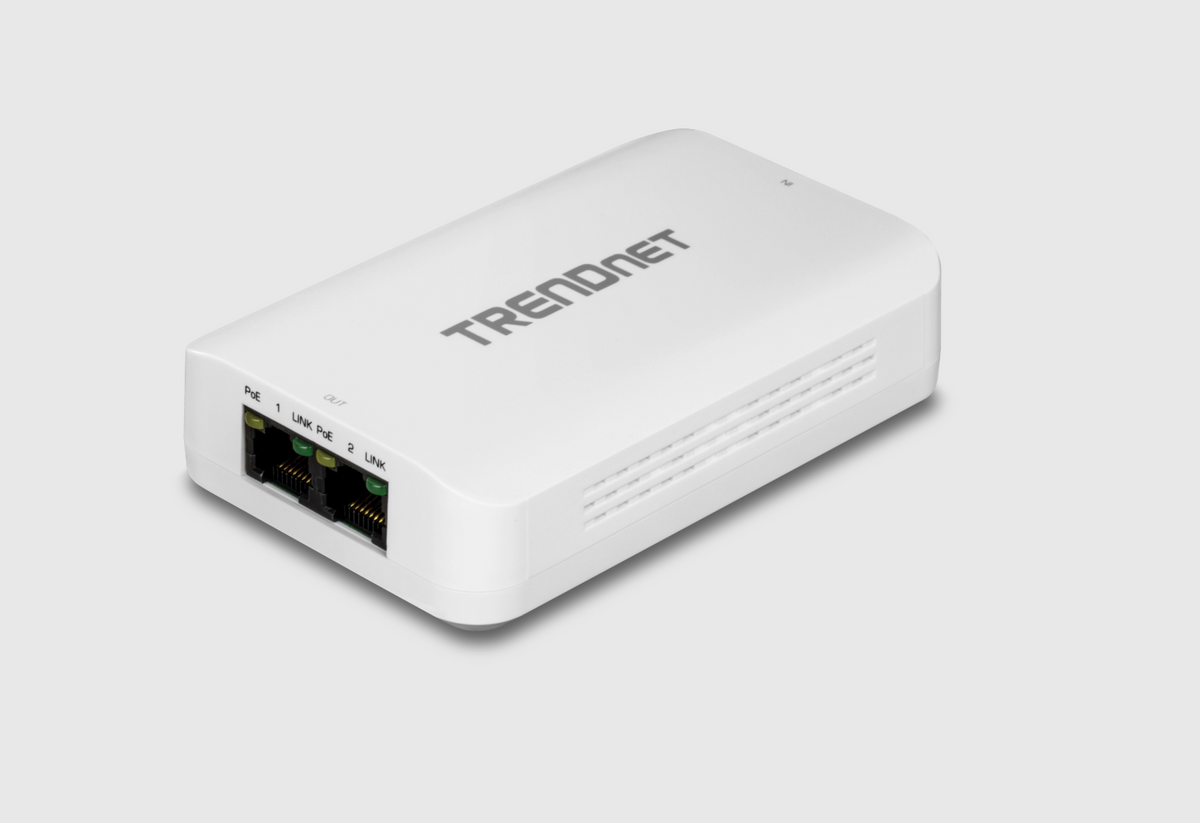

TRENDNet TPE-BE200 2-Port Gigabit PoE++ Extender

Product Details

PoE++ Power

Extends a PoE++ connection up to 100m (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices.

Gigabit Ports

One gigabit PoE++ input port and two gigabit PoE+ output ports extend a single PoE++ connection an additional 100m (328 ft.) to two PoE+ devices.

Daisy Chain

Connect up to four PoE++ extenders for a total PoE network extension of up to 500m (1,640 ft.).

Extension Distance

Extends a PoE/PoE+/PoE++ network connection an additional 100m (328 ft.) for a total distance of up to 200m (656 ft.) from the PoE source

PoE/PoE+/PoE++

Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections

Daisy Chain

Connect up to 4 PoE++ extenders for a PoE network extension of up to 500m (1,640 ft.)

Installation Flexibility

Wall mountable design accommodates most installations scenarios

PoE Powered

No external power required—the PoE++ extender (sometimes referred to as a PoE++ repeater) is conveniently powered via Power over Ethernet

Features

  • Easy installation
  • Extends 100m (328 ft.) for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)
  • Use a single PoE++ (60W) connection to extend PoE+ (30W) for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices

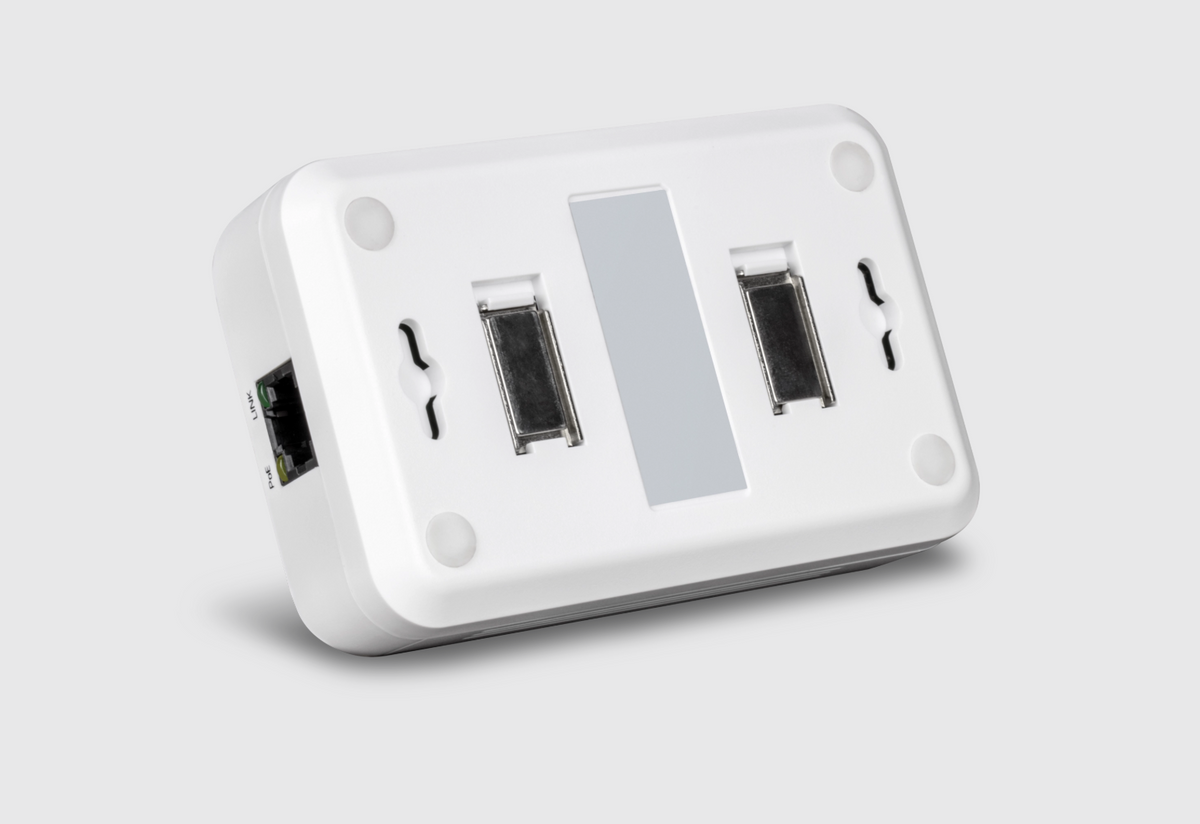

  • Convenient wall mountable design
  • No external power adapter required
  • NDAA / TAA compliant (U.S. and Canada only)

Specifications

Standards

  • IEEE 802.3

  • IEEE 802.3u

  • IEEE 802.3x

  • IEEE 802.3ab

  • IEEE 802.3az

  • IEEE 802.3af

  • IEEE 802.3at

  • IEEE 802.3bt

Device Interface

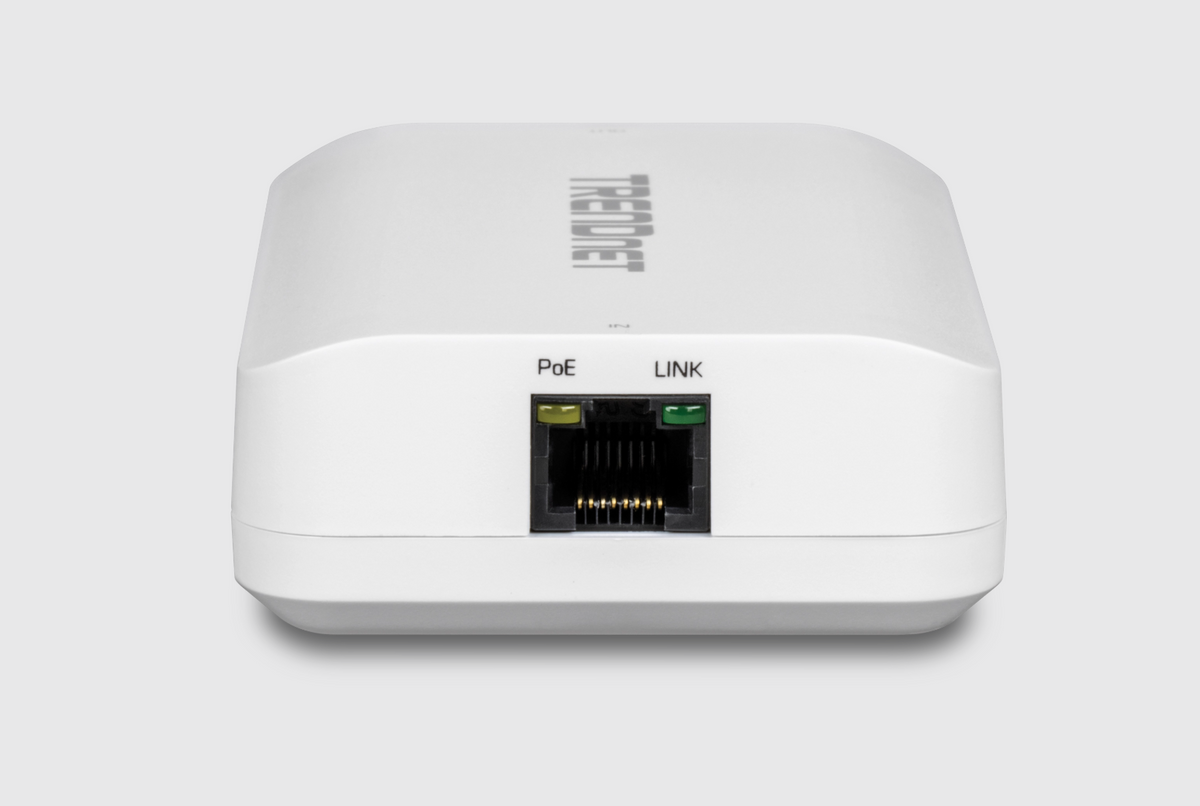

  • 1 x Gigabit PoE++ in port

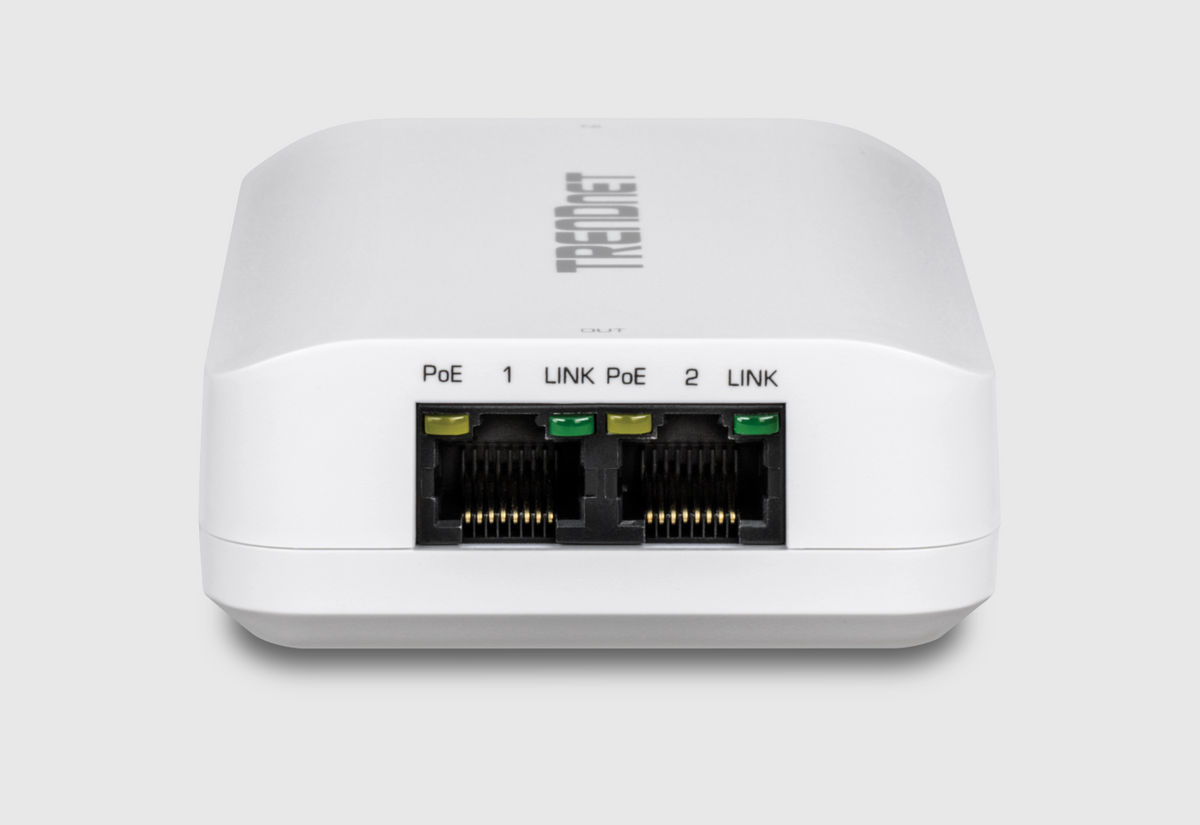

  • 2 x Gigabit PoE out port

  • LED indicators

Data Transfer Rate

  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

  • Gigabit: 2000Mbps (full duplex)

Performance

  • RAM buffer: 1Mb

  • MAC Address Table: 2K entries

  • Jumbo Frame: 9KB

Special Features

  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)

  • Cascade up to 4 repeaters

Power

  • Powered by PoE++ Device

  • Max. consumption: 3.3W

PoE

  • PoE budget: 60W

  • PD Pin: 1,2,4,5 (+) and 3,6,7,8 (-)

  • PSE Pin: 1,2 (+) and 3,6 (-)

Operating Temperature

  • 0° – 45° C (32° - 113° F)

Operating Humidity

  • Max. 95% non-condensing

Dimensions

  • 110 x 70 x 29mm (4.3 x 2.8 x 1.1 in.)

Weight

  • 125g (4 oz.)

Certifications

  • CE

  • FCC

Warranty

  • 3 year

PACKAGE CONTENTS
  • TPE-BE200
  • Quick Installation Guide
