Description

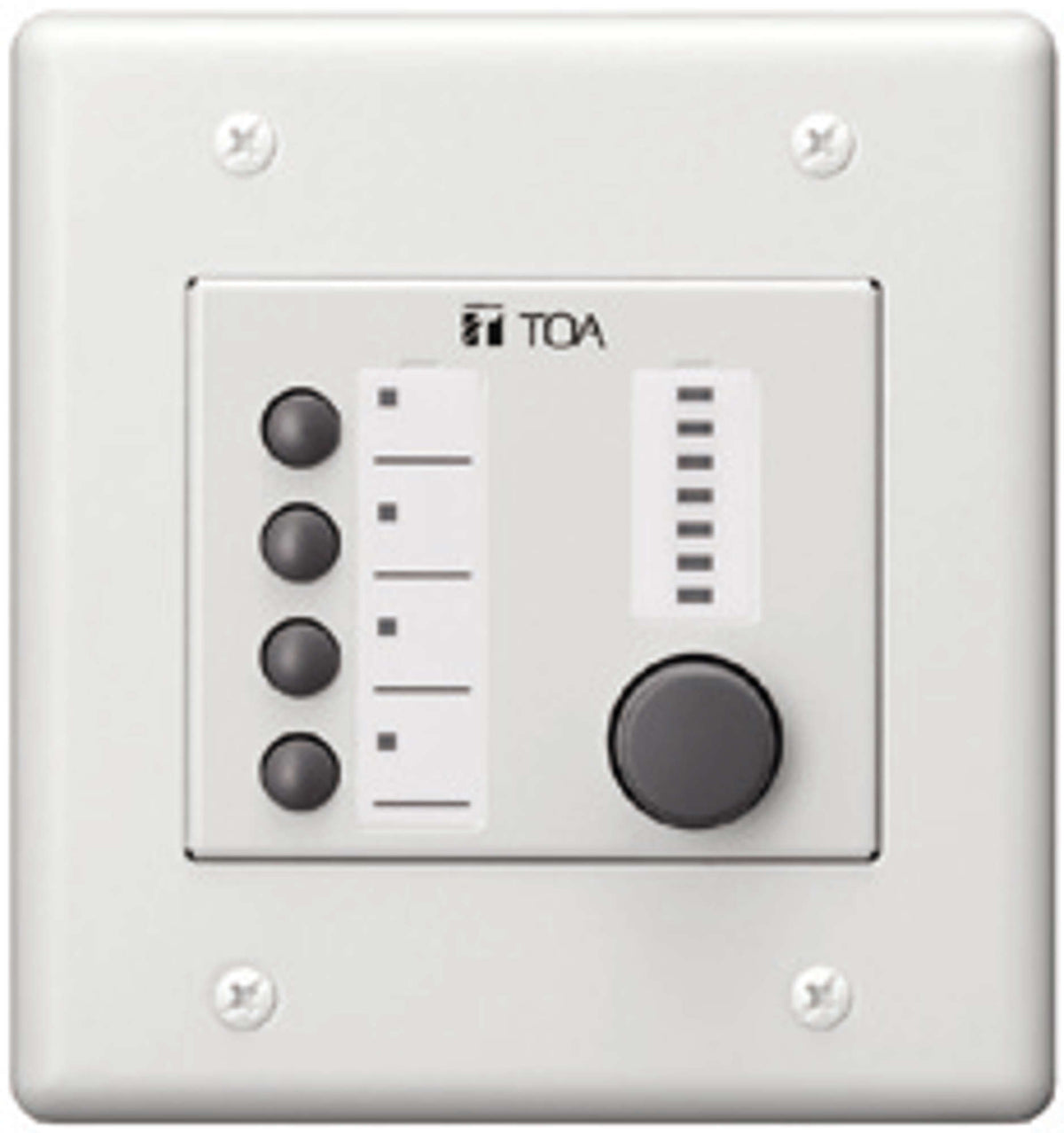

TOA ZM-9014 Assignable 4-Button Remote Panel With Volume Control & LED Indicators
Product Details
Designed for exclusive use with the 9000M2 Series or M-864D, the ZM-9014 is a wall mounted remote control panel having 4 buttons and 1 volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in a standard 2-gang electrical box in the wall.
Features
- 4 assignable buttons with LED status indicator for Xpoint settings (on/off, select), paging activation, scene, relay activation
- Assignable ID rotary adjustment on box
Specifications
Power Source 24 V DC (supplied from RC-001T or M-864D)
Current Consumption 50 mA or less
Control 4 function buttons, 1 volume control
Indicator 4 function indicators (green LEDs), Level indicators (green LEDs)
Cable Requirements
Shielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CAT5-STP)
Category 5 twisted pair cable for LAN (CAT5-STP)
Terminal Removable terminal block (10 pins)
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Surface-treated steel plate, white, paint
Dimensions 120 (W) x 127 (H) x 58.5 (D) mm (4.72 x 5" x 2.3")"
Weight 374 g (0.82 lb)
Included Accessories
Box mounting screw (No.6-32UNC x 30) …4,
Box mounting screw (M4 x 30) …4, Panel mounting screw …4,
Removable terminal plug (10 pins) …1
Box mounting screw (M4 x 30) …4, Panel mounting screw …4,
Removable terminal plug (10 pins) …1
