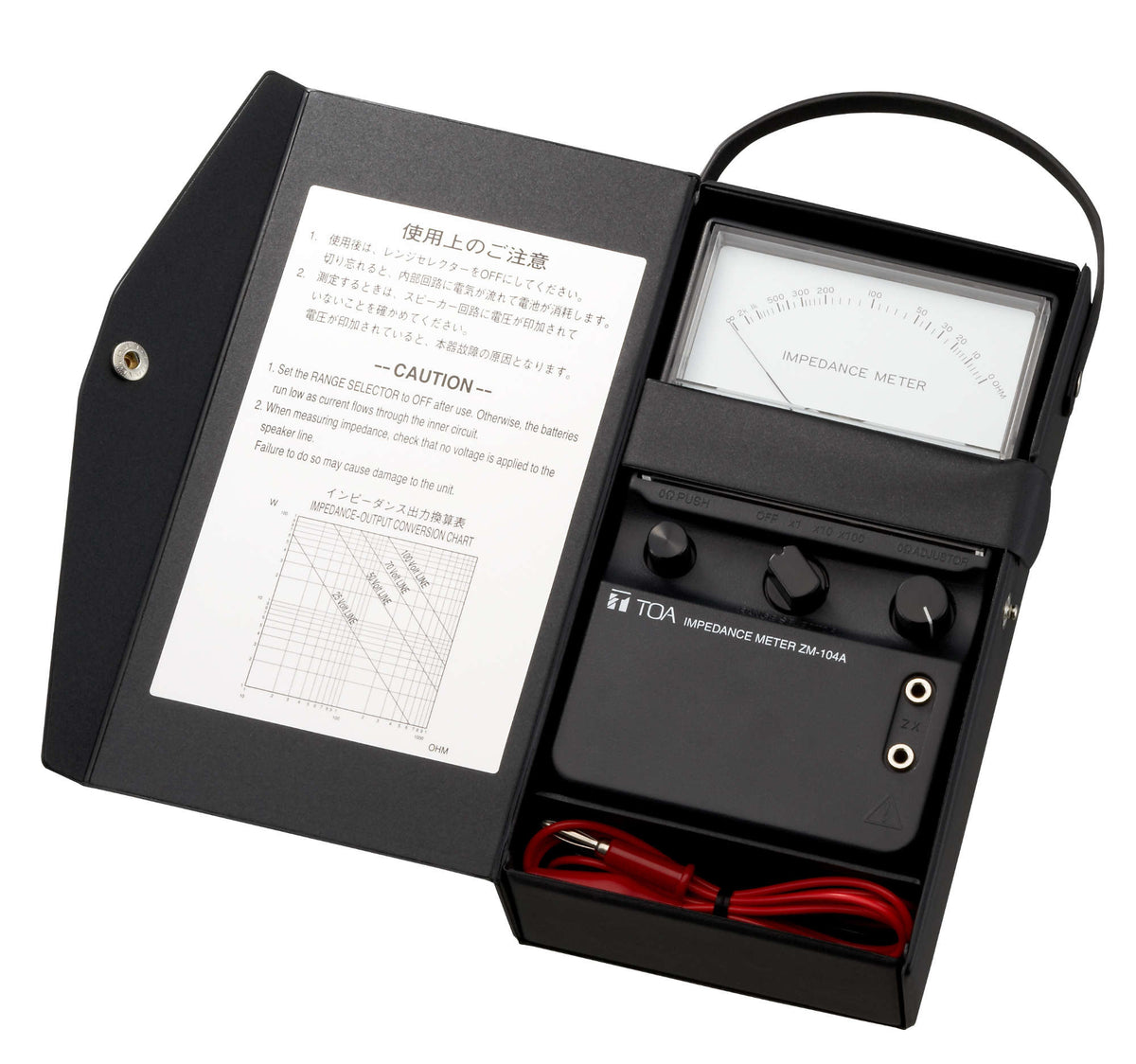

TOA ZM-104A Impedance Meter
Product Details
The TOA ZM-104A Impedance Meter can measure the rough impedance value of speaker lines easily in the same manner as a circuit tester measures resistance.
Features
- For easy and exact measurement of speaker impedances including long cable length
- Battery driven for mobile use (4 Mignon (AA) batteries)
- One set of batteries for 30 - 60 hours operation time (depending on the measurement range)
- Graphic conversion table impedance-power
- Oscillator generates 1 kHz frequency
- Measurement range of 5 to 100 kΩ
- Comes with a case and one set of test leads
Specifications
Power Source R6 x 4 (1.5 V DC x 4)
Current Consumption 39 mA
Reading Direct reading meter, unit: Ω
Measurement Range
x 1 range: 5 Ω - 1 kΩ
x 10 range: 50 Ω - 10 kΩ
x 100 range: 500 Ω - 100 kΩ
x 10 range: 50 Ω - 10 kΩ
x 100 range: 500 Ω - 100 kΩ
Oscillation Frequency 1 kHz, ±10 %
Battery Life When Continuously Used
x 1 range: 30 h
x 10 range and x 100 range: 60 h
x 10 range and x 100 range: 60 h
Operating Temperature -5 ℃ to +40 ℃ (23 ℉ to 104 ℉)
Dimensions
122 (W) x 222 (H) x 70 (D) mm (4.80" x 8.74" x 2.76") (carrying case)
110 (W) x 180 (H) x 58 (D) mm (4.33" x 7.09" x 2.28") (unit only)
110 (W) x 180 (H) x 58 (D) mm (4.33" x 7.09" x 2.28") (unit only)
Finish ABS resin, black
Weight 730 g (1.61 lb) (including carring case, without batteries)
Included Accessories Test leads …1 set
Measurement Category CAT I
