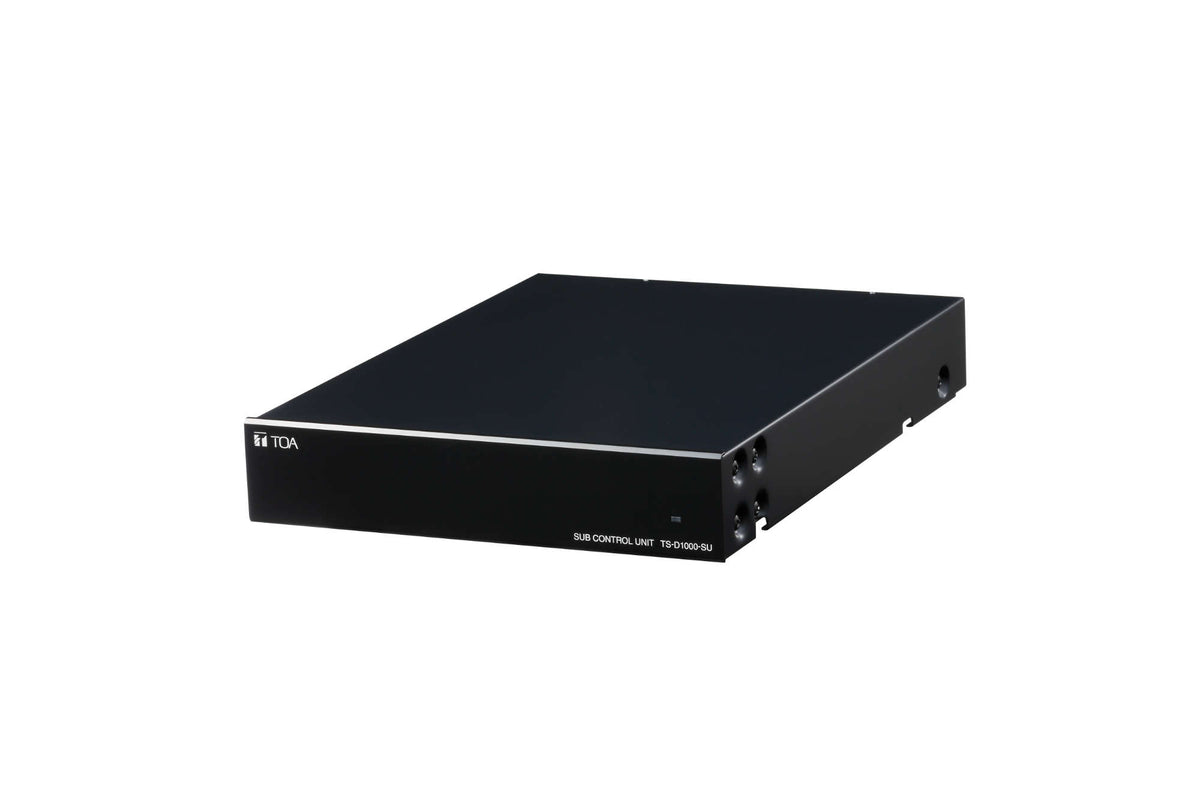

TOA TS-D1000-SU Sub Control Unit for TS-D1100-MU
Product Details
The TOA TS-D1000-SU sub control unit is “exclusively designed to be used with the Digital conference system”. It is how a TS-D1100-MU system grows past its own 32-unit limit.
Each sub control unit carries 48 conference units. Five of them connect to the master control unit with the supplied 1 m CAT5e STP cable, which is what takes the system to its 246-unit maximum. Maximum cable length from a sub control unit to the end of its chain is 50 m.
It is a 1U chassis and mounts in an EIA standard rack with an optional MB-15B-BK bracket, or two side by side with the MB-15B-J. An AC adapter and the connection cable are supplied.
Features
- Sub control unit for the TS-D1000 digital conference system
- Carries 48 conference units
- Up to five per TS-D1100-MU master control unit
- Takes a system to its 246-unit maximum
- 50 m maximum cable length to the end of a chain
- 1U rack mounting with the optional MB-15B-BK, or two units with the MB-15B-J
- AC adapter and 1 m CAT5e STP connection cable supplied
Specifications
| Technical | |
|---|---|
| Product Type | Sub control unit, digital wired conference system |
| Power Source | 100 – 240 V AC, 50/60 Hz, supplied AC adapter |
| Power Consumption | 80 W or less |
| Connectable Conference Units | 48 units |
| Maximum Cable Length | 50 m (164.04 ft) |
| Master and Sub Control Unit Terminal | RJ45 connector × 2 |
| LED Indicator | Power indicator |
| Optional Rack Brackets | MB-15B-BK for one unit, MB-15B-J for two |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 210 (W) × 45.8 (H) × 294.8 (D) mm — 8.27″ × 1.8″ × 11.61″ |
| Weight | 1.6 kg (3.53 lb) |
| Finish | Panel: aluminium, black, 30 % gloss, paint | case: surface-treated steel plate, black |
| Included Accessories | AC adapter, connection cable (CAT5e STP, 1 m) |
Specifications subject to change.
