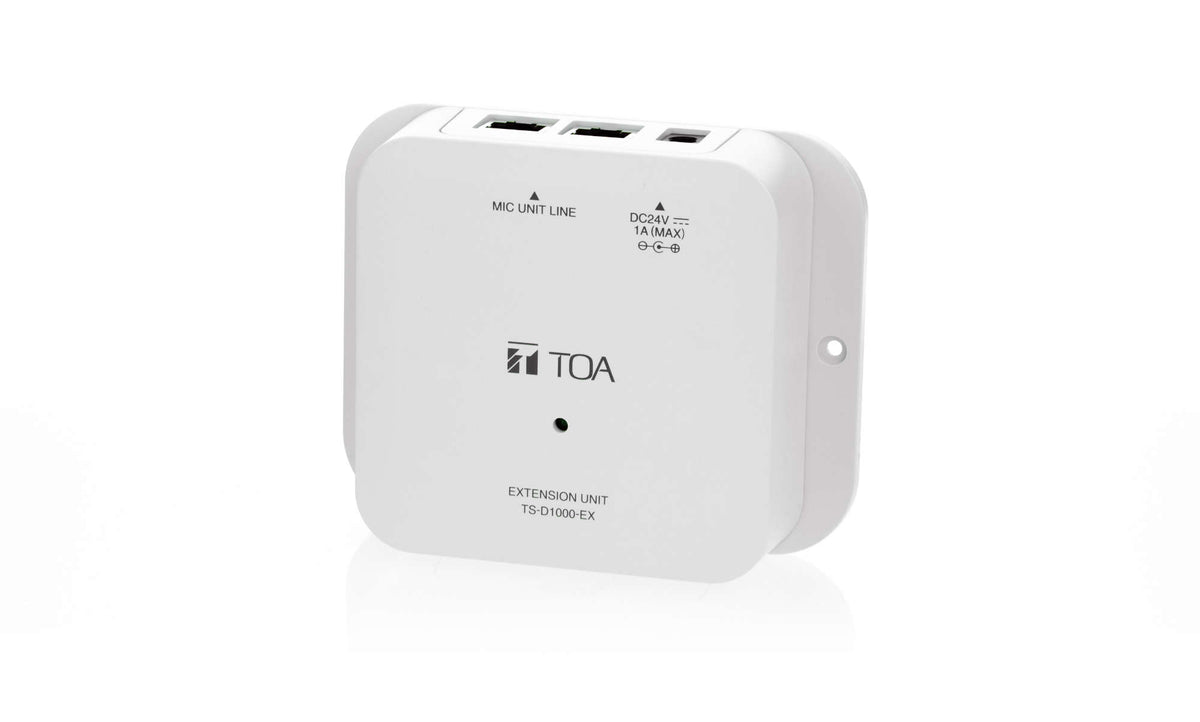

TOA TS-D1000-EX Extension Unit for TS-D1100 system
Product Details
The TOA TS-D1000-EX is the digital conference system's dedicated unit “for extending the cable distance of the system”. One unit goes into a wiring line at the end of a daisy chain, between a master or sub control unit and the conference units, and buys another 50 m of shielded CAT5e.
It is the part that decides whether a large room or a split venue is wireable at all. The system's cable budget is 50 m from a control unit to the last seat in a chain; where the seats are further away than that, the extension unit is the answer rather than re-planning the layout.
It runs from its own AC adapter at 25 W or less, so it needs a power outlet wherever it lands. The case is white ABS, 150 g, unlike the black units it sits between — worth knowing if it will be visible.
Features
- Extends a TS-D1000 system's cable distance by up to 50 m
- Fits into a wiring line at the end of a daisy chain
- Works over shielded CAT5e
- Own AC adapter, 25 W or less — needs a power outlet
- RJ45 connector × 2
- White ABS case, 150 g
Specifications
| Technical | |
|---|---|
| Product Type | Extension unit, digital wired conference system |
| Power Source | 100 – 240 V AC, 50/60 Hz, supplied AC adapter |
| Power Consumption | 25 W or less |
| Extension Distance | Up to 50 m over shielded CAT5e |
| Connection Terminal | RJ45 connector × 2 |
| LED Indicator | Power indicator |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 124.3 (W) × 100.3 (H) × 35 (D) mm — 4.89″ × 3.95″ × 1.38″ |
| Weight | 150 g (0.33 lb), unit only |
| Finish | ABS resin, white, RAL 9003 equivalent |
| Included Accessories | AC adapter, 1.8 m DC cord and 2 m AC cord |
Specifications subject to change.
