Description

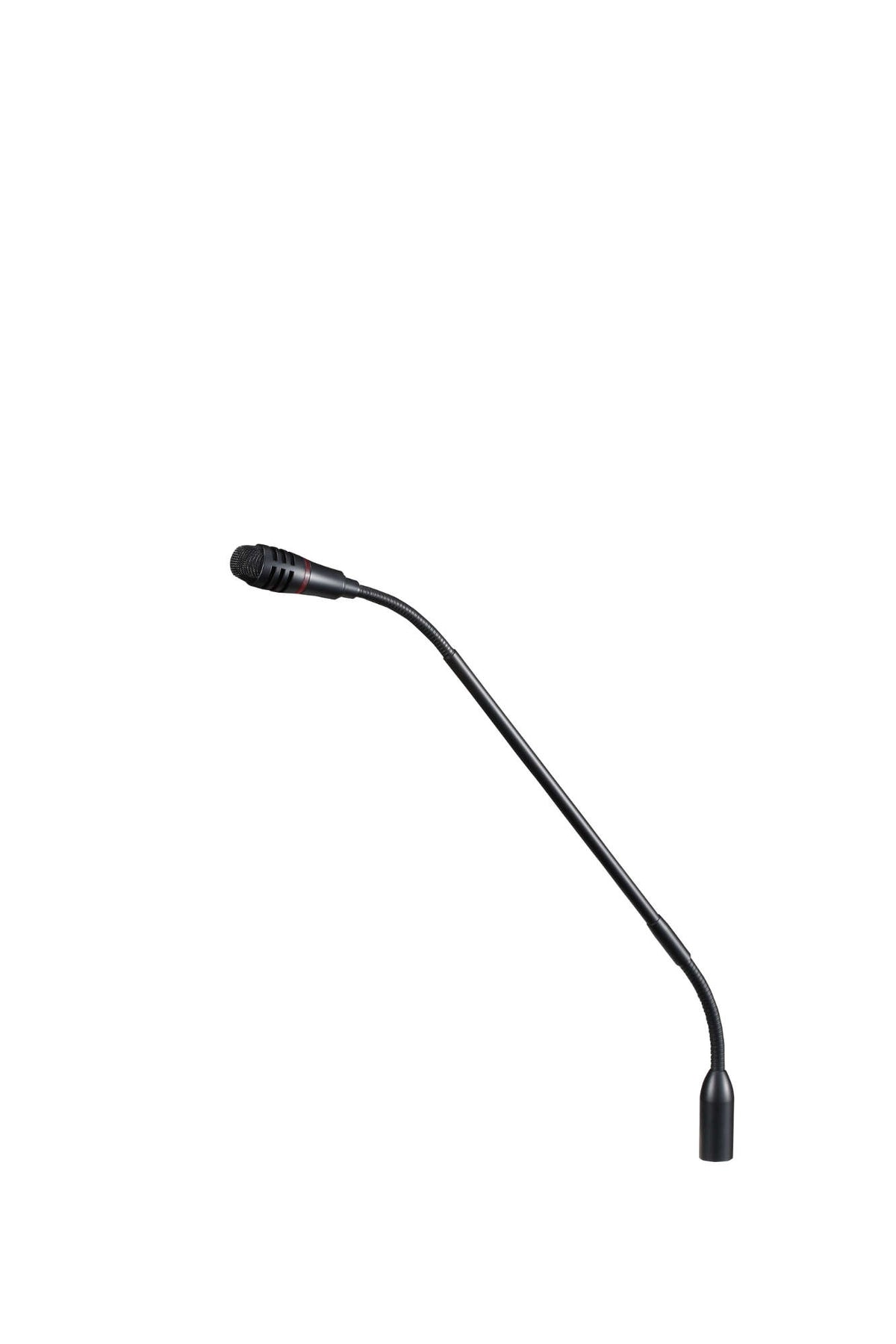

TOA TS-923 Standard Gooseneck Microphone (14.5") for TS-821 TS-822 TS-921 TS-922
Product Details
The TOA TS-923 is the standard gooseneck microphone for the infrared conference system's chairman and delegate units. TOA describes it as “a dedicated component” whose “mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance”. The gooseneck has two flexible sections, so it can be set to the talker rather than to the table.
The conference units are supplied without a microphone, so one of these is required per seat. The choice between the two is table depth: this one is 470 mm (1.54 ft), the alternative is the TS-924 long type at 620 mm. For a wide council desk the long type saves the talker leaning forward; on a shallow table it is in the way of the papers.
It is a unidirectional electret condenser capsule, 1.4 kΩ, −37 dB sensitivity, 100 Hz to 13 kHz, on an XLR-4-32 connector. It fits the TS-821, TS-921, TS-811 and TS-911 chairman units and the TS-822, TS-922, TS-812 and TS-912 delegate units. The digital TS-D1000 units take a different microphone on a three-pin connector and these will not fit them.
Features
- Standard gooseneck microphone for the infrared conference system
- Two flexible sections for positioning
- Illuminated ring at the mic head shows speech status at a glance
- Unidirectional electret condenser capsule
- Sensitivity −37 dB (1 kHz, 0 dB = 1 V/Pa)
- Frequency response 100 Hz – 13 kHz
- XLR-4-32 connector
- Length 470 mm (1.54 ft)
- Fits the TS-821, TS-921, TS-811, TS-911, TS-822, TS-922, TS-812 and TS-912
Specifications
| Technical | |
|---|---|
| Product Type | Gooseneck microphone, standard type |
| Type | Electret condenser microphone |
| Directivity | Unidirectional |
| Impedance | 1.4 kΩ |
| Rated Sensitivity Level | −37 dB (1 kHz, 0 dB = 1 V/Pa) |
| Frequency Response | 100 Hz – 13 kHz |
| Output Connector | Equivalent to XLR-4-32 |
| LED Indicator | Speech indicator, ring type, red |
| Bending Sections | 2 |
| Compatible Units | Chairman: TS-821, TS-921, TS-811, TS-911 | delegate: TS-822, TS-922, TS-812, TS-912 |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Length | 470 mm (1.54 ft) |
| Weight | 130 g (0.29 lb) |
| Finish | Body: aluminium, black, semi-gloss, paint | shaft: copper alloy, black, semi-gloss |
Specifications subject to change.
