TOA TS-922 Y Infrared Delegate Station for TS-920RC
Product Details

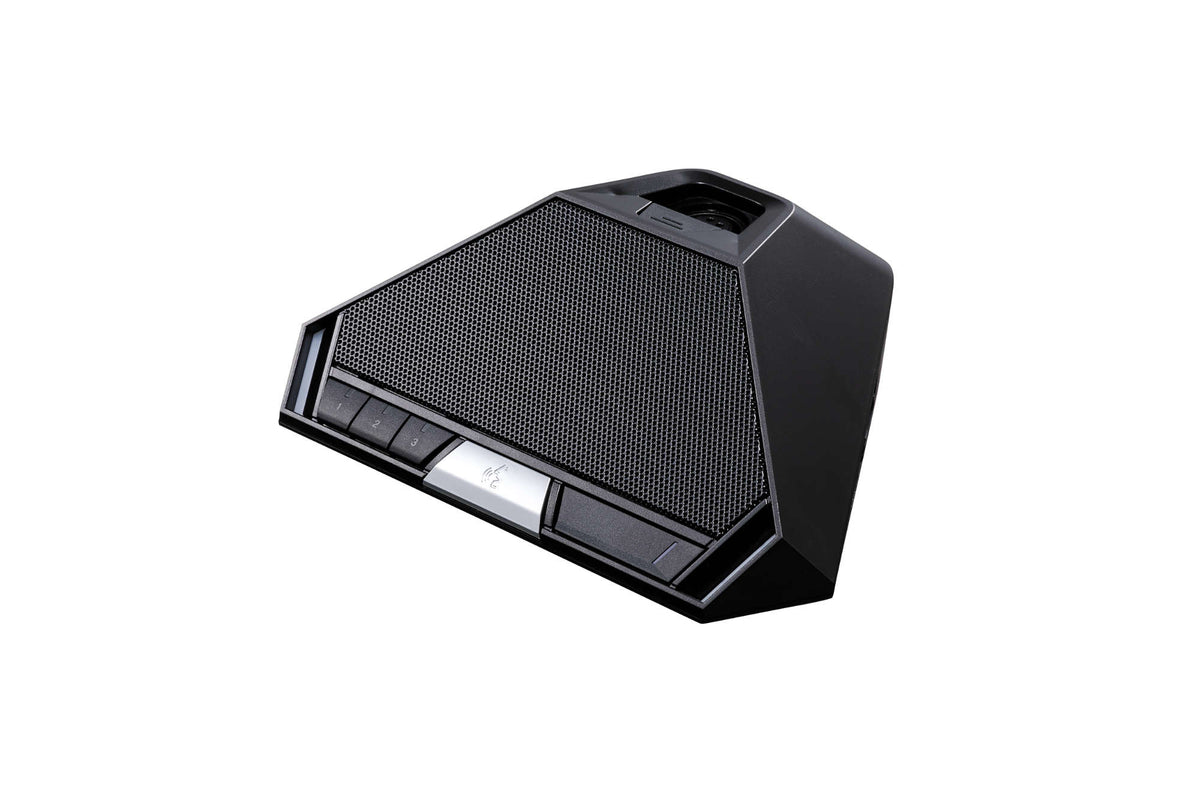

The TOA TS-922 is the delegate unit of the infrared conference system. “Since the system is cordless, it can be easily installed and removed”, which is the whole argument for infrared over wired in a room that changes layout.
It is the TS-921 chairman unit without the priority speech key — same 525 g chassis, same voting function, same 0.2 W monitor speaker, same main-or-sub audio monitoring switch and same two headphone jacks with individual volume controls.
Power planning is the same too: the AD-0910 AC adapter or the BP-900A lithium-ion battery, about 10 hours continuous from a charge, with a remaining battery indicator on the unit. Since delegate units are bought in quantity, the battery and charger count is the line that gets underestimated. Microphones are optional: the TS-923 or TS-903 standard type, the TS-924 or TS-904 long type.
Features
- Infrared delegate unit for the TS-920RC conference system
- Cordless — no cable to the table
- Voting function
- 0.2 W monitor speaker
- Audio monitoring switch for main or sub channel
- Two headphone jacks with individual volume controls
- Approx. 10 hours continuous operation on the optional BP-900A battery
- Remaining battery indicator
- Runs on the AD-0910 AC adapter or the BP-900A lithium-ion battery
- Microphone ordered separately: TS-923/TS-903 standard, TS-924/TS-904 long
Specifications
| Technical | |
|---|---|
| Product Type | Infrared delegate unit |
| Power Source | 7.2 V DC lithium-ion battery | 9 V DC AC adapter |
| Current Consumption | Max. 390 mA |
| Battery Life | Approx. 10 hours |
| Microphone Terminal | XLR-4-31 type |
| Monitor Speaker Output | 8 Ω, 0.2 W |
| Headphone Output | Ø3.5 mm mini jack (3P: monaural) × 2 |
| LED Indicator | Speech, voting status 1 – 3, power |
| Power Options | AD-0910 AC adapter | BP-900A lithium-ion battery |
| Optional Microphones | TS-923 and TS-903 standard | TS-924 and TS-904 long |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 205.7 (W) × 70.3 (H) × 164.2 (D) mm |
| Weight | 525 g (1.16 lb) |
| Finish | PC resin case, black |
Specifications subject to change.
