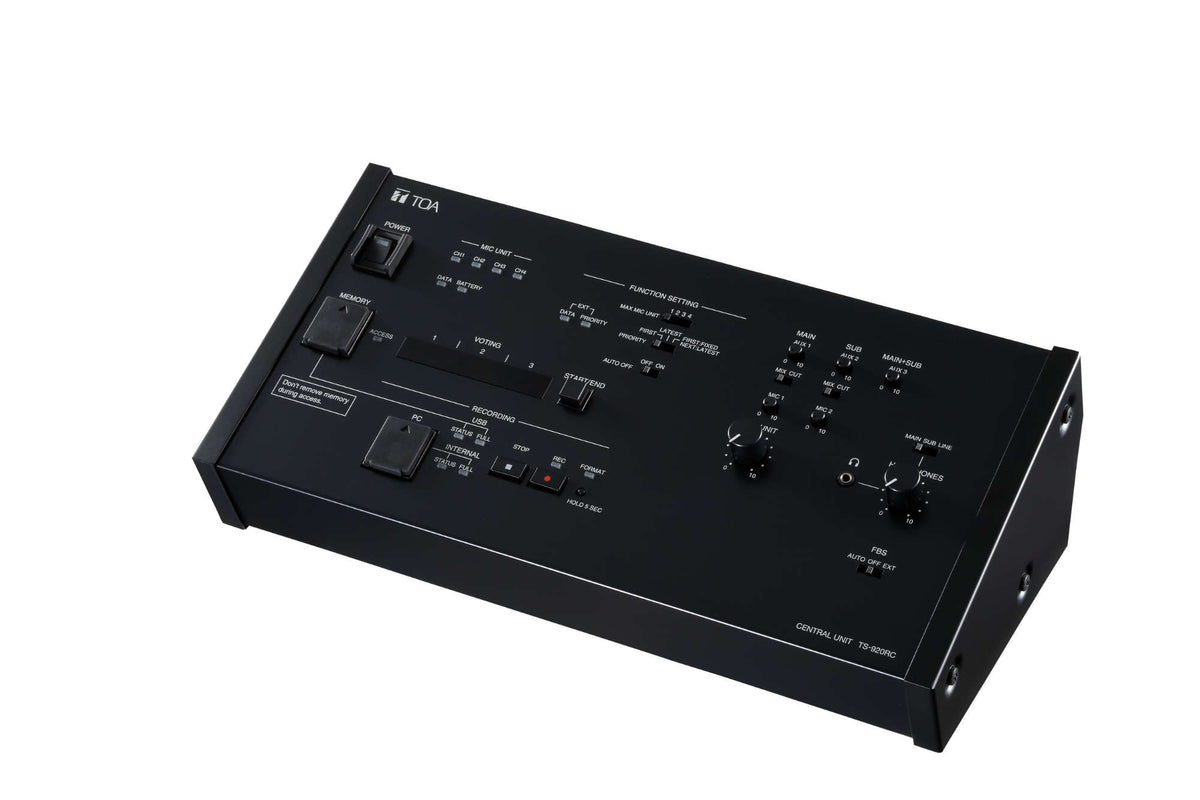

TOA TS-920RC 3CU System Controller With Recording, Voting and Simultaneous Interpretation Channel
Product Details
The TOA TS-920RC is “a Central Unit of the Infrared Conference System that allows easy installation and flexible layout”. With TS-905 or TS-907 infrared transmitter/receivers connected, it controls the chairman and delegate units over infrared rather than cable — which is what removes the floor boxes and the trenching from a conference fit-out.
It carries an MP3 recorder that writes all conference content to a USB memory drive or to internal memory at 32 kHz and 128 kbps. There is a threefold voting function with a seven-segment result display, a feedback suppressor with AUTO, OFF and EXT settings, and an installation confirmation function that verifies the connection status of every transmitter/receiver and conference unit before a session starts.
Capacity is 192 conference units. Four infrared transmitter/receivers connect directly; with a distributor that rises to 16 units if they are all TS-905, or 12 if they are all TS-907 or a mix of the two. Inputs cover two microphone channels and three AUX channels across base and translation languages, and the unit is PC-controllable. It mounts in a 4U EIA rack space with the optional MB-TS920 bracket.
Features
- Central unit of the TS-920 infrared conference system
- Up to 192 conference units
- MP3 recording to USB memory or internal memory, 32 kHz, 128 kbps
- Threefold voting function with seven-segment result display
- Feedback suppressor: AUTO, OFF or EXT
- Installation confirmation function verifies every unit's connection
- Two microphone and three AUX inputs across base and translation languages
- Open-microphone count, auto mic-off and speech priority all configurable
- PC control over D-sub 9P or USB-B
- Rack-mountable with the optional MB-TS920 bracket, 4U
Specifications
| Technical | |
|---|---|
| Product Type | Central unit, infrared conference system with recorder |
| Power Source | 100 – 240 V AC, 50/60 Hz, supplied AC adapter |
| Power Consumption | 72 W |
| Current Consumption | Max. 3 A DC at 24 V DC from the supplied AC adapter |
| Input — MIC 1, Base Language | −60 dB, 600 Ω, unbalanced, Ø6.3 mm phone jack (2P) |
| Input — MIC 2, Translation Language | −60 dB, 600 Ω, unbalanced, Ø6.3 mm phone jack (2P) |
| Input — AUX 1, Base Language | −20 dB, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P) |
| Input — AUX 2, Translation Language | −20 dB, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P) |
| Input — AUX 3, Base and Translation | −20 dB, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P) |
| Output — LINE | −10 dB, 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P) |
| Output — REC | −10 dB, 10 kΩ, unbalanced, RCA pin jack |
| Output — HEADPHONES | Ø3.5 mm mini jack (3P: monaural) |
| Equaliser Input and Output | −20 dB, 10 kΩ, unbalanced, RCA pin jack |
| Connectable Conference Units | 192 units |
| Connectable Infrared Transmitter/Receiver Units | Up to 4 directly; with a distributor, up to 16 all TS-905, or 12 all TS-907 or mixed |
| Infrared Transmitter/Receiver Terminal | BNC jacks |
| External Control Terminal | D-sub connector (9P, male) or USB-B, selectable |
| Recording Port | USB-A for memory devices, USB Mini-B for PCs |
| Recording Function | MP3 (MPEG-1 Audio Layer-3), monaural, 32 kHz sampling, 128 kbps |
| Function Switches | Open microphones 1/2/3/4 | mic-off TIME OUT ON/OFF | speech priority FIRST, LATEST, FIRST:FIXED NEXT:LATEST | FBS AUTO/OFF/EXT |
| Optional Accessories | Rack mounting bracket: MB-TS920 |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Weight | 2.8 kg (6.17 lb) |
| Finish | Panel: surface-treated steel plate, black, 30 % gloss, paint |
| Included Accessories | AC adapter, 1.8 m DC cord and 2 m detachable AC cord |
Specifications subject to change.
