TOA TS-919B4 4-Wire Station Bridge Unit for TS-910
Product Details

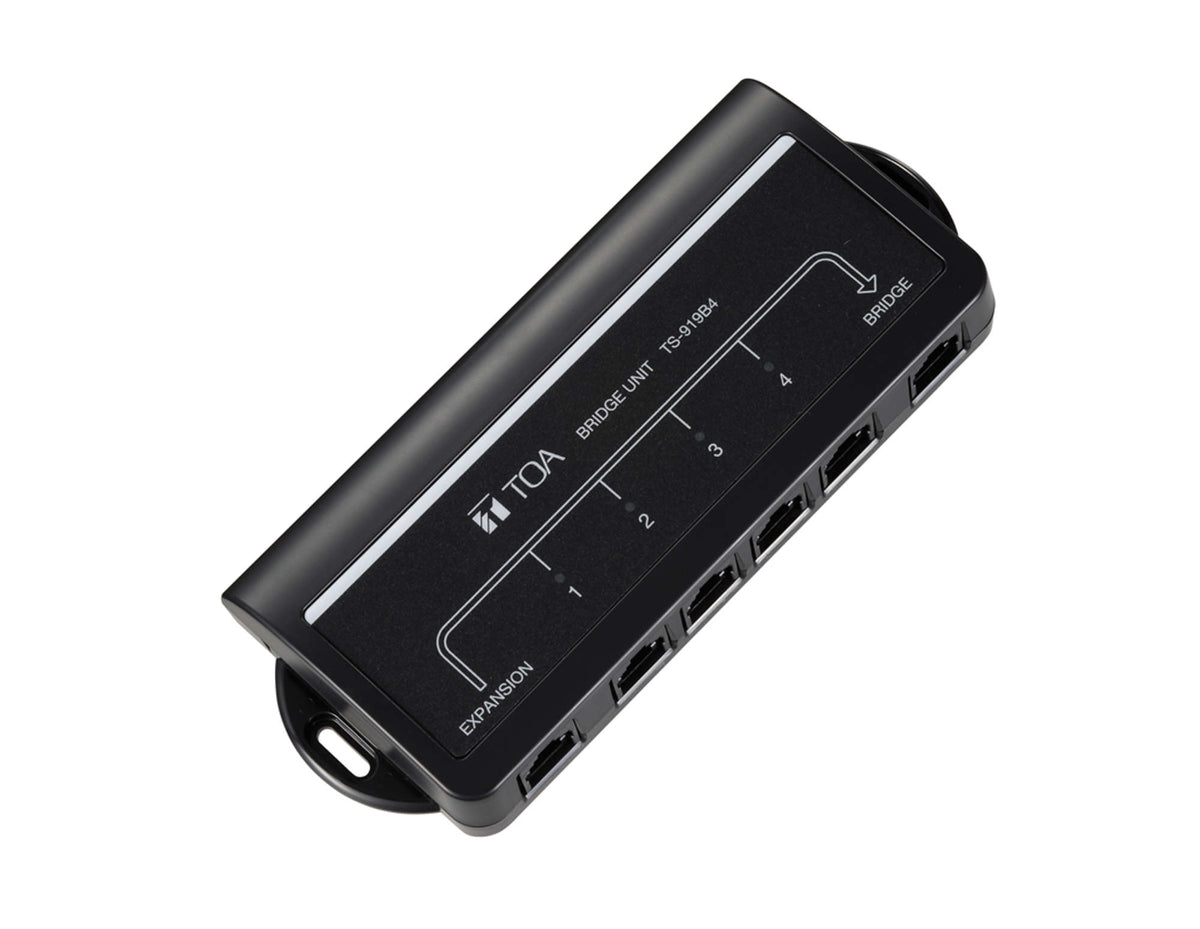

The TOA TS-919B4 is “a Bridge unit for connecting four Wired Conference units of the TS-811, TS-911, TS-812, or TS-912”, cabled to each conference unit with Category 5.
It is the four-seat version of the TS-919B1, and it is the part to specify wherever wired units cluster — a row of delegate desks, a table of four. One box, four RJ45 conference unit connectors, four connection status LEDs, and one run back to the TS-918 expansion unit instead of four.
The trade-off is loss: branching four ways costs 17.5 dB upstream against the single unit's 16.5 dB, and insertion loss is 3 dB upstream against 1 dB. Those figures are in the table below and are worth checking against a long cable plan. It draws 26 mA at 24 V DC from the expansion unit.
Features
- Bridge unit for four wired conference units
- Fits the TS-811, TS-911, TS-812 and TS-912
- Four RJ45 conference unit connectors with four status LEDs
- One communication run back to the TS-918 expansion unit
- Category 5 cable to each conference unit
- Powered from the TS-918 expansion unit
- Single-unit version available as the TS-919B1
Specifications
| Technical | |
|---|---|
| Product Type | Bridge unit, four wired conference units |
| Power Source | 24 V DC, supplied from the TS-918 expansion unit (optional) |
| Current Consumption | Max. 26 mA |
| Branching Loss | Upstream 17.5 dB | downstream 16.5 dB |
| Insertion Loss | Upstream 3 dB | downstream 2 dB |
| Communication Cable Terminal | RJ45 connector × 2 |
| Conference Unit Terminal | RJ45 connector × 4 |
| LED Indicator | Connection status indicator × 4 |
| Connectable Conference Units | 4 units |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 176.2 (W) × 75 (H) × 29.8 (D) mm — 6.94″ × 2.95″ × 1.17″ |
| Weight | 160 g (0.35 lb) |
| Finish | ABS resin, black |
Specifications subject to change.
