TOA TS-919B1 Single Wired Station Bridge Unit for TS-910
Product Details

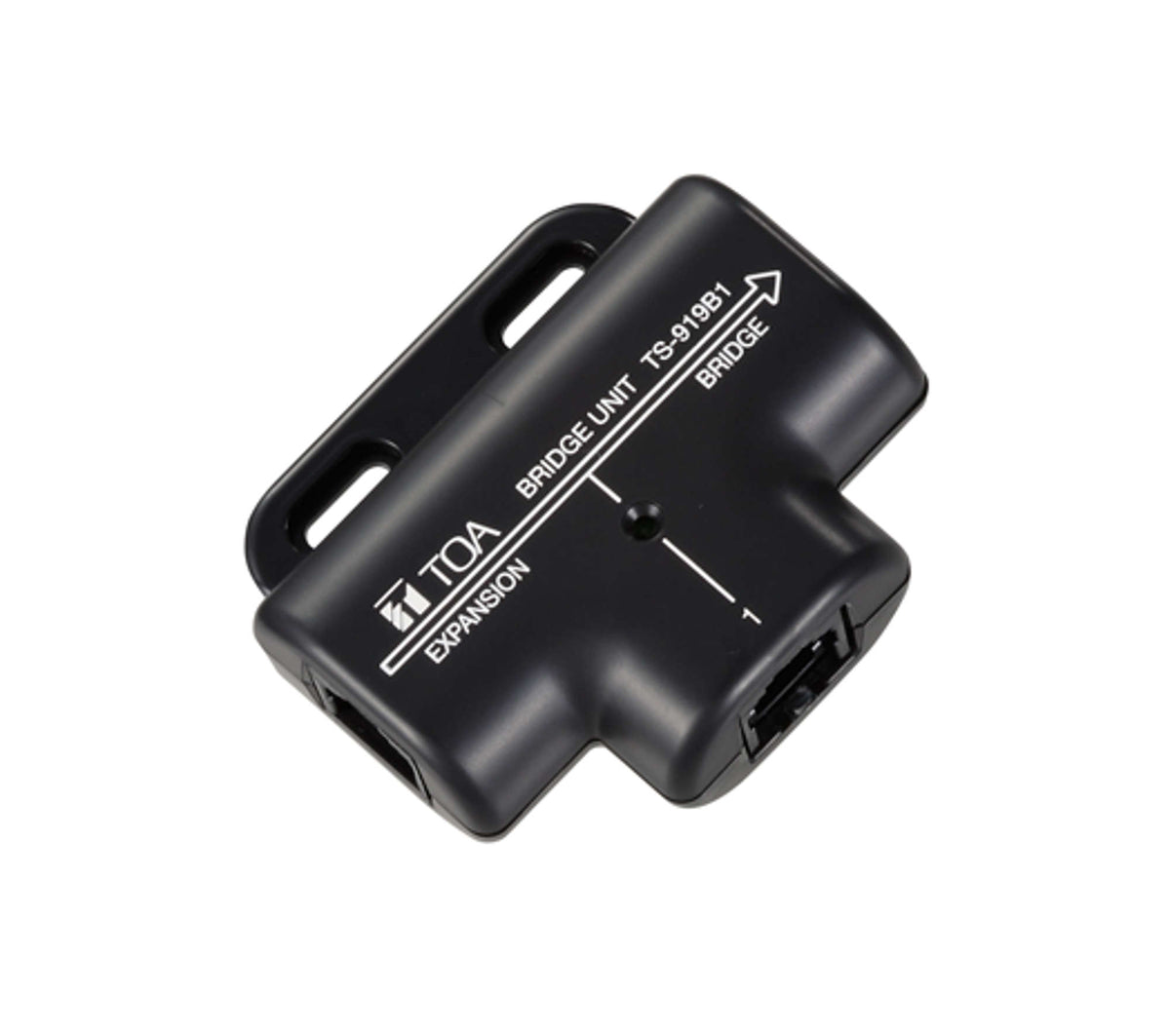

The TOA TS-919B1 is “a Bridge unit for connecting a single Wired Conference unit of the TS-811, TS-911, TS-812, or TS-912”, cabled to the conference unit with Category 5.
It is the one-seat version. A single wired unit that sits away from the rest — a chairman's position at the head of a room, a late addition to a layout — takes a TS-919B1 rather than a share of a four-way bridge. Where four units sit together, the TS-919B4 does the same job for all four in one box.
At 40 g in a 68 mm ABS case it is the smallest part in the system, and it draws its 24 V DC from the TS-918 expansion unit like everything else on the wired branch. Two RJ45 connectors carry the communication line through and a third connects the conference unit.
Features
- Bridge unit for one wired conference unit
- Fits the TS-811, TS-911, TS-812 and TS-912
- Category 5 cable to the conference unit
- Two RJ45 communication connectors plus one conference unit connector
- Powered from the TS-918 expansion unit
- 40 g, black ABS case
- Four-unit version available as the TS-919B4
Specifications
| Technical | |
|---|---|
| Product Type | Bridge unit, single wired conference unit |
| Power Source | 24 V DC, supplied from the TS-918 expansion unit (optional) |
| Current Consumption | Max. 16 mA |
| Branching Loss | Upstream 16.5 dB | downstream 16 dB |
| Insertion Loss | Upstream 1 dB | downstream 0.5 dB |
| Communication Cable Terminal | RJ45 connector × 2 |
| Conference Unit Terminal | RJ45 connector |
| LED Indicator | Connection status indicator |
| Connectable Conference Units | 1 unit |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 68 (W) × 60.3 (H) × 24 (D) mm — 2.68″ × 2.37″ × 0.94″ |
| Weight | 40 g (1.41 oz) |
| Finish | ABS resin, black |
Specifications subject to change.
