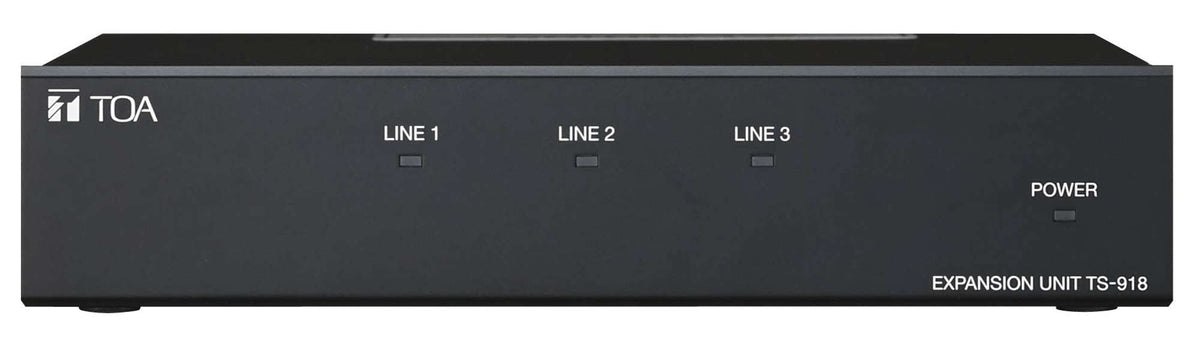

TOA TS-918 US TS-910 Expansion Unit
Product Details
The TOA TS-918 is “an interface necessary for incorporating the Wired conference unit(s) in the conference system”. Without one, a TS-910 system is infrared only. The TS-910 is the central unit of TOA's integrated conference system, and its distinguishing feature is that it runs wired and infrared conference units together on one system rather than forcing a choice between them.
It connects to the TS-910 central unit on coaxial cable through a BNC jack, and out to the bridge units on Category 5 cable through RJ45. Each expansion unit carries up to 24 wired conference units, and a TS-910 accepts four of them.
It also supplies the 24 V DC that the TS-911 and TS-912 wired units and the TS-919B1 and TS-919B4 bridge units run on — so the expansion unit is the power source for the whole wired branch, not just its data path. It is a 1U chassis for an EIA standard rack.
Features
- Interface for adding wired conference units to a TS-910 system
- Up to 24 wired conference units per expansion unit
- Four expansion units per TS-910 central unit
- Supplies 24 V DC to the wired units and bridge units
- BNC coaxial to the central unit, RJ45 Category 5 to the bridge units
- 1U EIA standard rack size
- Auto mic-off and speaker restriction functions
Specifications
| Technical | |
|---|---|
| Product Type | Expansion unit, wired conference unit interface |
| Power Source | 100 – 240 V AC, 50/60 Hz, supplied AC adapter |
| Power Consumption | 74.4 W |
| Current Consumption | Max. 3.1 A DC at 24 V DC from the supplied AC adapter |
| Gain | Upstream +16.5 dB | downstream +12.5 dB |
| Connection Terminals | Central unit: BNC jack | bridge unit: RJ45 connector |
| LED Indicator | Connection status indicators, 3 on the front and 3 on the rear | power indicator |
| Connectable Conference Units | Up to 24 units |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 210 (W) × 44 (H) × 296.5 (D) mm — 8.27″ × 1.73″ × 11.67″ |
| Weight | 1.6 kg (3.53 lb) |
| Finish | Panel: aluminium, black, 30 % gloss | case: pre-coated steel plate, black |
Specifications subject to change.
