TOA TS-912 Infrared Delegate Station for TS-910UL
Product Details

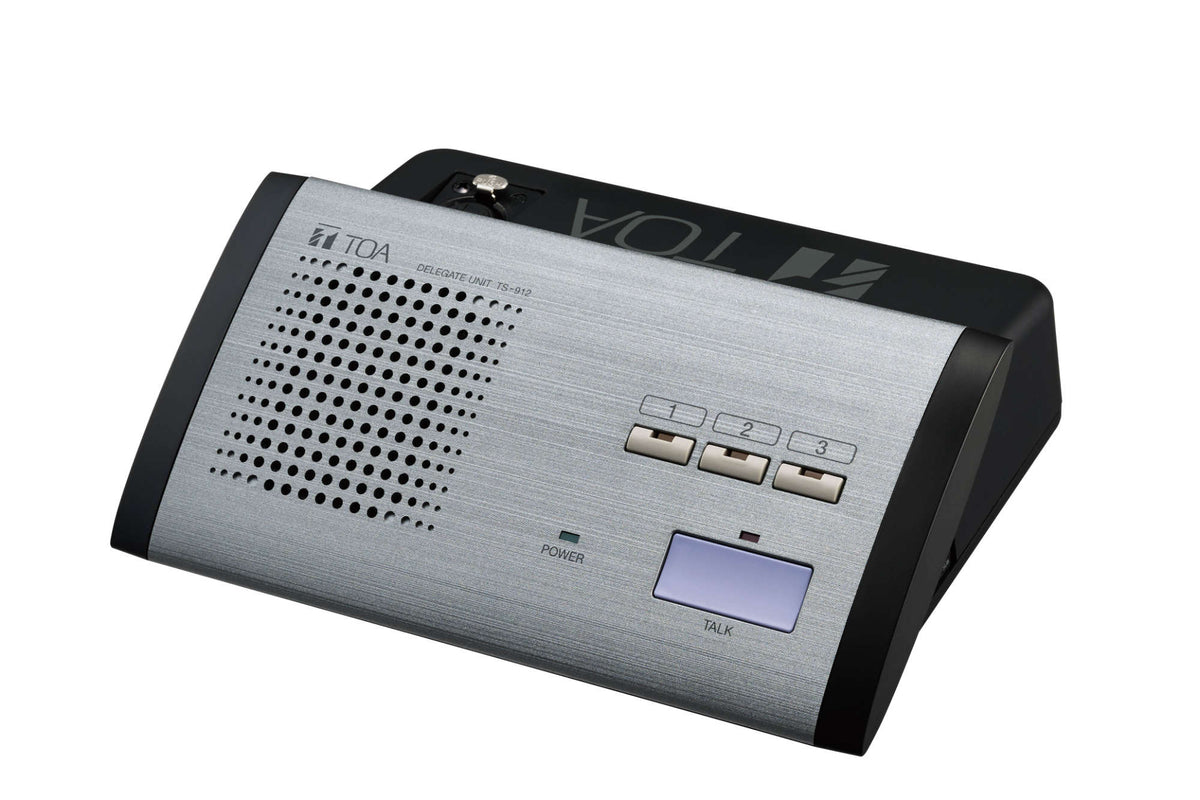

The TOA TS-912 is “a Delegate unit with voting function that can be connected to the conference system by a cable”. It is the TS-911 chairman unit without the priority switch — identical chassis, identical 570 g, identical 0.2 W monitor speaker and twin headphone jacks.
It connects to a TS-919B1 or TS-919B4 bridge unit, then to the TS-910 central unit through a TS-918 expansion unit, which also supplies its 24 V DC. Each expansion unit carries 24 wired units, so a room of delegates is a question of how many expansion units the system needs as much as how many delegate units.
Three voting keys, a channel selector for the conference language, a ring-shaped in-use LED and one recording output. Microphones are optional: the TS-903 or TS-923 standard type, the TS-904 or TS-924 long type.
Features
- Wired delegate unit with voting for the TS-910 conference system
- Three voting keys
- Channel selector for conference language
- Loudspeaker mutes when the microphone opens, and the reverse
- Ring-shaped in-use LED indicator
- 0.2 W monitor speaker and two headphone jacks
- One recording output
- Connects via a TS-919B1 or TS-919B4 bridge and a TS-918 expansion unit
- Microphone ordered separately: TS-903/TS-923 standard, TS-904/TS-924 long
Specifications
| Technical | |
|---|---|
| Product Type | Wired delegate unit with voting function |
| Power Source | 24 V DC, supplied from the TS-918 expansion unit |
| Current Consumption | Max. 60 mA |
| Monitor Speaker Output | 8 Ω, 0.2 W |
| Headphone Output | Ø3.5 mm mini jack (3P: monaural) × 2 |
| LED Indicator | Speech indicator, voting status indicators 1 – 3, power indicator |
| Connection Path | TS-919B1 or TS-919B4 bridge unit, then TS-918 expansion unit, then TS-910 |
| Optional Microphones | TS-903 and TS-923 standard | TS-904 and TS-924 long |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 210 (W) × 68.6 (H) × 152 (D) mm |
| Weight | 570 g (1.26 lb) |
| Finish | ABS resin, grey metallic, paint, semi-gloss |
Specifications subject to change.
