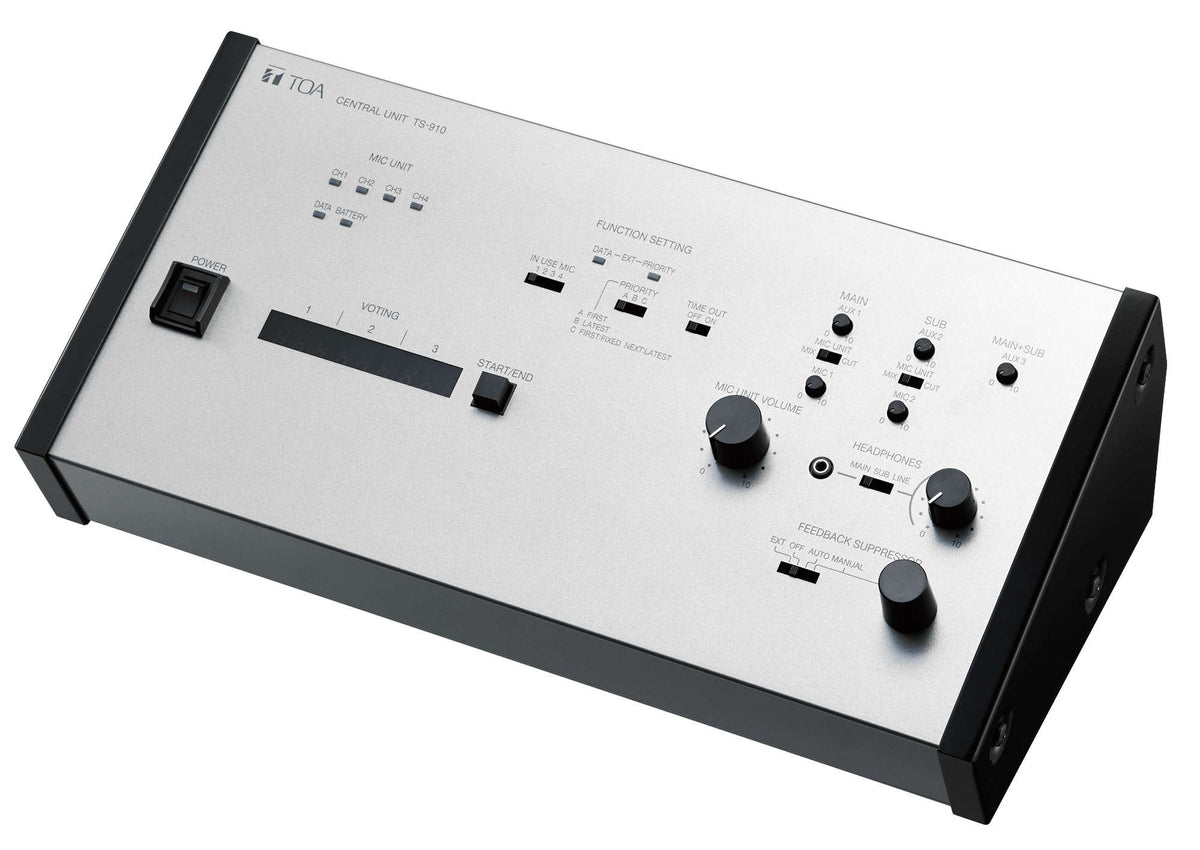

TOA TS-910 US System Controller With Voting and Simultaneous Interpretation Channel
Product Details
The TOA TS-910 is “a Central unit of the Integrated conference system designed for use with both the Wired and Infrared conference units in combination”. That combination is the point: a chamber with fixed wired seats at the front and infrared units on movable tables behind runs from one central unit.
Capacity is 192 chairman and delegate units. Up to four infrared transmitter/receiver units attach directly for the wireless side, and up to four TS-918 expansion units bring the wired side in, each carrying 24 wired units through TS-919B1 or TS-919B4 bridge units. A feedback suppressor is built in, and there are two audio channels so a base language and a translation language can run at once.
A threefold choice voting function gives instantaneous results and a totaliser. All speech can be recorded, an auto mic-off function closes microphones left open, and a speaker restriction function caps how many talk at once. The system is controllable from a PC. It mounts in an EIA standard rack with the optional MB-TS900 bracket.
Features
- Central unit of the integrated conference system — wired and infrared units together
- Up to 192 chairman and delegate units
- Up to 4 infrared transmitter/receiver units
- Up to 4 TS-918 expansion units for wired conference units
- Two audio channels for base and translation languages
- Built-in feedback suppressor
- Threefold choice voting with instantaneous totaliser
- All conference speech can be recorded
- Auto mic-off and speaker restriction functions
- PC control and voting confirmation
- Rack-mountable with the optional MB-TS900 bracket
Specifications
| Technical | |
|---|---|
| Product Type | Central unit, integrated wired and infrared conference system |
| Power Source | 100 – 240 V AC, 50/60 Hz, supplied AC adapter |
| Power Consumption | 72 W |
| Current Consumption | Max. 3 A DC at 24 V DC from the supplied AC adapter |
| Connectable Conference Units | 192 units |
| Connectable Infrared Transmitter/Receiver Units | Up to 4 units |
| Connectable Expansion Units | 4 units |
| Audio Channels | Base language and translation language |
| Voting | Threefold choice, instantaneous totaliser |
| Optional Accessories | Rack mounting bracket: MB-TS900 |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Weight | 2.8 kg (6.17 lb) |
| Finish | Grey metallic paint, semi-gloss steel plate |
| Included Accessories | AC adapter, 1.8 m DC cord and 2 m detachable AC cord |
Specifications subject to change.
