TOA TS-907 Infrared Transceiver for TS-800UL, TS-900UL, TS-820, TS-920Rc High Ceiling Installation (16'-23' )
Product Details

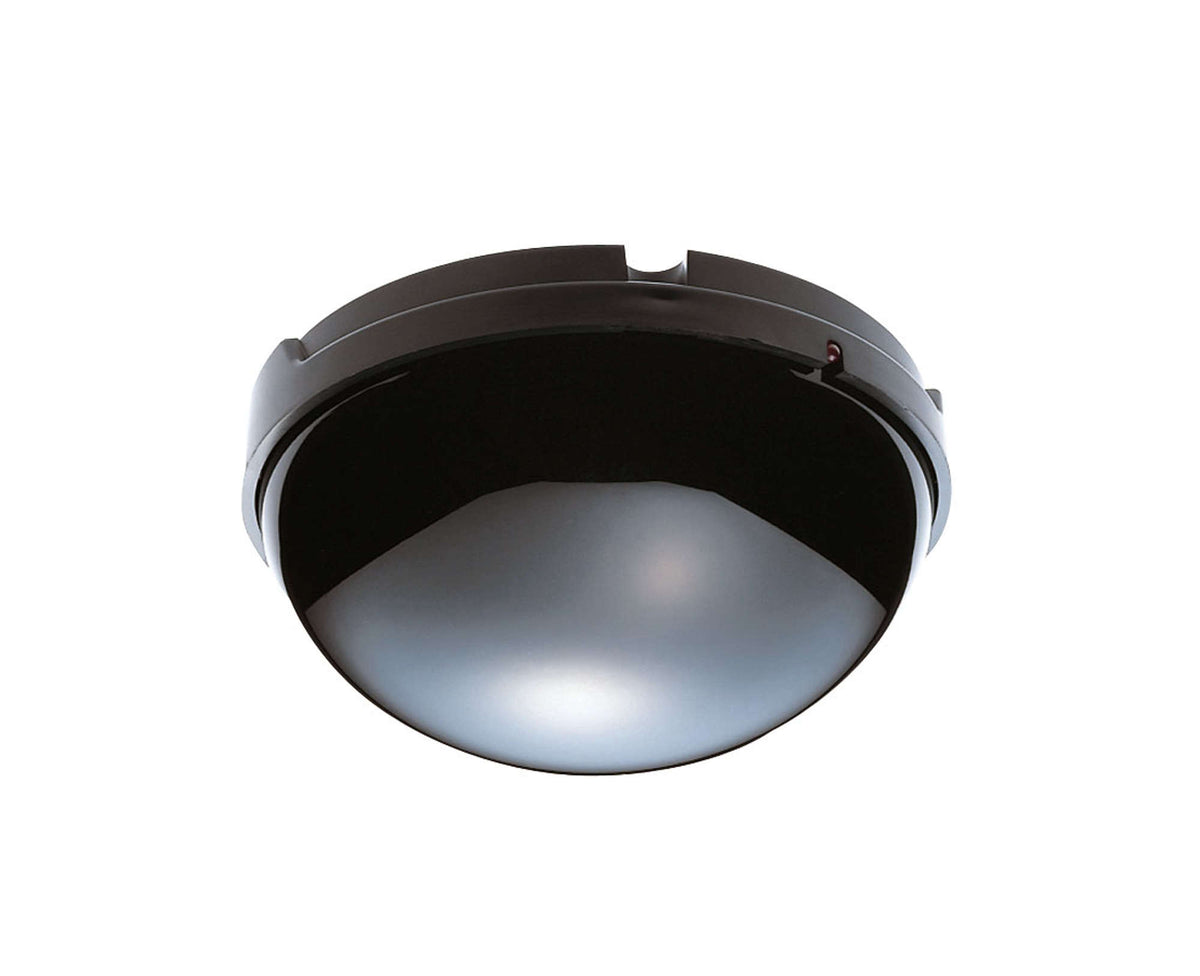

The TOA TS-907 is the infrared transmitter/receiver of the infrared conference system, “designed for high ceiling applications”. It is the link between the central unit and the cordless conference units: audio and control travel to and from the table as infrared light rather than over cable.
Coverage is a radius of approximately 6 m (19.69 ft) at a ceiling height of 5 to 7 m, with a 90° vertical acceptance and emission angle and full 360° horizontally. That ceiling range is the specification to check first — it is what separates the TS-907 from the TS-905, and a unit chosen for the wrong ceiling height leaves dead spots on the table.
It mounts to a ceiling, to a wall, or onto a microphone stand, which makes it practical for a temporary installation as well as a fixed one. Connection to the central unit is a single BNC coaxial run that also carries its 24 V DC. It works with the TS-800UL, TS-900UL, TS-820 and TS-920RC central units.
Features
- Infrared transmitter/receiver for high ceiling conference installations
- Approx. 6 m (19.69 ft) coverage radius at 5 – 7 m ceiling height
- 90° vertical and 360° horizontal acceptance and emission angles
- Ceiling, wall or microphone stand mounting
- Single BNC coaxial run carries signal and 24 V DC power
- Four audio channels plus a control channel
- Works with the TS-800UL, TS-900UL, TS-820 and TS-920RC
- Cordless system — easy to install and remove
Specifications
| Technical | |
|---|---|
| Product Type | Infrared transmitter/receiver, high ceiling |
| Power Source | 24 V DC, supplied from the central unit |
| Current Consumption | Max. 180 mA |
| Infrared Wavelength | 870 nm, AM brightness modulation |
| Modulation Method | Frequency modulation |
| Transmission Carrier Frequency | Audio ch 1: 7.35 MHz | ch 2: 8.10 MHz | ch 3: 8.55 MHz | ch 4: 9.15 MHz | control: 6.45 MHz |
| Reception Carrier Frequency | Base language 1.95 MHz | translation language 2.25 MHz |
| Acceptable Angle | Vertical 90° (45° + 45°) | horizontal 360° |
| Emission Angle | Vertical 90° (45° + 45°) | horizontal 360° |
| Communication Area | Approx. 6 m (19.69 ft) radius at 5 – 7 m ceiling height |
| Connection Terminal | BNC jack |
| Compatible Central Units | TS-800UL, TS-900UL, TS-820, TS-920RC |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | Ø120 × 71.3 (H) mm — 4.72″ × 2.81″ |
| Weight | 230 g (0.51 lb) |
| Finish | Dome: PC resin | base: ABS resin, black |
Specifications subject to change.
